作业描述

采集了台湾环境监测所的数据。
要求：根据前9小时的数据，用线性回归来预测第10个小时的PM2.5的数值。

任务要求

输入：9个小时的数据，共18项特征（AMB_TEMP, CH4, CO, NHMC, NO, NO2, NOx, O3, PM10, PM2.5, RAINFALL, RH, SO2, THC, WD_HR, WIND_DIREC, WIND_SPEED, WS_HR）

输出：第10小时的PM2.5数值

模型：线性回归

模型搭建

Load 'train.csv’

本次作业使用了某个检测站一年的观测数据，数据中每个小时有18个观测指标，将其作为特征。将数据分为train.csv和test.csv，train.csv是该检测站每个月前20天的所有数据，test.csv是从该检测站剩余数据中取样出的部分数据。

• train.csv：每个月前20天的完整数据
• test.csv：从剩下的数据中取样连续的10小时为一组，前9小时所有观测数据当做feature，第10小时的PM2.5当做answer。一共取出240组不重复的test data，请根据feature预测这240组的PM2.5.

所有的数据含有18个观测数据（特征）：AMB_TEMP, CH4, CO, NHMC, NO, NO2, NOx, O3, PM10, PM2.5, RAINFALL, RH, SO2, THC, WD_HR, WIND_DIREC, WIND_SPEED, WS_HR。

import sys
import pandas as pd
import numpy as np
from google.colab import drive
!gdown --id '1wNKAxQ29G15kgpBy_asjTcZRRgmsCZRm' --output data.zip
!unzip data.zip
# data = pd.read_csv('gdrive/My Drive/hw1-regression/train.csv', header = None, encoding = 'big5')
data = pd.read_csv('./train.csv', encoding = 'big5')

Downloading...
From: https://drive.google.com/uc?id=1wNKAxQ29G15kgpBy_asjTcZRRgmsCZRm
To: /content/data.zip
100% 177k/177k [00:00<00:00, 53.8MB/s]
Archive:  data.zip
replace test.csv? [y]es, [n]o, [A]ll, [N]one, [r]ename: y
  inflating: test.csv
replace train.csv? [y]es, [n]o, [A]ll, [N]one, [r]ename: y
  inflating: train.csv

Preprocessing

训练集中前三列不是数值部分，因此要从第四列开始取值，且需要将RAINFALL行的内容‘NR’替换为数值（以0代替）。

# 无用数据去除
data = data.iloc[:, 3:] # 去掉0-3列
data[data == 'NR'] = 0 # 数据中值为“NR”的数据全部赋值为0,去除特殊值。
raw_data = data.to_numpy()

data.head()

	0	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16	17	18	19	20	21	22	23
0	14	14	14	13	12	12	12	12	15	17	20	22	22	22	22	22	21	19	17	16	15	15	15	15
1	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8
2	0.51	0.41	0.39	0.37	0.35	0.3	0.37	0.47	0.78	0.74	0.59	0.52	0.41	0.4	0.37	0.37	0.47	0.69	0.56	0.45	0.38	0.35	0.36	0.32
3	0.2	0.15	0.13	0.12	0.11	0.06	0.1	0.13	0.26	0.23	0.2	0.18	0.12	0.11	0.1	0.13	0.14	0.23	0.18	0.12	0.1	0.09	0.1	0.08
4	0.9	0.6	0.5	1.7	1.8	1.5	1.9	2.2	6.6	7.9	4.2	2.9	3.4	3	2.5	2.2	2.5	2.3	2.1	1.9	1.5	1.6	1.8	1.5

提取特征（1）

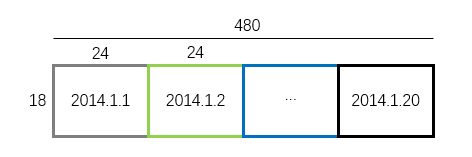

將原始 4320 * 18 的資料依照每個月分重組成 12 個 18 (features) * 480 (hours) 的資料。

month_data = {}
for month in range(12):
    sample = np.empty([18,480])
    for day in range(20):
        sample[:, day * 24 :(day+1) * 24] = raw_data[18 * (20 * month + day) : 18 * (20 * month + day+1), :]
    month_data[month] = sample

特征提取（2）

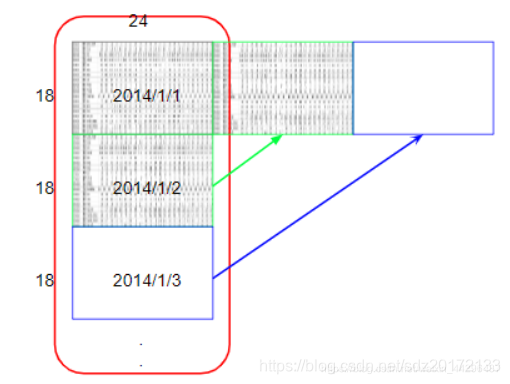

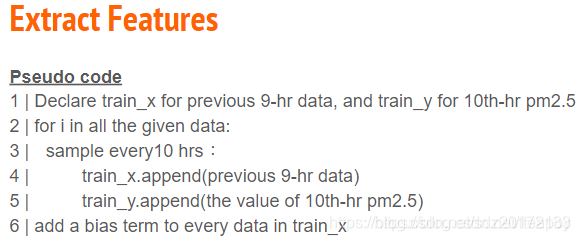

由于最终目的是根据前9小时的数据预测第10小时的PM2.5，所以要把10小时的数据分为一组，其中前9小时的18*9个特征作为输入x，第10个小时的第10个特征作为输出y。上述转换后的18*480数组中，480列依次为同一个月1号到20号各小时的数据，也就是480个小时的数据。以1月份的数据为例，1-10列是1-10小时的数据，作为第1组数据；2-11列是2-10小时的数据，作为第2组数据；以步长为1的方式取值到第480列为止。如下图所示。

这样，一个月就有471组数据，12个月就有12*471组数据，每组数据中，前9小时的数据（18*9的数组）转换成18*9维行向量作为输出；将第10小时的数据（18维列向量）中的第10行的数据（即第10个特征PM2.5的值）作为输出。12个月的12*471组数据的输出放入总的输入x中（12*471行，18*9列的数组），同理输出y为12*471维列向量。

这一步的工作内容为获取x和y这两个数据，就相当于得到训练的数据与目标的结果。

reshape(1, -1)：转换成一个行向量

x = np.empty([12 * 471, 18 * 9], dtype=float)
y = np.empty([12 * 471, 1], dtype=float)
for month in range(12):
    for day in range(20):
        for hour in range(24):
            if day == 19 and hour > 14:
                continue
            x[month * 471 + day * 24 + hour, :] = month_data[month][:,day * 24 + hour : day *24 + hour + 9].reshape(1,-1)
            y[month * 471 + day * 24 + hour, 0] = month_data[month][9, day * 24 + hour + 9]

Normalize 归一化

mean_x = np.mean(x, axis=0)代码解释：
axis=0:对x数据集中的每一列求平均值。

mean_x = np.mean(x, axis=0)
std_x = np.std(x, axis=0)
for i in range(len(x)):
    for j in range(len(x[0])):
        if std_x[j] != 0:
            x[i][j] = (x[i][j] - mean_x[j] / std_x[j])

train 训练

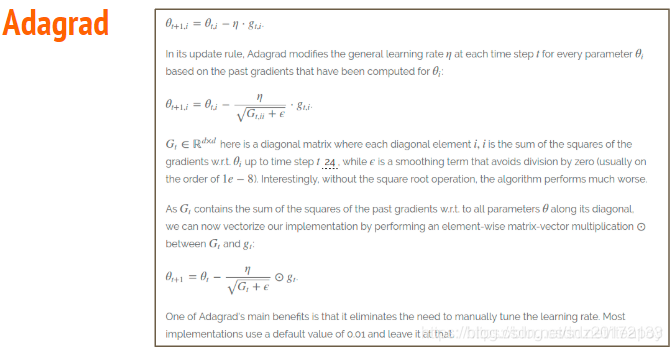

Adagrad讲解

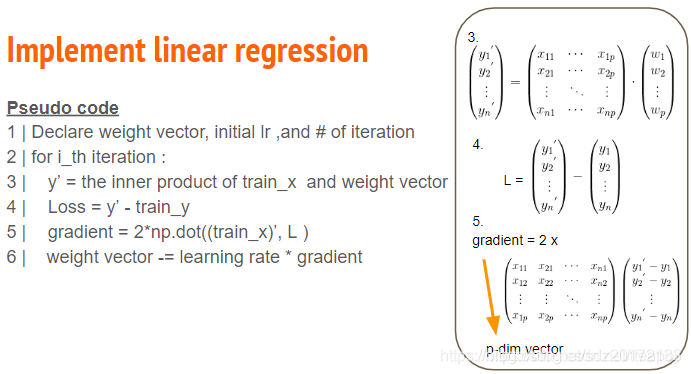

和上图不同处: 下面Loss的代码用到的是 Root Mean Square Error

因为存在常数项b，所以维度（dim）需要多加一列；eps项是极小值，避免adagrad的分母为0.

每一个维度（dim）会对应到各自的gradient和权重w，通过一次次的迭代（iter_time）学习。最终，将训练得到的模型（权重w）存储为.npy格式的文件。

模型：线性函数

输入：一次18*9个数据

参数：18*9个权重+一个偏置

损失函数：均方根误差（Root Mean Square Error）

优化算法：梯度下降、Adagrad

np.concatenate((a,b),axis=1) ： 进行行拼接，拼接结果是[a,b]


x.transpose()：将x转置。

模型：线性回归
$$\mathbf{y}=\left[\begin{array}{c}{y}_1\\ y_2\\ ⋮\\ y_m\end{array}\right]=\left[\begin{array}{c}b+w_1{x}_{1,1}+w_2{x}_{1,2}+\dots +w_n{x}_{1,n}\\ b+w_1{x}_{2,1}+w_2{x}_{2,2}+\dots +w_n{x}_{2,n}\\ ⋮\\ b+w_1{x}_{m,1}+w_2{x}_{m,2}+\dots +w_n{x}_{m,n}\end{array}\right]$$
$$=\left[\begin{array}{ccccc}1& x_{1,1}& x_{1,2}& \cdots & x_{1,n}\\ 1& x_{2,1}& x_{2,2}& \cdots & x_{2,n}\\ ⋮& ⋮& ⋮& \ddots & ⋮\\ 1& x_{m,1}& x_{m,2}& \cdots & x_{m,n}\end{array}\right]\left[\begin{array}{c}b\\ w_1\\ w_2\\ ⋮\\ w_n\end{array}\right]=\left[\begin{array}{c}{\mathbf{x}}_1\\ {\mathbf{x}}_2\\ ⋮\\ {\mathbf{x}}_m\end{array}\right]\mathbf{w}=\mathbf{X}\mathbf{w}$$
损失函数：均方根误差
$$L(\mathbf{w})=\sqrt{\frac{1}{m}\sum _{i=1}^m{\left(y_i-{\hat{y}}_i\right)}^2}=\sqrt{\frac{1}{m}\sum _{i=1}^m{\left({\mathbf{x}}_i\mathbf{w}-{\hat{y}}_i\right)}^2},m=12\ast 471$$
优化方法：Adagrad
$${\mathbf{w}}^{t+1}={\mathbf{w}}^t-\frac{\eta }{\sqrt{{\sum }_{i=0}^t{\left(\frac{\partial L\left({\mathbf{w}}^i\right)}{\partial {\mathbf{w}}^i}\right)}^2}}\frac{\partial L\left({\mathbf{w}}^t\right)}{\partial {\mathbf{w}}^t}$$

$$\frac{\partial L\left({\mathbf{w}}^t\right)}{\partial {\mathbf{w}}^t}=\left[\begin{array}{c}\frac{\partial L\left({\mathbf{w}}^t\right)}{\partial b\left({\mathbf{w}}^t\right)}\\ \frac{\partial U_1^t}{1}\\ ⋮\\ \frac{\partial L\left({\mathbf{w}}^t\right)}{\partial w_n^t}\end{array}\right]=2\left[\begin{array}{c}1\left({\mathbf{x}}_1\mathbf{w}-{\hat{y}}_1\right)+1\left({\mathbf{x}}_2\mathbf{w}-{\hat{y}}_2\right)+\cdots +1\left({\mathbf{x}}_m\mathbf{w}-{\hat{y}}_m\right)\\ x_{1,1}\left({\mathbf{x}}_1\mathbf{w}-{\hat{y}}_1\right)+x_{2,1}\left({\mathbf{x}}_2\mathbf{w}-{\hat{y}}_2\right)+\cdots +x_{m,1}\left({\mathbf{x}}_m\mathbf{w}-{\hat{y}}_m\right)\\ ⋮\\ x_{1,n}\left({\mathbf{x}}_1\mathbf{w}-{\hat{y}}_1\right)+x_{2,n}\left({\mathbf{x}}_2\mathbf{w}-{\hat{y}}_2\right)+\cdots +x_{m,n}\left({\mathbf{x}}_m\mathbf{w}-{\hat{y}}_m\right)\end{array}\right]$$
$$=2\left[\begin{array}{cccc}1& 1& \cdots & 1\\ x_{1,1}& x_{2,1}& \cdots & x_{m,1}\\ x_{1,2}& x_{2,2}& \cdots & x_{m,2}\\ ⋮& ⋮& \ddots & ⋮\\ x_{1,n}& x_{2,n}& \cdots & x_{m,n}\end{array}\right]\left(\left[\begin{array}{c}{\mathbf{x}}_1\mathbf{w}\\ {\mathbf{x}}_2\mathbf{w}\\ ⋮\\ {\mathbf{x}}_m\mathbf{w}\end{array}\right]-\left[\begin{array}{c}{\hat{y}}_1\\ {\hat{y}}_2\\ ⋮\\ {\hat{y}}_m\end{array}\right]\right)=2{\mathbf{X}}^T(\mathbf{X}\mathbf{w}-\hat{\mathbf{y}})$$

dim = 18 * 9 + 1 #参数：18*9个权重 + 1个偏置bias
w = np.zeros([dim, 1]) #参数列向量初始化为0
#x新增一列用来与偏置bias相乘，将模型y=wx+b转化成y=[b,w]转置·[1,x]
x = np.concatenate((np.ones([12 * 471, 1]), x), axis = 1).astype(float)
learning_rate = 2
iter_time = 6000
adagrad = np.zeros([dim, 1])
eps = 0.0000000001
for t in range(iter_time):
    loss = np.sqrt(np.sum(np.power(np.dot(x, w) - y, 2))/471/12)#rmse
    if(t%1000==0):
        print(str(t) + ":" + str(loss))
    gradient = 2 * np.dot(x.transpose(), np.dot(x, w) - y) #dim*1
    adagrad += gradient ** 2
    w = w - learning_rate * gradient / np.sqrt(adagrad + eps) #eps是一个很小的正数，避免分母为0
np.save('weight.npy', w)
#print(w)

0:27.071214829194115
1000:7.009213113051888
2000:6.502608081214534
3000:6.274166821906605
4000:6.142124124714215
5000:6.055390909221868

Testing

测试集数据与训练集类似，不过只给了9个小时的数据，第10小时的数据需要用训练的模型预测。总共有240个id的数据，也就是240组18*9的数据，需要预测出240个值。

# 读入测试数据test.csv
testdata = pd.read_csv('./test.csv', header = None, encoding = 'big5')
# 丢弃前两列，需要的是从第3列开始的数据
test_data = testdata.iloc[:, 2:]
# 把降雨为NR字符变成数字0
test_data[test_data == 'NR'] = 0
# 将dataframe变成numpy数组
test_data = test_data.to_numpy()
# 将test数据也变成 240 个维度为 18 * 9 + 1 的数据。
test_x = np.empty([240, 18*9], dtype = float)
for i in range(240):
    test_x[i, :] = test_data[18 * i: 18* (i + 1), :].reshape(1, -1)
for i in range(len(test_x)):
    for j in range(len(test_x[0])):
        if std_x[j] != 0:
            test_x[i][j] = (test_x[i][j] - mean_x[j]) / std_x[j]
test_x = np.concatenate((np.ones([240, 1]), test_x), axis = 1).astype(float)
test_x

/usr/local/lib/python3.6/dist-packages/ipykernel_launcher.py:6: SettingWithCopyWarning:
A value is trying to be set on a copy of a slice from a DataFrame.
Try using .loc[row_indexer,col_indexer] = value instead

See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy

/usr/local/lib/python3.6/dist-packages/pandas/core/frame.py:3093: SettingWithCopyWarning:
A value is trying to be set on a copy of a slice from a DataFrame

See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy
  self._where(-key, value, inplace=True)





array([[ 1.        , -0.24447681, -0.24545919, ..., -0.67065391,
        -1.04594393,  0.07797893],
       [ 1.        , -1.35825331, -1.51789368, ...,  0.17279117,
        -0.10906991, -0.48454426],
       [ 1.        ,  1.5057434 ,  1.34508393, ..., -1.32666675,
        -1.04594393, -0.57829812],
       ...,
       [ 1.        ,  0.3919669 ,  0.54981237, ...,  0.26650729,
        -0.20275731,  1.20302531],
       [ 1.        , -1.8355861 , -1.8360023 , ..., -1.04551839,
        -1.13963133, -1.14082131],
       [ 1.        , -1.35825331, -1.35883937, ...,  2.98427476,
         3.26367657,  1.76554849]])

Prediction

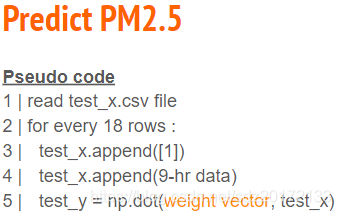

說明圖同上

载入模型即可对test数据进行预测，得到预测值ans_y。

w = np.load('weight.npy')
ans_y = np.dot(test_x, w)

把预测值保存为CSV文件

import csv
with open('submit.csv', mode='w', newline='') as submit_file:
    csv_writer = csv.writer(submit_file)
    header = ['id', 'value']
    csv_writer.writerow(header)
    for i in range(240):
        row = ['id_' + str(i), ans_y[i][0]]
        csv_writer.writerow(row)


完整代码

# 导入相关库
import sys
import pandas as pd
import numpy as np

# 读入数据
data = pd.read_csv('./train.csv', encoding = 'big5')

# 数据预处理
data = data.iloc[:, 3:]
data[data == 'NR'] = 0
raw_data = data.to_numpy()

# 按月分割数据
month_data = {}
for month in range(12):
    sample = np.empty([18, 480])
    for day in range(20):
        sample[:, day * 24 : (day + 1) * 24] = raw_data[18 * (20 * month + day) : 18 * (20 * month + day + 1), :]
    month_data[month] = sample

# 分割x和y
x = np.empty([12 * 471, 18 * 9], dtype = float)
y = np.empty([12 * 471, 1], dtype = float)
for month in range(12):
    for day in range(20):
        for hour in range(24):
            if day == 19 and hour > 14:
                continue
            x[month * 471 + day * 24 + hour, :] = month_data[month][:,day * 24 + hour : day * 24 + hour + 9].reshape(1, -1) #vector dim:18*9 (9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9)
            y[month * 471 + day * 24 + hour, 0] = month_data[month][9, day * 24 + hour + 9] #value


# 对x标准化
mean_x = np.mean(x, axis = 0) #18 * 9
std_x = np.std(x, axis = 0) #18 * 9
for i in range(len(x)): #12 * 471
    for j in range(len(x[0])): #18 * 9
        if std_x[j] != 0:
            x[i][j] = (x[i][j] - mean_x[j]) / std_x[j]

# 训练模型并保存权重
dim = 18 * 9 + 1
w = np.zeros([dim, 1])
x2 = np.concatenate((np.ones([12 * 471, 1]), x), axis = 1).astype(float)
learning_rate = 2
iter_time = 10000
adagrad = np.zeros([dim, 1])
eps = 1e-7
for t in range(iter_time):
    loss = np.sqrt(np.sum(np.power(np.dot(x2, w) - y, 2))/471/12)#rmse
    if(t%1000==0):
        print(str(t) + ":" + str(loss))
    gradient = 2 * np.dot(x2.transpose(), np.dot(x2, w) - y) #dim*1
    adagrad += gradient ** 2
    w = w - learning_rate * gradient / (np.sqrt(adagrad) + eps)

np.save('weight.npy', w)

# 导入测试数据test.csv
testdata = pd.read_csv('./test.csv', header = None, encoding = 'big5')
test_data = testdata.iloc[:, 2:]
test_data[test_data == 'NR'] = 0
test_data = test_data.to_numpy()
test_x = np.empty([240, 18*9], dtype = float)
for i in range(240):
    test_x[i, :] = test_data[18 * i: 18* (i + 1), :].reshape(1, -1)
for i in range(len(test_x)):
    for j in range(len(test_x[0])):
        if std_x[j] != 0:
            test_x[i][j] = (test_x[i][j] - mean_x[j]) / std_x[j]
test_x = np.concatenate((np.ones([240, 1]), test_x), axis = 1).astype(float)

# 对test的x进行预测，得到预测值ans_y
w = np.load('weight.npy')
ans_y = np.dot(test_x, w)
# 加一个预处理<0的都变成0
for i in range(240):
    if(ans_y[i][0]<0):
        ans_y[i][0]=0
    else:
        ans_y[i][0]=np.round(ans_y[i][0])

# 保存为csv文件，并提交到kaggle：https://www.kaggle.com/c/ml2020spring-hw1/submissions
import csv
with open('submit1.csv', mode='w', newline='') as submit_file:
    csv_writer = csv.writer(submit_file)
    header = ['id', 'value']

    csv_writer.writerow(header)
    for i in range(240):
        row = ['id_' + str(i), ans_y[i][0]]
        csv_writer.writerow(row)


0:27.071214829194115
1000:5.833520263644297
2000:5.725894874614578
3000:5.696965973062232
4000:5.687776442345435
5000:5.684605135867572
6000:5.683380671750098
7000:5.682811312617999
8000:5.682473834864111
9000:5.682226133038848


/usr/local/lib/python3.6/dist-packages/ipykernel_launcher.py:63: SettingWithCopyWarning:
A value is trying to be set on a copy of a slice from a DataFrame.
Try using .loc[row_indexer,col_indexer] = value instead

See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy
/usr/local/lib/python3.6/dist-packages/pandas/core/frame.py:3093: SettingWithCopyWarning:
A value is trying to be set on a copy of a slice from a DataFrame

See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy
  self._where(-key, value, inplace=True)

版本2

加入x的平方项，private score的分数下降了很多，不过public score的分数上升了。

# 训练集
for month in range(12):
    for day in range(20):
        for hour in range(24):
            if day == 19 and hour > 14:
                continue
            x1 = month_data[month][:, day * 24 + hour: day * 24 + hour + 9].reshape(1,-1)  # vector dim:18*9 (9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9)
            x[month * 471 + day * 24 + hour, :18 * 9] = x1
            # 在这里加入了x的二次项
            x[month * 471 + day * 24 + hour, 18 * 9: 18 * 9 * 2] = np.power(x1, 2)
            y[month * 471 + day * 24 + hour, 0] = month_data[month][9, day * 24 + hour + 9]  # value

# 测试集
testdata = pd.read_csv('./test.csv', header = None, encoding = 'big5')
test_data = testdata.iloc[:, 2:]
test_data[test_data == 'NR'] = 0
test_data = test_data.to_numpy()
test_x1 = np.empty([240, 18*9], dtype = float)
test_x = np.empty([240, 18*9*2], dtype = float)
for i in range(240):
    test_x1 = test_data[18 * i: 18 * (i + 1), :].reshape(1, -1).astype(float)
    # 同样在这里加入test x的二次项
    test_x[i, : 18 * 9] = test_x1
    test_x[i, 18 * 9:] = np.power(test_x1 , 2)
for i in range(len(test_x)):
    for j in range(len(test_x[0])):
        if std_x[j] != 0:
            test_x[i][j] = (test_x[i][j] - mean_x[j]) / std_x[j]
test_x = np.concatenate((np.ones([240, 1]), test_x), axis = 1).astype(float)

完整代码

import sys
import pandas as pd
import numpy as np

# 读入数据
data = pd.read_csv('./train.csv', encoding='big5')

# 数据预处理
data = data.iloc[:, 3:]
data[data == 'NR'] = 0
raw_data = data.to_numpy()

# 按月分割数据
month_data = {}
for month in range(12):
    sample = np.empty([18, 480])
    for day in range(20):
        sample[:, day * 24: (day + 1) * 24] = raw_data[18 * (20 * month + day): 18 * (20 * month + day + 1), :]
    month_data[month] = sample

# 分割x和y
x = np.empty([12 * 471, 18 * 9 * 2], dtype=float)
y = np.empty([12 * 471, 1], dtype=float)
for month in range(12):
    for day in range(20):
        for hour in range(24):
            if day == 19 and hour > 14:
                continue
            x1 = month_data[month][:, day * 24 + hour: day * 24 + hour + 9].reshape(1,-1)  # vector dim:18*9 (9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9)
            x[month * 471 + day * 24 + hour, :18 * 9] = x1
            # 在这里加入了x的二次项
            x[month * 471 + day * 24 + hour, 18 * 9: 18 * 9 * 2] = np.power(x1, 2)
            y[month * 471 + day * 24 + hour, 0] = month_data[month][9, day * 24 + hour + 9]  # value

# 对x标准化
mean_x = np.mean(x, axis=0)  # 18 * 9 * 2
std_x = np.std(x, axis=0)  # 18 * 9 * 2
for i in range(len(x)):  # 12 * 471
    for j in range(len(x[0])):  # 18 * 9 * 2
        if std_x[j] != 0:
            x[i][j] = (x[i][j] - mean_x[j]) / std_x[j]


# 随机打散X和Y
def _shuffle(X, Y):
    randomize = np.arange(len(X))
    np.random.shuffle(randomize)
    return (X[randomize], Y[randomize])

# 训练模型并保存权重
dim = 18 * 9 * 2 + 1
w = np.ones([dim, 1])
learning_rate = 2
iter_time = 5000
adagrad = np.zeros([dim, 1])
eps = 1e-7

for t in range(iter_time):
    x, y = _shuffle(x, y)
    x2 = np.concatenate((np.ones([len(x), 1]), x), axis=1).astype(float)
    gradient = 2 * np.dot(x2.transpose(), np.dot(x2, w) - y)  # dim*1
    adagrad += gradient ** 2
    w = w - learning_rate * gradient / (np.sqrt(adagrad) + eps)

    loss = np.sqrt(np.sum(np.power(np.dot(x2, w) - y, 2)) / len(x))  # rmse
    if (t % 100 == 0):
        print(str(t) + ":" + str(loss))

np.save('weight.npy', w)

# 导入测试数据test.csv
testdata = pd.read_csv('./test.csv', header = None, encoding = 'big5')
test_data = testdata.iloc[:, 2:]
test_data[test_data == 'NR'] = 0
test_data = test_data.to_numpy()
test_x1 = np.empty([240, 18*9], dtype = float)
test_x = np.empty([240, 18*9*2], dtype = float)
for i in range(240):
    test_x1 = test_data[18 * i: 18 * (i + 1), :].reshape(1, -1).astype(float)
    # 同样在这里加入test x的二次项
    test_x[i, : 18 * 9] = test_x1
    test_x[i, 18 * 9:] = np.power(test_x1 , 2)
for i in range(len(test_x)):
    for j in range(len(test_x[0])):
        if std_x[j] != 0:
            test_x[i][j] = (test_x[i][j] - mean_x[j]) / std_x[j]
test_x = np.concatenate((np.ones([240, 1]), test_x), axis = 1).astype(float)

# 对test的x进行预测，得到预测值ans_y
w = np.load('weight.npy')
ans_y = np.dot(test_x, w)
# 加一个预处理<0的都变成0
for i in range(240):
    if(ans_y[i][0]<0):
        ans_y[i][0]=0
    else:
        ans_y[i][0]=np.round(ans_y[i][0])

# 保存为csv文件，并提交到kaggle：https://www.kaggle.com/c/ml2020spring-hw1/submissions
import csv
with open('submit.csv', mode='w', newline='') as submit_file:
    csv_writer = csv.writer(submit_file)
    header = ['id', 'value']
    print(header)
    csv_writer.writerow(header)
    for i in range(240):
        row = ['id_' + str(i), ans_y[i][0]]
        csv_writer.writerow(row)
