前言

发现在表数据量达到500w级别时,排行榜查询会变得非常慢,慢到分钟级别.
这个数据量下即使加了索引,响应时间也是秒级的,为了优化用户和商家的体验,我打算利用redis的zset实现排行榜功能.

⏸ plan mode on

技术栈: canal,redis,MySQL,MyBatis,Springboot
初步方案: 用canal监听MySQL的binlog 变化,将MySQL的变更同步到redis的zset
方案细节:

在同步前,应先将全量数据同步到redis
处理好退款等可能导致订单量减少的问题

方案解释:
为什么要用canal而不直接双写?

MySQL 的事务提交后才会产生 binlog,只要 binlog 到位,回放即可跟 MySQL 精确对齐.不会出现一个成功一个失败的情况
业务耦合低,对原代码无侵入

方案流程:

canal会伪装成MySQL的slave,使MySQL向他推送binlog更新
canal解析binlog内容,发送到应用层
应用层将数据推送到redis

⏵⏵ accept edits on

核心架构

订单完成 status→5 → MySQL binlog → Canal Server → SalesRankCanalClient → ZINCRBY Redis ZSet

关键逻辑

Canal 客户端 (SalesRankCanalClient.java) — 独立 daemon 线程循环拉取 Canal Server 的 binlog 事件，过滤 orders 表 UPDATE 且 status 从非5→5 的行，提取orderId 后调用 SalesRankService.updateRank()。含断线重连机制。

@Override
public void run(String... args) {
    listenerThread = new Thread(this::listen, "canal-sales-rank");
    listenerThread.setDaemon(true);
    listenerThread.start();
    log.info("Canal 销量排行监听线程已启动");
}

private void listen() {
    while (running) {
        CanalConnector connector = CanalConnectors.newSingleConnector(
                new InetSocketAddress(canalProperties.getHost(), canalProperties.getPort()),
                canalProperties.getDestination(),
                canalProperties.getUsername(),
                canalProperties.getPassword()
        );

        try {
            connector.connect();
            connector.subscribe("sky_take_out\\.orders");
            connector.rollback();
            log.info("Canal 连接成功: {}:{}/{}",
                    canalProperties.getHost(), canalProperties.getPort(), canalProperties.getDestination());

            while (running) {
                Message message = connector.getWithoutAck(100, 1000L, TimeUnit.MILLISECONDS);
                long batchId = message.getId();
                if (batchId == -1 || message.getEntries().isEmpty()) {
                    continue;
                }

                processEntries(message.getEntries());

                connector.ack(batchId);
            }
        } catch (Exception e) {
            log.error("Canal 连接异常，10秒后重试...", e);
            sleepQuietly(10_000);
        } finally {
            try {
                connector.disconnect();
            } catch (Exception ignored) {
            }
        }
    }
}

当前代码的 while 循环是合适的，因为：
- Canal 是长连接流式监听，必须持续运行
- 双层 while 实现了消费循环 + 断线重连
- getWithoutAck 的超时机制避免了 CPU 空转

private void handleRowUpdate(CanalEntry.RowData rowData) {
    String afterStatus = null;
    String beforeStatus = null;
    Long orderId = null;

    for (CanalEntry.Column column : rowData.getAfterColumnsList()) {
        if ("id".equals(column.getName())) {
            orderId = Long.valueOf(column.getValue());
        }
        if ("status".equals(column.getName())) {
            afterStatus = column.getValue();
        }
    }

    for (CanalEntry.Column column : rowData.getBeforeColumnsList()) {
        if ("status".equals(column.getName())) {
            beforeStatus = column.getValue();
        }
    }

    if ("5".equals(afterStatus) && !"5".equals(beforeStatus)) {
        log.info("Canal 检测到订单完成: orderId={}", orderId);
        try {
            salesRankService.updateRank(orderId);
        } catch (Exception e) {
            log.error("更新销量排行失败: orderId={}", orderId, e);
        }
    }
}

排行更新 (SalesRankServiceImpl.updateRank()) — 根据 orderId 查 order_detail，对每条明细：
dishId != null → ZINCRBY sales:rank:dish {number} {dishId}
setmealId != null → ZINCRBY sales:rank:setmeal {number} {setmealId}

@Override
public void updateRank(Long orderId) {
    List<OrderDetail> details = orderDetailMapper.getByOrderId(orderId);
    if (details == null || details.isEmpty()) {
        log.warn("订单 {} 无明细数据，跳过排行更新", orderId);
        return;
    }

    for (OrderDetail detail : details) {
        if (detail.getDishId() != null) {
            redisTemplate.opsForZSet().incrementScore(
                    DISH_RANK_KEY,
                    String.valueOf(detail.getDishId()),
                    detail.getNumber().doubleValue()
            );
        }
        if (detail.getSetmealId() != null) {
            redisTemplate.opsForZSet().incrementScore(
                    SETMEAL_RANK_KEY,
                    String.valueOf(detail.getSetmealId()),
                    detail.getNumber().doubleValue()
            );
        }
    }
    log.info("销量排行已更新: orderId={}, items={}", orderId, details.size());
}

排行查询 (getDishRanking/getSetmealRanking) — ZREVRANGE … WITHSCORES 取 Top N，解析 member（ID 字符串）后批量查 DishMapper.selectBatch() /SetmealMapper.getByIds() 组装名称和图片返回。

@Override
public List<SalesRankVO> getDishRanking(int top) {
    Set<ZSetOperations.TypedTuple<Object>> topSet =
            redisTemplate.opsForZSet().reverseRangeWithScores(DISH_RANK_KEY, 0, top - 1);

    if (topSet == null || topSet.isEmpty()) {
        return Collections.emptyList();
    }

    List<Long> dishIds = new ArrayList<>();
    List<Double> scores = new ArrayList<>();
    for (ZSetOperations.TypedTuple<Object> entry : topSet) {
        dishIds.add(Long.valueOf((String) entry.getValue()));
        scores.add(entry.getScore());
    }

    List<Dish> dishes = dishMapper.selectBatch(dishIds);
    Map<Long, Dish> dishMap = dishes.stream()
            .collect(Collectors.toMap(Dish::getId, d -> d, (a, b) -> a));

    List<SalesRankVO> result = new ArrayList<>();
    for (int i = 0; i < dishIds.size(); i++) {
        Long dishId = dishIds.get(i);
        Dish dish = dishMap.get(dishId);
        result.add(SalesRankVO.builder()
                .rank(i + 1)
                .id(dishId)
                .name(dish != null ? dish.getName() : "未知菜品")
                .sales(scores.get(i).intValue())
                .image(dish != null ? dish.getImage() : null)
                .build());
    }
    return result;
}

全量兜底 (syncFromDatabase) — 查询所有 status=5 的 order_detail，按 dish_id / setmeal_id 分别 SUM(number) 后 ZADD 覆盖写入 Redis。启动时若 ZSet为空自动执行，每天凌晨 3 点定时重同步。

@Override
public void syncFromDatabase() {
    log.info("开始全量同步销量排行...");

    List<Map<String, Object>> dishSales = orderMapper.getCompletedDishSales();
    if (dishSales != null && !dishSales.isEmpty()) {
        redisTemplate.delete(DISH_RANK_KEY);
        for (Map<String, Object> row : dishSales) {
            Object idObj = row.get("id");
            Object numObj = row.get("number");
            String member = String.valueOf(idObj);
            double score = toDouble(numObj);
            redisTemplate.opsForZSet().add(DISH_RANK_KEY, member, score);
        }
        log.info("菜品销量同步完成: {} 条", dishSales.size());
    }

    List<Map<String, Object>> setmealSales = orderMapper.getCompletedSetmealSales();
    if (setmealSales != null && !setmealSales.isEmpty()) {
        redisTemplate.delete(SETMEAL_RANK_KEY);
        for (Map<String, Object> row : setmealSales) {
            Object idObj = row.get("id");
            Object numObj = row.get("number");
            String member = String.valueOf(idObj);
            double score = toDouble(numObj);
            redisTemplate.opsForZSet().add(SETMEAL_RANK_KEY, member, score);
        }
        log.info("套餐销量同步完成: {} 条", setmealSales.size());
    }
}

启动

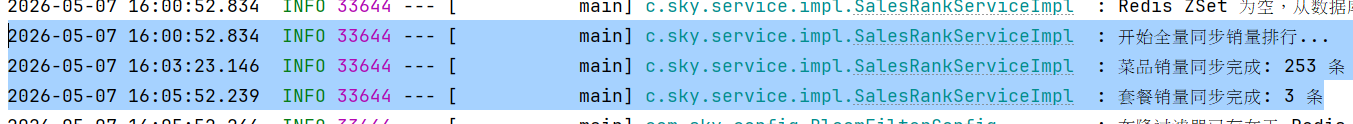

超级预热时间
超绝预热时间,查两次500w级别的库再inner join 1000w的detail表直接干到分钟级别的查询延迟,待会再加个预聚合表优化,先看这套方案行不行

Redis:

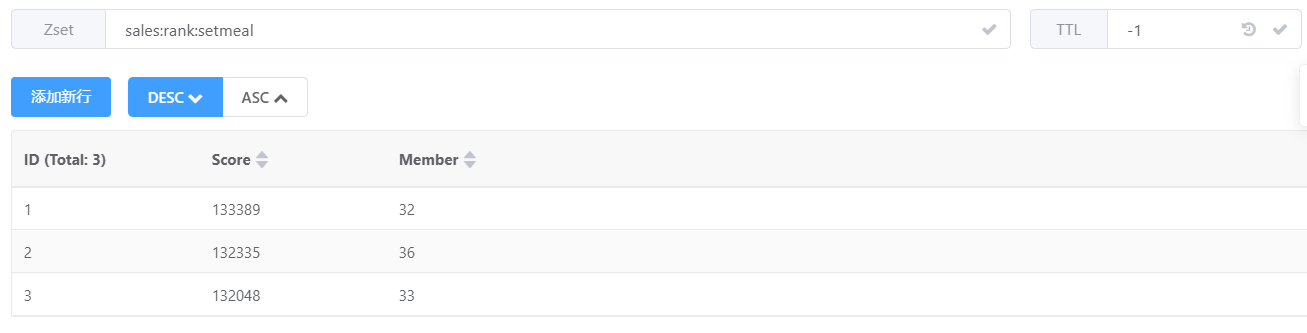

redis的sales

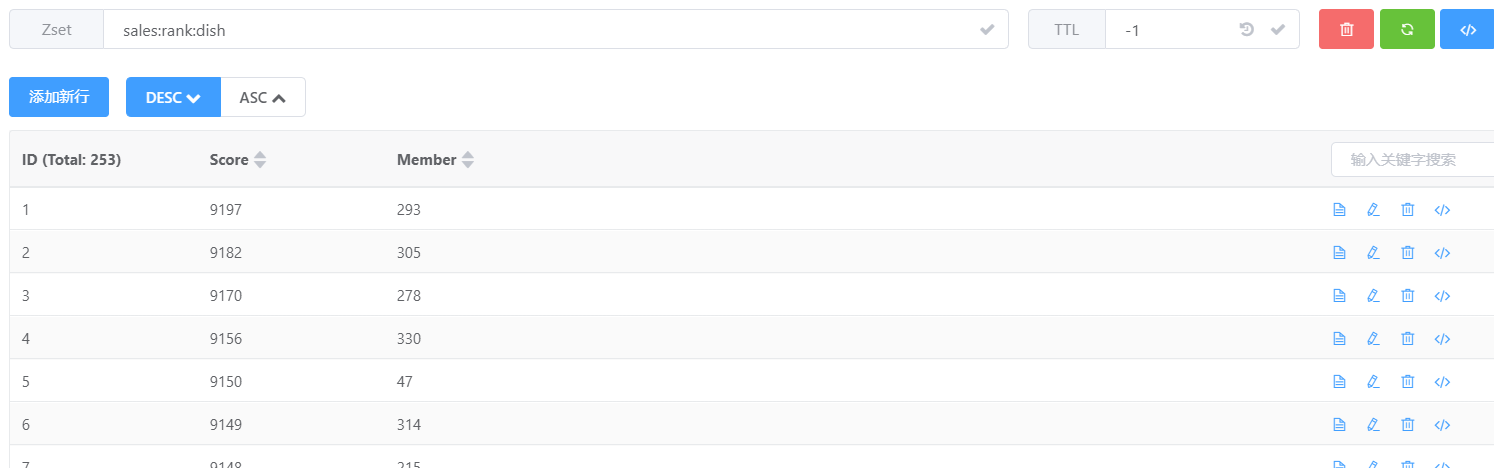

dish rank
正常,查询看看耗时

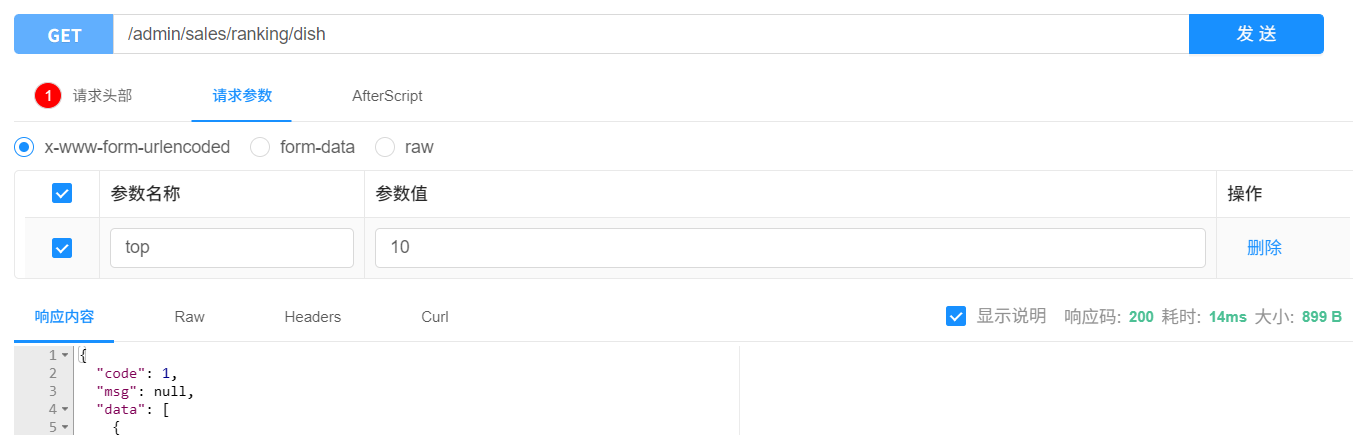

查询耗时
优化成功,最后压测看看性能,JMeter(3000 3 2)
JMeter测试
够用了

预聚合

预聚合是指提前对原始数据进行计算和汇总，将聚合结果（如求和、计数、平均值等）存储起来，以便后续查询时直接读取这些预先计算好的结果，而不需要每次都重新扫描全部原始数据进行计算。

非常适合我的情况:千万级表查询

索引优化

改造前先看看能不能加索引优化:

SELECT od.dish_id, 1, SUM(od.number)
FROM order_detail od
INNER JOIN orders o ON od.order_id = o.id
WHERE o.status = 5 AND od.dish_id IS NOT NULL
GROUP BY od.dish_id

SELECT od.setmeal_id, 2, SUM(od.number)
FROM order_detail od
INNER JOIN orders o ON od.order_id = o.id
WHERE o.status = 5 AND od.setmeal_id IS NOT NULL
GROUP BY od.setmeal_id

对应的表

create table orders
(
    id                      bigint auto_increment comment '主键'
        primary key,
    number                  varchar(50)          null comment '订单号',
    status                  int        default 1 not null comment '订单状态 1待付款 2待接单 3已接单 4派送中 5已完成 6已取消 7退款',
    user_id                 bigint               not null comment '下单用户',
    address_book_id         bigint               not null comment '地址id',
    order_time              datetime             not null comment '下单时间',
    checkout_time           datetime             null comment '结账时间',
    pay_method              int        default 1 not null comment '支付方式 1微信,2支付宝',
    pay_status              tinyint    default 0 not null comment '支付状态 0未支付 1已支付 2退款',
    amount                  decimal(10, 2)       not null comment '实收金额',
    remark                  varchar(100)         null comment '备注',
    phone                   varchar(11)          null comment '手机号',
    address                 varchar(255)         null comment '地址',
    user_name               varchar(32)          null comment '用户名称',
    consignee               varchar(32)          null comment '收货人',
    cancel_reason           varchar(255)         null comment '订单取消原因',
    rejection_reason        varchar(255)         null comment '订单拒绝原因',
    cancel_time             datetime             null comment '订单取消时间',
    estimated_delivery_time datetime             null comment '预计送达时间',
    delivery_status         tinyint(1) default 1 not null comment '配送状态  1立即送出  0选择具体时间',
    delivery_time           datetime             null comment '送达时间',
    pack_amount             int                  null comment '打包费',
    tableware_number        int                  null comment '餐具数量',
    tableware_status        tinyint(1) default 1 not null comment '餐具数量状态  1按餐量提供  0选择具体数量'
)
    comment '订单表' collate = utf8mb3_bin;

create index idx_cover_query
    on orders (user_id, status, order_time, pay_status, id);

create table order_detail
(
    id          bigint auto_increment comment '主键'
        primary key,
    name        varchar(32)    null comment '名字',
    image       varchar(255)   null comment '图片',
    order_id    bigint         not null comment '订单id',
    dish_id     bigint         null comment '菜品id',
    setmeal_id  bigint         null comment '套餐id',
    dish_flavor varchar(50)    null comment '口味',
    number      int default 1  not null comment '数量',
    amount      decimal(10, 2) not null comment '金额'
)
    comment '订单明细表' collate = utf8mb3_bin;

create index idx_order_dish_number
    on order_detail (order_id, dish_id, number);

这个覆盖索引是之前那篇千万级表单分页查询优化时加的.

对于order表,我们先考虑where后面的字段status和join后面的id.
对于order_detail表,我们考虑join后的order_id和第一条sql的group后的dish_id以及第二条sql的group后的setmeal_id,同时可以将SUM中的number也考虑进去,建覆盖索引

注意,在这里order_detail是被驱动表,被驱动表建索引时先考虑join后的字段再考虑其他列

建:

ALTER TABLE orders ADD INDEX idx_status_id (status, id);
ALTER TABLE order_detail ADD INDEX idx_order_dish_number (order_id, dish_id, number);
ALTER TABLE order_detail ADD INDEX idx_order_setmeal_number(order_id,setmeal_id,number);

来对比下建索引前后的查询销量:

2026-05-07 19:50:39.112 INFO 37072 — [nio-8080-exec-2] c.sky.service.impl.SalesRankServiceImpl : 开始从大表重建汇总表…
2026-05-07 19:56:06.897 INFO 37072 — [nio-8080-exec-2] c.sky.service.impl.SalesRankServiceImpl : 汇总表重建完成, 耗时 327785ms

建orders表的索引后:

2026-05-07 20:20:42.618 INFO 37072 — [nio-8080-exec-8] c.sky.service.impl.SalesRankServiceImpl : 开始从大表重建汇总表…
2026-05-07 20:23:53.464 INFO 37072 — [nio-8080-exec-8] c.sky.service.impl.SalesRankServiceImpl : 汇总表重建完成, 耗时 190846ms

建order_detail的索引后:

2026-05-07 21:43:49.882 INFO 37072 — [nio-8080-exec-2] c.sky.service.impl.SalesRankServiceImpl : 开始从大表重建汇总表…
2026-05-07 21:44:34.733 INFO 37072 — [nio-8080-exec-2] c.sky.service.impl.SalesRankServiceImpl : 汇总表重建完成, 耗时 44851ms

327s->190s->44s,优化的幅度还行,考虑到重建的频率较低,将重建方法放在凌晨执行即可

建表与SQL

create table sky_take_out.sales_summary
(
    id          bigint auto_increment              primary key,
    item_id     bigint                             not null comment 'dish_id 或 setmeal_id',
    item_type   tinyint                            not null comment '1=菜品 2=套餐',
    total_sales int      default 0                 not null comment '累计销量',
    updated_at  datetime default CURRENT_TIMESTAMP null on update CURRENT_TIMESTAMP,
    constraint uk_item
        unique (item_type, item_id)
)
    comment '销量汇总表';

unique (item_type, item_id)保证菜品和套餐不冲突
对应全量同步SQL:

INSERT INTO sales_summary (item_id, item_type, total_sales)
SELECT od.dish_id, 1, SUM(od.number)
FROM order_detail od
INNER JOIN orders o ON od.order_id = o.id
WHERE o.status = 5 AND od.dish_id IS NOT NULL
GROUP BY od.dish_id
ON DUPLICATE KEY UPDATE total_sales = VALUES(total_sales)

INSERT INTO sales_summary (item_id, item_type, total_sales)
SELECT od.setmeal_id, 2, SUM(od.number)
FROM order_detail od
INNER JOIN orders o ON od.order_id = o.id
WHERE o.status = 5 AND od.setmeal_id IS NOT NULL
GROUP BY od.setmeal_id
ON DUPLICATE KEY UPDATE total_sales = VALUES(total_sales)

ON DUPLICATE KEY UPDATE就是有则更新,无则插入,也叫 Upsert(Update + Insert),和表的unique (item_type, item_id)相配合,VALUES(total_sales)是引用INSERT那边的新值

业务层

改造

更新更新排行榜的方法,这里是提速的核心

@Override
public void updateRank(Long orderId) {
    List<OrderDetail> details = orderDetailMapper.getByOrderId(orderId);
    if (details == null || details.isEmpty()) {
        log.warn("订单 {} 无明细数据，跳过排行更新", orderId);
        return;
    }

    for (OrderDetail detail : details) {
        if (detail.getDishId() != null) {
            int number = detail.getNumber();
            // 双写：MySQL 汇总表
            salesSummaryMapper.insertOrIncrement(SalesSummary.builder()
                    .itemId(detail.getDishId())
                    .itemType(SalesSummary.ITEM_TYPE_DISH)
                    .totalSales(number)
                    .build());
            // 双写：Redis ZSet
            redisTemplate.opsForZSet().incrementScore(
                    DISH_RANK_KEY,
                    String.valueOf(detail.getDishId()),
                    number
            );
        }
        if (detail.getSetmealId() != null) {
            int number = detail.getNumber();
            salesSummaryMapper.insertOrIncrement(SalesSummary.builder()
                    .itemId(detail.getSetmealId())
                    .itemType(SalesSummary.ITEM_TYPE_SETMEAL)
                    .totalSales(number)
                    .build());
            redisTemplate.opsForZSet().incrementScore(
                    SETMEAL_RANK_KEY,
                    String.valueOf(detail.getSetmealId()),
                    number
            );
        }
    }
    log.info("销量排行已更新: orderId={}, items={}", orderId, details.size());
}

同步到redis的方法更新为从汇总表查询

@Override
public void syncFromDatabase() {
    log.info("开始从汇总表全量同步销量排行...");
    long start = System.currentTimeMillis();

    List<SalesSummary> summaries = salesSummaryMapper.selectAll();
    if (summaries == null || summaries.isEmpty()) {
        log.info("汇总表无数据，跳过同步");
        return;
    }

    redisTemplate.delete(DISH_RANK_KEY);
    redisTemplate.delete(SETMEAL_RANK_KEY);

    int dishCount = 0;
    int setmealCount = 0;
    for (SalesSummary s : summaries) {
        String key = SalesSummary.ITEM_TYPE_DISH.equals(s.getItemType()) ? DISH_RANK_KEY : SETMEAL_RANK_KEY;
        String member = String.valueOf(s.getItemId());
        redisTemplate.opsForZSet().add(key, member, s.getTotalSales().doubleValue());
        if (SalesSummary.ITEM_TYPE_DISH.equals(s.getItemType())) {
            dishCount++;
        } else {
            setmealCount++;
        }
    }
    long elapsed = System.currentTimeMillis() - start;
    log.info("销量排行同步完成: 菜品 {} 项, 套餐 {} 项, 耗时 {}ms", dishCount, setmealCount, elapsed);
}

新增

重建汇总表方法

@Override
public void syncSummaryTable() {
    log.info("开始从大表重建汇总表...");
    long start = System.currentTimeMillis();

    salesSummaryMapper.rebuildDishSummary();
    salesSummaryMapper.rebuildSetmealSummary();

    long elapsed = System.currentTimeMillis() - start;
    log.info("汇总表重建完成, 耗时 {}ms", elapsed);
}

改造完成,测试下同步速度

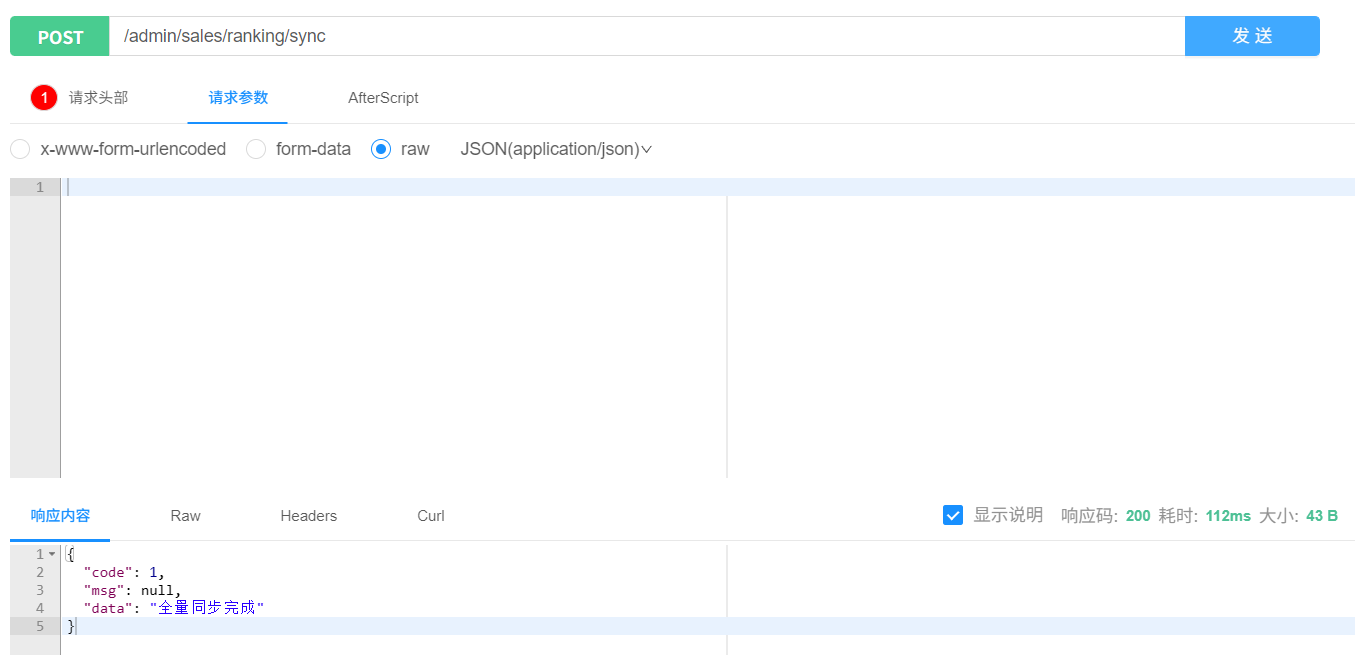

改造后速度
响应时间很短
再新增订单,查看逻辑是否正常

2026-05-07 23:08:43.180 INFO 37072 — [nio-8080-exec-2] com.sky.controller.user.OrderController : 用户下单:OrdersSubmitDTO(addressBookId=2, payMethod=1, remark=, estimatedDeliveryTime=2026-05-28T21:24:58, deliveryStatus=1, tablewareNumber=1, tablewareStatus=0, packAmount=1, amount=45)
2026-05-07 23:10:13.146 INFO 37072 — [nio-8080-exec-5] com.sky.controller.user.OrderController : 订单支付：OrdersPaymentDTO(orderNumber=1778166523182, payMethod=1)
2026-05-07 23:10:18.526 INFO 37072 — [nio-8080-exec-5] com.sky.controller.user.OrderController : 生成预支付交易单：OrderPaymentVO(nonceStr=null, paySign=null, timeStamp=null, signType=null, packageStr=null)
2026-05-07 23:11:37.207 INFO 37072 — [anal-sales-rank] com.sky.canal.SalesRankCanalClient : Canal 检测到订单完成: orderId=5220352
2026-05-07 23:11:37.222 INFO 37072 — [anal-sales-rank] c.sky.service.impl.SalesRankServiceImpl : 销量排行已更新: orderId=5220352, items=1

数据库更新时间能和日志对上,更新正常
对应redis
redis和数据库数量对的上,一致性正常

退款

若是给用户看的排行榜,可以不考虑退款,因为是强调热度.但在商家端需要考核真实业绩,必须考虑退款情况.

改造

实现类不能单纯增加,把zadd改为zincreby

@Override
public void updateRank(Long orderId) {
    adjustRank(orderId, true);
}

@Override
public void decreaseRank(Long orderId) {
    adjustRank(orderId, false);
}

private void adjustRank(Long orderId, boolean isIncrement) {
    List<OrderDetail> details = orderDetailMapper.getByOrderId(orderId);
    if (details == null || details.isEmpty()) {
        log.warn("订单 {} 无明细数据，跳过排行调整", orderId);
        return;
    }

    String action = isIncrement ? "增加" : "减少";
    for (OrderDetail detail : details) {
        int delta = isIncrement ? detail.getNumber() : -detail.getNumber();
        if (detail.getDishId() != null) {
            salesSummaryMapper.insertOrIncrement(SalesSummary.builder()
                    .itemId(detail.getDishId())
                    .itemType(SalesSummary.ITEM_TYPE_DISH)
                    .totalSales(delta)
                    .build());
            redisTemplate.opsForZSet().incrementScore(
                    DISH_RANK_KEY,
                    String.valueOf(detail.getDishId()),
                    delta
            );
        }
        if (detail.getSetmealId() != null) {
            salesSummaryMapper.insertOrIncrement(SalesSummary.builder()
                    .itemId(detail.getSetmealId())
                    .itemType(SalesSummary.ITEM_TYPE_SETMEAL)
                    .totalSales(delta)
                    .build());
            redisTemplate.opsForZSet().incrementScore(
                    SETMEAL_RANK_KEY,
                    String.valueOf(detail.getSetmealId()),
                    delta
            );
        }
    }
    log.info("销量排行已{}: orderId={}, items={}", action, orderId, details.size());
}

调用改为

private void handleRowUpdate(CanalEntry.RowData rowData) {
    Long orderId = null;
    String afterStatus = null;
    String beforeStatus = null;
    String afterPayStatus = null;
    String beforePayStatus = null;

    for (CanalEntry.Column column : rowData.getAfterColumnsList()) {
        if ("id".equals(column.getName())) {
            orderId = Long.valueOf(column.getValue());
        } else if ("status".equals(column.getName())) {
            afterStatus = column.getValue();
        } else if ("pay_status".equals(column.getName())) {
            afterPayStatus = column.getValue();
        }
    }

    for (CanalEntry.Column column : rowData.getBeforeColumnsList()) {
        if ("status".equals(column.getName())) {
            beforeStatus = column.getValue();
        } else if ("pay_status".equals(column.getName())) {
            beforePayStatus = column.getValue();
        }
    }

    // 订单完成: status 变为 5 → 加销量
    if ("5".equals(afterStatus) && !"5".equals(beforeStatus)) {
        log.info("Canal 检测到订单完成: orderId={}", orderId);
        try {
            salesRankService.updateRank(orderId);
        } catch (Exception e) {
            log.error("增加销量排行失败: orderId={}", orderId, e);
        }
        return;
    }

    // 订单取消/退款(通过status): status 从 5 变为其他 → 减销量
    if (!"5".equals(afterStatus) && "5".equals(beforeStatus)) {
        log.info("Canal 检测到订单取消(状态变更): orderId={}, {}→{}", orderId, beforeStatus, afterStatus);
        try {
            salesRankService.decreaseRank(orderId);
        } catch (Exception e) {
            log.error("减少销量排行失败: orderId={}", orderId, e);
        }
        return;
    }

    // 支付级退款: status 仍是 5, 但 pay_status 变为 2(退款) → 减销量
    if ("5".equals(afterStatus) && !"2".equals(beforePayStatus) && "2".equals(afterPayStatus)) {
        log.info("Canal 检测到支付退款: orderId={}, payStatus {}→{}", orderId, beforePayStatus, afterPayStatus);
        try {
            salesRankService.decreaseRank(orderId);
        } catch (Exception e) {
            log.error("减少销量排行失败: orderId={}", orderId, e);
        }
    }
}

来测试看下,改前数据

发起退款

2026-05-08 10:02:09.317 INFO 26788 — [nio-8080-exec-7] c.sky.controller.admin.OrderController : 退款: OrdersRefundDTO(id=5220352)
2026-05-08 10:02:09.438 INFO 26788 — [anal-sales-rank] com.sky.canal.SalesRankCanalClient : Canal 检测到支付退款: orderId=5220352, payStatus 1→2
2026-05-08 10:02:09.451 INFO 26788 — [anal-sales-rank] c.sky.service.impl.SalesRankServiceImpl : 销量排行已减少: orderId=5220352, items=1

成功双减
