前言

你有没有经历过这样的场景：DolphinScheduler 默默挂了半天，任务全部停摆，结果你还在工位上优哉游哉喝咖啡，直到老板冲过来问"数据怎么还没更新"——那一刻，你的表情大概和线上服务一样，卡住了。

在上篇文章 DolphinScheduler 任务阻塞死锁排查与解决方案中，我们聊过一个扎心的事实：DolphinScheduler 如果因为阻塞或死锁挂掉了，它自己是不会告警的——毕竟，一个"已经去世"的调度系统，你还指望它给你发遗言吗？

网上搜了一圈，关于 DolphinScheduler 对接 Prometheus 监控的完整实践方案，少得可怜。

所以本文来填这个坑：一份轻量、已在生产验证的 DolphinScheduler + Prometheus + Grafana 集成方案，从指标采集到告警规则到可视化看板，一条龙搞定。

一、整体方案概览

先看全局视角，整个监控链路其实就三步：

步骤	组件	职责
1	DolphinScheduler	暴露 `/actuator/prometheus` 指标端点
2	Prometheus	定时抓取指标 + 配置告警规则
3	Grafana	可视化展示，一眼看穿调度健康状况

简单来说：Dolphin 负责"把脉"，Prometheus 负责"看诊"，Grafana 负责"出报告"。三者配合，你就可以安心喝咖啡了（这次是真的安心）。

二、接入 Prometheus

1. 确认 DolphinScheduler 支持指标暴露

DolphinScheduler 2.0.0 及以上版本内置了 Prometheus 指标端点，无需额外插件。

验证方式——直接 curl 一下：

curl http://<dolphin-host>:12345/dolphinscheduler/actuator/prometheus

如果返回了一堆 ds_ 开头的指标数据，恭喜你，Dolphin 已经准备好被"监视"了。如果返回 404……那说明版本不够新，建议升级后再来。

2. 配置 Prometheus 抓取任务

在 prometheus.yml 中添加以下抓取配置：

scrape_configs:
  # 主机监控（可选，用于监控 Dolphin 所在服务器资源）
  - job_name: 'node-exporter'
    static_configs:
      - targets:
          - '<dolphin-host>:9100'
        labels:
          instance: 'dolphin-server'
          nodename: 'dolphin-server'

  # DolphinScheduler 指标采集
  - job_name: 'dolphinscheduler'
    static_configs:
      - targets: ['<dolphin-host>:12345']
        labels:
          service: dolphinscheduler
    metrics_path: '/dolphinscheduler/actuator/prometheus'
    metric_relabel_configs:
      - source_labels: [application]
        target_label: app
      - regex: 'application'
        action: labeldrop

Tips：<dolphin-host> 替换为你实际的 DolphinScheduler 服务地址。如果是集群部署，多个节点都要加上。

3. 配置告警规则（重头戏来了）

这才是整篇文章的灵魂——不配告警的监控，跟不监控有什么区别？

创建告警规则文件 dolphinscheduler-rules.yml，以下是经过生产验证的 10 条规则，覆盖了从"Dolphin 挂了"到"任务跑飞了"的各种场景：

# DolphinScheduler 监控告警规则
groups:
  - name: dolphinscheduler-alerts
    rules:

      # ============ 核心规则：服务存活检测 ============

      # 规则1：一小时内没有成功的任务（大概率已经挂了）
      - alert: DolphinScheduler一小时无成功任务
        expr: increase(ds_task_instance_count_total{state="success"}[1h]) == 0
        for: 5m
        labels:
          severity: critical
          group: dolphinscheduler
        annotations:
          summary: "DolphinScheduler 一小时内无成功任务"
          description: "实例 {{ $labels.application }} 在过去 1 小时内没有产生成功的任务，可能已经挂掉，请立即检查服务状态"

      # 规则2：30分钟内没有成功的任务（预警）
      - alert: DolphinScheduler30分钟无成功任务
        expr: increase(ds_task_instance_count_total{state="success"}[30m]) == 0
        for: 5m
        labels:
          severity: warning
          group: dolphinscheduler
        annotations:
          summary: "DolphinScheduler 30分钟内无成功任务"
          description: "实例 {{ $labels.application }} 在过去 30 分钟内没有产生成功的任务，请注意检查"

      # ============ 任务健康度检测 ============

      # 规则3：任务失败率过高
      - alert: DolphinScheduler任务失败率高
        expr: |
          (
            increase(ds_task_instance_count_total{state="fail"}[10m])
            /
            (increase(ds_task_instance_count_total{state="finish"}[10m]) + 1)
          ) > 0.1
        for: 5m
        labels:
          severity: warning
          group: dolphinscheduler
        annotations:
          summary: "DolphinScheduler 任务失败率过高"
          description: "实例 {{ $labels.application }} 在过去 10 分钟内任务失败率超过 10%，当前失败率: {{ $value | humanizePercentage }}"

      # 规则4：任务分发失败
      - alert: DolphinScheduler任务分发失败
        expr: increase(ds_task_dispatch_failure_count_total[10m]) > 0
        labels:
          severity: warning
          group: dolphinscheduler
        annotations:
          summary: "DolphinScheduler 任务分发失败"
          description: "实例 {{ $labels.application }} 在过去 10 分钟内有 {{ $value }} 次任务分发失败"

      # ============ Worker 健康检测 ============

      # 规则5：Worker 活跃线程数为 0（有任务提交却没人干活）
      - alert: DolphinScheduler Worker无活跃线程
        expr: ds_worker_active_execute_thread == 0 and increase(ds_task_instance_count_total{state="submit"}[5m]) > 0
        for: 10m
        labels:
          severity: warning
          group: dolphinscheduler
        annotations:
          summary: "DolphinScheduler Worker 无活跃执行线程"
          description: "实例 {{ $labels.application }} 的 Worker 没有活跃的执行线程，但有任务提交，任务可能无法执行"

      # 规则6：Worker 内存使用率过高
      - alert: DolphinScheduler Worker内存使用率高
        expr: ds_worker_memory_usage > 0.85
        for: 5m
        labels:
          severity: warning
          group: dolphinscheduler
        annotations:
          summary: "DolphinScheduler Worker 内存使用率过高"
          description: "实例 {{ $labels.application }} 的 Worker 内存使用率为 {{ $value | humanizePercentage }}，超过 85%"

      # 规则7：Worker CPU 使用率过高
      - alert: DolphinScheduler Worker CPU使用率高
        expr: ds_worker_cpu_usage > 0.85
        for: 5m
        labels:
          severity: warning
          group: dolphinscheduler
        annotations:
          summary: "DolphinScheduler Worker CPU 使用率过高"
          description: "实例 {{ $labels.application }} 的 Worker CPU 使用率为 {{ $value | humanizePercentage }}，超过 85%"

      # ============ 工作流 & Master 检测 ============

      # 规则8：工作流实例长时间运行（可能阻塞了）
      - alert: DolphinScheduler工作流长时间运行
        expr: ds_workflow_instance_running > 10
        for: 30m
        labels:
          severity: warning
          group: dolphinscheduler
        annotations:
          summary: "DolphinScheduler 工作流长时间运行"
          description: "实例 {{ $labels.application }} 有 {{ $value }} 个工作流实例运行超过 30 分钟，可能存在阻塞"

      # 规则9：Master 故障转移检查异常
      - alert: DolphinScheduler Master故障转移检查异常
        expr: increase(ds_master_scheduler_failover_check_count_total{result="fail"}[10m]) > 0
        labels:
          severity: critical
          group: dolphinscheduler
        annotations:
          summary: "DolphinScheduler Master 故障转移检查异常"
          description: "实例 {{ $labels.application }} 在过去 10 分钟内 Master 故障转移检查失败 {{ $value }} 次"

      # ============ 告警通道自检 ============

      # 规则10：告警发送失败（监控系统的监控，套娃了属于是）
      - alert: DolphinScheduler告警发送失败
        expr: increase(ds_alert_send_count_total{status="fail"}[10m]) > 5
        labels:
          severity: warning
          group: dolphinscheduler
        annotations:
          summary: "DolphinScheduler 告警发送失败"
          description: "实例 {{ $labels.application }} 在过去 10 分钟内有 {{ $value }} 次告警发送失败"

这 10 条规则按场景分成了四组，用一张表总结一下：

分组	规则	级别	触发条件
服务存活	1h 无成功任务	Critical	1 小时内 success 数为 0
服务存活	30min 无成功任务	Warning	30 分钟内 success 数为 0
任务健康	失败率过高	Warning	10 分钟内失败率 > 10%
任务健康	任务分发失败	Warning	10 分钟内有分发失败
Worker	无活跃线程	Warning	有提交但线程数为 0
Worker	内存 > 85%	Warning	持续 5 分钟超阈值
Worker	CPU > 85%	Warning	持续 5 分钟超阈值
工作流	长时间运行	Warning	运行中实例 > 10 且持续 30min
Master	故障转移异常	Critical	有 failover 检查失败
自检	告警发送失败	Warning	10 分钟内失败 > 5 次

4. 告警效果验证

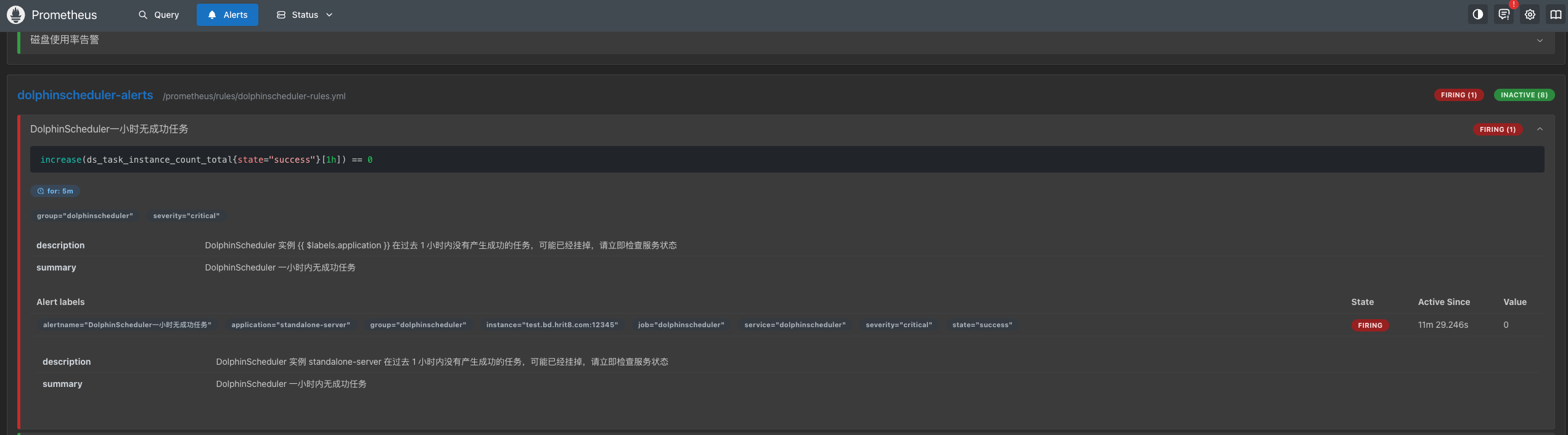

当 DolphinScheduler 停止运行或任务因为某些原因暂停时，告警就会自动触发：

在这里插入图片描述

终于可以在服务挂掉的时候第一时间收到通知了，而不是等老板来通知你。

三、接入 Grafana 可视化看板

光有告警还不够，我们还需要一个看板来直观了解调度系统的整体状态。Grafana 正好擅长干这事。

前提：Grafana 的数据源已经对接好了 Prometheus。如果还没配，先去 Grafana → Configuration → Data Sources 添加 Prometheus 数据源。

1. 导入仪表板

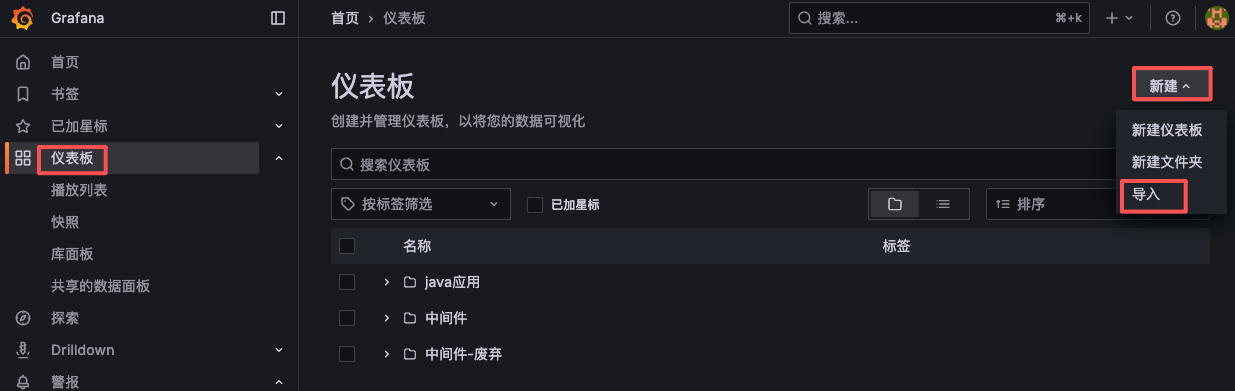

进入 Grafana → 仪表板 → 新建 → 导入

在这里插入图片描述

1.1 方式一：通过仪表板 ID 导入（推荐）

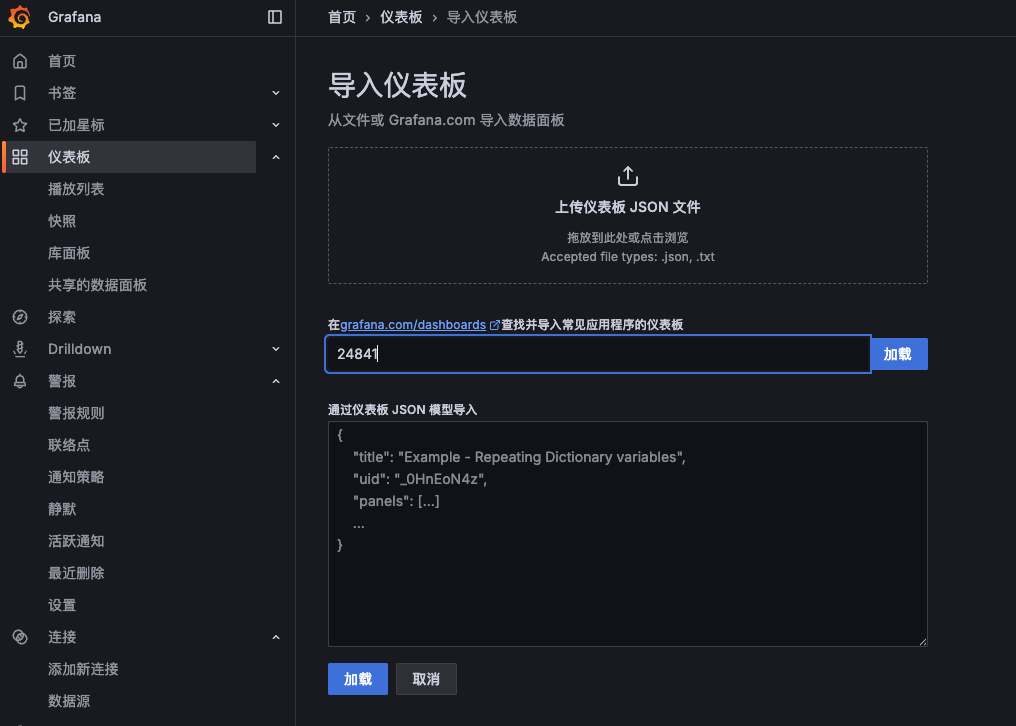

在导入页面输入仪表板 ID：24841，然后点击 Load：

在这里插入图片描述

这是最简单的方式，一个数字搞定，比手动配 JSON 省心 100 倍。

1.2 方式二：通过 JSON 模板导入

如果你的 Grafana 无法访问外网（公司内网环境懂的都懂），可以用以下 JSON 模板手动导入。

由于 JSON 较长，这里提供压缩版，直接复制到 Grafana 的 JSON 导入框即可：

{"__inputs":[{"name":"DS_PROMETHEUS","label":"Prometheus","description":"","type":"datasource","pluginId":"prometheus","pluginName":"Prometheus"}],"__requires":[{"type":"grafana","id":"grafana","name":"Grafana","version":"9.0.0"},{"type":"datasource","id":"prometheus","name":"Prometheus","version":"1.0.0"},{"type":"panel","id":"stat","name":"Stat","version":""},{"type":"panel","id":"gauge","name":"Gauge","version":""},{"type":"panel","id":"timeseries","name":"Time series","version":""},{"type":"panel","id":"piechart","name":"Pie chart","version":""},{"type":"panel","id":"bargauge","name":"Bar gauge","version":""}],"annotations":{"list":[{"builtIn":1,"datasource":{"type":"datasource","uid":"grafana"},"enable":true,"hide":true,"iconColor":"rgba(0, 211, 255, 1)","name":"Annotations & Alerts","type":"dashboard"}]},"editable":true,"fiscalYearStartMonth":0,"graphTooltip":0,"id":null,"links":[],"liveNow":false,"panels":[{"datasource":{"type":"prometheus","uid":"${datasource}"},"fieldConfig":{"defaults":{"color":{"mode":"thresholds"},"mappings":[],"thresholds":{"mode":"absolute","steps":[{"color":"green","value":null}]},"unit":"short"},"overrides":[]},"gridPos":{"h":4,"w":4,"x":0,"y":0},"id":1,"options":{"colorMode":"value","graphMode":"area","justifyMode":"auto","orientation":"auto","reduceOptions":{"values":false,"calcs":["lastNotNull"],"fields":""},"textMode":"auto"},"pluginVersion":"9.5.0","targets":[{"datasource":{"type":"prometheus","uid":"${datasource}"},"expr":"ds_task_instance_count_total{state=\"success\"}","refId":"A"}],"title":"任务成功总数","type":"stat"},{"datasource":{"type":"prometheus","uid":"${datasource}"},"fieldConfig":{"defaults":{"color":{"mode":"thresholds"},"mappings":[],"thresholds":{"mode":"absolute","steps":[{"color":"green","value":null},{"color":"red","value":1}]},"unit":"short"},"overrides":[]},"gridPos":{"h":4,"w":4,"x":4,"y":0},"id":2,"options":{"colorMode":"value","graphMode":"area","justifyMode":"auto","orientation":"auto","reduceOptions":{"values":false,"calcs":["lastNotNull"],"fields":""},"textMode":"auto"},"pluginVersion":"9.5.0","targets":[{"datasource":{"type":"prometheus","uid":"${datasource}"},"expr":"ds_task_instance_count_total{state=\"fail\"}","refId":"A"}],"title":"任务失败总数","type":"stat"},{"datasource":{"type":"prometheus","uid":"${datasource}"},"fieldConfig":{"defaults":{"color":{"mode":"thresholds"},"mappings":[],"thresholds":{"mode":"absolute","steps":[{"color":"blue","value":null}]},"unit":"short"},"overrides":[]},"gridPos":{"h":4,"w":4,"x":8,"y":0},"id":3,"options":{"colorMode":"value","graphMode":"area","justifyMode":"auto","orientation":"auto","reduceOptions":{"values":false,"calcs":["lastNotNull"],"fields":""},"textMode":"auto"},"pluginVersion":"9.5.0","targets":[{"datasource":{"type":"prometheus","uid":"${datasource}"},"expr":"ds_workflow_instance_running","refId":"A"}],"title":"运行中工作流数","type":"stat"},{"datasource":{"type":"prometheus","uid":"${datasource}"},"fieldConfig":{"defaults":{"color":{"mode":"thresholds"},"mappings":[],"max":1,"min":0,"thresholds":{"mode":"absolute","steps":[{"color":"green","value":null},{"color":"yellow","value":0.7},{"color":"red","value":0.85}]},"unit":"percentunit"},"overrides":[]},"gridPos":{"h":4,"w":6,"x":12,"y":0},"id":4,"options":{"orientation":"auto","reduceOptions":{"values":false,"calcs":["lastNotNull"],"fields":""},"showThresholdLabels":false,"showThresholdMarkers":true},"pluginVersion":"9.5.0","targets":[{"datasource":{"type":"prometheus","uid":"${datasource}"},"expr":"ds_worker_memory_usage","refId":"A"}],"title":"Worker 内存使用率","type":"gauge"},{"datasource":{"type":"prometheus","uid":"${datasource}"},"fieldConfig":{"defaults":{"color":{"mode":"thresholds"},"mappings":[],"max":1,"min":0,"thresholds":{"mode":"absolute","steps":[{"color":"green","value":null},{"color":"yellow","value":0.7},{"color":"red","value":0.85}]},"unit":"percentunit"},"overrides":[]},"gridPos":{"h":4,"w":6,"x":18,"y":0},"id":5,"options":{"orientation":"auto","reduceOptions":{"values":false,"calcs":["lastNotNull"],"fields":""},"showThresholdLabels":false,"showThresholdMarkers":true},"pluginVersion":"9.5.0","targets":[{"datasource":{"type":"prometheus","uid":"${datasource}"},"expr":"ds_worker_cpu_usage","refId":"A"}],"title":"Worker CPU 使用率","type":"gauge"},{"datasource":{"type":"prometheus","uid":"${datasource}"},"fieldConfig":{"defaults":{"color":{"mode":"palette-classic"},"custom":{"axisCenteredZero":false,"axisColorMode":"text","axisLabel":"","axisPlacement":"auto","barAlignment":0,"drawStyle":"line","fillOpacity":10,"gradientMode":"none","hideFrom":{"tooltip":false,"viz":false,"legend":false},"lineInterpolation":"linear","lineWidth":1,"pointSize":5,"scaleDistribution":{"type":"linear"},"showPoints":"never","spanNulls":false,"stacking":{"group":"A","mode":"none"},"thresholdsStyle":{"mode":"off"}},"mappings":[],"thresholds":{"mode":"absolute","steps":[{"color":"green","value":null}]},"unit":"short"},"overrides":[{"matcher":{"id":"byName","options":"success"},"properties":[{"id":"color","value":{"fixedColor":"green","mode":"fixed"}}]},{"matcher":{"id":"byName","options":"fail"},"properties":[{"id":"color","value":{"fixedColor":"red","mode":"fixed"}}]}]},"gridPos":{"h":8,"w":12,"x":0,"y":4},"id":6,"options":{"legend":{"calcs":["last","max"],"displayMode":"table","placement":"bottom","showLegend":true},"tooltip":{"mode":"multi","sort":"none"}},"pluginVersion":"9.5.0","targets":[{"datasource":{"type":"prometheus","uid":"${datasource}"},"expr":"increase(ds_task_instance_count_total{state=\"success\"}[5m])","legendFormat":"success","refId":"A"},{"datasource":{"type":"prometheus","uid":"${datasource}"},"expr":"increase(ds_task_instance_count_total{state=\"fail\"}[5m])","legendFormat":"fail","refId":"B"},{"datasource":{"type":"prometheus","uid":"${datasource}"},"expr":"increase(ds_task_instance_count_total{state=\"timeout\"}[5m])","legendFormat":"timeout","refId":"C"}],"title":"任务执行趋势（5分钟增量）","type":"timeseries"},{"datasource":{"type":"prometheus","uid":"${datasource}"},"fieldConfig":{"defaults":{"color":{"mode":"palette-classic"},"custom":{"hideFrom":{"tooltip":false,"viz":false,"legend":false}},"mappings":[],"unit":"short"},"overrides":[]},"gridPos":{"h":8,"w":6,"x":12,"y":4},"id":7,"options":{"legend":{"displayMode":"table","placement":"right","showLegend":true,"values":["value","percent"]},"pieType":"pie","tooltip":{"mode":"single","sort":"none"}},"pluginVersion":"9.5.0","targets":[{"datasource":{"type":"prometheus","uid":"${datasource}"},"expr":"ds_task_instance_count_total","legendFormat":"{{state}}","refId":"A"}],"title":"任务状态分布","type":"piechart"},{"datasource":{"type":"prometheus","uid":"${datasource}"},"fieldConfig":{"defaults":{"color":{"mode":"thresholds"},"mappings":[],"max":1,"min":0,"thresholds":{"mode":"absolute","steps":[{"color":"green","value":null},{"color":"yellow","value":0.05},{"color":"red","value":0.1}]},"unit":"percentunit"},"overrides":[]},"gridPos":{"h":8,"w":6,"x":18,"y":4},"id":8,"options":{"orientation":"auto","reduceOptions":{"values":false,"calcs":["lastNotNull"],"fields":""},"showThresholdLabels":false,"showThresholdMarkers":true},"pluginVersion":"9.5.0","targets":[{"datasource":{"type":"prometheus","uid":"${datasource}"},"expr":"rate(ds_task_instance_count_total{state=\"fail\"}[10m]) / (rate(ds_task_instance_count_total{state=\"finish\"}[10m]) + 0.001)","refId":"A"}],"title":"任务失败率（10分钟）","type":"gauge"},{"datasource":{"type":"prometheus","uid":"${datasource}"},"fieldConfig":{"defaults":{"color":{"mode":"thresholds"},"mappings":[],"thresholds":{"mode":"absolute","steps":[{"color":"blue","value":null}]},"unit":"short"},"overrides":[]},"gridPos":{"h":8,"w":12,"x":0,"y":12},"id":9,"options":{"displayMode":"gradient","minVizHeight":10,"minVizWidth":0,"orientation":"horizontal","reduceOptions":{"values":false,"calcs":["lastNotNull"],"fields":""},"showUnfilled":true},"pluginVersion":"9.5.0","targets":[{"datasource":{"type":"prometheus","uid":"${datasource}"},"expr":"ds_task_execution_count_by_type_total > 0","legendFormat":"{{task_type}}","refId":"A"}],"title":"任务类型分布","type":"bargauge"},{"datasource":{"type":"prometheus","uid":"${datasource}"},"fieldConfig":{"defaults":{"color":{"mode":"palette-classic"},"custom":{"axisCenteredZero":false,"axisColorMode":"text","axisLabel":"","axisPlacement":"auto","barAlignment":0,"drawStyle":"line","fillOpacity":10,"gradientMode":"none","hideFrom":{"tooltip":false,"viz":false,"legend":false},"lineInterpolation":"linear","lineWidth":1,"pointSize":5,"scaleDistribution":{"type":"linear"},"showPoints":"never","spanNulls":false,"stacking":{"group":"A","mode":"none"},"thresholdsStyle":{"mode":"off"}},"mappings":[],"thresholds":{"mode":"absolute","steps":[{"color":"green","value":null}]},"unit":"short"},"overrides":[]},"gridPos":{"h":8,"w":12,"x":12,"y":12},"id":10,"options":{"legend":{"calcs":["last"],"displayMode":"table","placement":"bottom","showLegend":true},"tooltip":{"mode":"multi","sort":"none"}},"pluginVersion":"9.5.0","targets":[{"datasource":{"type":"prometheus","uid":"${datasource}"},"expr":"ds_workflow_instance_running","legendFormat":"运行中","refId":"A"},{"datasource":{"type":"prometheus","uid":"${datasource}"},"expr":"increase(ds_workflow_instance_count_total{state=\"success\"}[5m])","legendFormat":"成功-{{process_definition_code}}","refId":"B"}],"title":"工作流实例趋势","type":"timeseries"},{"datasource":{"type":"prometheus","uid":"${datasource}"},"fieldConfig":{"defaults":{"color":{"mode":"palette-classic"},"custom":{"axisCenteredZero":false,"axisColorMode":"text","axisLabel":"","axisPlacement":"auto","barAlignment":0,"drawStyle":"line","fillOpacity":10,"gradientMode":"none","hideFrom":{"tooltip":false,"viz":false,"legend":false},"lineInterpolation":"linear","lineWidth":1,"pointSize":5,"scaleDistribution":{"type":"linear"},"showPoints":"never","spanNulls":false,"stacking":{"group":"A","mode":"none"},"thresholdsStyle":{"mode":"off"}},"mappings":[],"thresholds":{"mode":"absolute","steps":[{"color":"green","value":null}]},"unit":"short"},"overrides":[{"matcher":{"id":"byName","options":"内存使用率"},"properties":[{"id":"unit","value":"percentunit"},{"id":"custom.axisPlacement","value":"right"}]},{"matcher":{"id":"byName","options":"CPU使用率"},"properties":[{"id":"unit","value":"percentunit"},{"id":"custom.axisPlacement","value":"right"}]}]},"gridPos":{"h":8,"w":12,"x":0,"y":20},"id":11,"options":{"legend":{"calcs":["last","max"],"displayMode":"table","placement":"bottom","showLegend":true},"tooltip":{"mode":"multi","sort":"none"}},"pluginVersion":"9.5.0","targets":[{"datasource":{"type":"prometheus","uid":"${datasource}"},"expr":"ds_worker_active_execute_thread","legendFormat":"活跃线程数","refId":"A"},{"datasource":{"type":"prometheus","uid":"${datasource}"},"expr":"ds_worker_memory_usage","legendFormat":"内存使用率","refId":"B"},{"datasource":{"type":"prometheus","uid":"${datasource}"},"expr":"ds_worker_cpu_usage","legendFormat":"CPU使用率","refId":"C"}],"title":"Worker 资源监控","type":"timeseries"},{"datasource":{"type":"prometheus","uid":"${datasource}"},"fieldConfig":{"defaults":{"color":{"mode":"palette-classic"},"custom":{"axisCenteredZero":false,"axisColorMode":"text","axisLabel":"","axisPlacement":"auto","barAlignment":0,"drawStyle":"line","fillOpacity":10,"gradientMode":"none","hideFrom":{"tooltip":false,"viz":false,"legend":false},"lineInterpolation":"linear","lineWidth":1,"pointSize":5,"scaleDistribution":{"type":"linear"},"showPoints":"never","spanNulls":false,"stacking":{"group":"A","mode":"none"},"thresholdsStyle":{"mode":"off"}},"mappings":[],"thresholds":{"mode":"absolute","steps":[{"color":"green","value":null}]},"unit":"short"},"overrides":[{"matcher":{"id":"byName","options":"失败"},"properties":[{"id":"color","value":{"fixedColor":"red","mode":"fixed"}}]}]},"gridPos":{"h":8,"w":12,"x":12,"y":20},"id":12,"options":{"legend":{"calcs":["last","max"],"displayMode":"table","placement":"bottom","showLegend":true},"tooltip":{"mode":"multi","sort":"none"}},"pluginVersion":"9.5.0","targets":[{"datasource":{"type":"prometheus","uid":"${datasource}"},"expr":"increase(ds_alert_send_count_total{status=\"success\"}[5m])","legendFormat":"成功","refId":"A"},{"datasource":{"type":"prometheus","uid":"${datasource}"},"expr":"increase(ds_alert_send_count_total{status=\"fail\"}[5m])","legendFormat":"失败","refId":"B"}],"title":"告警发送趋势（5分钟增量）","type":"timeseries"},{"datasource":{"type":"prometheus","uid":"${datasource}"},"fieldConfig":{"defaults":{"color":{"mode":"palette-classic"},"custom":{"axisCenteredZero":false,"axisColorMode":"text","axisLabel":"","axisPlacement":"auto","barAlignment":0,"drawStyle":"line","fillOpacity":10,"gradientMode":"none","hideFrom":{"tooltip":false,"viz":false,"legend":false},"lineInterpolation":"linear","lineWidth":1,"pointSize":5,"scaleDistribution":{"type":"linear"},"showPoints":"never","spanNulls":false,"stacking":{"group":"A","mode":"none"},"thresholdsStyle":{"mode":"off"}},"mappings":[],"thresholds":{"mode":"absolute","steps":[{"color":"green","value":null}]},"unit":"s"},"overrides":[]},"gridPos":{"h":8,"w":12,"x":0,"y":28},"id":13,"options":{"legend":{"calcs":["mean","max"],"displayMode":"table","placement":"bottom","showLegend":true},"tooltip":{"mode":"multi","sort":"none"}},"pluginVersion":"9.5.0","targets":[{"datasource":{"type":"prometheus","uid":"${datasource}"},"expr":"rate(http_server_requests_seconds_sum{uri=~\"/projects.*\"}[5m]) / rate(http_server_requests_seconds_count{uri=~\"/projects.*\"}[5m])","legendFormat":"{{uri}} - {{method}}","refId":"A"}],"title":"API 平均响应时间","type":"timeseries"},{"datasource":{"type":"prometheus","uid":"${datasource}"},"fieldConfig":{"defaults":{"color":{"mode":"palette-classic"},"custom":{"axisCenteredZero":false,"axisColorMode":"text","axisLabel":"","axisPlacement":"auto","barAlignment":0,"drawStyle":"line","fillOpacity":10,"gradientMode":"none","hideFrom":{"tooltip":false,"viz":false,"legend":false},"lineInterpolation":"linear","lineWidth":1,"pointSize":5,"scaleDistribution":{"type":"linear"},"showPoints":"never","spanNulls":false,"stacking":{"group":"A","mode":"none"},"thresholdsStyle":{"mode":"off"}},"mappings":[],"thresholds":{"mode":"absolute","steps":[{"color":"green","value":null}]},"unit":"reqps"},"overrides":[]},"gridPos":{"h":8,"w":12,"x":12,"y":28},"id":14,"options":{"legend":{"calcs":["mean","max"],"displayMode":"table","placement":"bottom","showLegend":true},"tooltip":{"mode":"multi","sort":"none"}},"pluginVersion":"9.5.0","targets":[{"datasource":{"type":"prometheus","uid":"${datasource}"},"expr":"rate(http_server_requests_seconds_count{uri=~\"/projects.*\"}[5m])","legendFormat":"{{uri}} - {{method}}","refId":"A"}],"title":"API 请求速率","type":"timeseries"}],"refresh":"30s","schemaVersion":38,"style":"dark","tags":["dolphinscheduler","大数据"],"templating":{"list":[{"current":{"selected":false,"text":"Prometheus","value":"Prometheus"},"hide":0,"includeAll":false,"label":"数据源","multi":false,"name":"datasource","options":[],"query":"prometheus","refresh":1,"regex":"","skipUrlSync":false,"type":"datasource"}]},"time":{"from":"now-6h","to":"now"},"timepicker":{"refresh_intervals":["10s","30s","1m","5m","15m","30m","1h","2h","1d"]},"timezone":"browser","title":"DolphinScheduler 监控面板","uid":"dolphinscheduler-overview","version":1,"weekStart":""}

2. 看板效果展示

导入完成后，你将得到一个包含以下面板的完整监控看板：

面板	类型	监控内容
任务成功/失败总数	Stat 数字卡片	全局任务计数一目了然
运行中工作流数	Stat 数字卡片	当前有多少工作流在跑
Worker 内存/CPU 使用率	Gauge 仪表盘	红黄绿三色，超 85% 变红
任务执行趋势	时序折线图	成功/失败/超时 5 分钟增量
任务状态分布	饼图	各状态占比
任务失败率	Gauge 仪表盘	10 分钟滚动失败率
任务类型分布	条形图	SQL / Shell / Python 各类任务数
工作流实例趋势	时序折线图	工作流运行趋势
Worker 资源监控	时序折线图	线程数 + 内存 + CPU 综合视图
告警发送趋势	时序折线图	告警成功/失败计数
API 响应时间 & 请求速率	时序折线图	DolphinScheduler API 性能

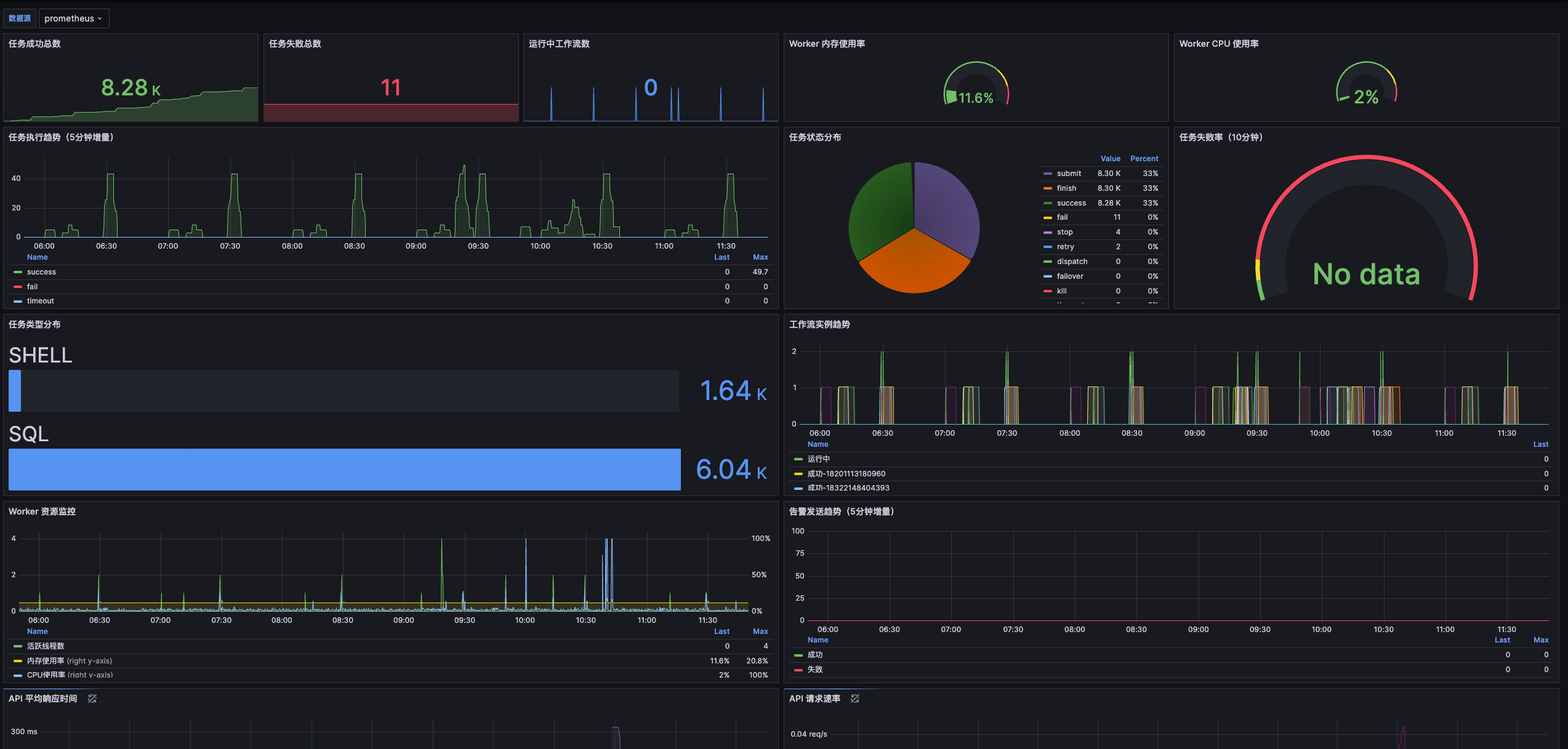

最终效果如下图：

在这里插入图片描述

四、总结

回顾一下，本文做了三件事：

指标采集：通过 Prometheus 抓取 DolphinScheduler 内置的 /actuator/prometheus 端点
告警规则：配置了 10 条覆盖服务存活、任务健康、Worker 状态、Master 故障转移的告警规则
可视化看板：通过 Grafana 仪表板 ID 24841 一键导入监控面板

核心思路就一句话：用外部监控来守护调度系统，而不是指望调度系统自己报警——这就像你不能指望一个昏迷的病人自己打 120。

如果你也在用 DolphinScheduler，强烈建议把这套监控搭起来。毕竟，凌晨三点被告警叫醒，总比第二天早上被老板叫醒要好。

如果这篇文章帮你避免了一次"调度挂了没人知道"的事故，不妨点个赞或收藏，下次需要的时候方便找到。有问题欢迎评论区交流，我们一起把大数据的坑踩平。
