二、系统介绍

大数据框架：Hadoop+Spark（本次没用Hive，支持定制）
开发语言：Python
后端框架：Django
前端：Vue
详细技术点：Hadoop、HDFS、Spark、Spark SQL、Pandas、NumPy
数据库：MySQL

基于大数据的肝硬化患者生存预测数据可视化分析系统采用Hadoop与Spark作为底层大数据处理框架，通过HDFS实现海量医疗数据的分布式存储，利用Spark SQL完成对患者生化指标、临床分期、人口特征等多维度数据的快速查询与计算。系统后端基于Django框架搭建，前端采用Vue技术栈开发交互界面，结合Pandas和NumPy进行数据预处理与统计分析，MySQL数据库负责存储用户信息及系统配置数据。平台提供了患者数据管理、生化指标分析、临床分期分析、人口特征分析等核心功能模块，通过多维交叉特征分析挖掘患者病情发展的潜在规律，借助生存曲线分析展示不同患者群体的预后情况，治疗方案预后分析模块能够对比各类治疗手段的效果差异。数据大屏以可视化图表的形式呈现关键指标的统计结果，管理员可以通过用户管理与系统公告管理模块维护平台的日常运行，整个系统在处理大规模肝硬化患者数据时展现出较好的性能表现，为医疗机构开展患者预后评估提供了技术支撑。

三、视频解说

基于大数据的肝硬化患者生存预测数据可视化分析系统–演示视频

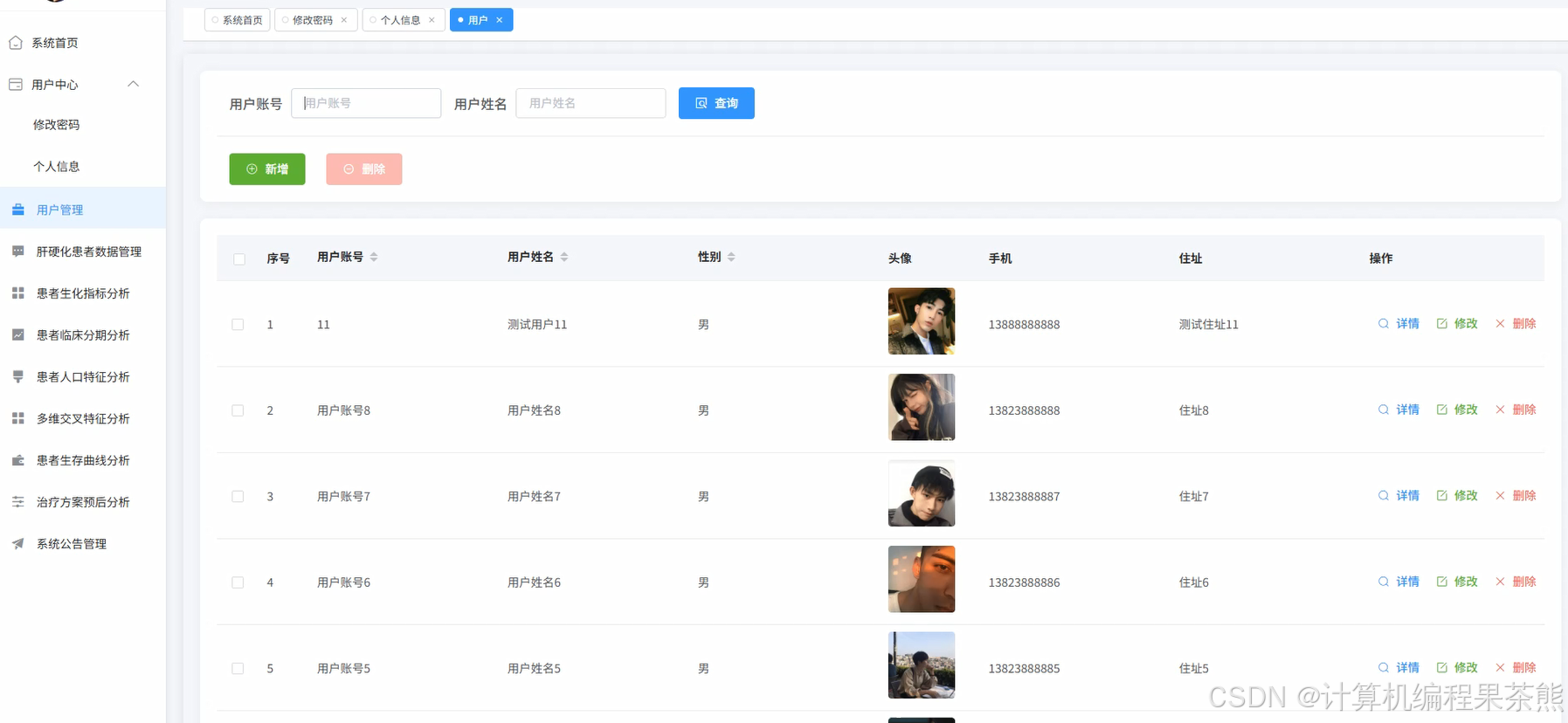

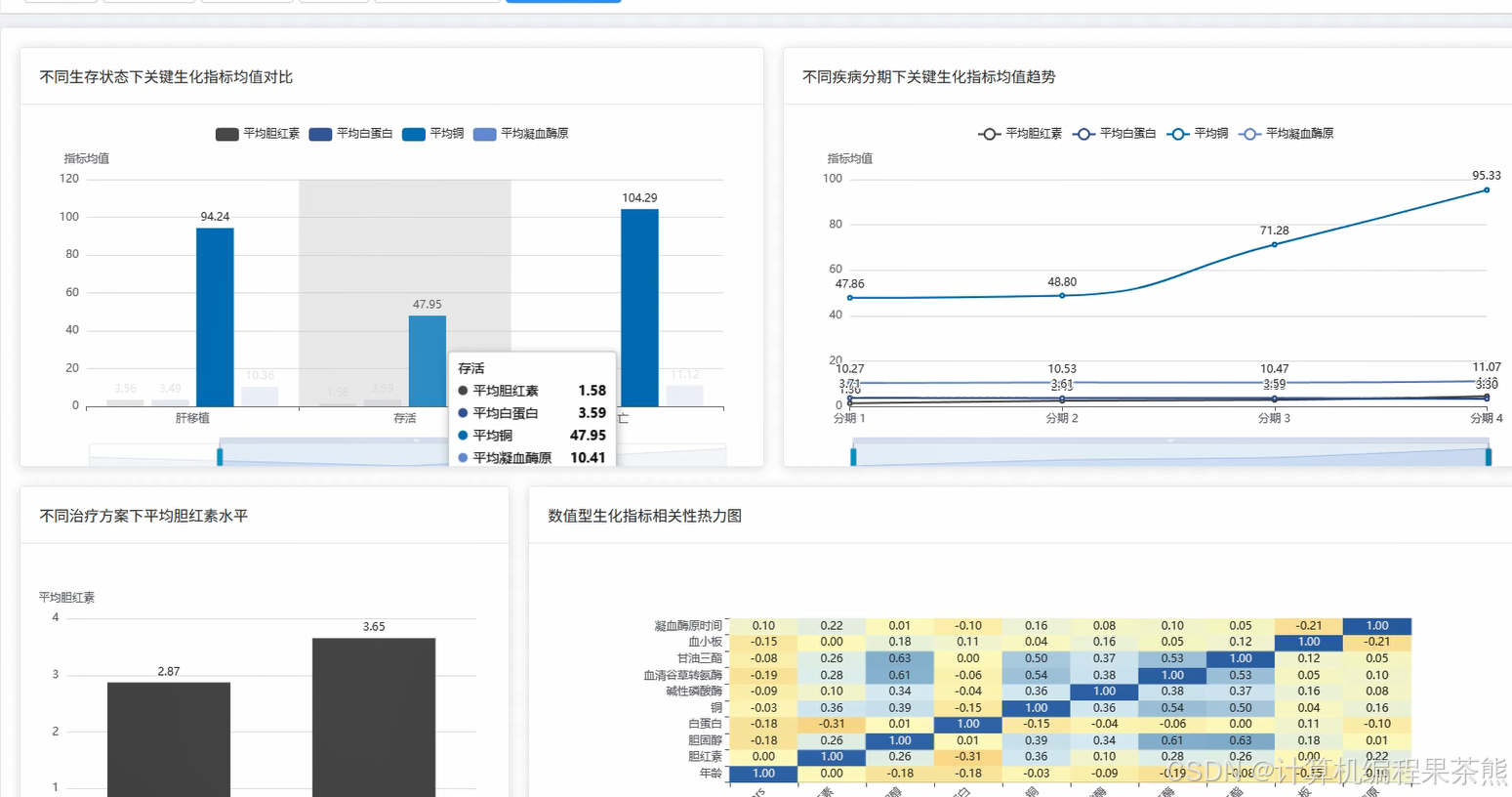

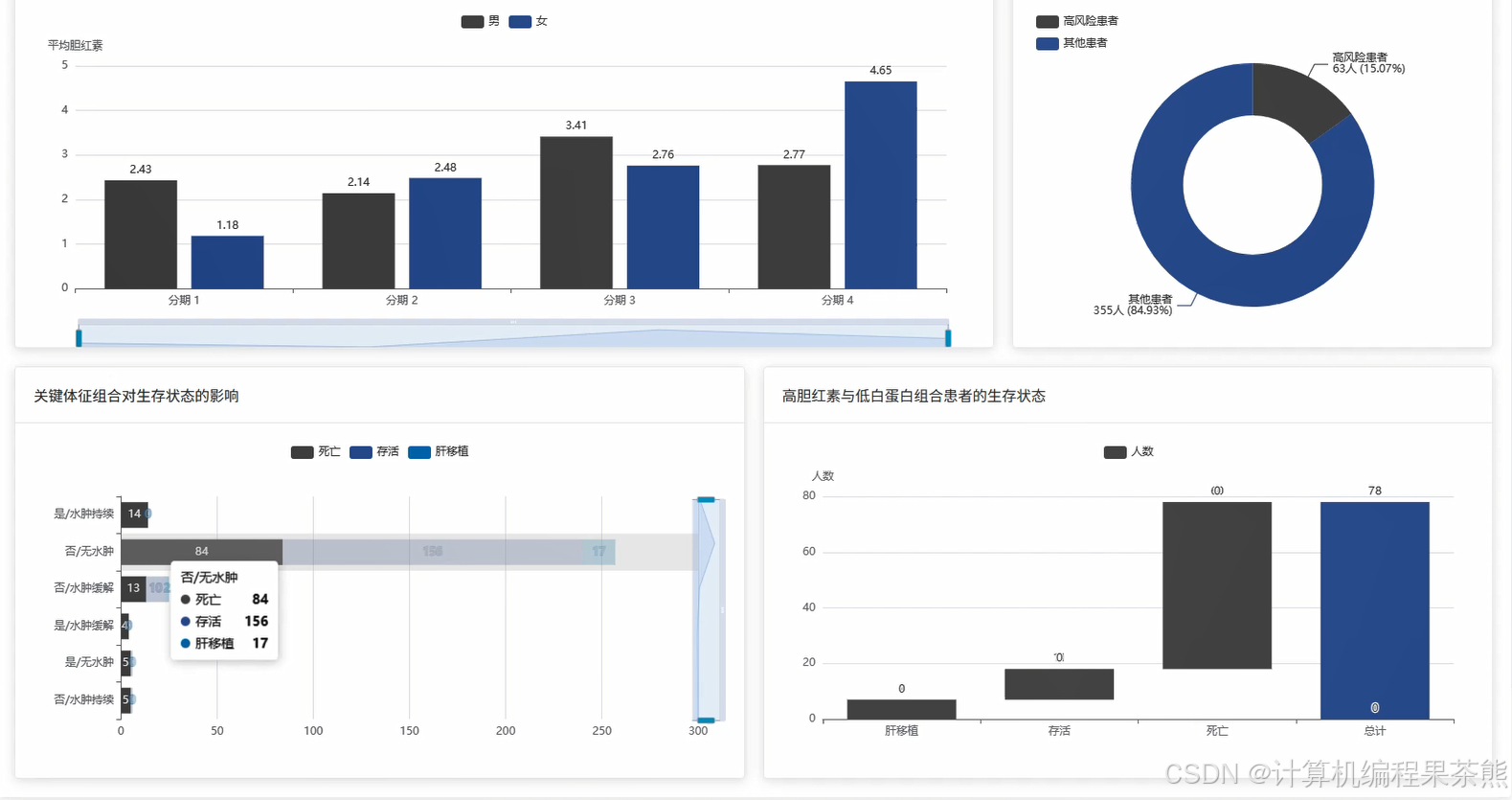

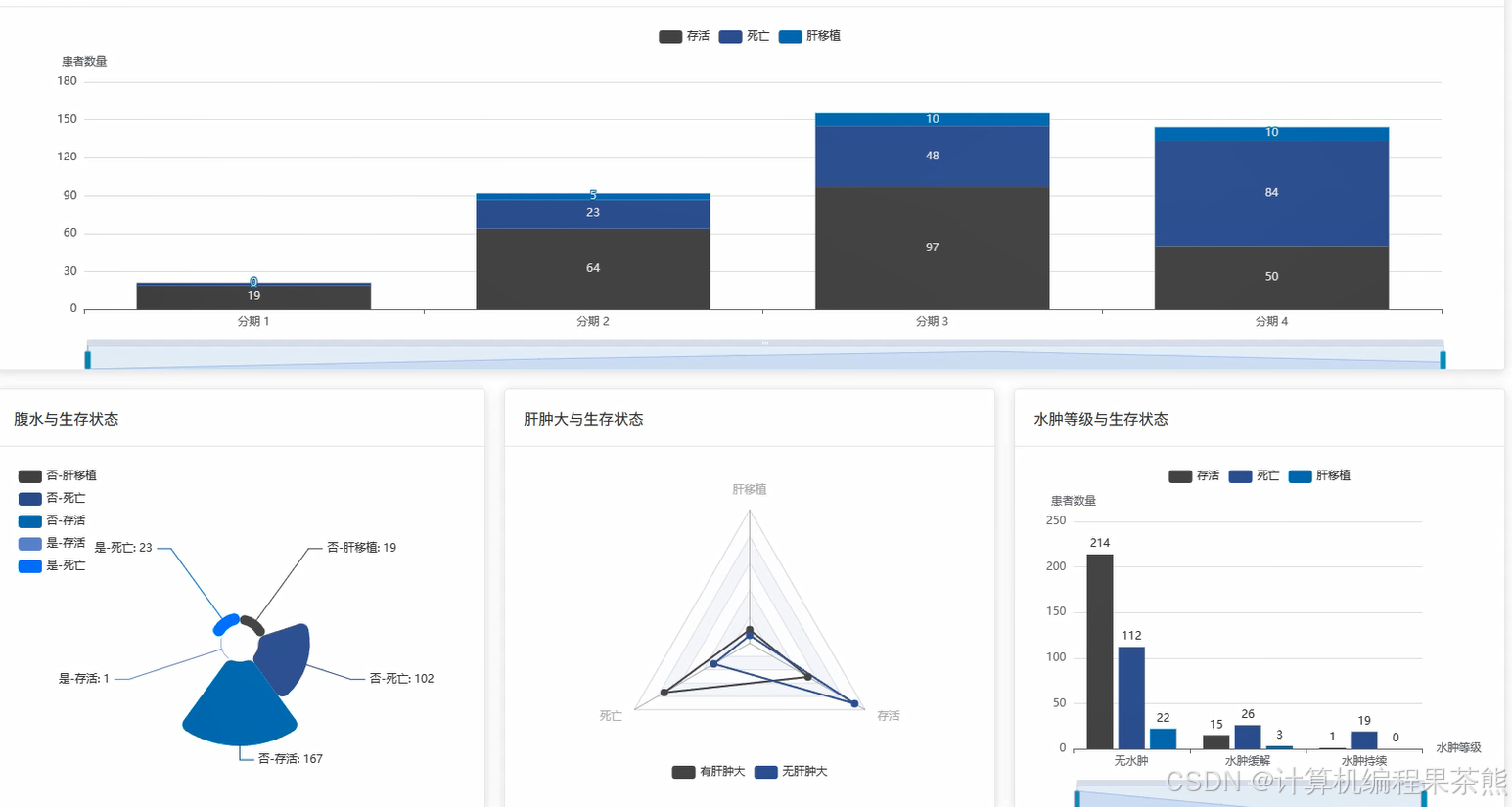

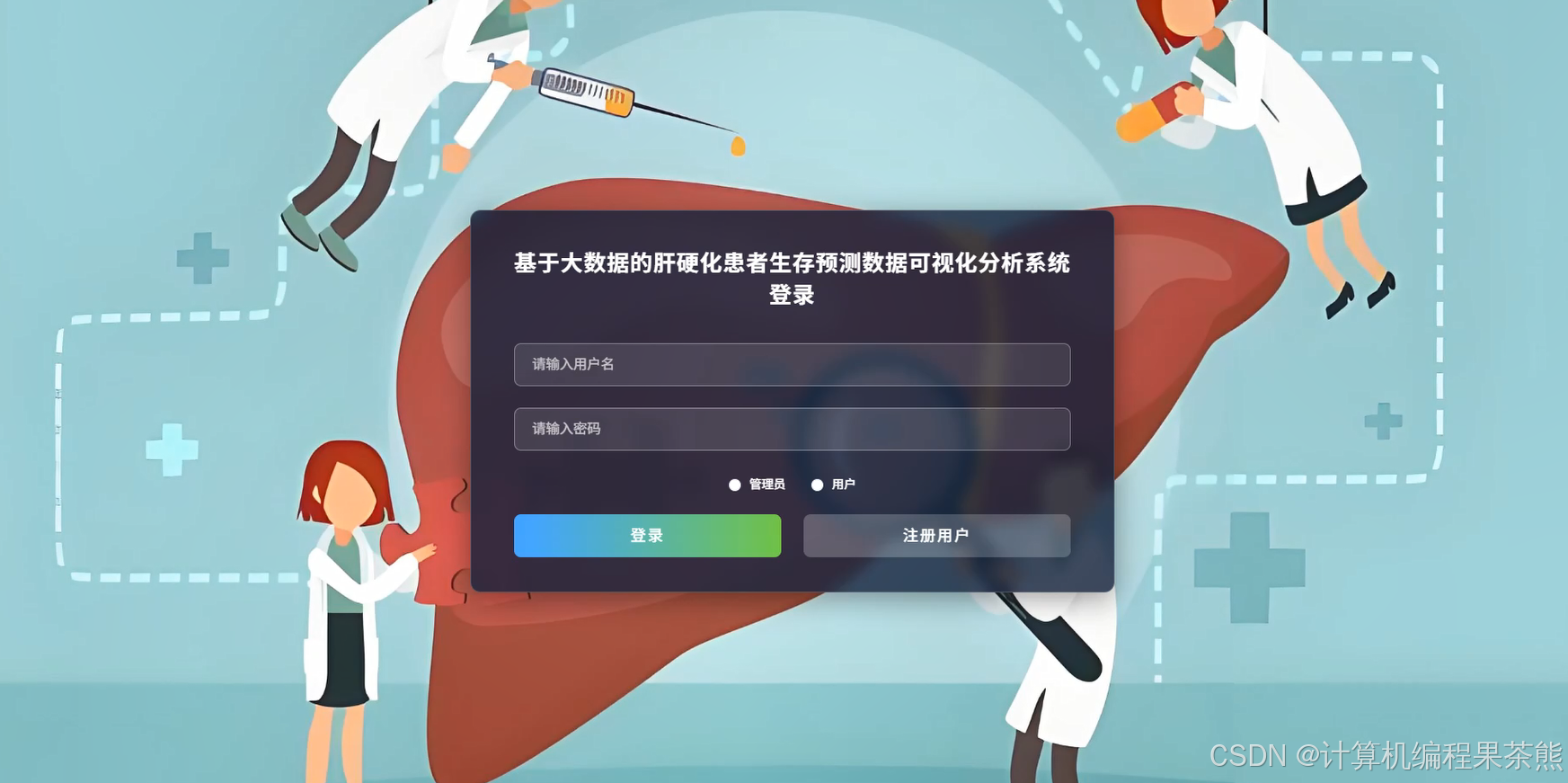

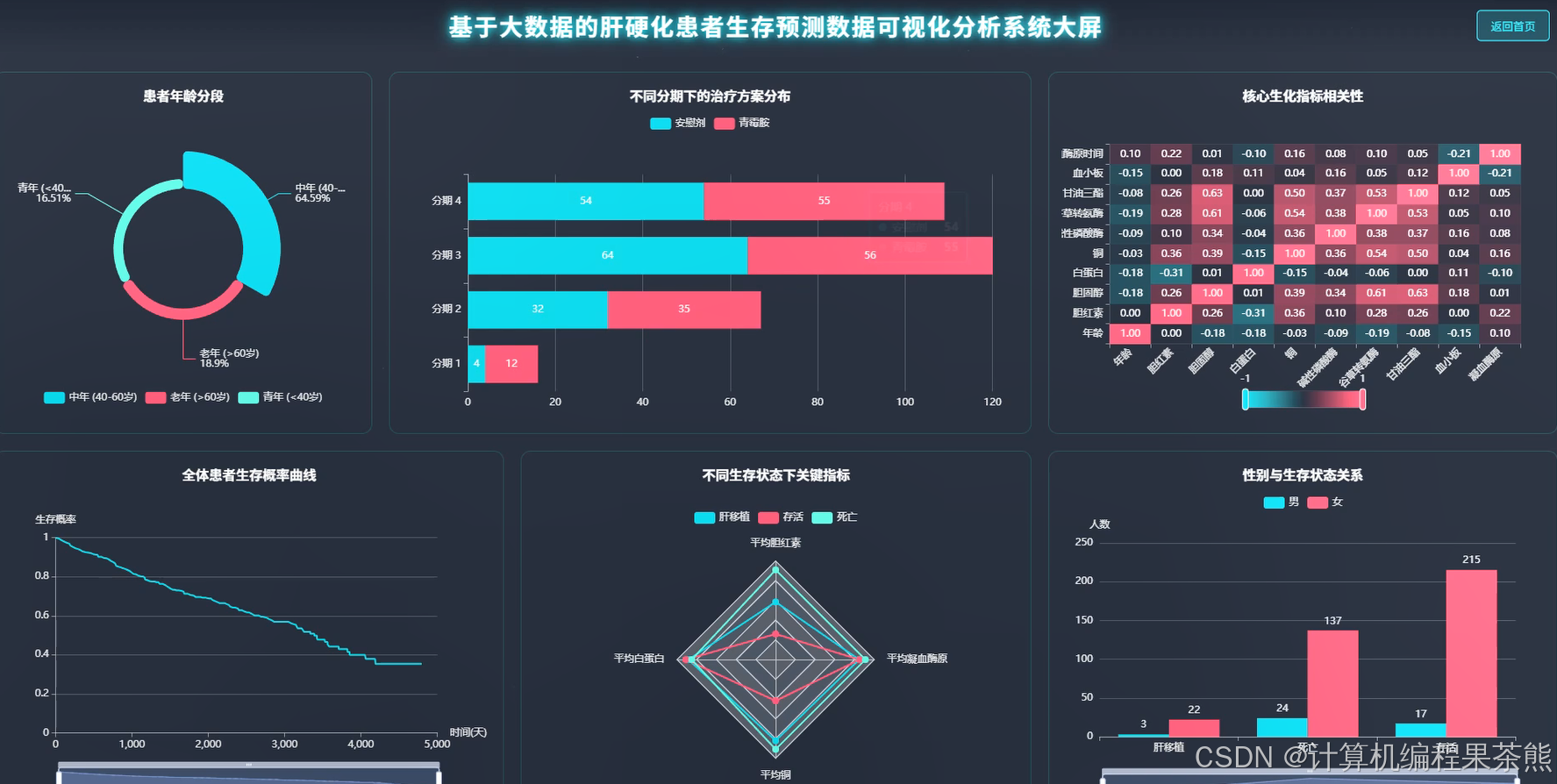

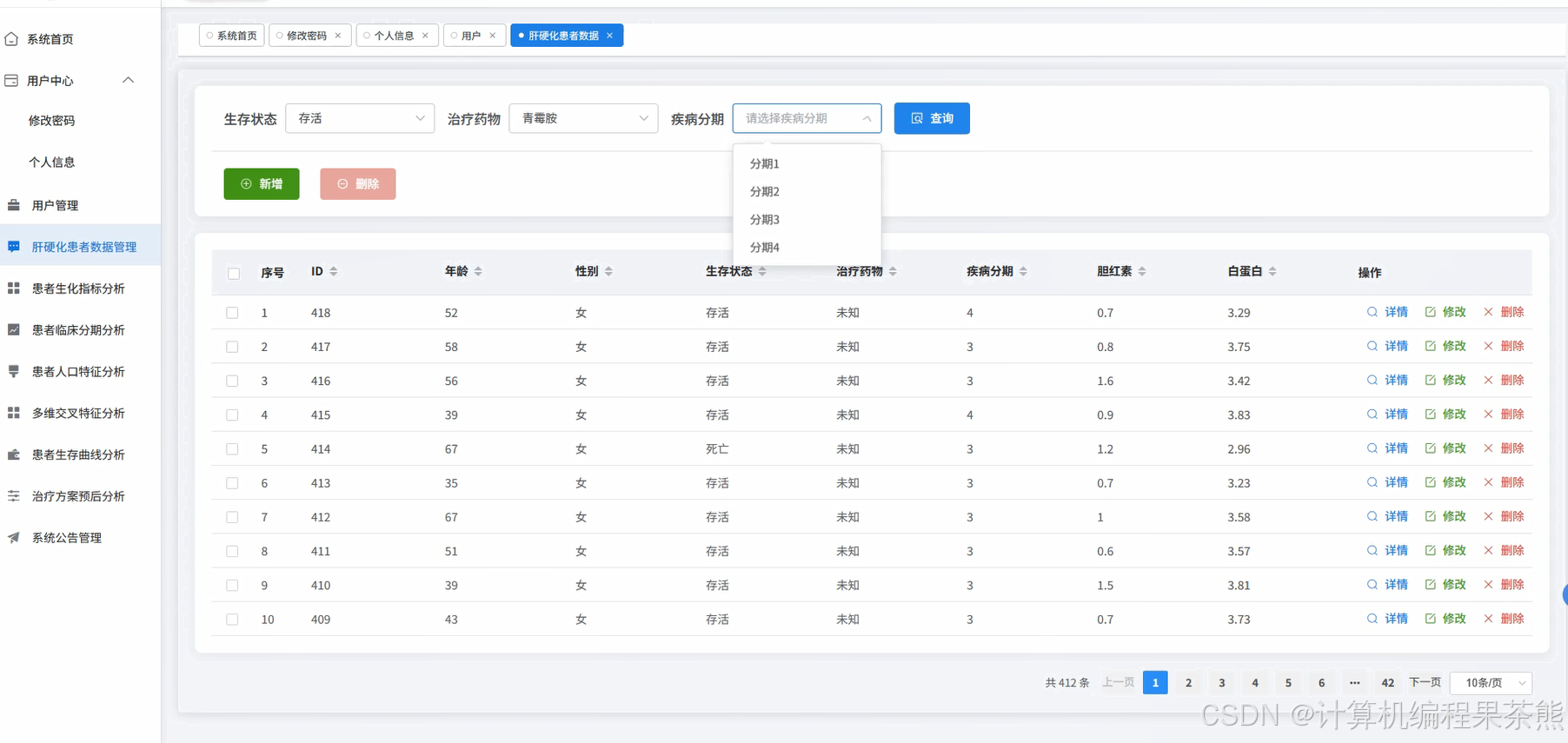

四、部分功能展示

五、部分代码展示

from pyspark.sql import SparkSession
from pyspark.sql.functions import col,count,avg,sum,when,datediff,current_date,year,month,desc,asc,round
from pyspark.sql.types import StructType,StructField,StringType,IntegerType,FloatType,DateType
from django.http import JsonResponse
from django.views.decorators.http import require_http_methods
import pandas as pd
import numpy as np
from datetime import datetime
import json

spark=SparkSession.builder.appName("LiverCirrhosisAnalysis").config("spark.sql.warehouse.dir","/user/hive/warehouse").config("spark.executor.memory","4g").config("spark.driver.memory","2g").getOrCreate()

@require_http_methods(["POST"])
def analyze_biochemical_indicators(request):
    try:
        request_data=json.loads(request.body)
        patient_ids=request_data.get('patient_ids',[])
        indicator_types=request_data.get('indicator_types',['ALT','AST','TBIL','ALB','PT'])
        time_range_start=request_data.get('start_date')
        time_range_end=request_data.get('end_date')
        hdfs_path="hdfs://namenode:9000/medical_data/biochemical_records"
        biochemical_df=spark.read.parquet(hdfs_path)
        filtered_df=biochemical_df.filter((col("test_date")>=time_range_start)&(col("test_date")<=time_range_end))
        if patient_ids:
            filtered_df=filtered_df.filter(col("patient_id").isin(patient_ids))
        indicator_stats={}
        for indicator in indicator_types:
            indicator_col=indicator.lower()+"_value"
            stats_df=filtered_df.select(col("patient_id"),col(indicator_col),col("test_date")).groupBy("patient_id").agg(avg(indicator_col).alias("avg_value"),count(indicator_col).alias("test_count"),round(avg(indicator_col),2).alias("mean_value"))
            abnormal_threshold={"ALT":40,"AST":40,"TBIL":21,"ALB":35,"PT":13}
            threshold_value=abnormal_threshold.get(indicator,0)
            abnormal_df=filtered_df.filter(col(indicator_col)>threshold_value).groupBy("patient_id").agg(count("*").alias("abnormal_count"))
            merged_df=stats_df.join(abnormal_df,on="patient_id",how="left").fillna(0)
            trend_df=filtered_df.select("patient_id",indicator_col,"test_date").orderBy("patient_id","test_date")
            window_spec=Window.partitionBy("patient_id").orderBy("test_date")
            trend_df=trend_df.withColumn("prev_value",lag(indicator_col,1).over(window_spec))
            trend_df=trend_df.withColumn("value_change",when(col("prev_value").isNotNull(),col(indicator_col)-col("prev_value")).otherwise(0))
            trend_summary=trend_df.groupBy("patient_id").agg(avg("value_change").alias("avg_change"),sum(when(col("value_change")>0,1).otherwise(0)).alias("increase_times"))
            final_result=merged_df.join(trend_summary,on="patient_id",how="left")
            result_pandas=final_result.toPandas()
            indicator_stats[indicator]=result_pandas.to_dict(orient='records')
        correlation_matrix={}
        if len(indicator_types)>=2:
            correlation_cols=[ind.lower()+"_value" for ind in indicator_types]
            correlation_df=filtered_df.select(correlation_cols).toPandas()
            corr_result=correlation_df.corr()
            correlation_matrix=corr_result.to_dict()
        response_data={"status":"success","indicator_statistics":indicator_stats,"correlation_matrix":correlation_matrix,"total_patients":filtered_df.select("patient_id").distinct().count(),"analysis_period":{"start":time_range_start,"end":time_range_end}}
        return JsonResponse(response_data,safe=False)
    except Exception as e:
        return JsonResponse({"status":"error","message":str(e)},status=500)

@require_http_methods(["POST"])
def analyze_survival_curve(request):
    try:
        request_data=json.loads(request.body)
        grouping_factor=request_data.get('grouping_factor','child_pugh_grade')
        follow_up_months=request_data.get('follow_up_months',60)
        include_censored=request_data.get('include_censored',True)
        hdfs_patient_path="hdfs://namenode:9000/medical_data/patient_records"
        hdfs_followup_path="hdfs://namenode:9000/medical_data/followup_records"
        patient_df=spark.read.parquet(hdfs_patient_path)
        followup_df=spark.read.parquet(hdfs_followup_path)
        merged_df=patient_df.join(followup_df,on="patient_id",how="inner")
        merged_df=merged_df.withColumn("survival_months",datediff(col("last_followup_date"),col("diagnosis_date"))/30)
        merged_df=merged_df.filter(col("survival_months")<=follow_up_months)
        if not include_censored:
            merged_df=merged_df.filter(col("survival_status")=="deceased")
        grouped_data=merged_df.groupBy(grouping_factor,"survival_months").agg(count("patient_id").alias("event_count"))
        total_patients_per_group=merged_df.groupBy(grouping_factor).agg(count("patient_id").alias("total_count"))
        survival_data=grouped_data.join(total_patients_per_group,on=grouping_factor,how="inner")
        window_spec=Window.partitionBy(grouping_factor).orderBy("survival_months").rowsBetween(Window.unboundedPreceding,Window.currentRow)
        survival_data=survival_data.withColumn("cumulative_events",sum("event_count").over(window_spec))
        survival_data=survival_data.withColumn("survival_rate",round((col("total_count")-col("cumulative_events"))/col("total_count"),4))
        survival_data=survival_data.withColumn("mortality_rate",round(col("cumulative_events")/col("total_count"),4))
        survival_curves={}
        group_values=survival_data.select(grouping_factor).distinct().collect()
        for group_row in group_values:
            group_value=group_row[grouping_factor]
            group_df=survival_data.filter(col(grouping_factor)==group_value).orderBy("survival_months")
            group_pandas=group_df.select("survival_months","survival_rate","mortality_rate","event_count").toPandas()
            survival_curves[group_value]=group_pandas.to_dict(orient='records')
        median_survival_times={}
        for group_value in survival_curves.keys():
            curve_data=survival_curves[group_value]
            median_time=None
            for point in curve_data:
                if point['survival_rate']<=0.5:
                    median_time=point['survival_months']
                    break
            median_survival_times[group_value]=median_time if median_time else "Not reached"
        hazard_ratios={}
        if grouping_factor=="child_pugh_grade":
            grade_a_df=merged_df.filter(col(grouping_factor)=="A")
            grade_b_df=merged_df.filter(col(grouping_factor)=="B")
            grade_c_df=merged_df.filter(col(grouping_factor)=="C")
            a_death_rate=grade_a_df.filter(col("survival_status")=="deceased").count()/grade_a_df.count()
            b_death_rate=grade_b_df.filter(col("survival_status")=="deceased").count()/grade_b_df.count()
            c_death_rate=grade_c_df.filter(col("survival_status")=="deceased").count()/grade_c_df.count()
            hazard_ratios["B_vs_A"]=round(b_death_rate/a_death_rate,3) if a_death_rate>0 else None
            hazard_ratios["C_vs_A"]=round(c_death_rate/a_death_rate,3) if a_death_rate>0 else None
        response_data={"status":"success","survival_curves":survival_curves,"median_survival_times":median_survival_times,"hazard_ratios":hazard_ratios,"grouping_factor":grouping_factor,"follow_up_months":follow_up_months}
        return JsonResponse(response_data,safe=False)
    except Exception as e:
        return JsonResponse({"status":"error","message":str(e)},status=500)

@require_http_methods(["POST"])
def analyze_multidimensional_features(request):
    try:
        request_data=json.loads(request.body)
        dimension_list=request_data.get('dimensions',['age_group','gender','child_pugh_grade'])
        target_indicator=request_data.get('target_indicator','survival_months')
        aggregation_method=request_data.get('aggregation','avg')
        hdfs_integrated_path="hdfs://namenode:9000/medical_data/integrated_patient_data"
        integrated_df=spark.read.parquet(hdfs_integrated_path)
        integrated_df=integrated_df.withColumn("age_group",when(col("age")<40,"<40").when((col("age")>=40)&(col("age")<60),"40-60").otherwise(">=60"))
        integrated_df=integrated_df.withColumn("bilirubin_level",when(col("total_bilirubin")<34,"Normal").when((col("total_bilirubin")>=34)&(col("total_bilirubin")<51),"Mild").otherwise("Severe"))
        cross_analysis_results={}
        for i in range(len(dimension_list)):
            for j in range(i+1,len(dimension_list)):
                dim1=dimension_list[i]
                dim2=dimension_list[j]
                cross_key=f"{dim1}_vs_{dim2}"
                if aggregation_method=="avg":
                    agg_func=avg(target_indicator)
                elif aggregation_method=="sum":
                    agg_func=sum(target_indicator)
                elif aggregation_method=="count":
                    agg_func=count(target_indicator)
                else:
                    agg_func=avg(target_indicator)
                cross_df=integrated_df.groupBy(dim1,dim2).agg(agg_func.alias("aggregated_value"),count("patient_id").alias("patient_count"))
                cross_df=cross_df.withColumn("percentage",round(col("patient_count")/sum("patient_count").over(Window.partitionBy()),4))
                cross_pandas=cross_df.orderBy(desc("aggregated_value")).toPandas()
                cross_analysis_results[cross_key]=cross_pandas.to_dict(orient='records')
        three_dim_analysis={}
        if len(dimension_list)>=3:
            dim1,dim2,dim3=dimension_list[0],dimension_list[1],dimension_list[2]
            three_dim_key=f"{dim1}_{dim2}_{dim3}"
            three_dim_df=integrated_df.groupBy(dim1,dim2,dim3).agg(avg(target_indicator).alias("avg_value"),count("patient_id").alias("count"),sum(when(col("survival_status")=="deceased",1).otherwise(0)).alias("death_count"))
            three_dim_df=three_dim_df.withColumn("mortality_rate",round(col("death_count")/col("count"),4))
            three_dim_pandas=three_dim_df.orderBy(desc("mortality_rate")).toPandas()
            three_dim_analysis[three_dim_key]=three_dim_pandas.to_dict(orient='records')
        feature_importance={}
        for dimension in dimension_list:
            dim_variance=integrated_df.groupBy(dimension).agg(avg(target_indicator).alias("group_avg"))
            overall_avg=integrated_df.agg(avg(target_indicator)).collect()[0][0]
            variance_sum=dim_variance.withColumn("variance",(col("group_avg")-overall_avg)**2).agg(sum("variance")).collect()[0][0]
            feature_importance[dimension]=round(variance_sum,4)
        sorted_importance=dict(sorted(feature_importance.items(),key=lambda x:x[1],reverse=True))
        heatmap_data={}
        if len(dimension_list)==2:
            dim1,dim2=dimension_list[0],dimension_list[1]
            heatmap_df=integrated_df.groupBy(dim1,dim2).agg(avg(target_indicator).alias("value"))
            heatmap_pandas=heatmap_df.toPandas()
            pivot_table=heatmap_pandas.pivot(index=dim1,columns=dim2,values='value')
            heatmap_data=pivot_table.to_dict()
        response_data={"status":"success","cross_analysis":cross_analysis_results,"three_dimensional_analysis":three_dim_analysis,"feature_importance":sorted_importance,"heatmap_data":heatmap_data,"dimensions_analyzed":dimension_list,"target_indicator":target_indicator}
        return JsonResponse(response_data,safe=False)
    except Exception as e:
        return JsonResponse({"status":"error","message":str(e)},status=500)

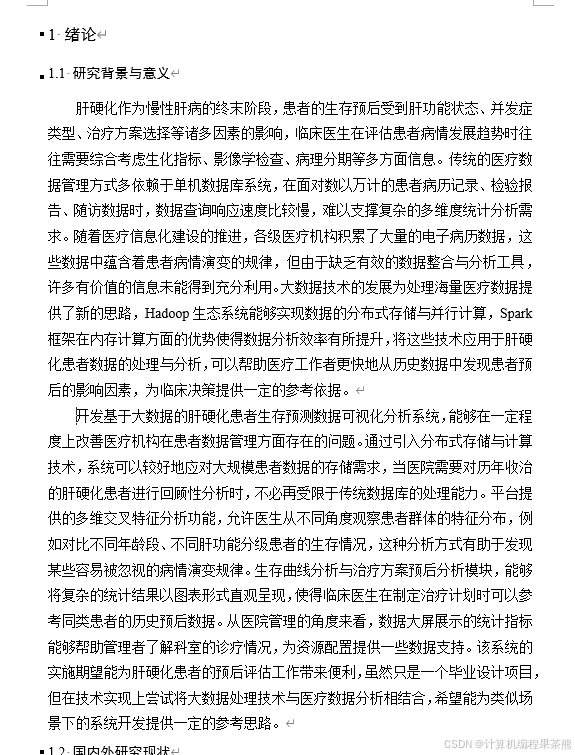

六、部分文档展示
