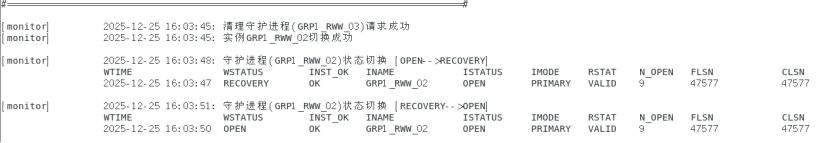

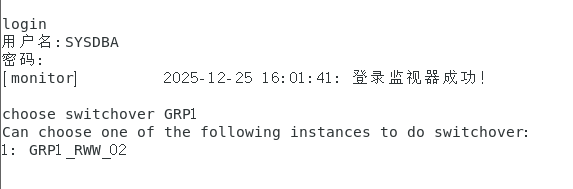

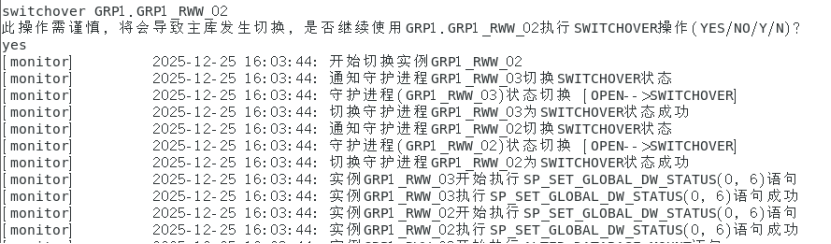

切换BC主备集群

恢复A机器

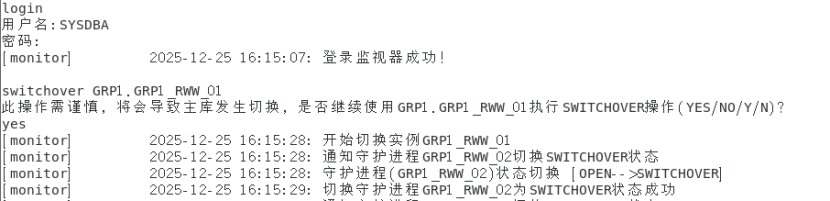

切换AB主备集群

读写分离集群

概念

读写分离集群是一种数据库架构设计模式，其核心思想是将数据库的读操作（如 SELECT 查询）与写操作（如 INSERT、UPDATE、DELETE）分别路由到不同的数据库实例上执行，从而提升系统的整体性能、可用性和可扩展性。

在传统的单机数据库架构中，所有的读写请求都由同一个数据库实例处理。当系统负载增加、特别是读请求远多于写请求时，单一节点容易成为性能瓶颈。而通过引入读写分离机制，可以将大量只读请求分发到多个只读副本（备库）上处理，主库则专注于处理事务性写操作，有效减轻主库压力，提高并发处理能力。

实验配置

本次实验基于3台CentOS7虚拟机搭建1主2备读写分离集群。

虚拟机配置

虚拟机物理配置

节点

Ip地址

角色

硬件配置

A

192.168.138.134

主库（GRP1_RWW_01)

1核 CPU / 2GB 内存 / 40GB 磁盘

B

192.168.138.132

备库

（GRP1_RWW_02)

1核 CPU / 2GB 内存 / 30GB 磁盘

C

192.168.138.135

备库（GRP1_RWW_03)

1核 CPU / 2GB 内存 / 30GB 磁盘
虚拟机端口配置

节点

实例端口

MAL端口

MAL守护进程端口

守护进程端口

A

5236

5336

5436

5536

B

5236

5337

5437

5537

C

5336

5338

5438

5538

三台虚拟机的OGUID为均45331，守护组为GRP1。操作系统为CentOS Linux release 7.9 (Core)；达梦镜像版本为dm8_20251016_x86_CentOS7_64.iso；安装目录为/home/dmdba/dmdbms；实例目录为/home/dmdba/dmdbms/data。

实验任务

完成3节点读写分离集群的搭建，要求如下：

     1）完成读写分离集群的部署，并测试建表和插入数据备机是否能及时同步，并可查询到数据。

     2）制造主机故障，测试备机可接管并持续提供服务。

     3）恢复故障主机，将故障主机加入集群。

     4）手动切换主备集群，恢复原主备集群的位置。

安装部署

配置A机器

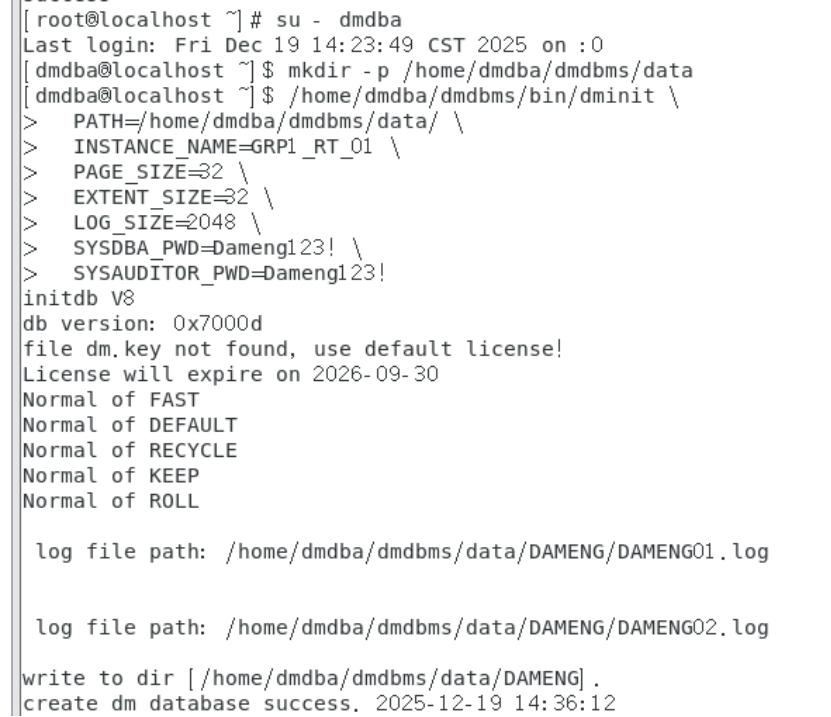

初始化A中实例

/home/dmdba/dmdbms/bin/dminit \
> PATH=/home/dmdba/dmdbms/data/ \
> INSTANCE_NAME=GRP1_RT_01 \
> PAGE_SIZE=32 \
> EXTENT_SIZE=32 \
> LOG_SIZE=2048 \
> SYSDBA_PWD=Dameng123! \
> SYSAUDITOR_PWD=Dameng123!

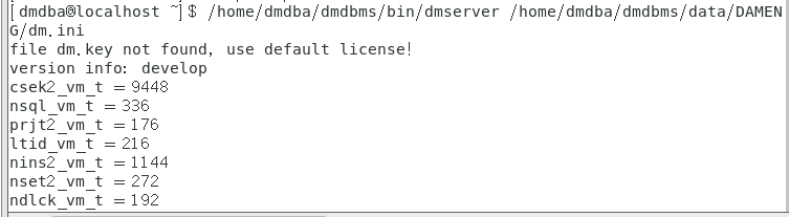

启动A机器服务

/home/dmdba/dmdbms/bin/dmserver /home/dmdba/dmdbms/data/DAMENG/dm.ini

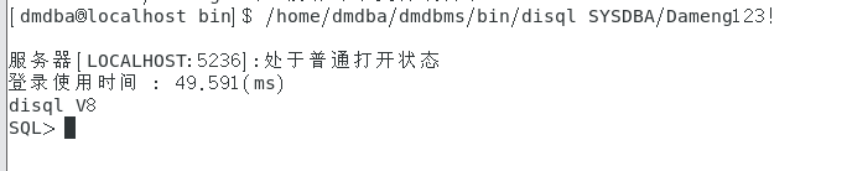

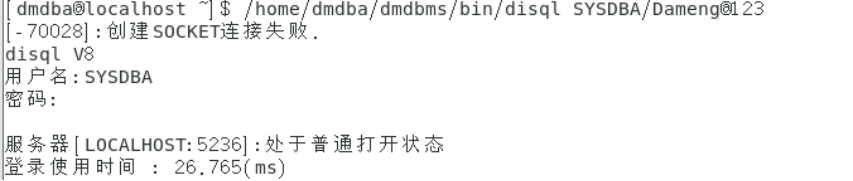

连接数据库

/home/dmdba/dmdbms/bin/disql SYSDBA/Dameng123!

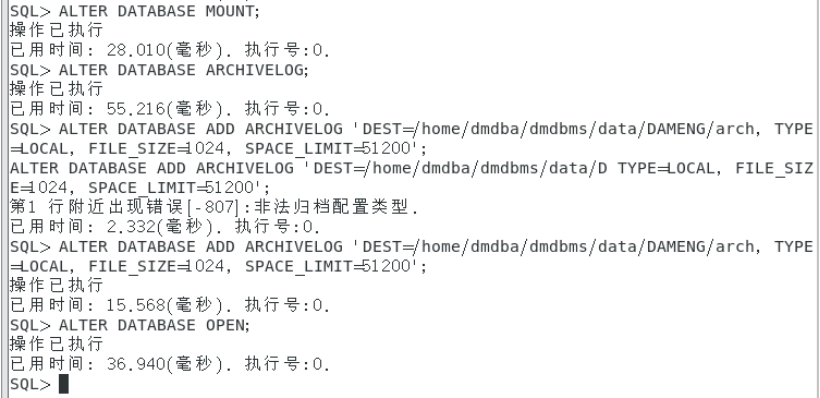

ALTER DATABASE MOUNT;
ALTER DATABASE ARCHIVELOG;
ALTER DATABASE ADD ARCHIVELOG 'DEST=/home/dmdba/dmdbms/data/DAMENG/arch, TYPE=LOCAL, FILE_SIZE=1024, SPACE_LIMIT=51200';
ALTER DATABASE OPEN;

创建备份

BACKUP DATABASE BACKUPSET '/home/dmdba/dmdbms/data/DAMENG/bak/BACKUP_FILE';

配置A机器的dm( ).ini文件

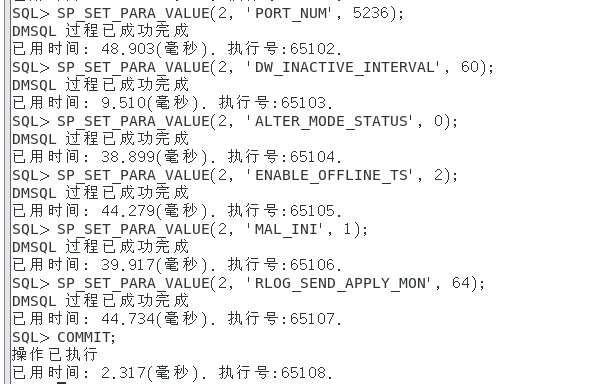

A机器dm.ini
SP_SET_PARA_VALUE(2, 'PORT_NUM', 5236);
SP_SET_PARA_VALUE(2, 'DW_INACTIVE_INTERVAL', 60);
SP_SET_PARA_VALUE(2, 'ALTER_MODE_STATUS', 0);
SP_SET_PARA_VALUE(2, 'ENABLE_OFFLINE_TS', 2);
SP_SET_PARA_VALUE(2, 'MAL_INT', 1);
SP_SET_PARA_VALUE(2, 'RLOG_SEND_APPLY_MON', 64);
COMMIT;

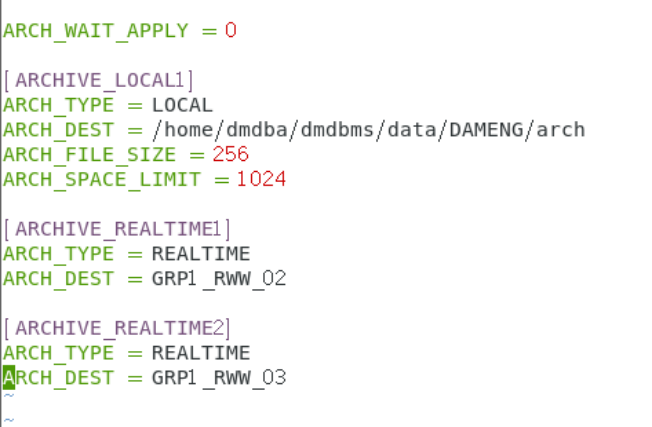

A机器dmarch.ini
vim /home/dmdba/dmdbms/data/DAMENG/dmarch.ini
ARCH_WAIT_APPLY = 0

[ARCHIVE_LOCAL1]
ARCH_TYPE = LOCAL
ARCH_DEST = /home/dmdba/dmdbms/data/DAMENG/arch
ARCH_FILE_SIZE = 256
ARCH_SPACE_LIMIT = 1024

[ARCHIVE_REALTIME1]
ARCH_TYPE = REALTIME
ARCH_DEST = GRP1_RWW_02

[ARCHIVE_REALTIME2]
ARCH_TYPE = REALTIME
ARCH_DEST = GRP1_RWW_03

A机器dmmal.ini
vim /home/dmdba/dmdbms/data/DAMENG/dmmal.ini
MAL_CHECK_INTERVAL = 10
MAL_CONN_FAIL_INTERVAL = 10
MAL_TEMP_PATH = /home/dmdba/dmdbms/data/DAMENG/malpath
MAL_BUF_SIZE = 512
MAL_SYS_BUF_SIZE = 2048
MAL_COMPRESS_LEVEL = 0

[MAL_INST1]
MAL_INST_NAME = GRP1_RWW_01
MAL_HOST = 192.168.138.134
MAL_PORT = 5336
MAL_INST_HOST = 192.168.138.134
MAL_INST_PORT = 5236
MAL_DW_PORT = 5436
MAL_INST_DW_PORT = 5536

[MAL_INST2]
MAL_INST_NAME = GRP1_RWW_02
MAL_HOST = 192.168.138.132
MAL_PORT = 5337
MAL_INST_HOST = 192.168.138.132
MAL_INST_PORT = 5236
MAL_DW_PORT = 5437
MAL_INST_DW_PORT = 5537

[MAL_INST3]
MAL_INST_NAME = GRP1_RWW_03
MAL_HOST = 192.168.138.135
MAL_PORT = 5338
MAL_INST_HOST = 192.168.138.135
MAL_INST_PORT = 5236
MAL_DW_PORT = 5438
MAL_INST_DW_PORT = 5538

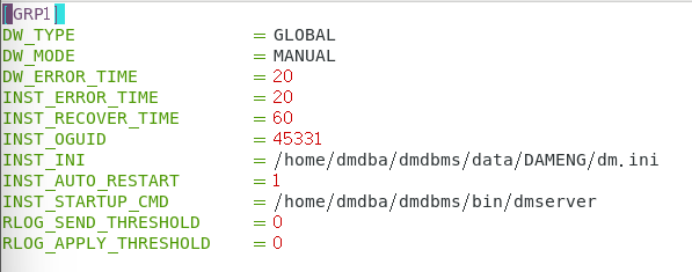

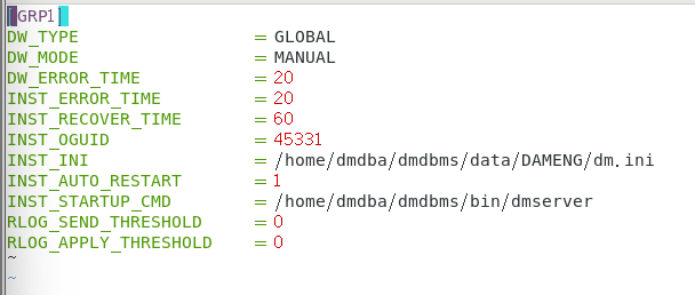

A机器dmwatcher.ini
vim /home/dmdba/dmdbms/data/DAMENG/dmwatcher.ini
[GRP1]
DW_TYPE = GLOBAL
DW_MODE = MANUAL
DW_ERROR_TIME = 20
INST_ERROR_TIME = 20
INST_RECOVER_TIME = 60
INST_OGUID = 45331
INST_INI = /home/dmdba/dmdbms/data/DAMENG/dm.ini
INST_AUTO_RESTART = 1
INST_STARTUP_CMD = /home/dmdba/dmdbms/bin/dmserver
RLOG_SEND_THRESHOLD = 0
RLOG_APPLY_THRESHOLD = 0

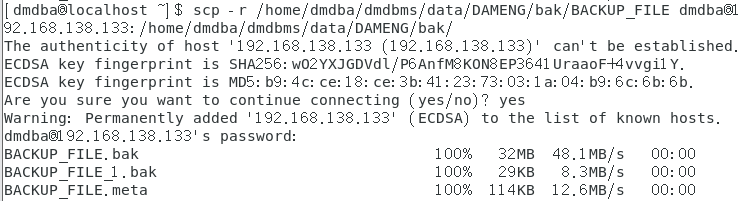

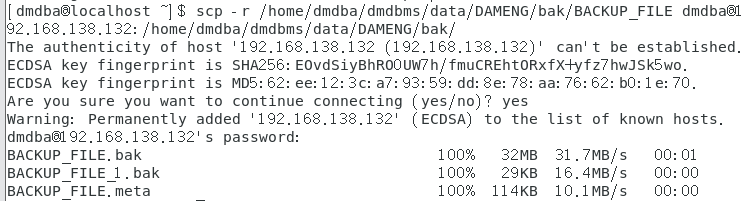

拷贝备份到BC机器

scp -r /home/dmdba/dmdbms/data/DAMENG/bak/BACKUP_FILE
 dmdba@192.168.138.132:/home/dmdba/dmdbms/data/DAMENG/bak/

B中查询

scp -r /home/dmdba/dmdbms/data/DAMENG/bak/BACKUP_FILE
dmdba@192.168.138.135:/home/dmdba/dmdbms/data/DAMENG/bak/

(这是一开始的图，后面我C机器的动态IP发生了变化，变成了135）

C中查询

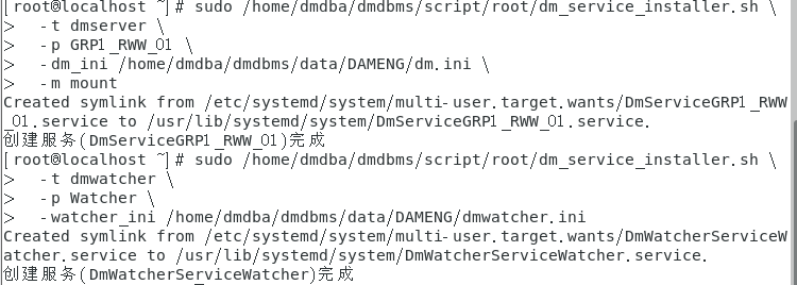

A机器注册服务

sudo /home/dmdba/dmdbms/script/root/dm_service_installer.sh -t dmserver -p GRP1_RWW_01 -dm_ini /home/dmdba/dmdbms/data/DAMENG/dm.ini -m mount
sudo /home/dmdba/dmdbms/script/root/dm_service_installer.sh -t dmwatcher -p Watcher -watcher_ini /home/dmdba/dmdbms/data/DAMENG/dmwatcher.ini

配置B机器

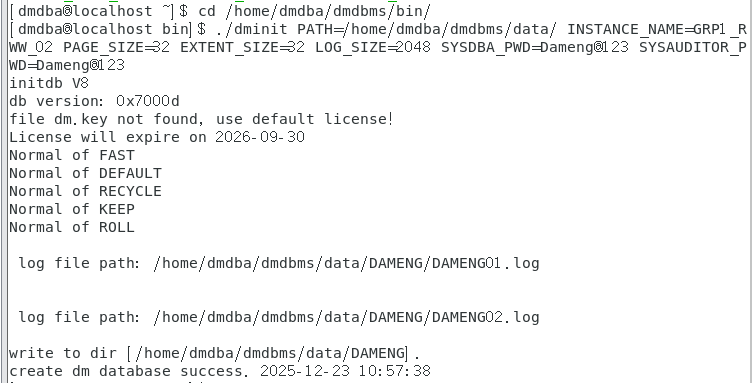

初始化B机器中实例

./dminit PATH=/home/dmdba/dmdbms/data/ INSTANCE_NAME=GRP1_RWW_02 PAGE_SIZE=32 EXTENT_SIZE=32 LOG_SIZE=2048 SYSDBA_PWD=Dameng@123 SYSAUDITOR_PWD=Dameng@123

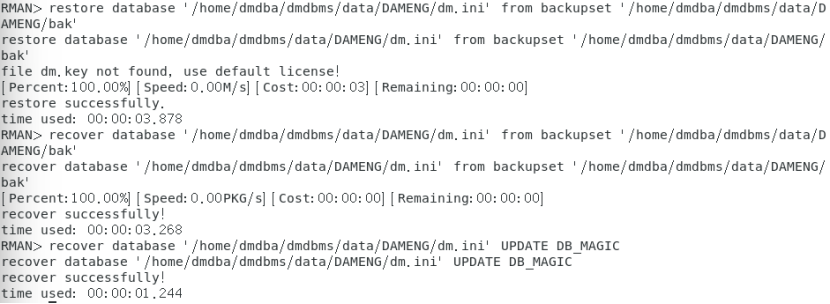

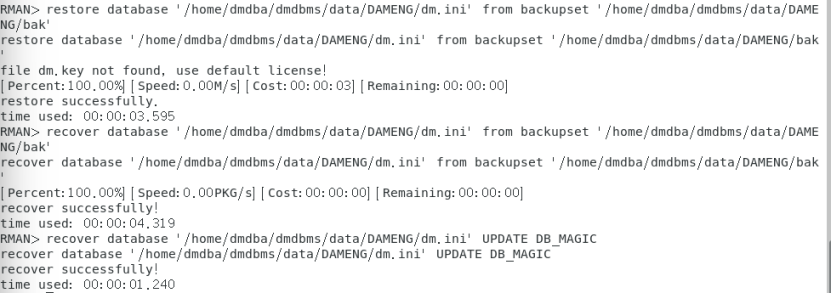

B机器中恢复数据

[dmdba@localhost bin]$ ./dmrman
dmrman V8
RMAN> restore database '/home/dmdba/dmdbms/data/DAMENG/dm.ini' from backupset '/home/dmdba/dmdbms/data/DAMENG/bak'
RMAN> recover database '/home/dmdba/dmdbms/data/DAMENG/dm.ini' from backupset '/home/dmdba/dmdbms/data/DAMENG/bak'
RMAN> recover database '/home/dmdba/dmdbms/data/DAMENG/dm.ini' UPDATE DB_MAGIC

B机器配置dm.ini dmarch.ini dmmal.ini dmwatcher.ini

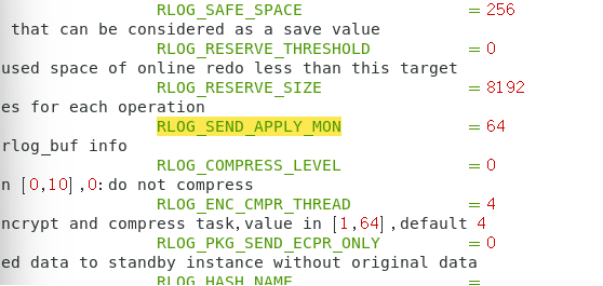

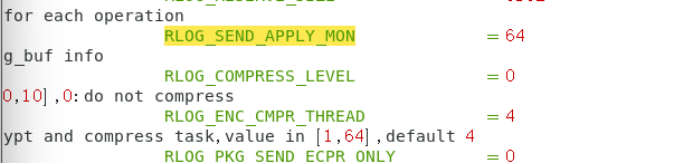

B机器dm.ini

一个个找到然后修改

vim /home/dmdba/dmdbms/data/DAMENG/dm.ini
INSTANCE_NAME  = GRP1_RWW_02
PORT_NUM = 5236
DW_INACTIVE_INTERVAL = 60
ALTER_MODE_STATUS = 0
ENABLE_OFFLINE_TS  = 2
MAL_INI = 1
ARCH_INI = 1
RLOG_SEND_APPLY_MON = 64

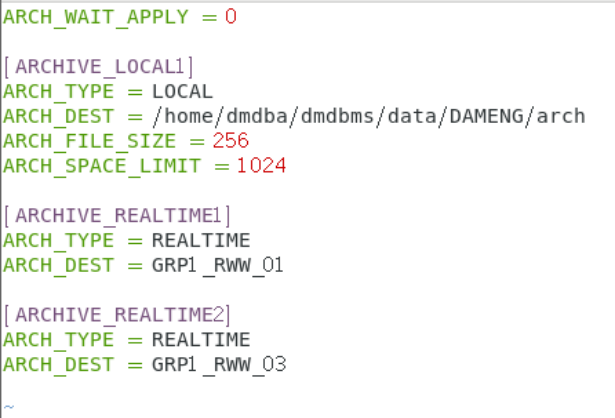

B机器dmarch.ini
vim /home/dmdba/dmdbms/data/DAMENG/dmarch.ini
ARCH_WAIT_APPLY = 0

[ARCHIVE_LOCAL1]
ARCH_TYPE = LOCAL
ARCH_DEST = /home/dmdba/dmdbms/data/DAMENG/arch
ARCH_FILE_SIZE = 256
ARCH_SPACE_LIMIT = 1024

[ARCHIVE_REALTIME1]
ARCH_TYPE = REALTIME
ARCH_DEST = GRP1_RWW_01

[ARCHIVE_REALTIME2]
ARCH_TYPE = REALTIME
ARCH_DEST = GRP1_RWW_03

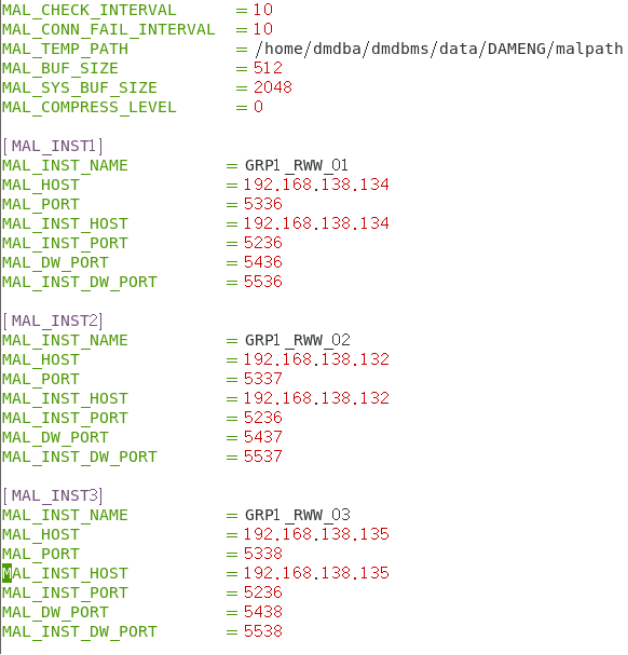

B机器dmmal.ini
vim  /home/dmdba/dmdbms/data/DAMENG/dmmal.ini
MAL_CHECK_INTERVAL = 10
MAL_CONN_FAIL_INTERVAL = 10
MAL_TEMP_PATH = /home/dmdba/dmdbms/data/DAMENG/malpath
MAL_BUF_SIZE = 512
MAL_SYS_BUF_SIZE = 2048
MAL_COMPRESS_LEVEL = 0

[MAL_INST1]
MAL_INST_NAME = GRP1_RWW_01
MAL_HOST = 192.168.138.134
MAL_PORT = 5336
MAL_INST_HOST = 192.168.138.134
MAL_INST_PORT = 5236
MAL_DW_PORT = 5436
MAL_INST_DW_PORT = 5536

[MAL_INST2]
MAL_INST_NAME = GRP1_RWW_02
MAL_HOST = 192.168.138.132
MAL_PORT = 5337
MAL_INST_HOST = 192.168.138.132
MAL_INST_PORT = 5236
MAL_DW_PORT = 5437
MAL_INST_DW_PORT = 5537

[MAL_INST3]
MAL_INST_NAME = GRP1_RWW_03
MAL_HOST = 192.168.138.135
MAL_PORT = 5338
MAL_INST_HOST = 192.168.138.135
MAL_INST_PORT = 5236
MAL_DW_PORT = 5438
MAL_INST_DW_PORT = 5538

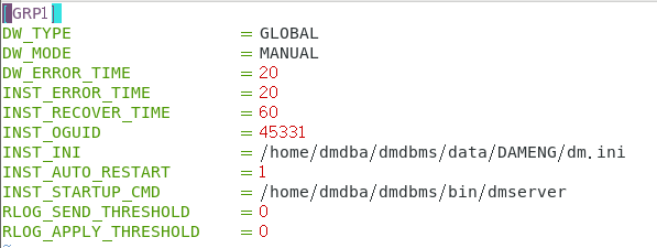

B机器dmwatcher.ini
vim /home/dmdba/dmdbms/data/DAMENG/dmwatcher.ini
[GRP1]
DW_TYPE = GLOBAL
DW_MODE = MANUAL
DW_ERROR_TIME = 20
INST_ERROR_TIME = 20
INST_RECOVER_TIME = 60
INST_OGUID = 45331
INST_INI = /home/dmdba/dmdbms/data/DAMENG/dm.ini
INST_AUTO_RESTART = 1
INST_STARTUP_CMD = /home/dmdba/dmdbms/bin/dmserver
RLOG_SEND_THRESHOLD = 0
RLOG_APPLY_THRESHOLD = 0

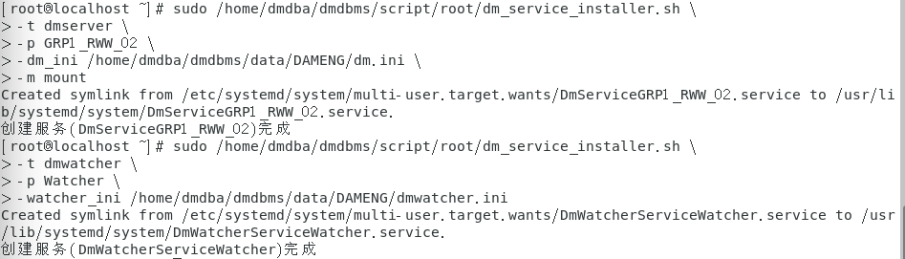

B机器注册服务

sudo /home/dmdba/dmdbms/script/root/dm_service_installer.sh -t dmserver -p GRP1_RWW_01 -dm_ini /home/dmdba/dmdbms/data/DAMENG/dm.ini -m mount
sudo /home/dmdba/dmdbms/script/root/dm_service_installer.sh -t dmwatcher -p Watcher -watcher_ini /home/dmdba/dmdbms/data/DAMENG/dmwatcher.ini

配置C机器

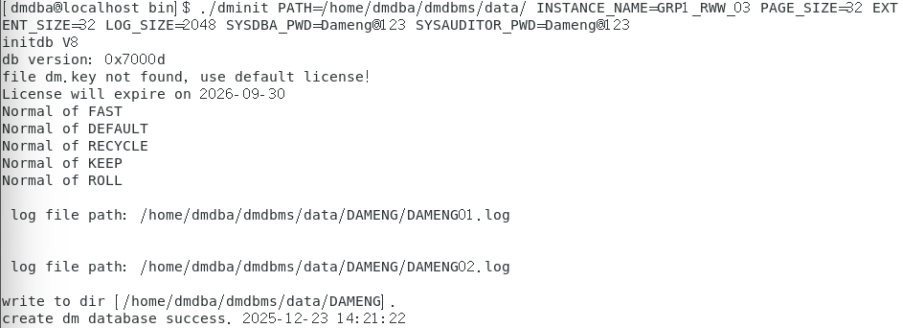

C机器初始化

./dminit PATH=/home/dmdba/dmdbms/data/ INSTANCE_NAME=GRP1_RWW_03 PAGE_SIZE=32 EXTENT_SIZE=32 LOG_SIZE=2048 SYSDBA_PWD=Dameng@123 SYSAUDITOR_PWD=Dameng@123

    C机器恢复数据

    [dmdba@localhost bin]$ ./dmrman
dmrman V8
RMAN> restore database '/home/dmdba/dmdbms/data/DAMENG/dm.ini' from backupset '/home/dmdba/dmdbms/data/DAMENG/bak'
RMAN> recover database '/home/dmdba/dmdbms/data/DAMENG/dm.ini' from backupset '/home/dmdba/dmdbms/data/DAMENG/bak'
RMAN> recover database '/home/dmdba/dmdbms/data/DAMENG/dm.ini' UPDATE DB_MAGIC

    C机器配置dm.ini dmarch.ini dmmal.ini dmwatcher.ini

    C机器dm.ini
    vim /home/dmdba/dmdbms/data/DAMENG/dm.ini
    INSTANCE_NAME  = GRP1_RWW_02
PORT_NUM = 5236
DW_INACTIVE_INTERVAL = 60
ALTER_MODE_STATUS = 0
ENABLE_OFFLINE_TS  = 2
MAL_INI = 1
ARCH_INI = 1
RLOG_SEND_APPLY_MON = 64

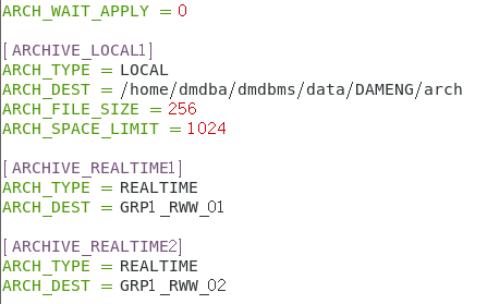

    C机器dmarch.ini
    vim /home/dmdba/dmdbms/data/DAMENG/dmarch.ini
    ARCH_WAIT_APPLY = 0

[ARCHIVE_LOCAL1]
ARCH_TYPE = LOCAL
ARCH_DEST = /home/dmdba/dmdbms/data/DAMENG/arch
ARCH_FILE_SIZE = 256
ARCH_SPACE_LIMIT = 1024

[ARCHIVE_REALTIME1]
ARCH_TYPE = REALTIME
ARCH_DEST = GRP1_RWW_01

[ARCHIVE_REALTIME2]
ARCH_TYPE = REALTIME
ARCH_DEST = GRP1_RWW_02

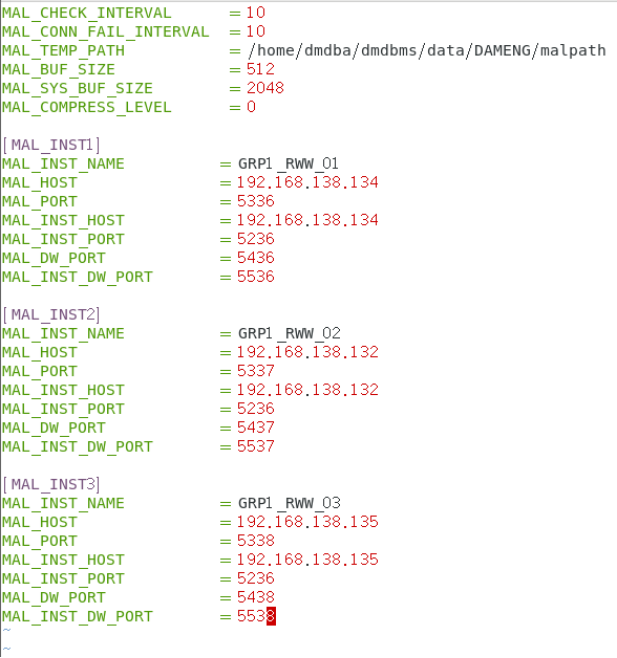

    C机器dmmal.ini
    vim /home/dmdba/dmdbms/data/DAMENG/dmmal.ini
    MAL_CHECK_INTERVAL = 10
MAL_CONN_FAIL_INTERVAL = 10
MAL_TEMP_PATH = /home/dmdba/dmdbms/data/DAMENG/malpath
MAL_BUF_SIZE = 512
MAL_SYS_BUF_SIZE = 2048
MAL_COMPRESS_LEVEL = 0

[MAL_INST1]
MAL_INST_NAME = GRP1_RWW_01
MAL_HOST = 192.168.138.134
MAL_PORT = 5336
MAL_INST_HOST = 192.168.138.134
MAL_INST_PORT = 5236
MAL_DW_PORT = 5436
MAL_INST_DW_PORT = 5536

[MAL_INST2]
MAL_INST_NAME = GRP1_RWW_02
MAL_HOST = 192.168.138.132
MAL_PORT = 5337
MAL_INST_HOST = 192.168.138.132
MAL_INST_PORT = 5236
MAL_DW_PORT = 5437
MAL_INST_DW_PORT = 5537

[MAL_INST3]
MAL_INST_NAME = GRP1_RWW_03
MAL_HOST = 192.168.138.135
MAL_PORT = 5338
MAL_INST_HOST = 192.168.138.135
MAL_INST_PORT = 5236
MAL_DW_PORT = 5438
MAL_INST_DW_PORT = 5538

    C机器dmwatcher.ini
    vim /home/dmdba/dmdbms/data/DAMENG/dmwatcher.ini
    [GRP1]
DW_TYPE = GLOBAL
DW_MODE = MANUAL
DW_ERROR_TIME = 20
INST_ERROR_TIME = 20
INST_RECOVER_TIME = 60
INST_OGUID = 45331
INST_INI = /home/dmdba/dmdbms/data/DAMENG/dm.ini
INST_AUTO_RESTART = 1
INST_STARTUP_CMD = /home/dmdba/dmdbms/bin/dmserver
RLOG_SEND_THRESHOLD = 0
RLOG_APPLY_THRESHOLD = 0

    C机器注册服务

    sudo /home/dmdba/dmdbms/script/root/dm_service_installer.sh -t dmserver -p GRP1_RWW_03 -dm_ini /home/dmdba/dmdbms/data/DAMENG/dm.ini -m mount
sudo /home/dmdba/dmdbms/script/root/dm_service_installer.sh -t dmwatcher -p Watcher -watcher_ini /home/dmdba/dmdbms/data/DAMENG/dmwatcher.ini

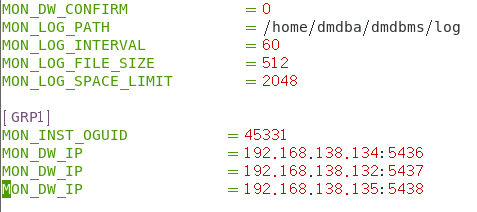

    配置监视器

    vim /home/dmdba/dmdbms/bin/dmmonitor.ini
    MON_DW_CONFIRM = 0
MON_LOG_PATH = /home/dmdba/dmdbms/log
MON_LOG_INTERVAL = 60
MON_LOG_FILE_SIZE = 512
MON_LOG_SPACE_LIMIT = 2048

[GRP1]
MON_INST_OGUID = 45331
MON_DW_IP = 192.168.138.134:5436
MON_DW_IP = 192.168.138.132:5437
MON_DW_IP = 192.168.138.135:5438

    监视器注册服务

    sudo /home/dmdba/dmdbms/script/root/dm_service_installer.sh -t dmmonitor -p Monitor -monitor_ini /home/dmdba/dmdbms/bin/dmmonitor.ini

    启动服务

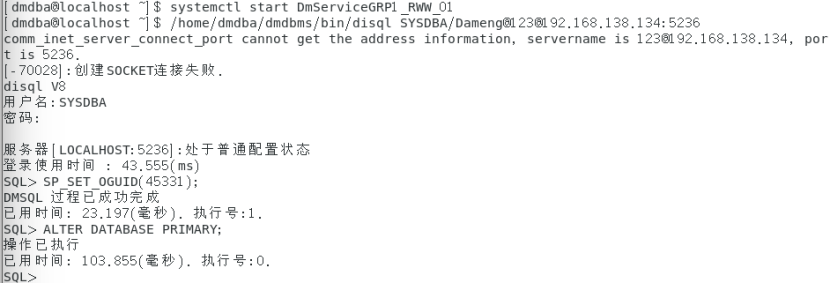

    启动A数据库并修改参数

    systemctl start DmServiceGRP1_RWW_01
disql SYSDBA/Dameng@123@192.168.138.134:5236
SQL>SP_SET_OGUID(45331);
SQL>ALTER DATABASE PRIMARY;

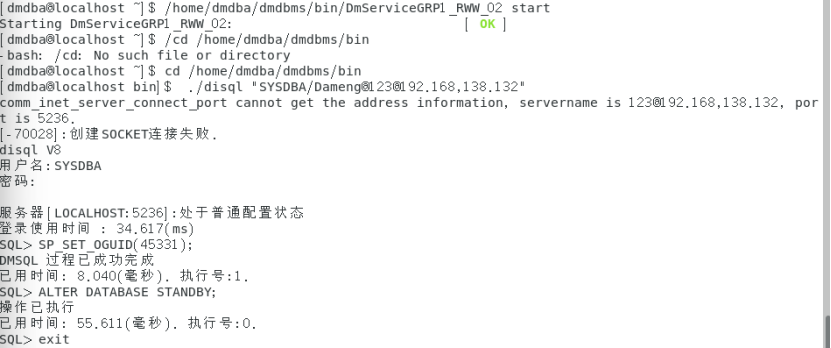

    启动B数据库并修改参数

    /home/dmdba/dmdbms/bin/DmServiceGRP1_RWW_02 start
cd /home/dmdba/dmdbms/bin
disql "SYSDBA/Dameng@123@192.168.138.132:5236"
    SP_SET_OGUID(45331);
ALTER DATABASE STANDBY;
exit

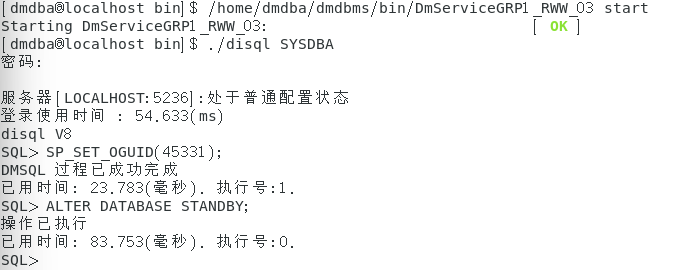

    启动C数据库并修改参数

    /home/dmdba/dmdbms/bin/DmServiceGRP1_RWW_03 start
cd /home/dmdba/dmdbms/bin
disql "SYSDBA/Dameng@123@192.168.138.135:5236"
    SP_SET_OGUID(45331);
ALTER DATABASE STANDBY;
exit

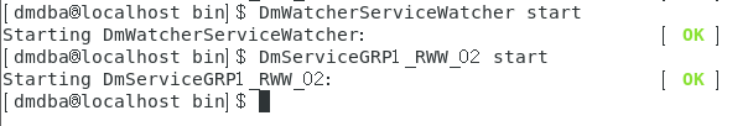

    ABC启动守护进程

    ABC都执行

    /home/dmdba/dmdbms/bin/DmWatcherServiceWatcher start

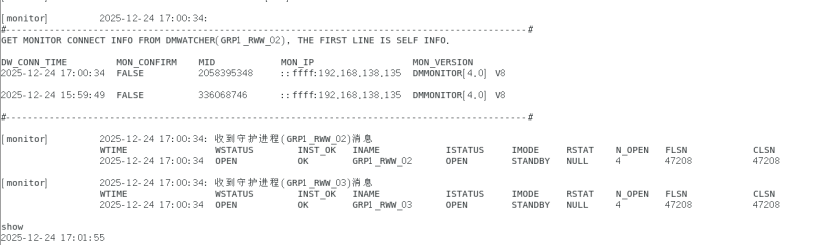

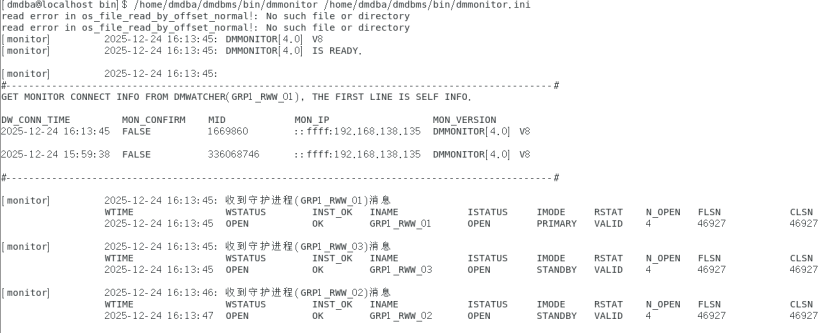

    前台启动监视器

    /home/dmdba/dmdbms/bin/dmmonitor /home/dmdba/dmdbms/bin/dmmonitor.ini

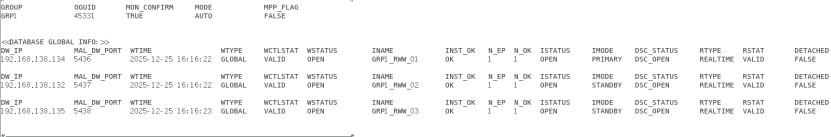

    成功，ABC三台机器皆为OPEN状态，并且A为primary，BC为standby。

    建立表格测试

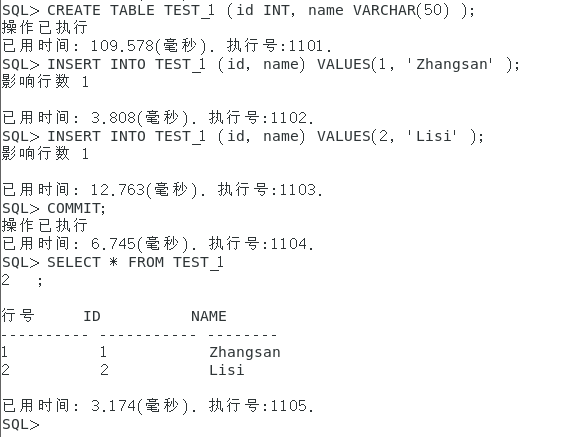

    A中建立表格插入数据

    CREATE TABLE TEST_1 (id INT, name VARCHAR(50));
INSERT INTO TEST_1 (id, name) VALUES(1, 'Zhangsan');
INSERT INTO TEST_1 (id, name) VALUES(2, 'Lisi');
COMMIT;
SELECT * FROM TEST_1;

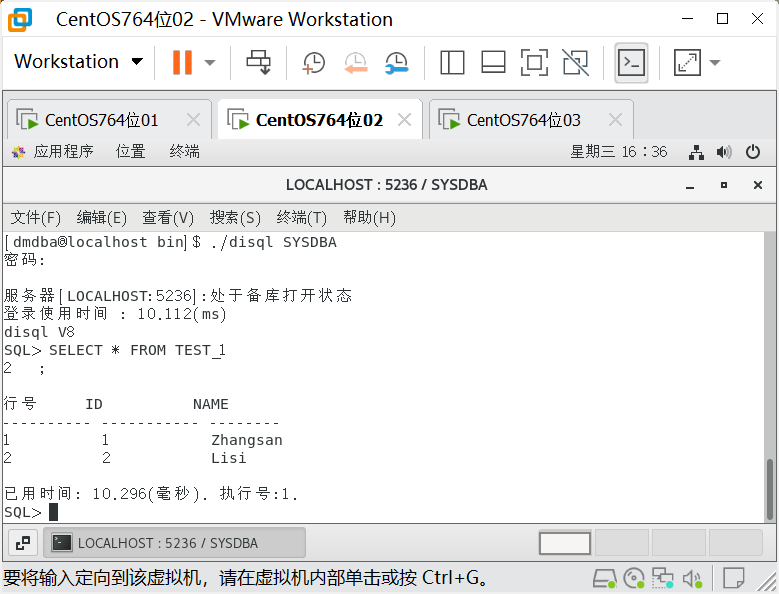

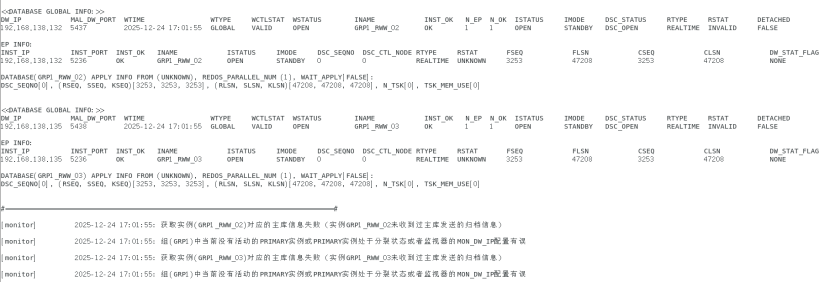

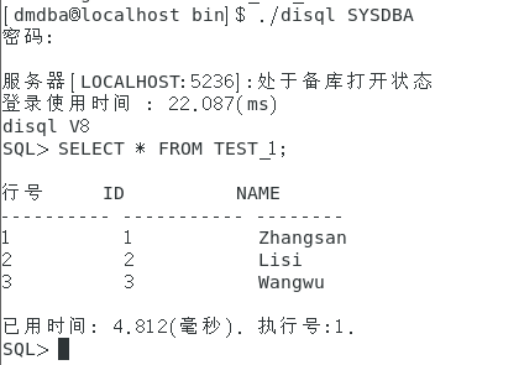

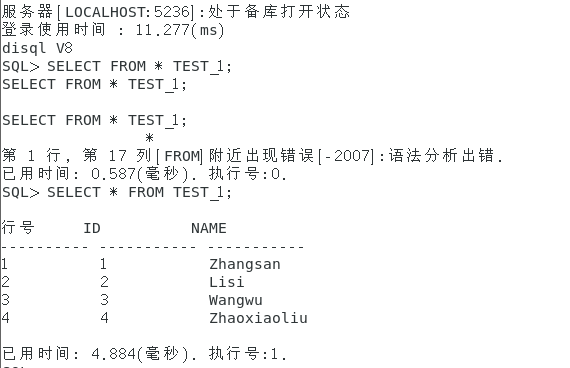

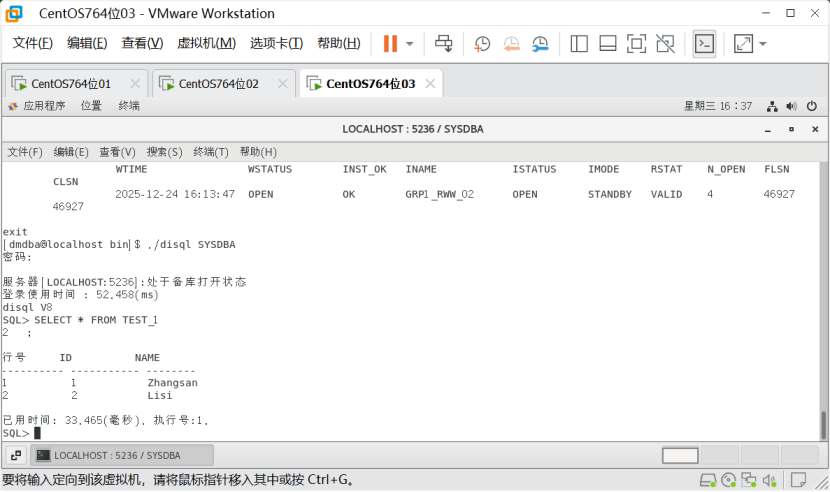

    BC中查询数据

    SELECT * FROM TEST_1;

    查询成功，可以及时同步，数据同步正常。

    制造主机故障

    A机器故障

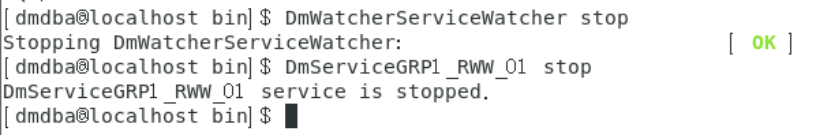

    停止A机器的守护进程和服务

    DmWatcherServiceWatcher stop
DmServiceGRP1_RWW_01 stop

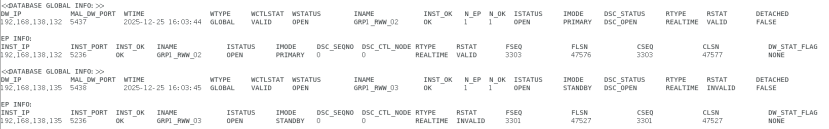

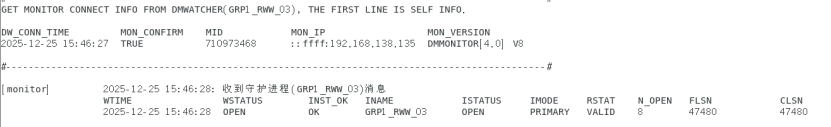

    监视器中查询，此时已经查询不到A，主库已经故障

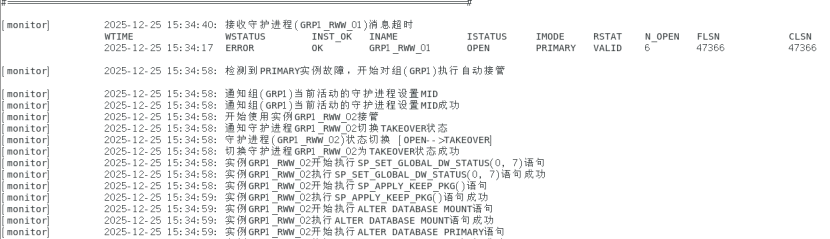

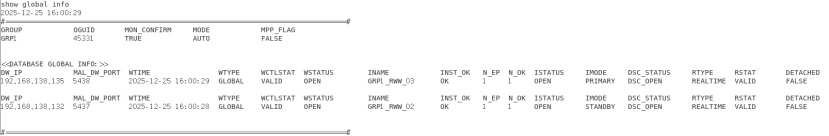

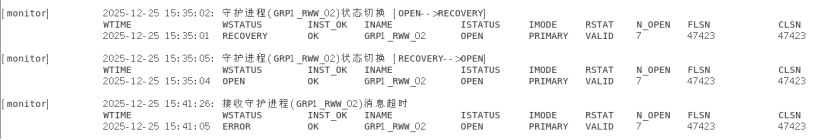

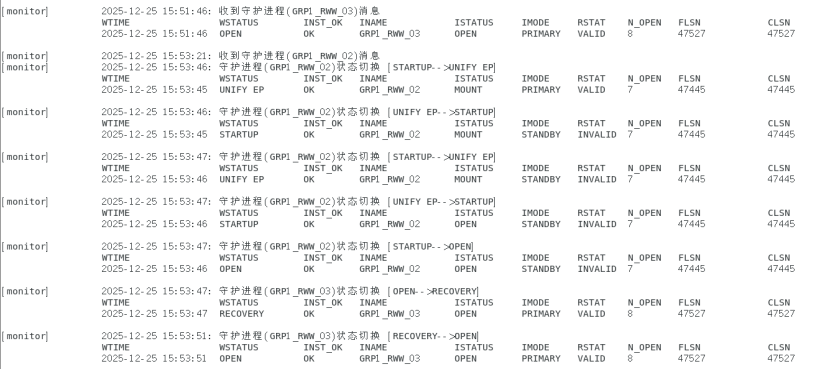

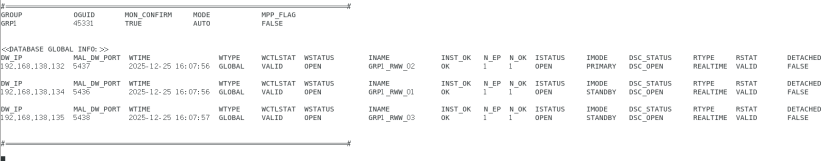

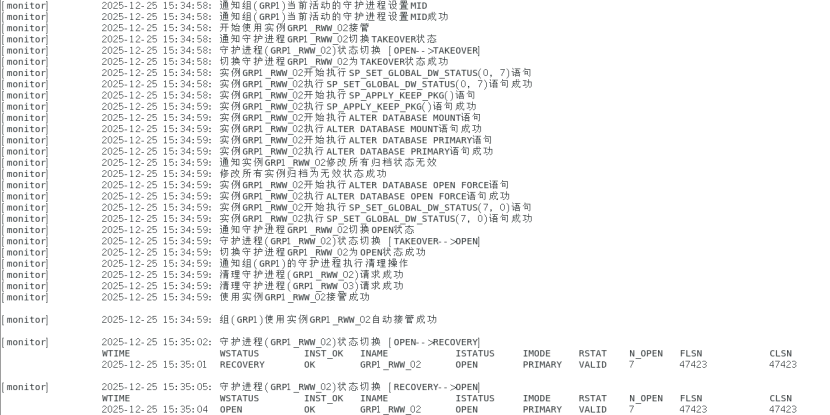

    B机器接管服务

    此时更改监视器配置

    MON_DW_CONFIRM = 1
MON_LOG_PATH = /home/dmdba/dmdbms/log
MON_LOG_INTERVAL = 60
MON_LOG_FILE_SIZE = 512
MON_LOG_SPACE_LIMIT = 2048

[GRP1]
MON_INST_OGUID = 45331
MON_DW_IP = 192.168.138.134:5436
MON_DW_IP = 192.168.138.132:5437
MON_DW_IP = 192.168.138.135:5438

    ABC中dmwatcher.ini更改配置

    [GRP1]
DW_TYPE = GLOBAL
DW_MODE = AUTO
DW_ERROR_TIME = 20
INST_ERROR_TIME = 20
INST_RECOVER_TIME = 60
INST_OGUID = 45331
INST_INI = /home/dmdba/dmdbms/data/DAMENG/dm.ini
INST_AUTO_RESTART = 1
INST_STARTUP_CMD = /home/dmdba/dmdbms/bin/dmserver
RLOG_SEND_THRESHOLD = 0
RLOG_APPLY_THRESHOLD = 0

    此时监视器会自动进行服务转换接管

    此时A故障，B为主机，C为备机

    制造B机器故障

    停止B机器的守护进程和服务

    DmWatcherServiceWatcher stop
DmServiceGRP1_RWW_02 stop

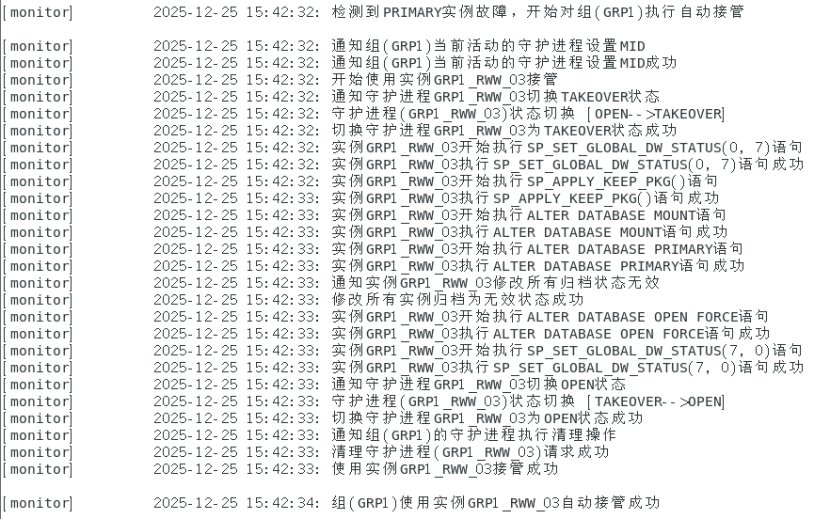

    C机器接管服务

    C机器此时会自动接管服务

    此时只剩C一个主库正在工作，AB均已故障

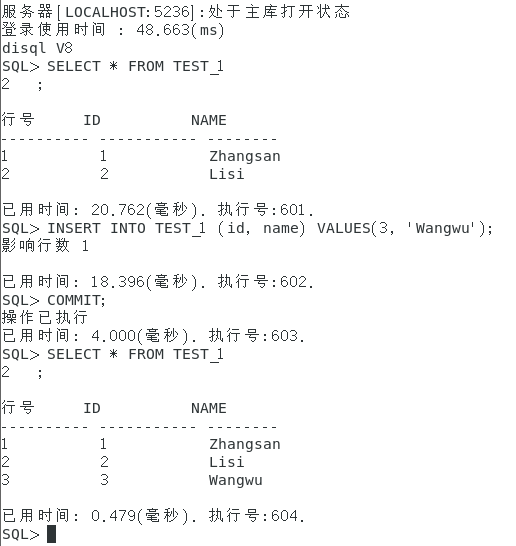

    在C机器中插入数据

    SELECT * FROM TEST_1;
INSERT INTO TEST_1 (id, name) VALUES(3, 'Wangwu');
COMMIT;
SELECT * FROM TEST_1;

    可以查询到，说明C机器是正常工作的。

    恢复故障主机

    恢复B机器

    启动B机器的守护进程和服务

    DmWatcherServiceWatcher start
DmServiceGRP1_RWW_02 start

    此时在监视器中查看BC机器状态，B为standby，C为primary。

    在B中查看数据，正常，可以查询到

    切换BC主备集群

    登录监视器，查看可以切换为主机的备机

    choose switchover GRP1

    切换B机器为主机

    switchover GRP1_GRP1_RWW_02

    此时B机器为primary，C机器为standby，主备切换成功。

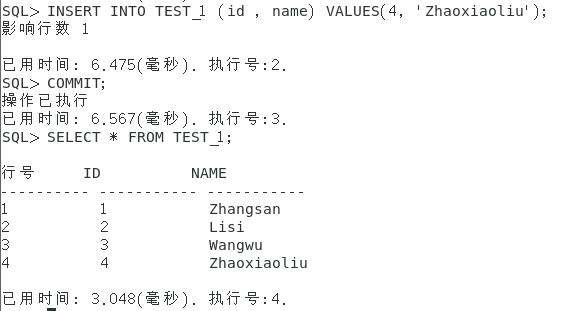

    在B机器中插入数据

    INSERT INTO TEST_1 (id, name) VALUES(4, 'Zhaoxiaoliu');
COMMIT;
SELECT * FROM TEST_1;

    恢复A机器

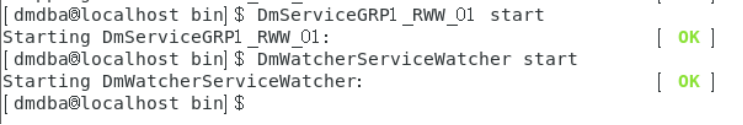

    启动A机器的服务和守护进程

    DmWatcherServiceWatcher start
DmServiceGRP1_RWW_01 start

    A已加入集群，并且状态为standby

    在A中查询数据，查询结果正常。

    切换AB主备集群

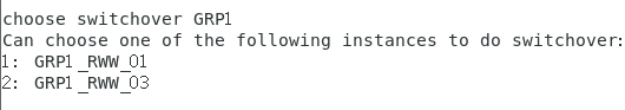

    监视器中查询可切换的备机，有A和C。

    choose switchover GRP1

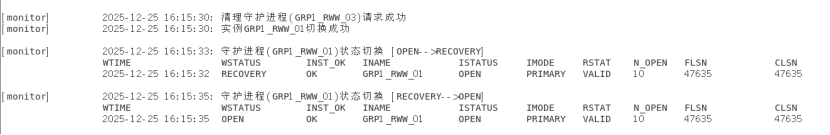

    登录监视器，切换A为主机

    switchover GRP1_GRP1_RWW_01

    此时A为primary，B和C为standby

    https://eco.dameng.com

    # 数据库 # 服务器 # 运维
    Logo
    https://edu.csdn.net/learn/39067/627173?utm_source=2019755004

    汇聚全球AI编程工具，助力开发者即刻编程。

    更多推荐

    cover

    四天蒸发近2000亿，宇树科技股价近乎“腰斩”；苹果举办库克告别派对：9月1日正式卸任CEO；Anthropic两款新Claude模型曝光 | 极客头条

    avatar AI编程社区
    cover

    Claude Code反超GitHub Copilot登顶第一、90%程序员已用上Agent，最新AI编码调查报告来了

    avatar AI编程社区
    cover

    如何用好 Claude Code 写后端代码

    avatar AI编程社区
