大模型推理引擎vLLM(29): 参考sglang代码，重构vllm021中EP高吞吐代码，消除空泡问题:400us减小到25us

时间 →

[1] DeepEP dispatch 结束
手里有 counts（还在 CPU 的 List）

[2] 马上进 pre_permute 这一个函数
CPU: sum(counts) → 算要开多大 buffer
GPU: empty 开几块内存
GPU: 把 counts 拷上去 ← profile 里的 Memcpy
GPU: 立刻 ep_scatter ← 紧接着 scan + scatter

[3] 去做 grouped gemm

Memcpy 和 scatter 写在同一个函数里，前后两行，所以中间几乎没空泡。

2.1 代码第 1 步 —— dispatch 只交作业，不拷名单

sglang/python/sglang/srt/layers/moe/token_dispatcher/deepep.py

    def dispatch_b(self, hidden_states, topk_ids, topk_weights, previous_event):
        (
            hidden_states,
            topk_ids,
            topk_weights,
            num_recv_tokens_per_expert,
            event,
        ) = self._dispatch_core(hidden_states, topk_ids, topk_weights, previous_event)
        event.current_stream_wait() if self.async_finish else ()

        if isinstance(hidden_states, tuple):
            hidden_states, hidden_states_scale = hidden_states
        else:
            hidden_states_scale = None

        return DeepEPNormalDispatchOutput(
            hidden_states,
            hidden_states_scale,
            topk_ids,
            topk_weights,
            num_recv_tokens_per_expert,
        )

DeepEP 跑完了，通信结束。
num_recv_tokens_per_expert 仍然是 CPU 上的 List[int]。
这里没有 .cuda()，所以这里不会出现你盯的那次 Memcpy。

输出是这样的

DeepEPNormalDispatchOutput(
    hidden_states=...,          # GPU
    hidden_states_scale=...,    # GPU
    topk_ids=...,               # GPU
    topk_weights=...,           # GPU
    num_recv_tokens_per_expert=[3, 5, 2, ...],  # CPU list
)

2.2 代码：第 2 步 —— 同一个函数里：拷名单 + scatter

sglang/python/sglang/srt/layers/moe/moe_runner/deep_gemm.py

@register_pre_permute("deepep_normal", "deep_gemm")
def pre_permute_deepep_normal_to_deep_gemm(
    dispatch_output: DeepEPNormalDispatchOutput,
    quant_info: DeepGemmMoeQuantInfo,
    runner_config: MoeRunnerConfig,
    running_state: dict,
) -> DeepGemmRunnerInput:
    from sglang.srt.layers.moe.ep_moe.kernels import ep_scatter

    (
        hidden_states,
        hidden_states_scale,
        topk_ids,
        topk_weights,
        num_recv_tokens_per_expert,
    ) = dispatch_output
    assert runner_config.activation == "silu"

    all_tokens = sum(num_recv_tokens_per_expert)
    running_state["all_tokens"] = all_tokens

    K = hidden_states.shape[1]

    hidden_states_shape = hidden_states.shape
    hidden_states_device = hidden_states.device
    hidden_states_dtype = hidden_states.dtype

    running_state["hidden_states_shape"] = hidden_states_shape
    running_state["hidden_states_device"] = hidden_states_device
    running_state["hidden_states_dtype"] = hidden_states_dtype
    running_state["topk_ids"] = topk_ids
    running_state["topk_weights"] = topk_weights

    input_tensor = torch.empty(
        (all_tokens, K),
        device=hidden_states.device,
        dtype=hidden_states.dtype,
    )
    if deep_gemm_wrapper.DEEPGEMM_SCALE_UE8M0:
        # TODO check whether need `zeros`
        input_tensor_scale = torch.zeros(
            (ceil_div(K // 128, 4), all_tokens),
            device=hidden_states.device,
            dtype=torch.int,
        ).transpose(0, 1)
    else:
        input_tensor_scale = torch.empty(
            (all_tokens, K // 128),
            device=hidden_states.device,
            dtype=torch.float32,
        )
    m_indices = torch.empty(all_tokens, device=hidden_states.device, dtype=torch.int32)
    output_index = torch.empty_like(topk_ids)

    if get_offloader().forbid_copy_engine_usage:
        num_recv_tokens_per_expert_gpu = copy_list_to_gpu_no_ce(
            num_recv_tokens_per_expert
        )
    else:
        num_recv_tokens_per_expert_gpu = torch.tensor(
            num_recv_tokens_per_expert,
            dtype=torch.int32,
            pin_memory=True,
            device="cpu",
        ).cuda(non_blocking=True)
    expert_start_loc = torch.empty_like(num_recv_tokens_per_expert_gpu)

    ep_scatter(
        hidden_states,
        hidden_states_scale,
        topk_ids,
        num_recv_tokens_per_expert_gpu,
        expert_start_loc,
        input_tensor,
        input_tensor_scale,
        m_indices,
        output_index,
        scale_ue8m0=deep_gemm_wrapper.DEEPGEMM_SCALE_UE8M0,
    )
    dispose_tensor(hidden_states)
    dispose_tensor(hidden_states_scale)

    running_state["output_index"] = output_index

    return DeepGemmRunnerInput(
        hidden_states=input_tensor,
        hidden_states_scale=input_tensor_scale,
        use_masked_gemm=False,
        m_indices=m_indices,
    )

把上面的代码逐段读一下

2.2.1 拆开 dispatch 的结果

(
    hidden_states,
    hidden_states_scale,
    topk_ids,
    topk_weights,
    num_recv_tokens_per_expert,   # 还是 list
) = dispatch_output

2.2.2 纯 CPU：算总长度，开输出 buffer

all_tokens = sum(num_recv_tokens_per_expert)   # CPU 加法，不上 GPU

input_tensor = torch.empty((all_tokens, K), ...)   # 开输出
input_tensor_scale = torch.empty(...)
m_indices = torch.empty(...)                       # 注意：empty，不是 full(-1)
output_index = torch.empty_like(topk_ids)

这些是在准备 scatter 要用的空盒子。还没拷 counts。

2.2.3 立刻 HtoD

num_recv_tokens_per_expert_gpu = torch.tensor(
    num_recv_tokens_per_expert,   # CPU list
    dtype=torch.int32,
    pin_memory=True,
    device="cpu",
).cuda(non_blocking=True)         # ← 这里出现 Memcpy

2.2.4 下一行就是 scatter（里面先 scan 再 scatter）

ep_scatter(
    hidden_states,
    hidden_states_scale,
    topk_ids,
    num_recv_tokens_per_expert_gpu,  # 刚拷上去的 counts
    expert_start_loc,
    input_tensor,
    ...
)

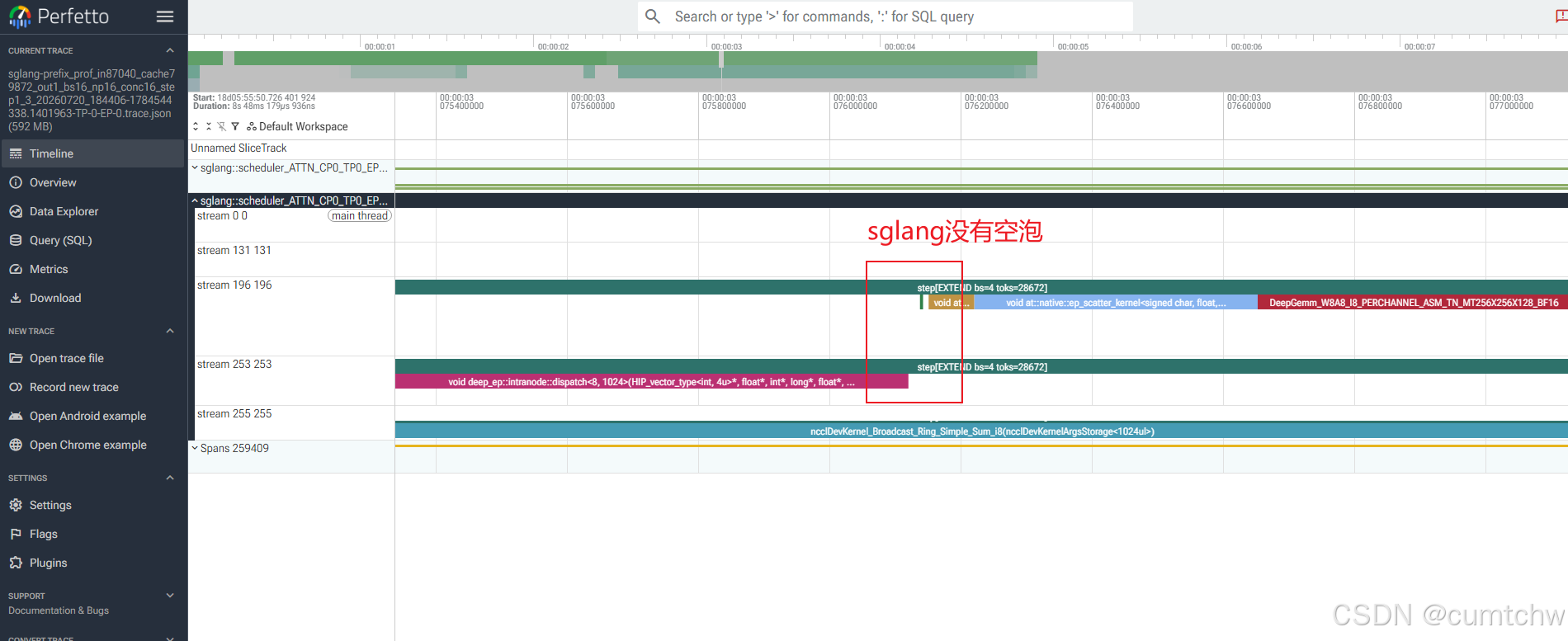

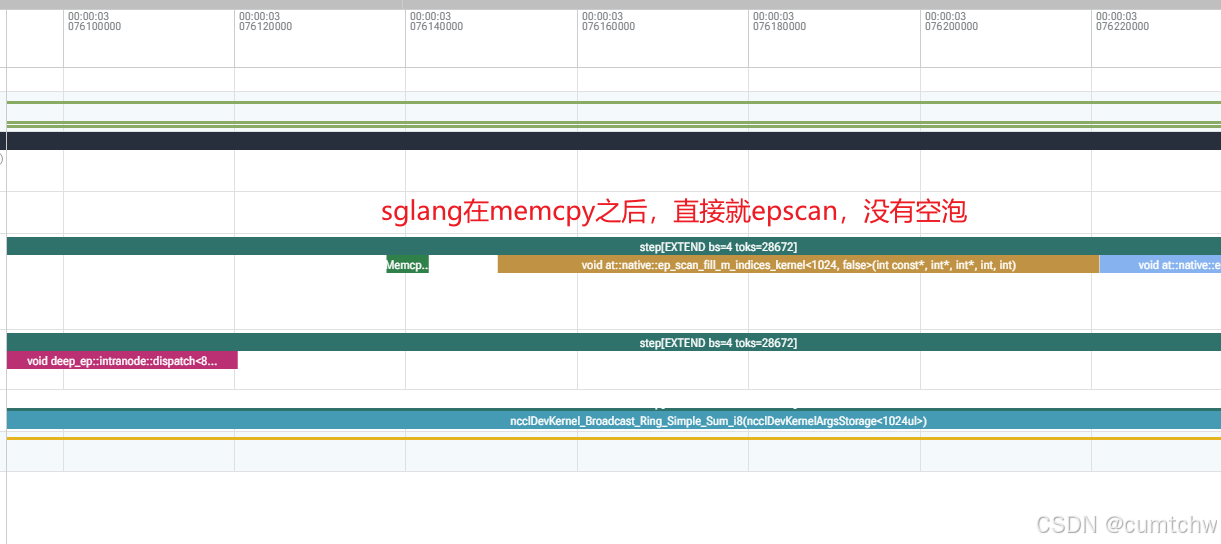

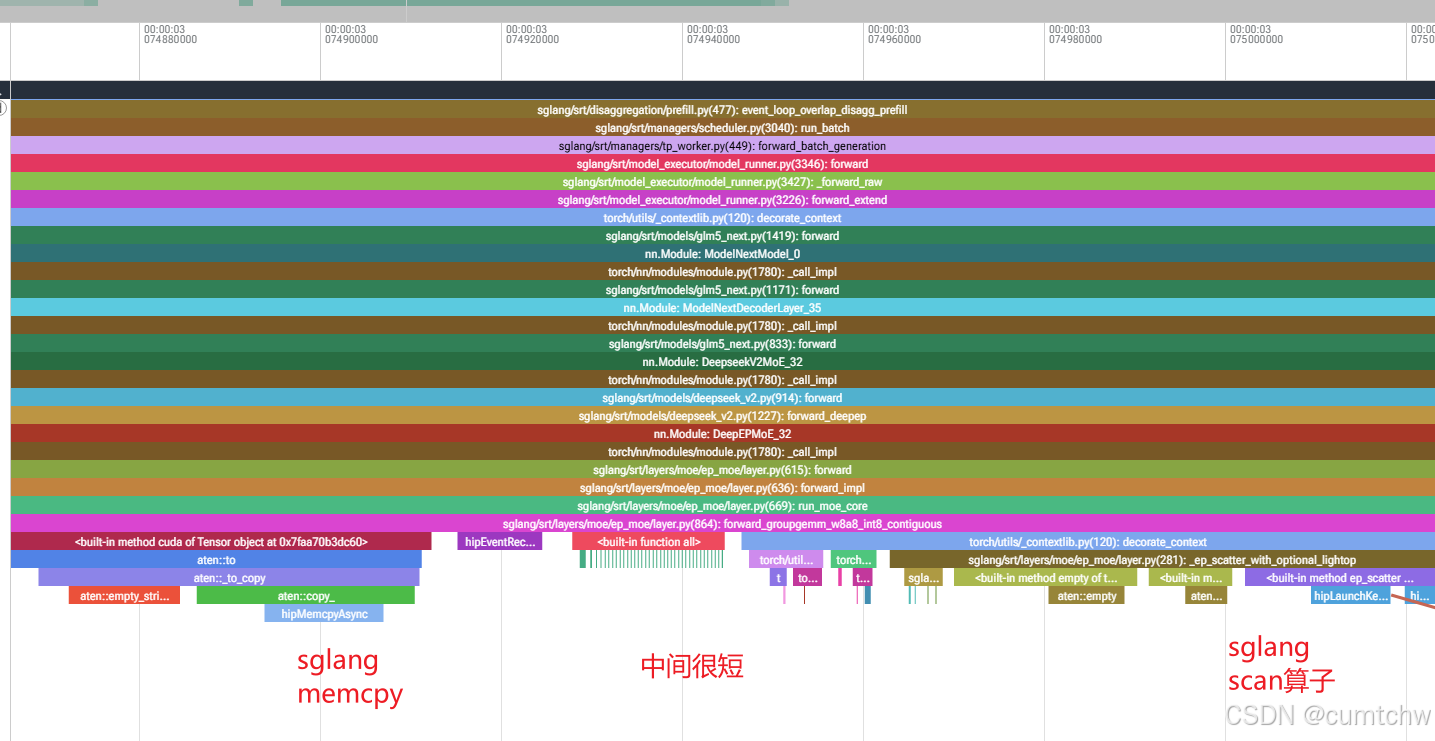

所以 sglang 的 GPU 时间线就是：

... dispatch 通信 ... | Memcpy(counts) | scan | scatter | gemm ...
↑________________↑
几乎贴在一起

3 vLLM：同样两件事，但拆成两个房间做

时间 →

[1] DeepEP dispatch 结束（和 sglang 一样）
    手里也有 counts: List[int]

[2] 进 _receiver（prepare 收尾）        ← 「第一个房间」

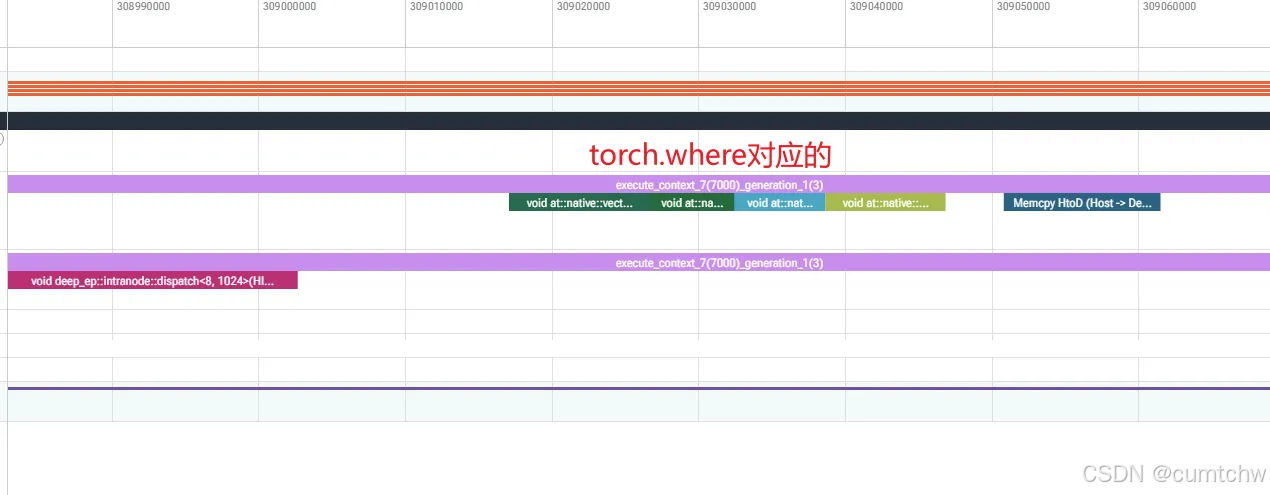

    torch.where 改 topk_ids

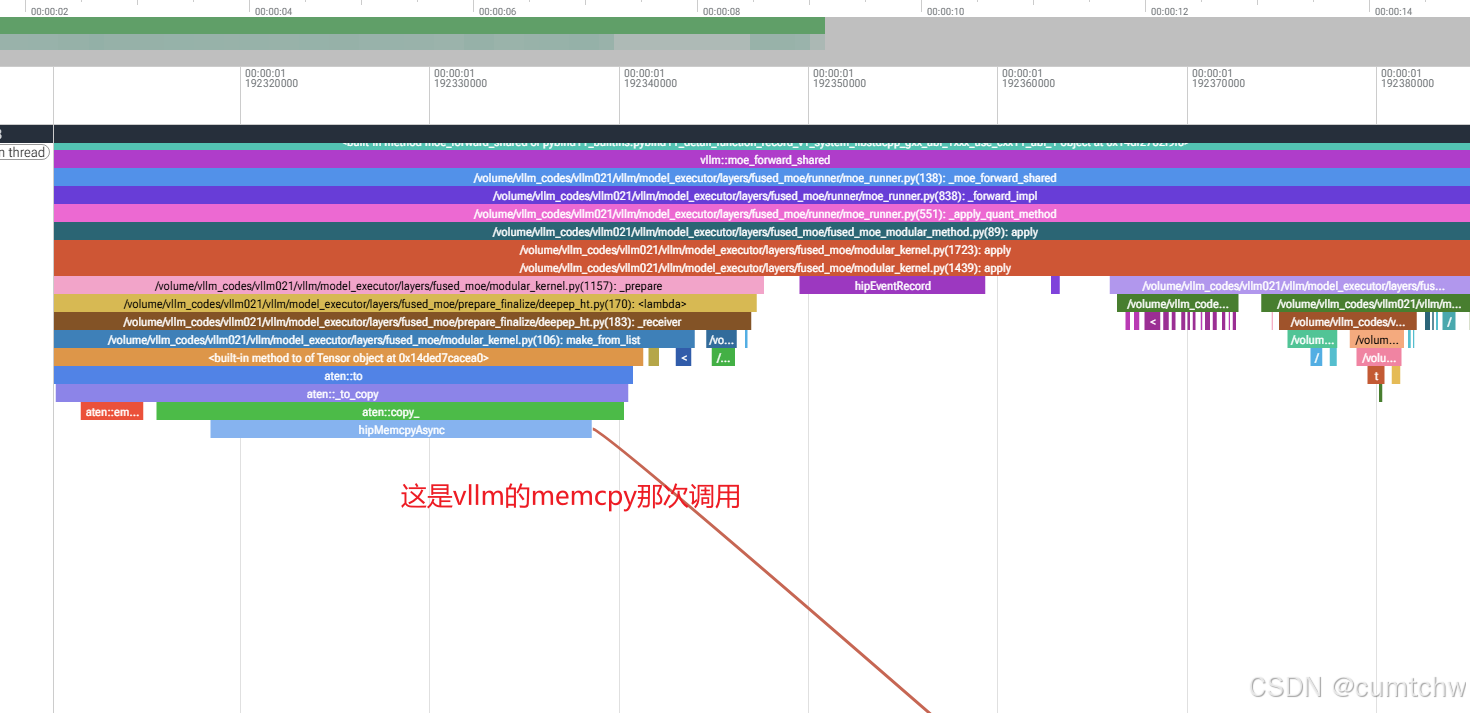

    立刻 make_from_list：把 counts 拷到 GPU   ← Memcpy 出现在这里！
    return，带着 meta 离开这个房间

[3] 回到 modular_kernel                  ← 「走廊」
    _prepare 结束
    再调 _fused_experts
    再进 DeepGemmExperts.apply

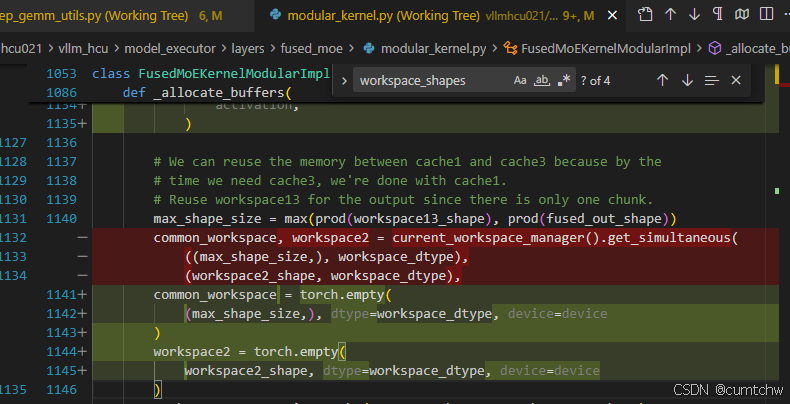

    再算 workspace / M_sum ...
    （这段 GPU 往往没事干 → 空泡）

[4] 终于进 deepgemm_moe_permute           ← 「第二个房间」
    torch.full(-1) × 2
    count_expert（再数一遍）
    才 ep_scatter（scan + scatter）

3.1 代码：第 1 步 —— `_receiver` 里就把名单拷了

vllm021/vllm/model_executor/layers/fused_moe/prepare_finalize/deepep_ht.py

3.1.1 等通信

if event.event is not None:
    event.current_stream_wait()

和 sglang dispatch_b 里 wait 一样，通信结束。

3.1.2 改 topk（sglang 这条 DeepGEMM 路径基本不做）

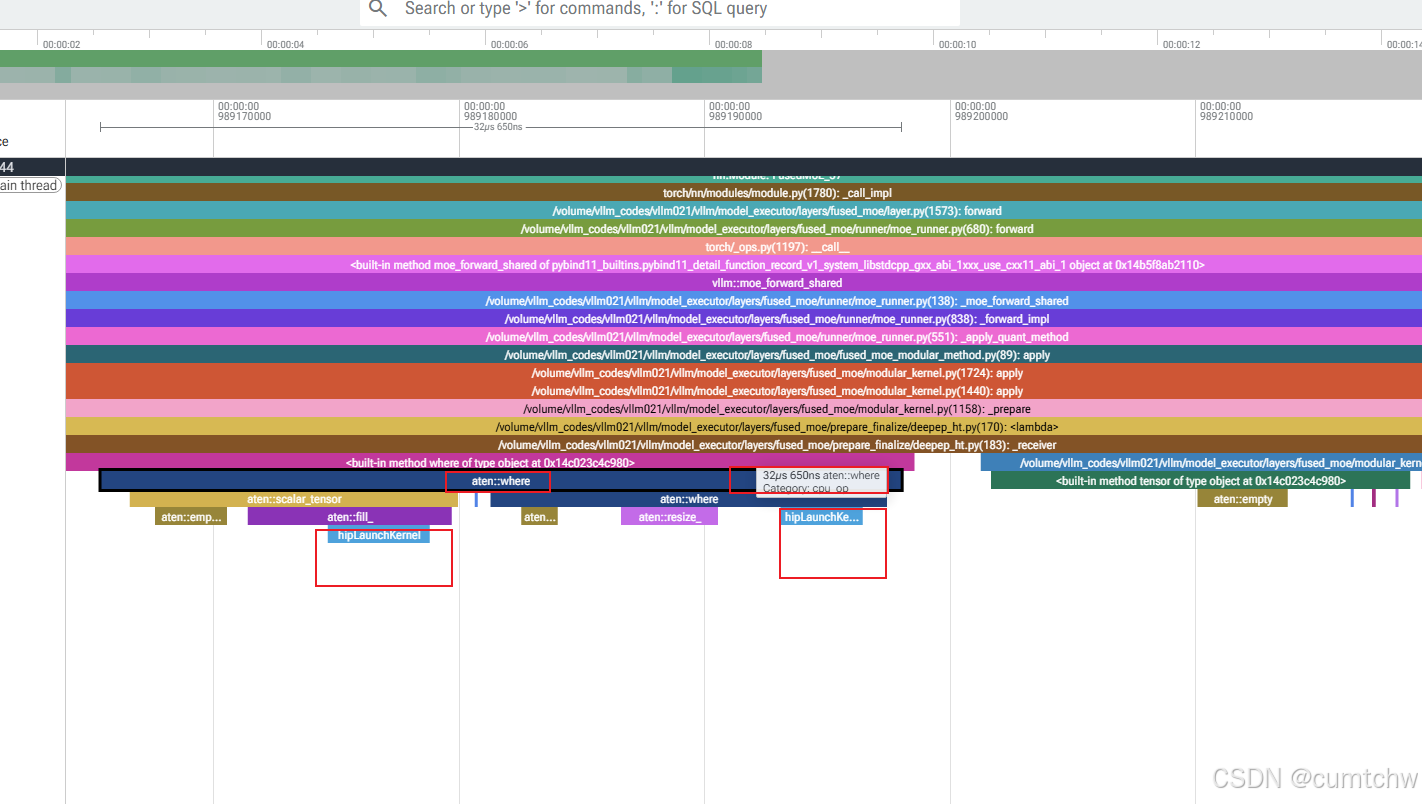

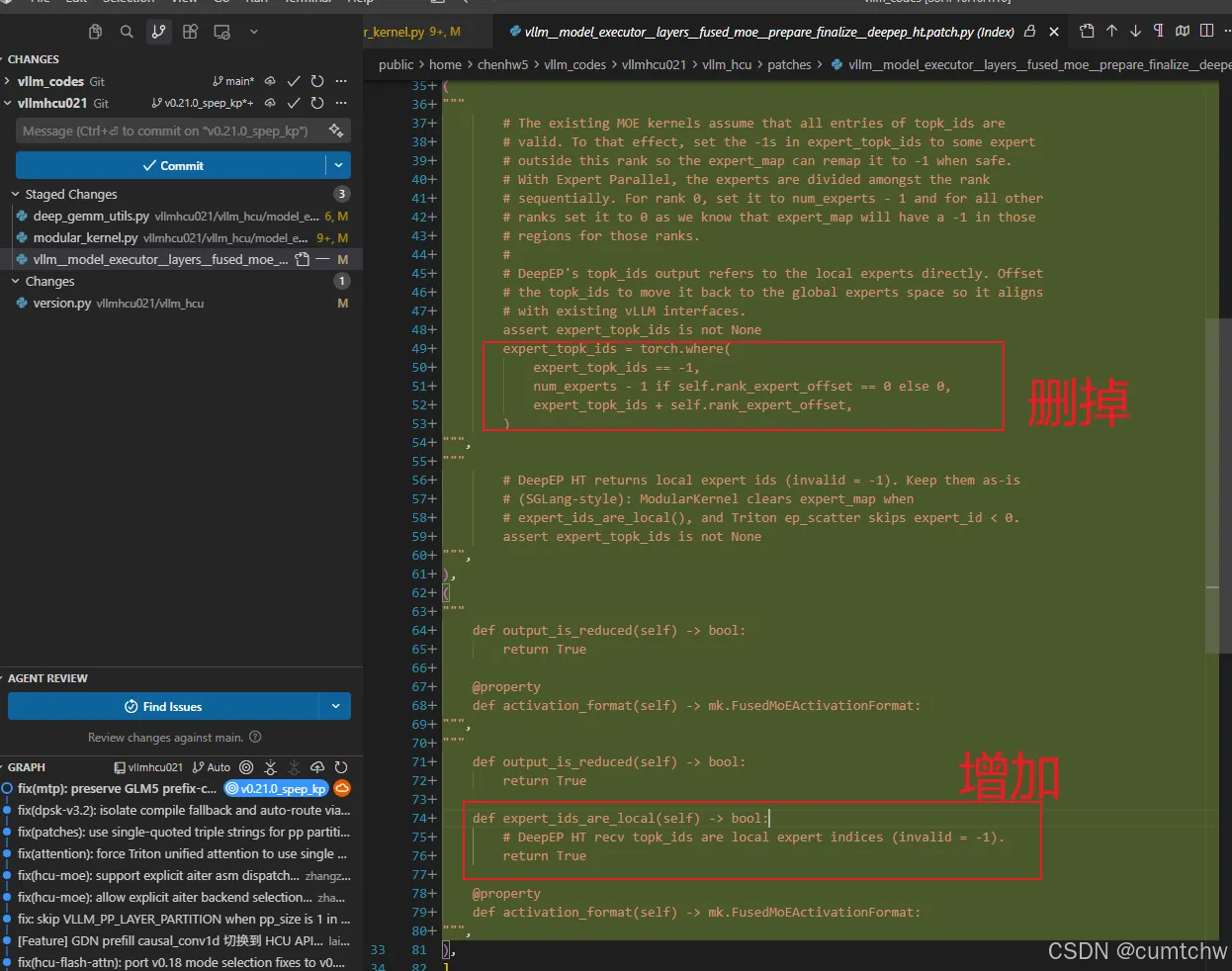

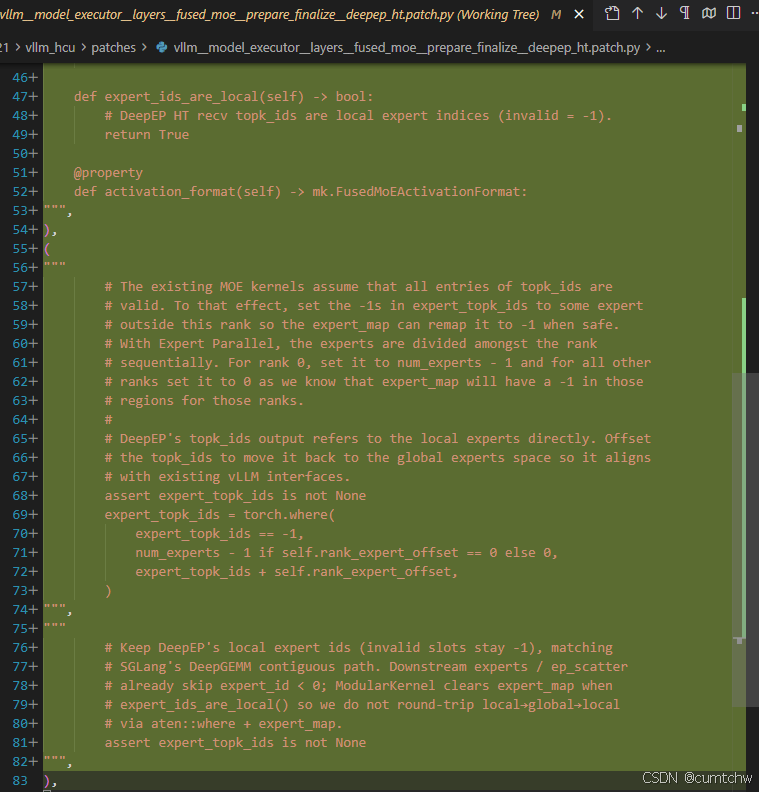

expert_topk_ids = torch.where(
    expert_topk_ids == -1,
    ...,
    expert_topk_ids + self.rank_expert_offset,  # local → global
)

3.1.3 立刻 HtoD，也就是memcpy

expert_tokens_meta = mk.ExpertTokensMetadata.make_from_list(
    expert_num_tokens_per_expert_list, device=expert_x.device
)

make_from_list 实际干的事：

expert_num_tokens_cpu = torch.tensor(list, device="cpu", pin_memory=True)
return ExpertTokensMetadata(
    expert_num_tokens=expert_num_tokens_cpu.to(device, non_blocking=True),
    # ↑ 这里就是 Memcpy
    expert_num_tokens_cpu=expert_num_tokens_cpu,
)

注意：到这里还没有调用 ep_scatter。
函数直接 return 了 token、scale、meta、topk。

3.2 代码：中间走廊 —— modular_kernel

a1q, a1q_scale, expert_tokens_meta, topk_ids, topk_weights = self._prepare(...)
# ↑ 里面已经跑完 _receiver → Memcpy 已经发生

fused_out = self._fused_experts(..., expert_tokens_meta=expert_tokens_meta, ...)
# ↑ 这里面很晚才调到 deepgemm_moe_permute → 才 scatter

_prepare 和 _fused_experts 之间，CPU 还在调 Python、进 experts、算 workspace。
GPU 上 counts 已经拷完了，但 scan/scatter 还没 enqueue → profile 里就是白的。

3.3 代码：第 2 步 —— 很晚才 scatter

vllmhcu021/vllm_hcu/model_executor/layers/fused_moe/deep_gemm_utils.py


def deepgemm_moe_permute(
    aq: torch.Tensor,
    aq_scale: torch.Tensor,
    topk_ids: torch.Tensor,
    local_num_experts: int,
    expert_map: torch.Tensor | None,
    expert_tokens_meta: mk.ExpertTokensMetadata | None,
    aq_out: torch.Tensor | None = None,
):
    assert aq.ndim == 2
    assert topk_ids.dtype.is_signed, "The kernel uses -1 to represent invalid topk_ids"
    H = aq.size(1)
    device = aq.device

    # block_m, block_k = get_mk_alignment_for_contiguous_layout()
    block_m = 256

    M_sum = compute_aligned_M(
        M=topk_ids.size(0),
        num_topk=topk_ids.size(1),
        local_num_experts=local_num_experts,
        alignment=block_m,
        expert_tokens_meta=expert_tokens_meta,
    )

    expert_start_loc = torch.empty(
        (local_num_experts), device=device, dtype=torch.int32
    )

    assert aq_out is None or aq_out.shape == (M_sum, H)
    if aq_out is None:
        aq_out = torch.empty((M_sum, H), device=device, dtype=aq.dtype)

    # aq_scale_out = torch.empty(
    #     (M_sum, H // block_k), device=device, dtype=torch.float32
    # )
    aq_scale_out = torch.empty(
        (M_sum, aq_scale.shape[-1]), device=device, dtype=torch.float32
    )

    # DeepGEMM uses negative values in m_indices (here expert_ids) to mark
    # completely invalid / padded blocks that should be skipped. We always
    # initialize expert_ids to -1 so any row that is not explicitly written
    # by the scatter kernel will be treated as invalid and skipped by
    # DeepGEMM's scheduler.
    expert_ids = torch.full(
        (M_sum,),
        fill_value=-1,
        device=device,
        dtype=torch.int32,
    )
    inv_perm = torch.full(
        topk_ids.shape, fill_value=-1, device=device, dtype=torch.int32
    )

    # Derive per-expert counts from topk_ids so ep_scatter layout matches the
    # indices written into inv_perm (dispatch meta can diverge after remap).
    expert_num_tokens = count_expert_num_tokens(
        topk_ids, local_num_experts, expert_map
    )

    ep_scatter(
        recv_x=aq,
        recv_x_scale=aq_scale,
        recv_topk=topk_ids,
        num_recv_tokens_per_expert=expert_num_tokens,
        expert_start_loc=expert_start_loc,
        expert_map=expert_map,
        output_tensor=aq_out,
        output_tensor_scale=aq_scale_out,
        m_indices=expert_ids,
        output_index=inv_perm,
    )

    return aq_out, aq_scale_out, expert_ids, inv_perm

3.3.1 用之前拷上来的 meta 算对齐长度（CPU）

M_sum = compute_aligned_M(..., expert_tokens_meta=expert_tokens_meta)

3.3.2 两个 native fill（你 profile 里看到的）

expert_ids = torch.full((M_sum,), fill_value=-1, ...)
inv_perm = torch.full(topk_ids.shape, fill_value=-1, ...)

3.3.3 再数一遍 counts（不用刚才 Memcpy 上去的那份做 scatter）

expert_num_tokens = count_expert_num_tokens(topk_ids, local_num_experts, expert_map)

3.3.4 这才 scan + scatter

ep_scatter(..., num_recv_tokens_per_expert=expert_num_tokens, ...)

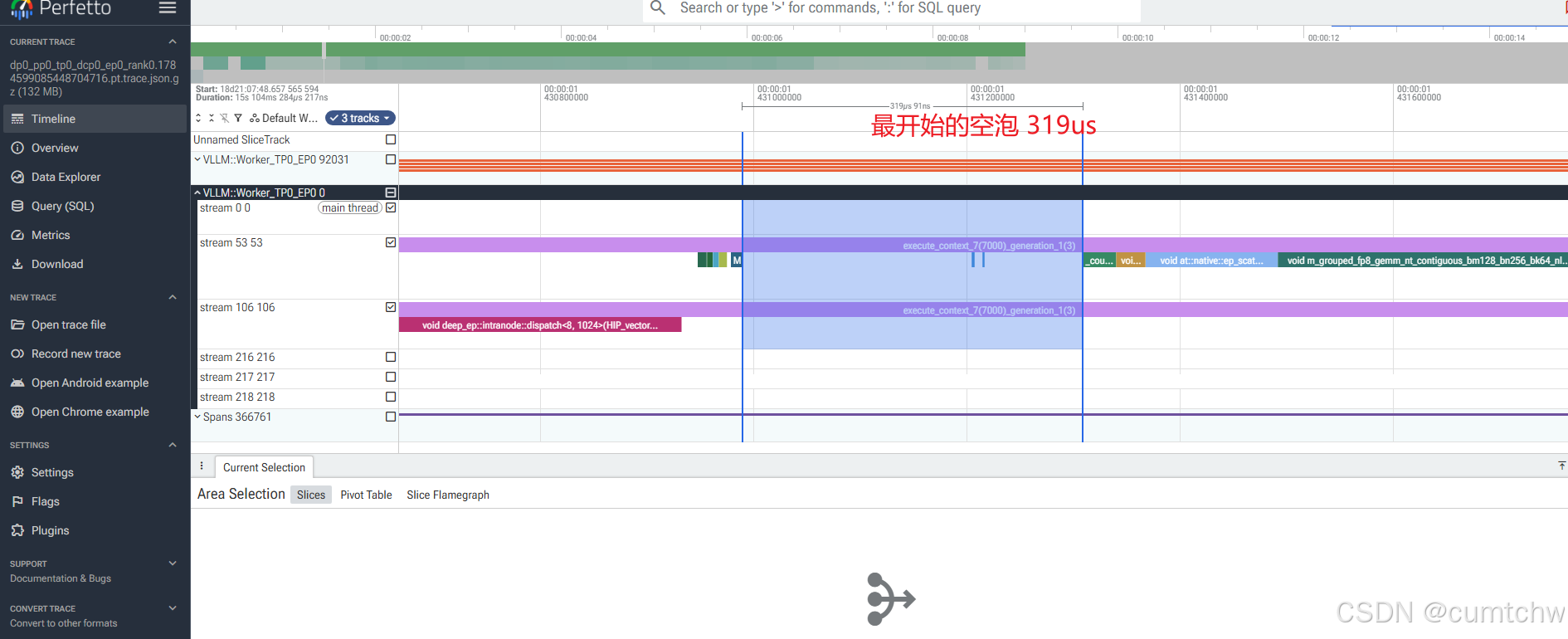

所以 vLLM 的 GPU 时间线是：

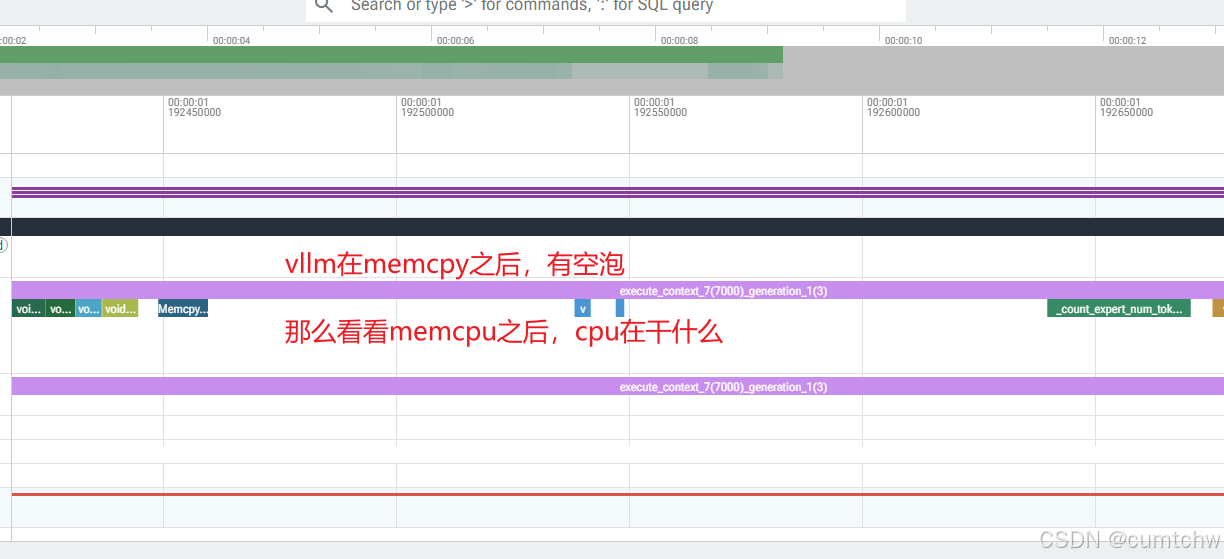

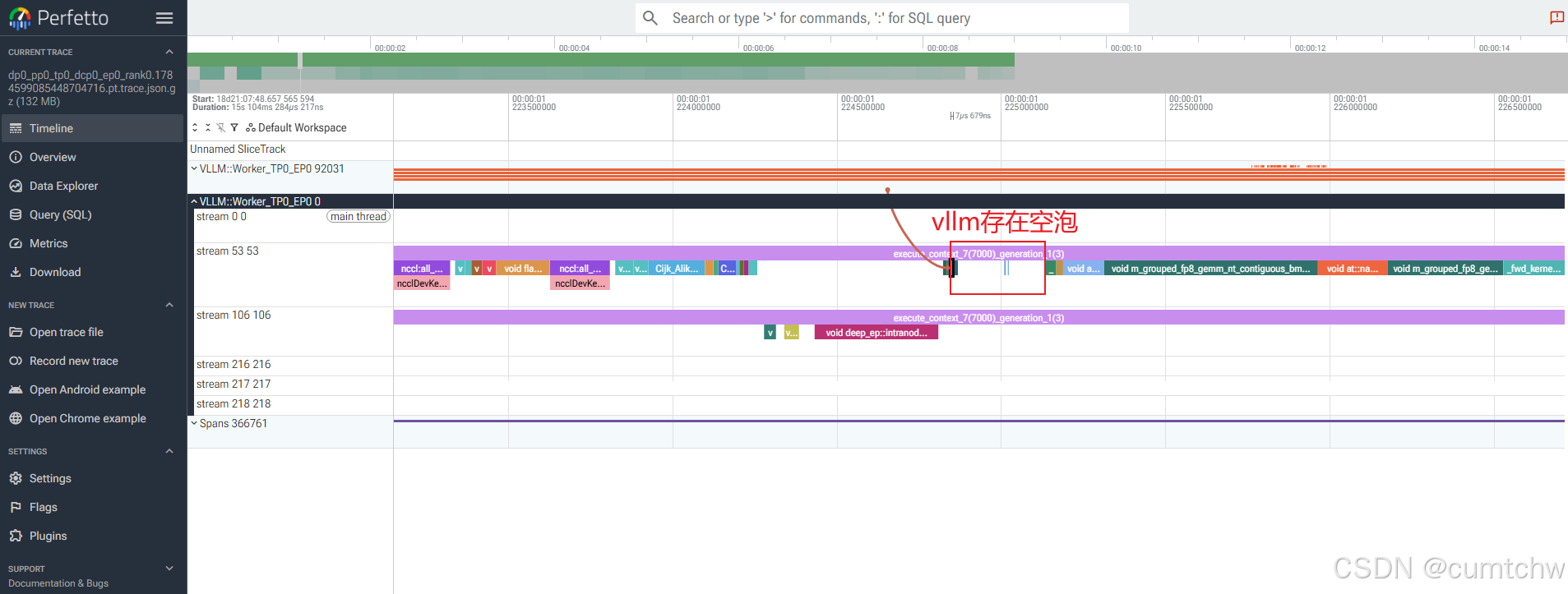

... dispatch ... | Memcpy | ........空白........ | fill | fill | count | scan | scatter | gemm
↑ ↑
_receiver 里 permute 里才到

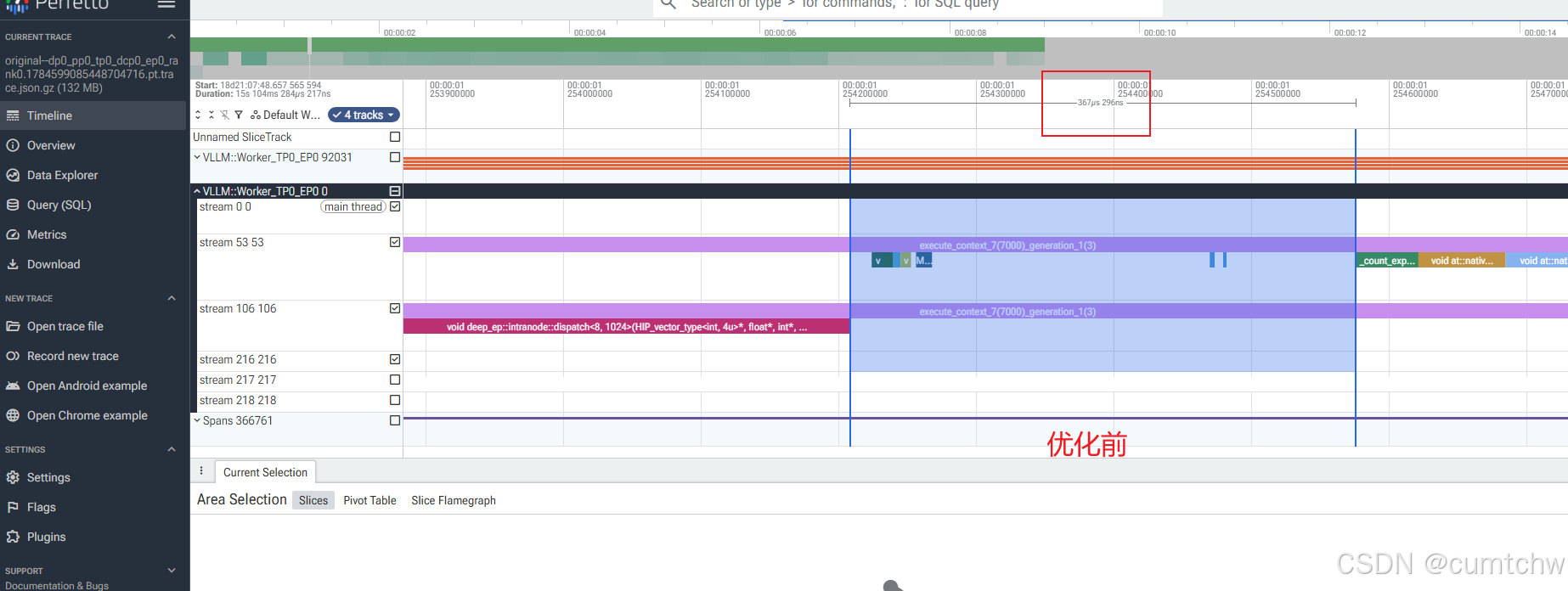

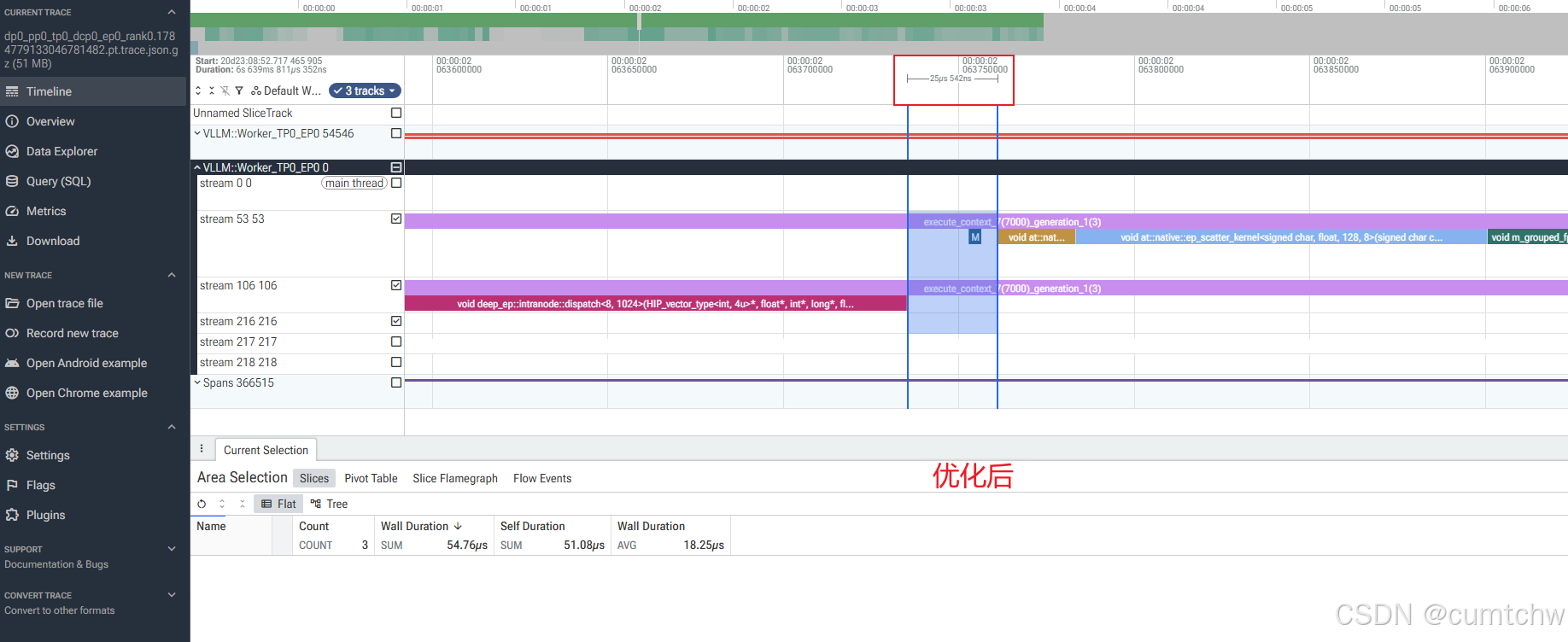

4 消除空泡方法1

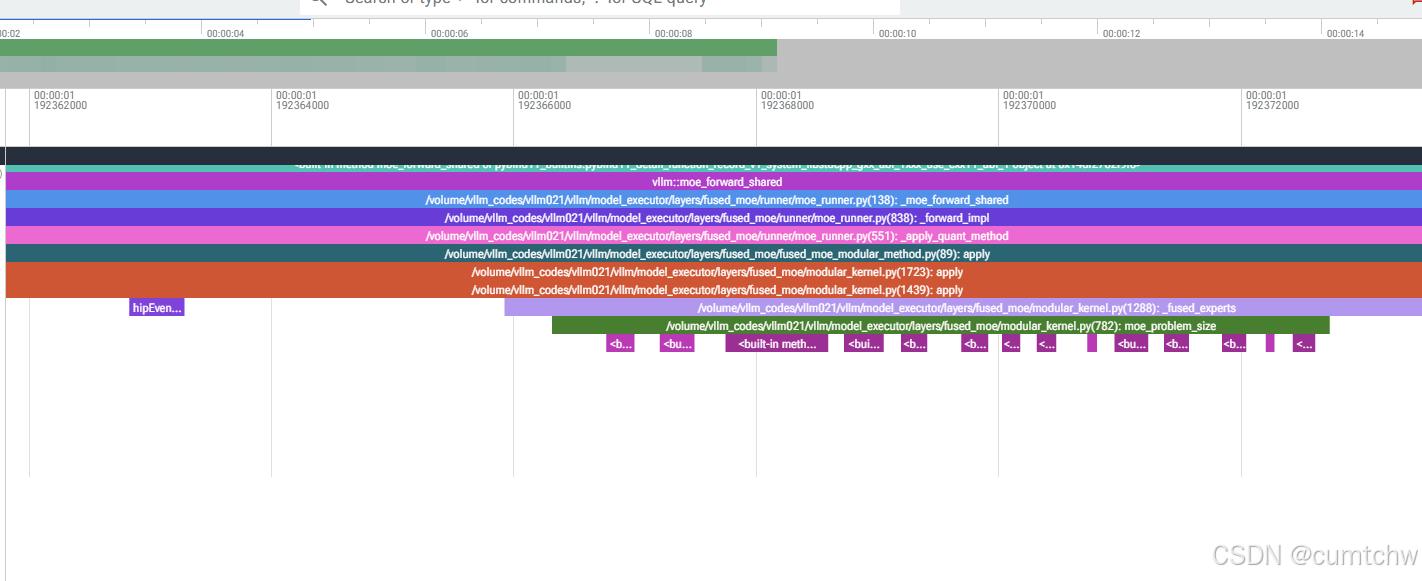

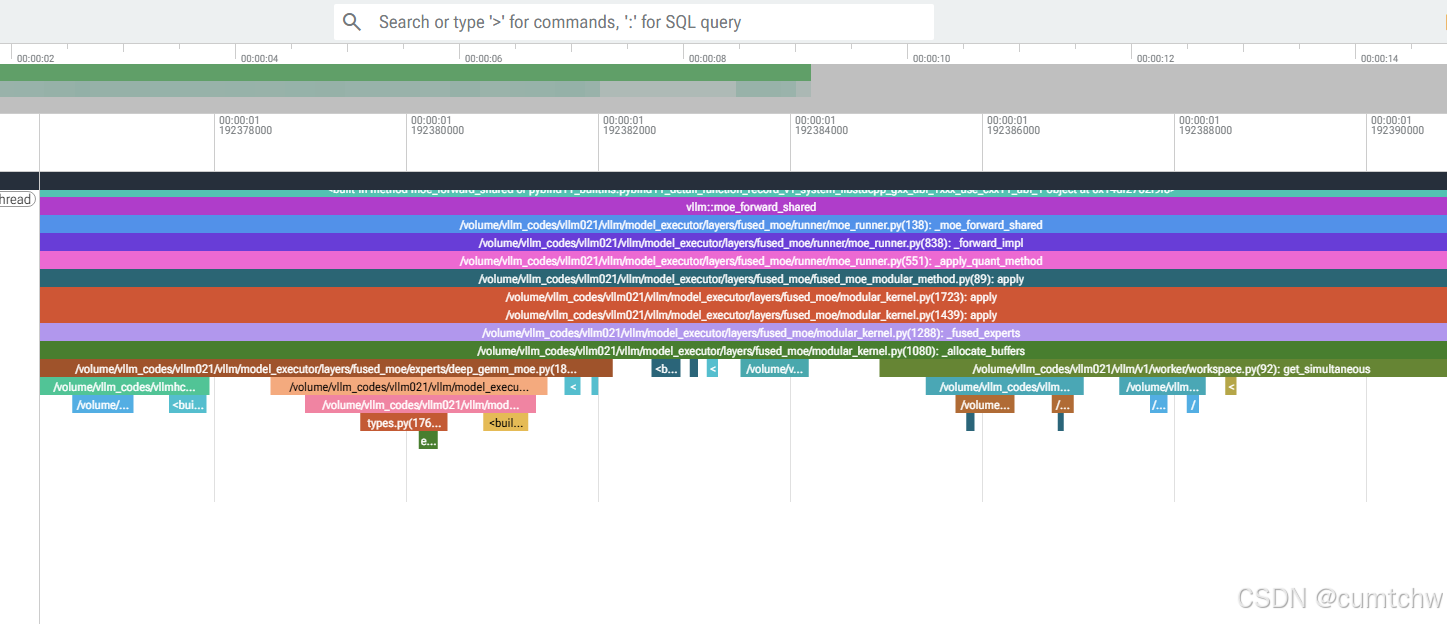

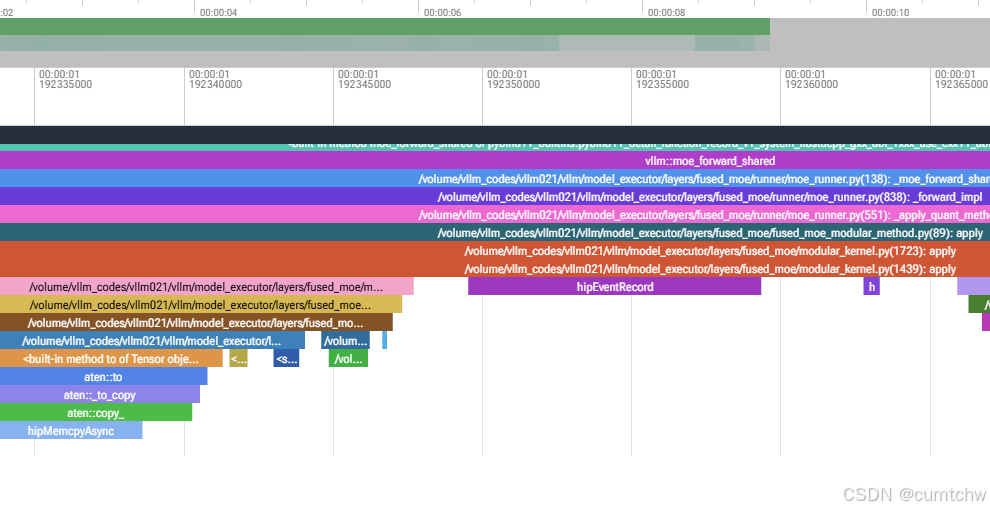

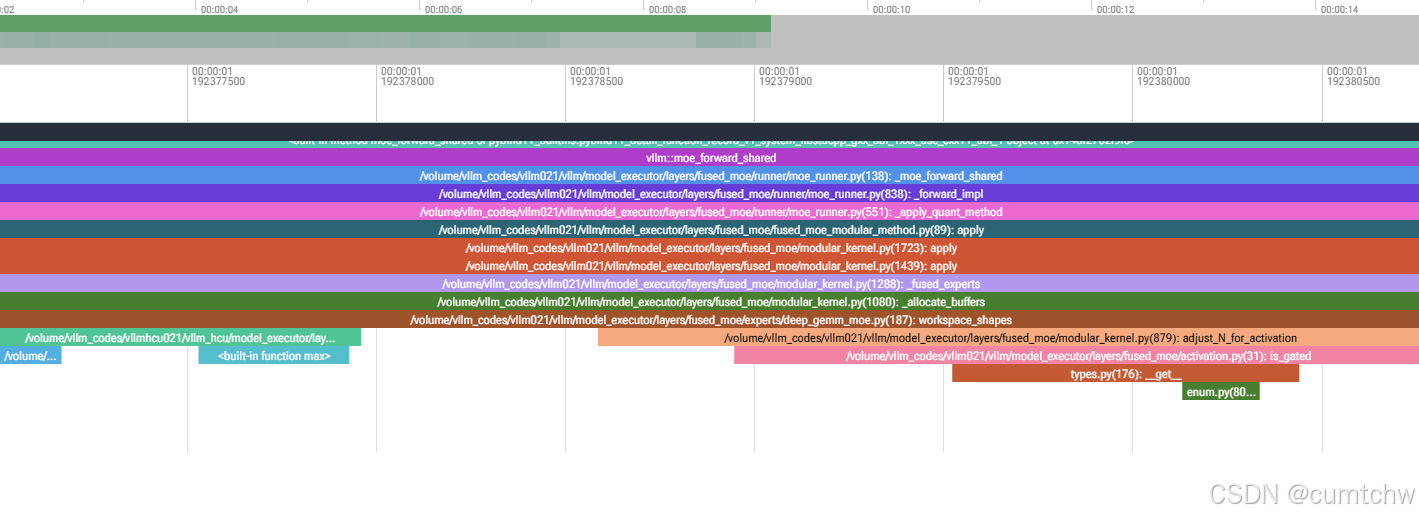

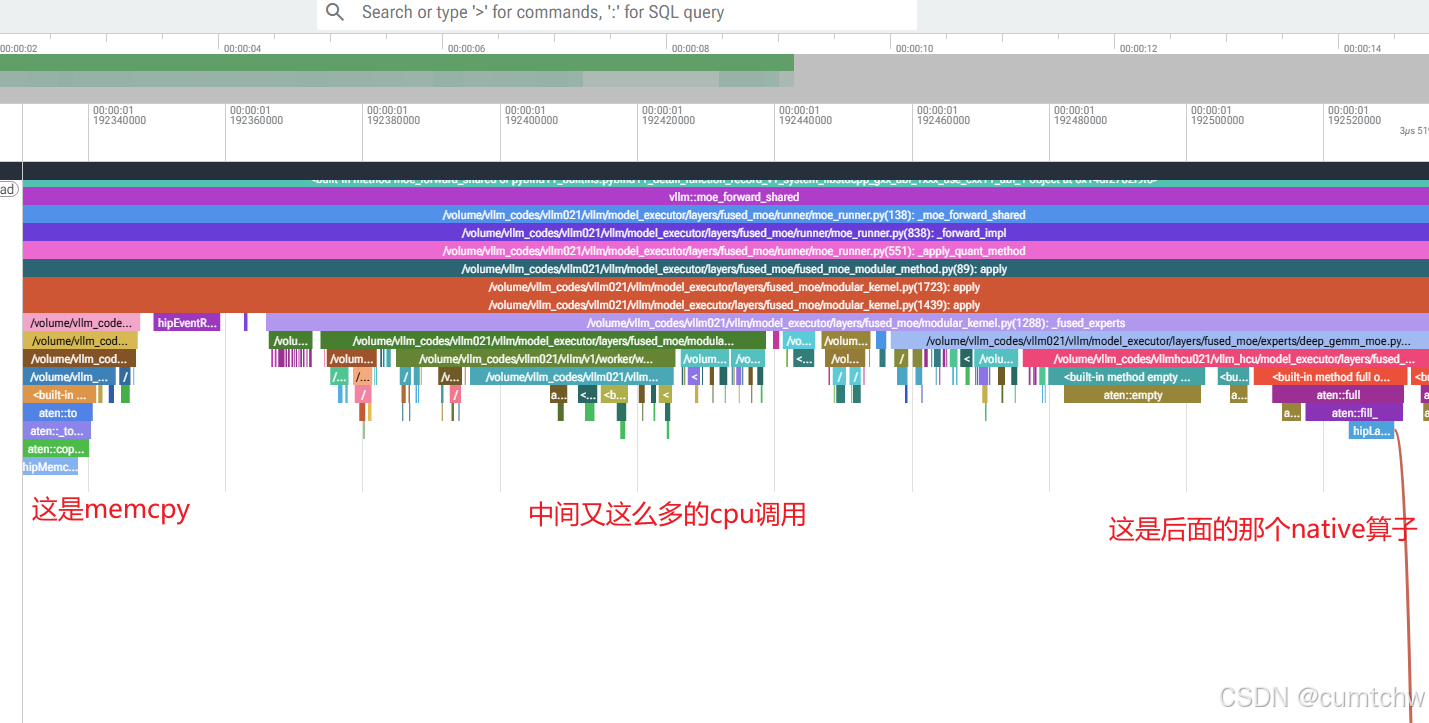

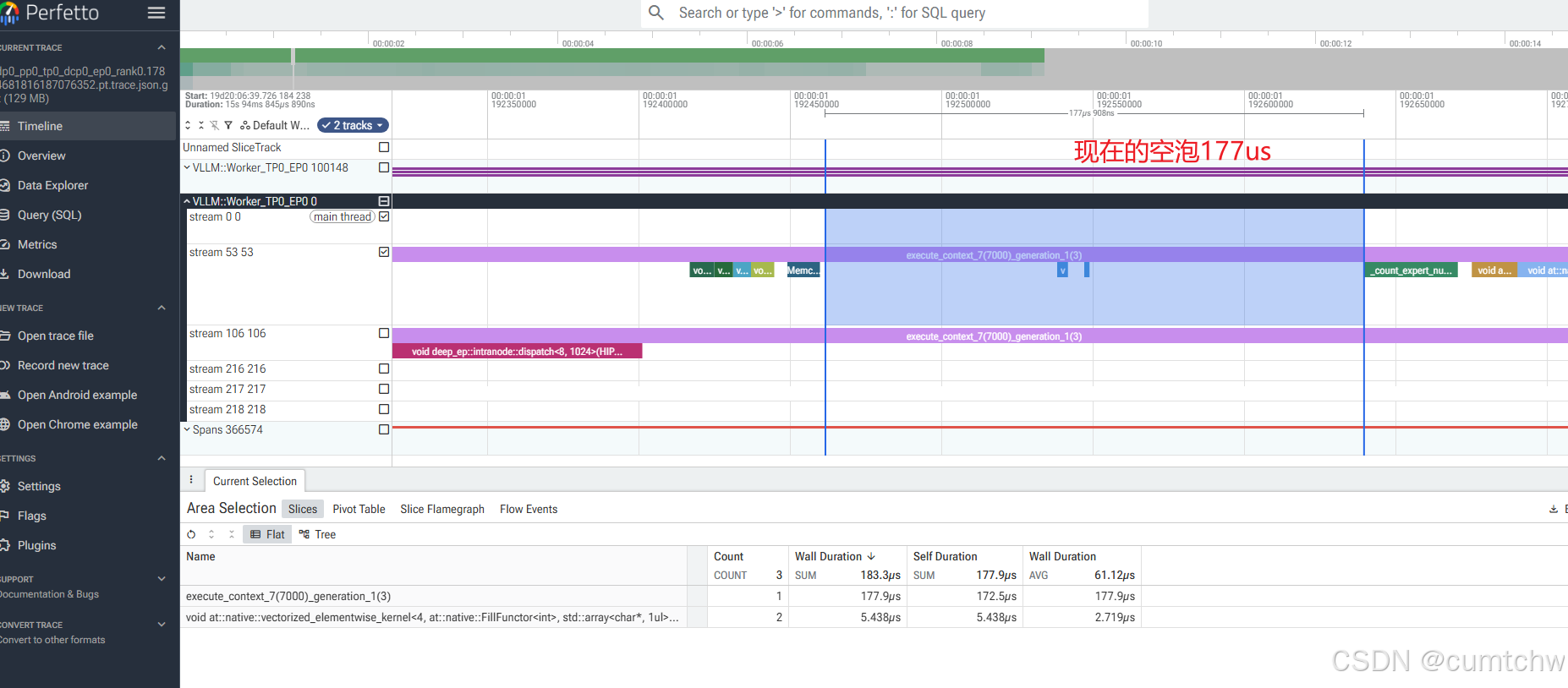

通过prof发现，在memcpy之后，还有很多cpu调用，于是要想办法减少这些cpu调用，

def compute_aligned_M(
    M: int,
    num_topk: int,
    local_num_experts: int,
    alignment: int,
    expert_tokens_meta: mk.ExpertTokensMetadata | None,
):
    # Conservative upper bound on permuted rows (M_sum). Safe even when
    # dispatch meta under-counts vs post-dispatch topk_ids after DeepEP remap.
    M_sum_upper = (M * num_topk) + local_num_experts * (alignment - 1)
    M_sum_upper = round_up(M_sum_upper, alignment)

    # Fast path: reuse cached sum(list) from make_from_list (no aten round_up),
    # but still take max with upper bound for safety.
    if expert_tokens_meta is not None and expert_tokens_meta.m_sum is not None:
        return max(expert_tokens_meta.m_sum, M_sum_upper)

    if (expert_tokens_meta is not None) and (
        expert_tokens_meta.expert_num_tokens_cpu is not None
    ):
        M_sum_meta = expert_num_tokens_round_up_and_sum(
            expert_tokens_meta.expert_num_tokens_cpu, alignment=alignment
        )
        return max(M_sum_meta, M_sum_upper)

    return M_sum_upper

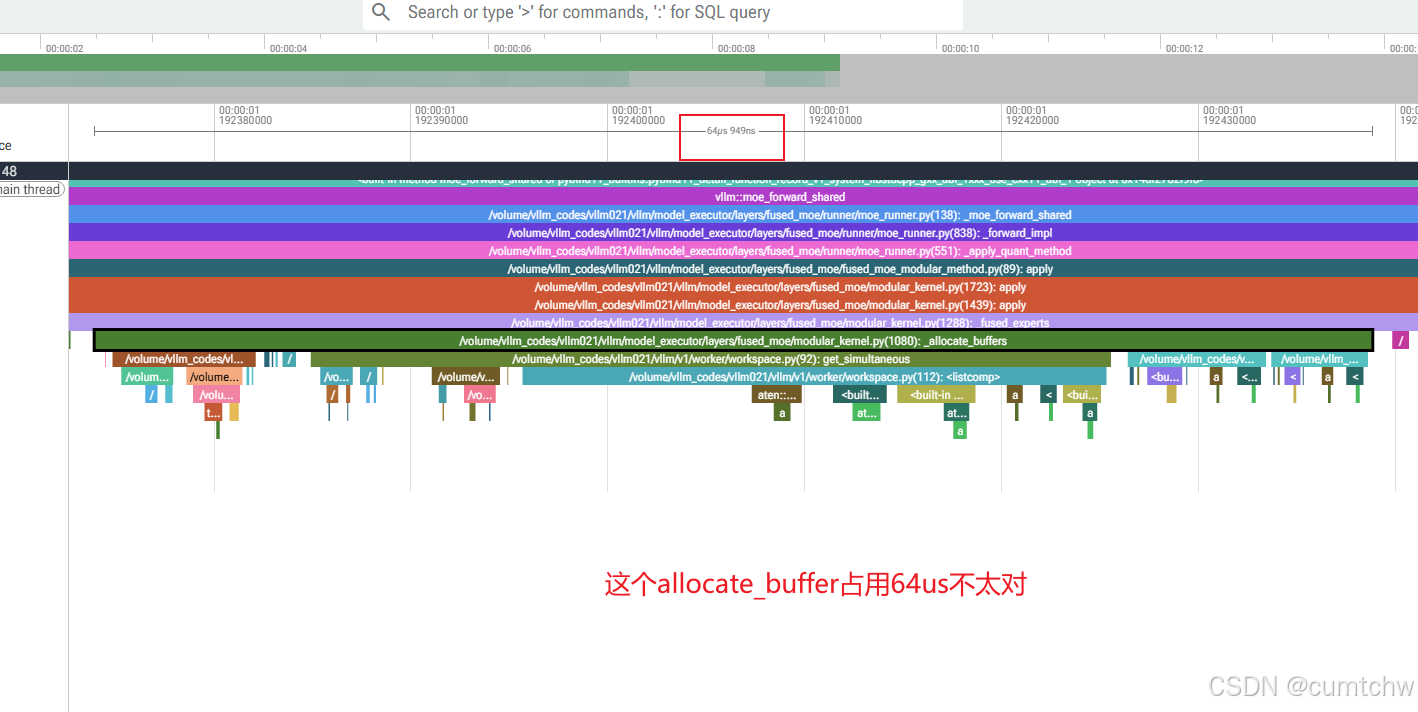

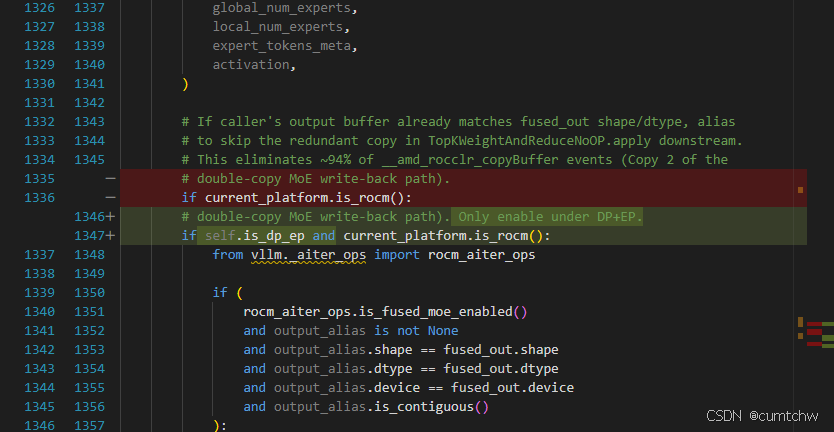

通过分析prof发现，其中一个函数被调用了很多次，而通过sglang代码以及添加打印发现，其实这里不需要这么复杂，因为dispatch接口已经传入了256对齐了，所以之类计算的时候，只需要简单的一个sum函数就可以解决

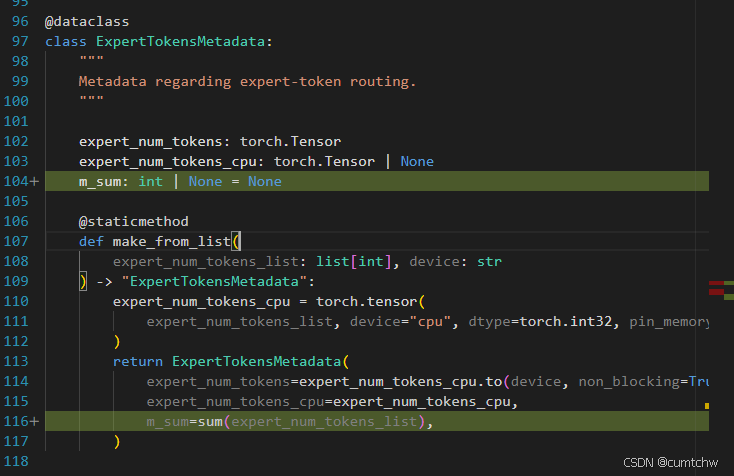

@dataclass
class ExpertTokensMetadata:
    """
    Metadata regarding expert-token routing.
    """

    expert_num_tokens: torch.Tensor
    expert_num_tokens_cpu: torch.Tensor | None
    m_sum: int | None = None

    @staticmethod
    def make_from_list(
        expert_num_tokens_list: list[int], device: str
    ) -> "ExpertTokensMetadata":
        expert_num_tokens_cpu = torch.tensor(
            expert_num_tokens_list, device="cpu", dtype=torch.int32, pin_memory=True
        )
        return ExpertTokensMetadata(
            expert_num_tokens=expert_num_tokens_cpu.to(device, non_blocking=True),
            expert_num_tokens_cpu=expert_num_tokens_cpu,
            m_sum=sum(expert_num_tokens_list),
        )
