训练自己的分类数据集
·
文章目录
1.数据集准备
准备你要进行分类的数据集，可以自己拍摄，可以网上进行爬取。
- 下载现有数据集：
1.极市平台： https://www.cvmart.net/dataSets
2.阿里天池： https://tianchi.aliyun.com/dataset/
3.魔搭社区：https://www.modelscope.cn/datasets
4.Kaggle：Find Open Datasets and Machine Learning Projects | Kaggle
-
自己拍摄数据集
-
在网上爬取数据的python代码：
import os
import time
import requests
import urllib3
urllib3.disable_warnings()
from tqdm import tqdm #进度条库
import os
def craw_single_class(keyword, DOWNLOAD_NUM=50):
"""
参数说明：
keyword: 爬取对象
DOWNLOAD_NUM:爬取的数量
"""
########################HTTP请求参数###############################
cookies = {
'BDqhfp': '%E7%8B%97%E7%8B%97%26%26NaN-1undefined%26%2618880%26%2621',
'BIDUPSID': '06338E0BE23C6ADB52165ACEB972355B',
'PSTM': '1646905430',
'BAIDUID': '104BD58A7C408DABABCAC9E0A1B184B4:FG=1',
'BDORZ': 'B490B5EBF6F3CD402E515D22BCDA1598',
'H_PS_PSSID': '35836_35105_31254_36024_36005_34584_36142_36120_36032_35993_35984_35319_26350_35723_22160_36061',
'BDSFRCVID': '8--OJexroG0xMovDbuOS5T78igKKHJQTDYLtOwXPsp3LGJLVgaSTEG0PtjcEHMA-2ZlgogKK02OTH6KF_2uxOjjg8UtVJeC6EG0Ptf8g0M5',
'H_BDCLCKID_SF': 'tJPqoKtbtDI3fP36qR3KhPt8Kpby2D62aKDs2nopBhcqEIL4QTQM5p5yQ2c7LUvtynT2KJnz3Po8MUbSj4QoDjFjXJ7RJRJbK6vwKJ5s5h5nhMJSb67JDMP0-4F8exry523ioIovQpn0MhQ3DRoWXPIqbN7P-p5Z5mAqKl0MLPbtbb0xXj_0D6bBjHujtT_s2TTKLPK8fCnBDP59MDTjhPrMypomWMT-0bFH_-5L-l5js56SbU5hW5LSQxQ3QhLDQNn7_JjOX-0bVIj6Wl_-etP3yarQhxQxtNRdXInjtpvhHR38MpbobUPUDa59LUvEJgcdot5yBbc8eIna5hjkbfJBQttjQn3hfIkj0DKLtD8bMC-RDjt35n-Wqxobbtof-KOhLTrJaDkWsx7Oy4oTj6DD5lrG0P6RHmb8ht59JROPSU7mhqb_3MvB-fnEbf7r-2TP_R6GBPQtqMbIQft20-DIeMtjBMJaJRCqWR7jWhk2hl72ybCMQlRX5q79atTMfNTJ-qcH0KQpsIJM5-DWbT8EjHCet5DJJn4j_Dv5b-0aKRcY-tT5M-Lf5eT22-usy6Qd2hcH0KLKDh6gb4PhQKuZ5qutLTb4QTbqWKJcKfb1MRjvMPnF-tKZDb-JXtr92nuDal5TtUthSDnTDMRhXfIL04nyKMnitnr9-pnLJpQrh459XP68bTkA5bjZKxtq3mkjbPbDfn02eCKuj6tWj6j0DNRabK6aKC5bL6rJabC3b5CzXU6q2bDeQN3OW4Rq3Irt2M8aQI0WjJ3oyU7k0q0vWtvJWbbvLT7johRTWqR4enjb3MonDh83Mxb4BUrCHRrzWn3O5hvvhKoO3MA-yUKmDloOW-TB5bbPLUQF5l8-sq0x0bOte-bQXH_E5bj2qRCqVIKa3f',
'BDSFRCVID_BFESS': '8--OJexroG0xMovDbuOS5T78igKKHJQTDYLtOwXPsp3LGJLVgaSTEG0PtjcEHMA-2ZlgogKK02OTH6KF_2uxOjjg8UtVJeC6EG0Ptf8g0M5',
'H_BDCLCKID_SF_BFESS': 'tJPqoKtbtDI3fP36qR3KhPt8Kpby2D62aKDs2nopBhcqEIL4QTQM5p5yQ2c7LUvtynT2KJnz3Po8MUbSj4QoDjFjXJ7RJRJbK6vwKJ5s5h5nhMJSb67JDMP0-4F8exry523ioIovQpn0MhQ3DRoWXPIqbN7P-p5Z5mAqKl0MLPbtbb0xXj_0D6bBjHujtT_s2TTKLPK8fCnBDP59MDTjhPrMypomWMT-0bFH_-5L-l5js56SbU5hW5LSQxQ3QhLDQNn7_JjOX-0bVIj6Wl_-etP3yarQhxQxtNRdXInjtpvhHR38MpbobUPUDa59LUvEJgcdot5yBbc8eIna5hjkbfJBQttjQn3hfIkj0DKLtD8bMC-RDjt35n-Wqxobbtof-KOhLTrJaDkWsx7Oy4oTj6DD5lrG0P6RHmb8ht59JROPSU7mhqb_3MvB-fnEbf7r-2TP_R6GBPQtqMbIQft20-DIeMtjBMJaJRCqWR7jWhk2hl72ybCMQlRX5q79atTMfNTJ-qcH0KQpsIJM5-DWbT8EjHCet5DJJn4j_Dv5b-0aKRcY-tT5M-Lf5eT22-usy6Qd2hcH0KLKDh6gb4PhQKuZ5qutLTb4QTbqWKJcKfb1MRjvMPnF-tKZDb-JXtr92nuDal5TtUthSDnTDMRhXfIL04nyKMnitnr9-pnLJpQrh459XP68bTkA5bjZKxtq3mkjbPbDfn02eCKuj6tWj6j0DNRabK6aKC5bL6rJabC3b5CzXU6q2bDeQN3OW4Rq3Irt2M8aQI0WjJ3oyU7k0q0vWtvJWbbvLT7johRTWqR4enjb3MonDh83Mxb4BUrCHRrzWn3O5hvvhKoO3MA-yUKmDloOW-TB5bbPLUQF5l8-sq0x0bOte-bQXH_E5bj2qRCqVIKa3f',
'indexPageSugList': '%5B%22%E7%8B%97%E7%8B%97%22%5D',
'cleanHistoryStatus': '0',
'BAIDUID_BFESS': '104BD58A7C408DABABCAC9E0A1B184B4:FG=1',
'BDRCVFR[dG2JNJb_ajR]': 'mk3SLVN4HKm',
'BDRCVFR[-pGxjrCMryR]': 'mk3SLVN4HKm',
'ab_sr': '1.0.1_Y2YxZDkwMWZkMmY2MzA4MGU0OTNhMzVlNTcwMmM2MWE4YWU4OTc1ZjZmZDM2N2RjYmVkMzFiY2NjNWM4Nzk4NzBlZTliYWU0ZTAyODkzNDA3YzNiMTVjMTllMzQ0MGJlZjAwYzk5MDdjNWM0MzJmMDdhOWNhYTZhMjIwODc5MDMxN2QyMmE1YTFmN2QyY2M1M2VmZDkzMjMyOThiYmNhZA==',
'delPer': '0',
'PSINO': '2',
'BA_HECTOR': '8h24a024042g05alup1h3g0aq0q',
}
headers = {
'Connection': 'keep-alive',
'sec-ch-ua': '" Not;A Brand";v="99", "Google Chrome";v="97", "Chromium";v="97"',
'Accept': 'text/plain, */*; q=0.01',
'X-Requested-With': 'XMLHttpRequest',
'sec-ch-ua-mobile': '?0',
'User-Agent': 'Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/97.0.4692.99 Safari/537.36',
'sec-ch-ua-platform': '"macOS"',
'Sec-Fetch-Site': 'same-origin',
'Sec-Fetch-Mode': 'cors',
'Sec-Fetch-Dest': 'empty',
'Referer': 'https://image.baidu.com/search/index?tn=baiduimage&ipn=r&ct=201326592&cl=2&lm=-1&st=-1&fm=result&fr=&sf=1&fmq=1647837998851_R&pv=&ic=&nc=1&z=&hd=&latest=©right=&se=1&showtab=0&fb=0&width=&height=&face=0&istype=2&dyTabStr=MCwzLDIsNiwxLDUsNCw4LDcsOQ%3D%3D&ie=utf-8&sid=&word=%E7%8B%97%E7%8B%97',
'Accept-Language': 'zh-CN,zh;q=0.9',
}
############################创建文件夹################################
if os.path.exists('dataset/' + keyword):
print('文件夹 dataset/{} 已存在，之后直接将爬取到的图片保存至该文件夹中'.format(keyword))
else:
os.makedirs('dataset/{}'.format(keyword))
print('新建文件夹：dataset/{}'.format(keyword))
#####################爬取并保存图像文件至本地#########################
count = 1
with tqdm(total=DOWNLOAD_NUM, position=0, leave=True) as pbar:
num = 0 # 爬取第几张
FLAG = True # 是否继续爬取
while FLAG:
page = 30 * count
params = (
('tn', 'resultjson_com'),
('logid', '12508239107856075440'),
('ipn', 'rj'),
('ct', '201326592'),
('is', ''),
('fp', 'result'),
('fr', ''),
('word', f'{keyword}'),
('queryWord', f'{keyword}'),
('cl', '2'),
('lm', '-1'),
('ie', 'utf-8'),
('oe', 'utf-8'),
('adpicid', ''),
('st', '-1'),
('z', ''),
('ic', ''),
('hd', ''),
('latest', ''),
('copyright', ''),
('s', ''),
('se', ''),
('tab', ''),
('width', ''),
('height', ''),
('face', '0'),
('istype', '2'),
('qc', ''),
('nc', '1'),
('expermode', ''),
('nojc', ''),
('isAsync', ''),
('pn', f'{page}'),
('rn', '30'),
('gsm', '1e'),
('1647838001666', ''),
)
response = requests.get('https://image.baidu.com/search/acjson', headers=headers, params=params,
cookies=cookies)
if response.status_code == 200:
try:
json_data = response.json().get("data")
if json_data:
for x in json_data:
type = x.get("type")
if type not in ["gif"]: # 剔除gif格式的图片
img = x.get("thumbURL")
fromPageTitleEnc = x.get("fromPageTitleEnc")
try:
resp = requests.get(url=img, verify=False)
time.sleep(1)
# print(f"链接 {img}")
# 保存文件名
# file_save_path = f'dataset/{keyword}/{keyword}_{num}-{fromPageTitleEnc}.{type}'
file_save_path = f'dataset/{keyword}/{num}.{type}'
with open(file_save_path, 'wb') as f:
f.write(resp.content)
f.flush()
# print('第 {} 张图像 {} 爬取完成'.format(num, fromPageTitleEnc))
num += 1
pbar.update(1) # 进度条更新
# 爬取数量达到要求
if num > DOWNLOAD_NUM:
FLAG = False
print('{} 张图像爬取完毕'.format(num))
break
except Exception:
pass
except:
pass
else:
break
count += 1
craw_single_class('鸟', DOWNLOAD_NUM = 500)
只需要修改最后一行
craw_single_class('鸟', DOWNLOAD_NUM = 500)第一个参数是关键字，即你需要爬取的图片，第二个参数是爬取图片数量
将不同类的数据图片放在单独文件夹中（每种类别数据尽可能均衡、数目尽可能多）
2. 数据增强
比如说：旋转、翻转、增强对比度、高斯噪点、椒盐噪点等
可以通过Python OpenCV来实现。
以下是一些数据增强的代码（效果可能不好，参数需要自己调节）
只需要改路径
import random
import os
from PIL import Image, ImageEnhance
import numpy as np
# 图片文件夹路径
srcPath = r'E:\\文档\\24-25（2）教学资料\\深度学习框架与应用\\代码\\Pytorch教学代码\\CNN_Classifier\\dataset\\小熊猫'
dstPath = r'E:\\文档\\24-25（2）教学资料\\深度学习框架与应用\\代码\\Pytorch教学代码\\CNN_Classifier\\dataset\\小熊猫_augmented'
def IncreaseImage(srcPath, dstPath):
for filename in os.listdir(srcPath):
# 拼接完整的文件或文件夹路径
srcFile = os.path.join(srcPath, filename)
dstFile = os.path.join(dstPath, filename)
# 如果是文件就处理
if os.path.isfile(srcFile):
try:
img = Image.open(srcFile)
# img = img.resize((224, 224), Image.LANCZOS)
# 确保目标文件夹存在
os.makedirs(dstPath, exist_ok=True)
# 保存不同变换的图片
img.save(dstFile)
img.transpose(Image.ROTATE_90).save(dstFile.replace('.', '_r90.'))
img.transpose(Image.FLIP_LEFT_RIGHT).save(dstFile.replace('.', '_flipped.'))
img.transpose(Image.FLIP_TOP_BOTTOM).save(dstFile.replace('.', '_flipped_tb.'))
# 使用固定的增强因子
factor = np.random.randint(11, 20) / 10
ImageEnhance.Contrast(img).enhance(factor).save(dstFile.replace('.', '_contrast.'))
ImageEnhance.Color(img).enhance(factor).save(dstFile.replace('.', '_color.'))
ImageEnhance.Sharpness(img).enhance(factor).save(dstFile.replace('.', '_sharp.'))
# 添加黑白噪声
def salt_and_pepper_noise(img, proportion=0.03):
noise_img = img.copy()
pixels = noise_img.load()
height, width = noise_img.size
num = int(height * width * proportion)
for i in range(num):
w = random.randint(0, width - 1)
h = random.randint(0, height - 1)
pixels[h, w] = (0, 0, 0) if random.random() < 0.5 else (255, 255, 255)
return noise_img
salt_and_pepper_noise(img).save(dstFile.replace('.', '_noise.'))
print(f"Processed {dstFile}")
except Exception as e:
print(f"Failed to process {dstFile}: {e}")
# 如果是文件夹就递归
elif os.path.isdir(srcFile):
new_dst_path = os.path.join(dstPath, filename)
IncreaseImage(srcFile, new_dst_path)
if __name__ == '__main__':
IncreaseImage(srcPath, dstPath)
3. 数据集划分
将每个类别图片随机划分为训练集和测试集。
- 假设三个类别，训练集文件夹下就应该包含3个类别的训练集子文件；测试集文件下就应该包含三个类别的测试集子文件。
数据集划分代码：
# import numpy as np
import os
import random
import shutil
path = r'E:\\教学资料\\23-24（2）教学资料\\深度学习框架与应用\\代码\\Pytorch教学代码\\dataset\\动物\\鸟' # 原始数据集的路径
path1 = r'E:\\教学资料\\23-24（2）教学资料\\深度学习框架与应用\\代码\\Pytorch教学代码\\dataset\\动物\\train\\bird' # 训练集
path2 = r'E:\\教学资料\\23-24（2）教学资料\\深度学习框架与应用\\代码\\Pytorch教学代码\\dataset\\动物\\test\\bird' # 测试集
def datasetImage(path, path1,path2):
for filename in os.listdir(path):
if not os.path.exists(path1):
os.makedirs(path1)
if not os.path.exists(path2):
os.makedirs(path2)
pathfile = os.path.join(path, filename)
if os.path.isdir(pathfile):# 如果是文件夹就递归
datasetImage(pathfile, path1, path2)
# 如果是文件就处理
if os.path.isfile(pathfile):
data = os.listdir(path)
t = int(len(data) * 0.8)
for i in range(len(data)):
random.shuffle(data) # 打乱数据
for z in range(len(data)): # 将数据按8：2分到train和test中
print('z:', z, '\n')
pic_path = path + '\\' + data[z]
print('pic_path:', pic_path)
if z < t:
obj_path = path1 + '\\' + data[z]
shutil.copyfile(pic_path, obj_path)
print('train:', obj_path)
else:
obj_path = path2 + '\\' + data[z]
print('test:', obj_path) # 显示分类情况
shutil.copyfile(pic_path, obj_path) # 往train、val中复制图片
if (os.path.exists(pic_path)):
shutil.copyfile(pic_path, obj_path)
if __name__=='__main__':
datasetImage(path,path1,path2)
只需要改路径！
4.设计模型进行训练
对之前学的CNN模型进行魔改，模型训练框架基本都不变！
1.数据准备
2.设计模型
3.损失函数和优化器
4.模型训练
5.模型预测

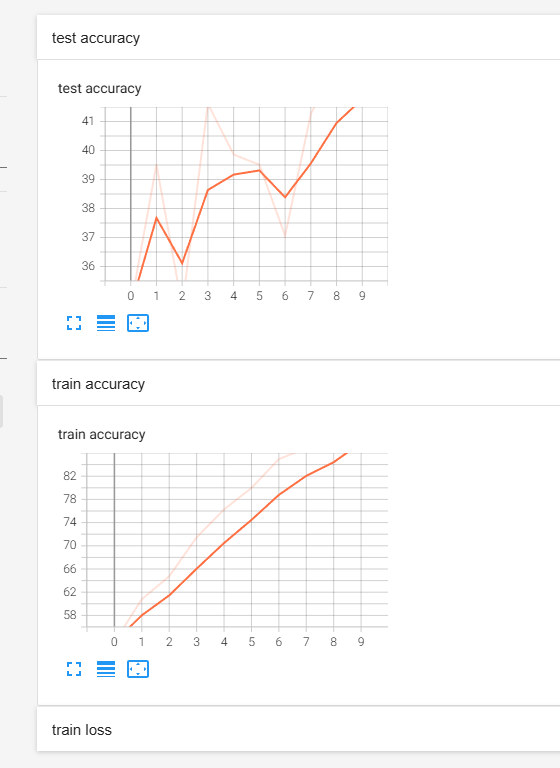

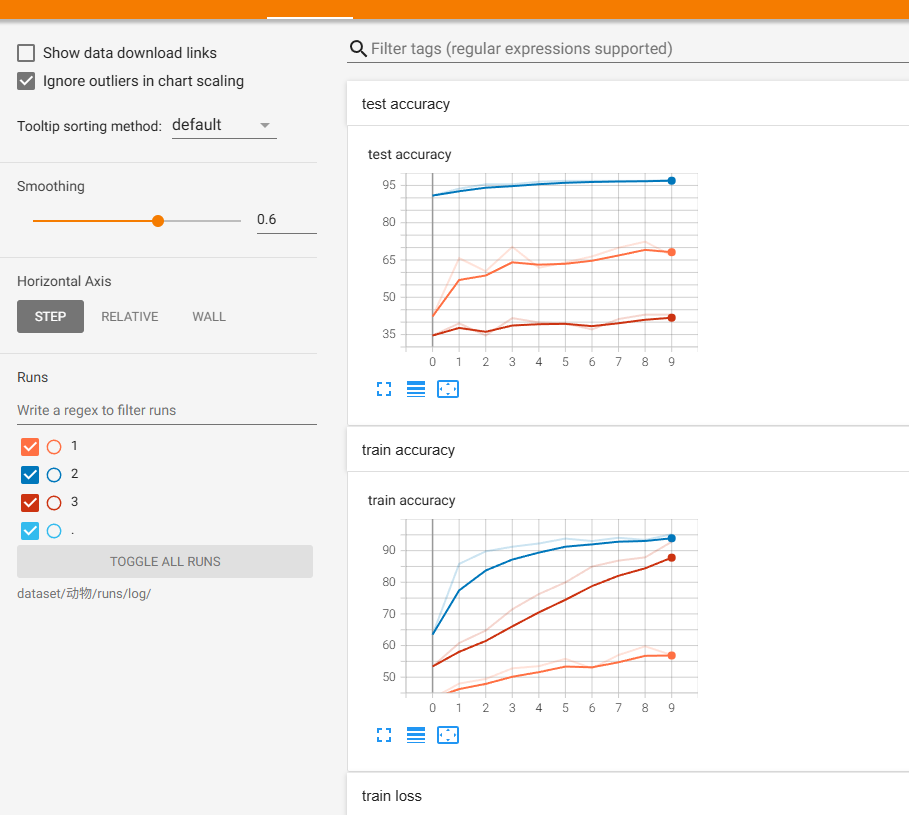

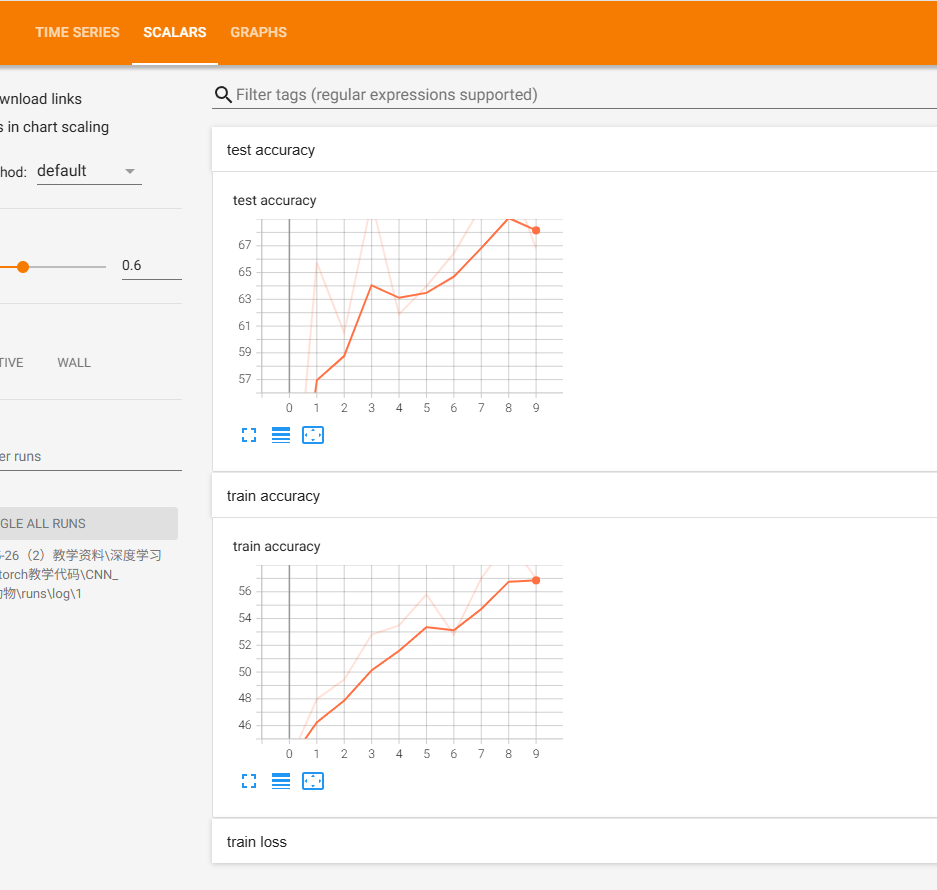

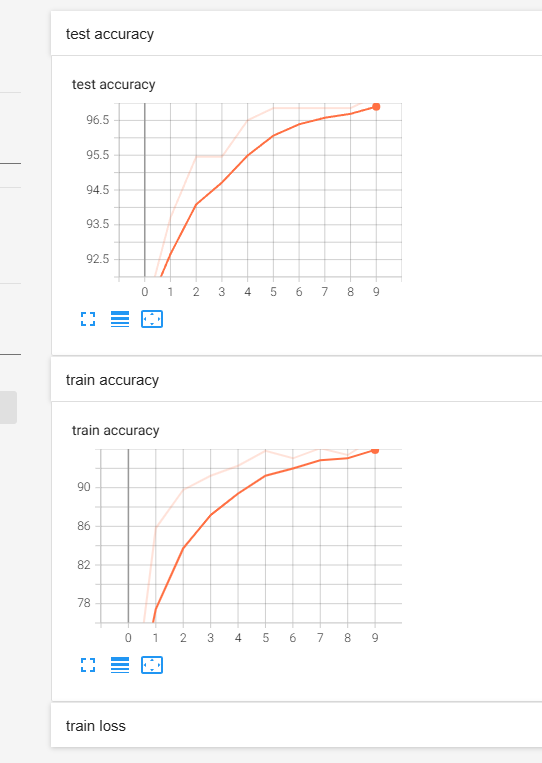

注意：这里我们没有使用plt函数来绘制损失曲线图，而是使用了tesorboard来记录训练情况。
如果没有安装，可以使用 pip install tensorboard安装
4.1.简单的CNN的网络
import os
import numpy as np
import numpy as np
import torch
import torch.nn as nn
import matplotlib.pyplot as plt
from torch.utils.data import DataLoader #For constructing DataLoader
from torchvision import transforms #For constructing DataLoader
from torchvision import datasets #For constructing DataLoader
import torch.nn.functional as F #For using function relu()
from torch.utils.tensorboard import SummaryWriter
# torch.cuda.current_device()
# torch.cuda.empty_cache()
# torch.cuda._initialized = True
num_classes = 3 # 2分类=2，3分类=3
lr = 0.01
img_size = 224
batch_size=8
epochs=10
transform = transforms.Compose([
transforms.Resize((img_size, img_size)),
transforms.ToTensor(),
# 用ImageNet均值方差，适配RGB三通道图片(注意数字和黑白图像单通道不一样）
transforms.Normalize(mean=[0.485, 0.456, 0.406],
std=[0.229, 0.224, 0.225])
])
train_dataset = datasets.ImageFolder(r'dataset/动物/train',transform=transform)#获取路径，返回的是所有图的data、label
test_dataset = datasets.ImageFolder(r'dataset/动物/test',transform=transform)
train_loader = DataLoader(dataset=train_dataset,batch_size=batch_size,shuffle=True)
test_loader = DataLoader(dataset=test_dataset,batch_size=batch_size,shuffle=False)
# 打印类别映射（非常重要！）
print("类别对应编号：", train_dataset.class_to_idx)
##################################################################################
writer = SummaryWriter('dataset/动物/runs/log/1', comment='Net')
####################################
class Net(torch.nn.Module):
def __init__(self, num_classes=num_classes):#注意看，和之前的代码相比有参数了
super(Net, self).__init__()
self.conv1=nn.Conv2d(3,32,kernel_size=5)
self.conv2=nn.Conv2d(32,64,kernel_size=5)
self.conv3=nn.Conv2d(64,128,kernel_size=5,padding=1,bias=False)
self.conv4=nn.Conv2d(128,256,kernel_size=1,padding=1,bias=False)
self.pooling=nn.MaxPool2d(2)
self.BN =nn.BatchNorm2d(256)
# self.fc=.nn.Linear(43264,2)
self.fc = nn.Linear(43264, num_classes)
def forward(self,x):
# Flatten data from (n, 1,224, 224) to (n, )
x=self.conv1(x)
x=self.pooling(x)
x = F.relu(x)
# x=F.relu(self.pooling(self.conv1(x)))#(n,16,110,110)
x=self.conv2(x)
x=self.pooling(x)
x = F.relu(x)
#x=F.relu(self.pooling(self.conv2(x)))#(n,32,53,53)
x=self.conv3(x)
x=self.pooling(x)
x = F.relu(x)
#x=F.relu(self.pooling(self.conv3(x)))#(n,64,25,25)
x=self.conv4(x)
x = self.pooling(x)
x = F.relu(x)
# x=self.BN(x)
# x = F.relu(self.pooling(self.conv4(x))) # (n,256,13,13)
batch_size = x.size(0) # (n,3,28,28)
x=x.view(batch_size,-1)#flatten
x=self.fc(x)
out = F.dropout(x, 0.6, training=self.training)
return out
model=Net()
device = torch.device("cuda:0" if torch.cuda.is_available() else "cpu")
model=model.to(device)
criterion=torch.nn.CrossEntropyLoss()
optimizer=torch.optim.SGD(model.parameters(),lr=lr,momentum=0.5)
def train(epoch):
model.train()#告诉模型：现在进入训练模式
total=0.0
correct=0.0
running_loss=0.0
for batch_id,data in enumerate(train_loader,0):
inputs,target=data
inputs,target=inputs.to(device),target.to(device)
optimizer.zero_grad()
# forward + backward + update
outputs=model(inputs)
loss=criterion(outputs,target)
loss.backward()
optimizer.step()
running_loss +=loss.item()
#print('[%d,%5d] loss: %.3f' % (epoch + 1, batch_id, running_loss ))
#running_loss = 0.0
predicted = torch.argmax(outputs.data, dim=1)
total += target.size(0)
correct += (predicted == target).sum().item()
accuracy = 100 * correct / total
if (batch_id)% 100==99:
print('[%d,%5d] loss: %.3f' % (epoch+1,batch_id,running_loss/100))
running_loss=0.0
print('Accuracy on train set : %d %% [%d/%d]' % (100 * correct / total, correct, total))
writer.add_scalar('train accuracy',accuracy, epoch)
writer.add_scalar('train loss', running_loss, epoch)
writer.add_graph(model, (inputs,))
writer.flush()
def test(epoch):
model.eval()#告诉模型：进入预测模式
correct=0
total=0
#predata = []
#lable = []
with torch.no_grad():
for batch_id,data in enumerate(test_loader,0):
inputs,target=data
inputs,target=inputs.to(device),target.to(device)
outputs=model(inputs)
predicted=torch.argmax(outputs.data,dim=1)
#predata.append(predicted.item())
#lable.append(target.item())
total+=target.size(0)
correct+=(predicted==target).sum().item()
print('Accuracy on test set : %d %% [%d/%d]'%(100*correct/total,correct,total))
#print(predata)
#print(lable)
#print(test_dataset.class_to_idx)
writer.add_scalar('test accuracy', 100*correct/total, epoch)
writer.flush()
if __name__ == '__main__':
for epoch in range(epochs):
train(epoch)
test(epoch)
torch.save(model.state_dict(), r'dataset/动物/runs/result/animal.pt')
writer.flush()
writer.close()
以10epoch为例，模型在在训练集上精确率为58%，测试集上69%,说明模型欠拟合，还完全没有训练到位（训练epoch太少）训练结果如下：
[10, 99] loss: 0.846
Accuracy on train set : 58 % [466/800]
Accuracy on test set : 69 % [200/286]
tensorboard查看训练曲线：使用tensorboard --logdir=tensorboard文件存放位置
比如说
tensorboard --logdir=“F:\工作\教学资料\25-26（2）教学资料\深度学习框架与应用\代码\Pytorch教学代码\CNN_Classifier\dataset\动物\runs\log\1”
4.2. 借鉴优秀的网络模型（使用pytorch内置网络）
模型可以直接从库里面导入：
model = models.resnet18(pretrained=True)
model = models.mobilenet_v2(pretrained=True)
import os
import numpy as np
import numpy as np
import torch
import torch.nn as nn
import matplotlib.pyplot as plt
from torch.utils.data import DataLoader #For constructing DataLoader
from torchvision import transforms, models # For constructing DataLoader
from torchvision import datasets #For constructing DataLoader
import torch.nn.functional as F #For using function relu()
from torch.utils.tensorboard import SummaryWriter
# torch.cuda.current_device()
# torch.cuda.empty_cache()
# torch.cuda._initialized = True
num_classes = 3 # 2分类=2，3分类=3
lr = 0.0001 # 预训练模型用小学习率
img_size = 224
batch_size=8
epochs=10
transform = transforms.Compose([
transforms.Resize((img_size, img_size)),
transforms.ToTensor(),
# 用ImageNet均值方差，适配RGB三通道图片(注意数字和黑白图像单通道不一样）
transforms.Normalize(mean=[0.485, 0.456, 0.406],
std=[0.229, 0.224, 0.225])
])
train_dataset = datasets.ImageFolder(r'dataset/动物/train',transform=transform)#获取路径，返回的是所有图的data、label
test_dataset = datasets.ImageFolder(r'dataset/动物/test',transform=transform)
train_loader = DataLoader(dataset=train_dataset,batch_size=batch_size,shuffle=True)
test_loader = DataLoader(dataset=test_dataset,batch_size=batch_size,shuffle=False)
# 打印类别映射（非常重要！）
print("类别对应编号：", train_dataset.class_to_idx)
##################################################################################
writer = SummaryWriter('runs/log', comment='pretrainNet')
####################################
# 二选一：ResNet18 或 MobileNetV2
# model = models.resnet18(pretrained=True)
model = models.mobilenet_v2(pretrained=True)
# 替换最后一层全连接，因为预训练模型原本是给 1000 类物体分类用的
# 1. 拿到预训练模型最后一层的输入维度
in_channels = model.classifier[-1].in_features
# 2. 换一个新的全连接层，输出改为：你自己的类别数
model.classifier[-1] = nn.Linear(in_channels, num_classes)
##################################################################################
device = torch.device("cuda:0" if torch.cuda.is_available() else "cpu")
model=model.to(device)
criterion=torch.nn.CrossEntropyLoss()
optimizer=torch.optim.SGD(model.parameters(),lr=lr,momentum=0.5)
def train(epoch):
model.train()#告诉模型：现在进入训练模式
total=0.0
correct=0.0
running_loss=0.0
for batch_id,data in enumerate(train_loader,0):
inputs,target=data
inputs,target=inputs.to(device),target.to(device)
optimizer.zero_grad()
# forward + backward + update
outputs=model(inputs)
loss=criterion(outputs,target)
loss.backward()
optimizer.step()
running_loss +=loss.item()
#print('[%d,%5d] loss: %.3f' % (epoch + 1, batch_id, running_loss ))
#running_loss = 0.0
predicted = torch.argmax(outputs.data, dim=1)
total += target.size(0)
correct += (predicted == target).sum().item()
accuracy = 100 * correct / total
if (batch_id)% 100==99:
print('[%d,%5d] loss: %.3f' % (epoch+1,batch_id,running_loss/100))
running_loss=0.0
print('Accuracy on train set : %d %% [%d/%d]' % (100 * correct / total, correct, total))
writer.add_scalar('train accuracy',accuracy, epoch)
writer.add_scalar('train loss', running_loss, epoch)
writer.add_graph(model, (inputs,))
writer.flush()
def test(epoch):
model.eval()#告诉模型：进入预测模式
correct=0
total=0
#predata = []
#lable = []
with torch.no_grad():
for batch_id,data in enumerate(test_loader,0):
inputs,target=data
inputs,target=inputs.to(device),target.to(device)
outputs=model(inputs)
predicted=torch.argmax(outputs.data,dim=1)
#predata.append(predicted.item())
#lable.append(target.item())
total+=target.size(0)
correct+=(predicted==target).sum().item()
print('Accuracy on test set : %d %% [%d/%d]'%(100*correct/total,correct,total))
#print(predata)
#print(lable)
#print(test_dataset.class_to_idx)
writer.add_scalar('test accuracy', 100*correct/total, epoch)
writer.flush()
if __name__ == '__main__':
for epoch in range(epochs):
train(epoch)
test(epoch)
torch.save(model.state_dict(), r'dataset/动物/runs/result/animal-pretrain.pt')
writer.flush()
writer.close()
以10epoch为例，模型在在训练集上精确率为94%，测试集上97%，训练结果如下：
Accuracy on train set : 94 % [757/800]
Accuracy on test set : 97 % [278/286]
tensorboard： tensorboard --logdir=dataset/动物/runs/log/2
4.3. 借鉴优秀的网络模型（实现MobileNetV3)
import os
import numpy as np
import numpy as np
import torch
import torch.nn as nn
import matplotlib.pyplot as plt
from torch.utils.data import DataLoader #For constructing DataLoader
from torchvision import transforms #For constructing DataLoader
from torchvision import datasets #For constructing DataLoader
import torch.nn.functional as F #For using function relu()
from torch.utils.tensorboard import SummaryWriter
# torch.cuda.current_device()
# torch.cuda.empty_cache()
# torch.cuda._initialized = True
num_classes = 3 # 2分类=2，3分类=3
lr = 0.01
img_size = 224
batch_size=8
epochs=10
transform = transforms.Compose([
transforms.Resize((img_size, img_size)),
transforms.ToTensor(),
# 用ImageNet均值方差，适配RGB三通道图片(注意数字和黑白图像单通道不一样）
transforms.Normalize(mean=[0.485, 0.456, 0.406],
std=[0.229, 0.224, 0.225])
])
train_dataset = datasets.ImageFolder('dataset/动物/train',transform=transform)#获取路径，返回的是所有图的data、label
test_dataset = datasets.ImageFolder('dataset/动物/test',transform=transform)
train_loader = DataLoader(dataset=train_dataset,batch_size=batch_size,shuffle=True)
test_loader = DataLoader(dataset=test_dataset,batch_size=batch_size,shuffle=False)
writer = SummaryWriter('dataset/动物/runs/log/3', comment='mobileNetv3')
# 激活函数
class hswish(nn.Module):
def __init__(self, inplace=True):
super(hswish, self).__init__()
self.inplace = inplace
def forward(self, x):
f = nn.functional.relu6(x + 3., inplace=self.inplace) / 6.
return x * f
# 激活函数
class hsigmoid(nn.Module):
def __init__(self, inplace=True):
super(hsigmoid, self).__init__()
self.inplace = inplace
def forward(self, x):
f = nn.functional.relu6(x + 3., inplace=self.inplace) / 6.
return f
#注意力机制
class SeModule(nn.Module):
def __init__(self, in_channels, se_ratio=0.25):
super(SeModule, self).__init__()
self.se_reduce = nn.Conv2d(in_channels, int(in_channels * se_ratio), kernel_size=1, stride=1, padding=0)
self.se_expand = nn.Conv2d(int(in_channels * se_ratio), in_channels, kernel_size=1, stride=1, padding=0)
def forward(self, x):
s = nn.functional.adaptive_avg_pool2d(x, 1)
s = self.se_expand(nn.functional.relu(self.se_reduce(s), inplace=True))
return x * s.sigmoid()
#卷积块
class ConvBlock(nn.Module):
def __init__(self, in_channels, out_channels, kernel_size, stride, padding, groups=1):
super(ConvBlock, self).__init__()
self.conv = nn.Conv2d(in_channels, out_channels, kernel_size, stride, padding, groups=groups, bias=False)
self.bn = nn.BatchNorm2d(out_channels)
self.act = hswish()
def forward(self, x):
return self.act(self.bn(self.conv(x)))
#SE模块
class SqueezeExcitation(nn.Module):
def __init__(self, in_channel, out_channel, reduction=4):
super(SqueezeExcitation, self).__init__()
self.pool = nn.AdaptiveAvgPool2d(1)
self.fc1 = nn.Conv2d(in_channel, out_channel // reduction, kernel_size=1, stride=1)
self.relu = nn.ReLU(inplace=True)
self.fc2 = nn.Conv2d(out_channel // reduction, out_channel, kernel_size=1, stride=1)
self.sigmoid = nn.Sigmoid()
def forward(self, x):
out = self.pool(x)
out = self.fc1(out)
out = self.relu(out)
out = self.fc2(out)
out = self.sigmoid(out)
return out
#残差模块
class ResidualBlock(nn.Module):
def __init__(self, in_channels, out_channels, kernel_size, stride, use_se=True):
super(ResidualBlock, self).__init__()
self.conv1 = ConvBlock(in_channels, out_channels, kernel_size, stride, kernel_size // 2)
self.conv2 = ConvBlock(out_channels, out_channels, kernel_size, 1, kernel_size // 2)
self.use_se = use_se
if use_se:
self.se = SqueezeExcitation(out_channels, out_channels)
self.shortcut = nn.Sequential()
if stride != 1 or in_channels != out_channels:
self.shortcut = nn.Sequential(
nn.Conv2d(in_channels, out_channels, kernel_size=1, stride=stride, bias=False),
nn.BatchNorm2d(out_channels)
)
def forward(self, x):
out = self.conv1(x)
out = self.conv2(out)
if self.use_se:
out = out * self.se(out)
out += self.shortcut(x)
out = nn.functional.relu(out, inplace=True)
return out
#MobileNetV3网络
class MobileNetV3(nn.Module):
def __init__(self, num_classes=1000):
super(MobileNetV3, self).__init__()
self.conv1 = ConvBlock(3, 16, 3, 2, 1) # 1/2
self.bottlenecks = nn.Sequential(
ResidualBlock(16, 16, 3, 2, False), # 1/4
ResidualBlock(16, 72, 3, 2, False), # 1/8
ResidualBlock(72, 72, 3, 1, False),
ResidualBlock(72, 72, 3, 1, True),
ResidualBlock(72, 96, 3, 2, True), # 1/16
ResidualBlock(96, 96, 3, 1, True),
ResidualBlock(96, 96, 3, 1, True),
ResidualBlock(96, 240, 5, 2, True), # 1/32
ResidualBlock(240, 240, 5, 1, True),
ResidualBlock(240, 240, 5, 1, True),
ResidualBlock(240, 480, 5, 1, True),
ResidualBlock(480, 480, 5, 1, True),
ResidualBlock(480, 480, 5, 1, True),
)
self.conv2 = ConvBlock(480, 576, 1, 1, 0, groups=2)
self.conv3 = nn.Conv2d(576, 1024, kernel_size=1, stride=1, padding=0, bias=False)
self.bn = nn.BatchNorm2d(1024)
self.act = hswish()
self.pool = nn.AdaptiveAvgPool2d(1)
self.fc = nn.Linear(1024, num_classes)
def forward(self, x):
out = self.conv1(x)
out = self.bottlenecks(out)
out = self.conv2(out)
out = self.conv3(out)
out = self.bn(out)
out = self.act(out)
out = self.pool(out)
out = out.reshape(out.size(0), -1)
out = self.fc(out)
return out
model=MobileNetV3(num_classes=num_classes)
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
model=model.to(device)
############################################################################################
criterion=torch.nn.CrossEntropyLoss()
optimizer=torch.optim.SGD(model.parameters(),lr=0.01,momentum=0.5)
def train(epoch):
total=0.0
correct=0.0
running_loss=0.0
for batch_id,data in enumerate(train_loader,0):
inputs,target=data
inputs,target=inputs.to(device),target.to(device)
optimizer.zero_grad()
outputs=model(inputs)
loss=criterion(outputs,target)
loss.backward()
optimizer.step()
running_loss +=loss.item()
# print('[%d,%5d] loss: %.3f' % (epoch + 1, batch_id, running_loss ))
# running_loss = 0.0
predicted = torch.argmax(outputs.data, dim=1)
total += target.size(0)
correct += (predicted == target).sum().item()
accuracy = 100 * correct / total
if (batch_id)% 100==99:
print('[%d,%5d] loss: %.3f' % (epoch+1,batch_id,running_loss/100))
running_loss=0.0
print('Accuracy on train set : %d %% [%d/%d]' % (100 * correct / total, correct, total))
writer.add_scalar('train accuracy',accuracy, epoch)
writer.add_scalar('train loss', running_loss, epoch)
writer.add_graph(model, (inputs,))
writer.flush()
def test(epoch):
correct=0
total=0
#predata = []
#lable = []
with torch.no_grad():
for batch_id,data in enumerate(test_loader,0):
inputs,target=data
inputs,target=inputs.to(device),target.to(device)
#Send the inputs and targets at every step to the GPU
outputs=model(inputs)
predicted=torch.argmax(outputs.data,dim=1)
#predata.append(predicted.item())
#lable.append(target.item())
total+=target.size(0)
correct+=(predicted==target).sum().item()
print('Accuracy on test set : %d %% [%d/%d]'%(100*correct/total,correct,total))
#print(predata)
#print(lable)
#print(test_dataset.class_to_idx)
writer.add_scalar('test accuracy', 100*correct/total, epoch)
writer.flush()
if __name__ == '__main__':
for epoch in range(epochs):
train(epoch)
test(epoch)
torch.save(model.state_dict(), 'dataset/动物/runs/result/mobileNetv3.pt')
writer.flush()
writer.close()
训练10epoch，训练结果：
Accuracy on train set : 93 % [749/800]
Accuracy on test set : 43 % [123/286]
查看tensorboardtensorboard --logdir=dataset/动物/runs/log/3
严重过拟合！！！
解决方法：
| 方法 | 说明 |
|---|---|
| 增加训练数据量 | 收集更多数据或使用数据增强 |
| 降低模型复杂度 | 减少层数、神经元数量 |
| 增加正则化 | L1/L2 正则化、Dropout、Early Stopping |
| 使用交叉验证 | 更合理评估模型泛化能力 |
| 检查数据泄露 | 确保训练集和测试集没有重叠 |
教学使用的代码中数据量比较少、训练轮次epoch较少等都是原因。
在真实使用的适合，需要大量数据集（至少2000张图片），训练轮次至少200epoch。
5.训练好的模型进行预测
从网上找一些新数据，让模型输出预测结果：
- 需要加载前面训练好的模型，即加载保存的pt文件，如：
#加载pt文件
model_path='dataset/动物/runs/result/mobileNetv3.pt'
model_dict=torch.load(model_path,map_location=device)
- 还需要加载需要被预测的图片：
#加载数据
dir = r'dataset/动物/eval'
classes=['bird','cat','dog']
for filename in os.listdir(dir):
# 拼接完整的文件或文件夹路径
eval_imge_path = os.path.join(dir, filename)
eval_imge = Image.open(eval_imge_path)#读取图片
input_tensor = transform(eval_imge)#转化为tensor
input_batch = input_tensor.unsqueeze(0)
input_batch = input_batch.to(device)#切换到GPU或者cpu
- 用训练好的模型对图片进行预测：
#预测
with torch.no_grad():
outputs = model(input_batch)
predicted = torch.argmax(outputs.data, dim=1)
print(filename,'predicted:',classes[predicted.item()])
# print(filename,'predicted:',predicted.item())
完整代码如下：
def eval():
#加载pt文件
model_path='dataset/动物/runs/result/mobileNetv3.pt'
model_dict=torch.load(model_path,map_location=device)
#加载模型参数
model.load_state_dict(model_dict)
model.eval()
#加载数据
dir = r'dataset/动物/eval'
classes=['bird','cat','dog']
for filename in os.listdir(dir):
# 拼接完整的文件或文件夹路径
eval_imge_path = os.path.join(dir, filename)
eval_imge = Image.open(eval_imge_path)#读取图片
input_tensor = transform(eval_imge)#转化为tensor
input_batch = input_tensor.unsqueeze(0)
input_batch = input_batch.to(device)#切换到GPU或者cpu
#预测
with torch.no_grad():
outputs = model(input_batch)
predicted = torch.argmax(outputs.data, dim=1)
print(filename,'predicted:',classes[predicted.item()])
# print(filename,'predicted:',predicted.item())
注意：需要训练完之后才能调用eval（）函数进行预测；并且需要在主函数调用:
if __name__ == '__main__':
# for epoch in range(epochs):
# train(epoch)
# test(epoch)
#
# torch.save(model.state_dict(), 'dataset/动物/runs/result/mobileNetv3.pt')
# writer.flush()
# writer.close()
eval()
预测结果：
0.jpg predicted: dog
1.jpg predicted: bird
2.jpg predicted: dog
7.jpg predicted: cat
8.jpg predicted: bird
5. 模型封装为ONNX
onnx是将pt模型导出封装后的格式形式，适用于各种环境、语言、平台。比如说可以在java开发环境中调用onnx模型，进行深度学习的预测。
-
同样需要加载训练好的模型（pt文件）
# 加载模型（正确方式） model_path = 'dataset/动物/runs/result/mobileNetv3.pt' model_dict = torch.load(model_path, map_location=device) -
加载模型训练好的参数：
#加载模型参数 model.load_state_dict(model_dict)#加载模型参数 model.eval() # 设置为评估模式 x = torch.randn(1, 3, 224, 224).to(device)#设置图像大小，并放到GPU上 -
导出模型：其中的路径需要换成你想要的保存路径,比如说
'dataset/动物/runs/result/mobileNetv3.onnx'# 导出ONNX模型 with torch.no_grad(): torch.onnx.export( model, # 要转换的模型对象 x, # 模型的示例输入 'dataset/动物/runs/result/mobileNetv3.onnx', # 导出的ONNX文件名 opset_version=18, # ONNX算子集版本 input_names=['input'], # 输入Tensor的名称 output_names=['output'], # 输出Tensor的名称 dynamic_axes={'input': {0: 'batch_size'}, 'output': {0: 'batch_size'}} # 支持动态batch )
def onnx_export():
# 加载模型（正确方式）
model_path = 'dataset/动物/runs/result/mobileNetv3.pt'
model_dict = torch.load(model_path, map_location=device)
#加载模型参数
model.load_state_dict(model_dict)#加载模型参数
model.eval() # 设置为评估模式
x = torch.randn(1, 3, 224, 224).to(device)#设置图像大小，并放到GPU上
# 导出ONNX模型
with torch.no_grad():
torch.onnx.export(
model, # 要转换的模型对象
x, # 模型的示例输入
'dataset/动物/runs/result/mobileNetv3.onnx', # 导出的ONNX文件名
opset_version=18, # ONNX算子集版本
input_names=['input'], # 输入Tensor的名称
output_names=['output'], # 输出Tensor的名称
dynamic_axes={'input': {0: 'batch_size'}, 'output': {0: 'batch_size'}} # 支持动态batch
)
print("ONNX模型导出成功！")
导出结果：
分析：
模型三次训练的结果对比：tensorboard --logdir=dataset/动物/runs/log/
- 以上只改了网络结构，模型并没有完全收敛。
- 因此还可以增加epoch、batch_size、调整超参数进行优化！
- 另外，爬取数据里面也有错误的数据，记得删除，否则会影响训练，爬取数据背景差异大，这也是训练困难的因素之一！
练习：
请尝试借鉴一种经典网络（比如说mobileNet、efficientNet、Inception模块，Resnet、Ghost模块、RepConv等）构建分类模型，完成自定义数据集训练。
汇聚全球AI编程工具，助力开发者即刻编程。
更多推荐
8
0- 0
已为社区贡献1条内容
所有评论(0)
