AI编程：自动化代码生成、低代码/无代码开发与算法优化实践
本文系统介绍了AI编程的三大核心技术：自动化代码生成利用NLP和预训练模型（如Codex）将自然语言需求转换为代码；低代码/无代码平台通过可视化组件和拖拽界面实现应用开发；智能算法优化则运用遗传算法、粒子群算法等解决复杂问题。文章详细展示了各技术的实现方法，包括代码生成API调用、低代码平台架构设计，以及优化算法实践。此外，还探讨了Prompt工程技巧和AI编程助手集成方案，为开发者提供了从理论到
·
1. 自动化代码生成
1.1 自动化代码生成概述
自动化代码生成是AI编程领域的重要组成部分，它利用机器学习模型理解开发者的意图并自动生成相应的代码。这种技术正在从根本上改变软件开发的范式，显著提高开发效率。
技术原理
自动化代码生成主要基于以下技术：
-
自然语言处理（NLP）：理解开发者的自然语言描述
-
代码语法分析：解析和理解现有代码结构
-
序列到序列模型：将需求描述转换为代码序列
-
预训练语言模型：如Codex、CodeGen等专门针对代码训练的模型
1.2 代码生成模型实践
以下是使用OpenAI Codex模型进行Python代码生成的示例：
python
import openai
import json
class CodeGenerator:
def __init__(self, api_key):
openai.api_key = api_key
def generate_function(self, description, language="python"):
"""根据描述生成函数代码"""
prompt = f"""
# 语言: {language}
# 描述: {description}
# 代码:
"""
response = openai.Completion.create(
engine="code-davinci-002",
prompt=prompt,
max_tokens=150,
temperature=0.7,
stop=["#", "```"]
)
return response.choices[0].text.strip()
def generate_class(self, class_description):
"""生成类定义代码"""
prompt = f"""
根据以下描述创建一个Python类：
描述：{class_description}
要求：
1. 包含合适的属性和方法
2. 添加适当的文档字符串
3. 遵循PEP8规范
Python代码：
"""
response = openai.Completion.create(
engine="code-davinci-002",
prompt=prompt,
max_tokens=300,
temperature=0.5
)
return response.choices[0].text.strip()
# 使用示例
if __name__ == "__main__":
generator = CodeGenerator("your-api-key")
# 生成函数
function_code = generator.generate_function(
"创建一个函数，计算斐波那契数列的第n项"
)
print("生成的函数代码：")
print(function_code)
# 生成类
class_code = generator.generate_class(
"创建一个学生类，包含姓名、年龄、成绩属性，以及计算平均分的方法"
)
print("\n生成的类代码：")
print(class_code)
1.3 本地代码生成模型
除了使用云端API，我们也可以部署本地代码生成模型：
python
import torch
from transformers import AutoTokenizer, AutoModelForCausalLM
class LocalCodeGenerator:
def __init__(self, model_name="microsoft/CodeGPT-py"):
self.tokenizer = AutoTokenizer.from_pretrained(model_name)
self.model = AutoModelForCausalLM.from_pretrained(model_name)
def generate_code(self, prompt, max_length=100):
"""使用本地模型生成代码"""
inputs = self.tokenizer.encode(prompt, return_tensors="pt")
with torch.no_grad():
outputs = self.model.generate(
inputs,
max_length=max_length,
temperature=0.7,
num_return_sequences=1,
pad_token_id=self.tokenizer.eos_token_id
)
generated_code = self.tokenizer.decode(outputs[0], skip_special_tokens=True)
return generated_code
# 使用示例
local_generator = LocalCodeGenerator()
prompt = """
def calculate_factorial(n):
\"\"\"计算n的阶乘\"\"\"
"""
generated = local_generator.generate_code(prompt)
print(generated)

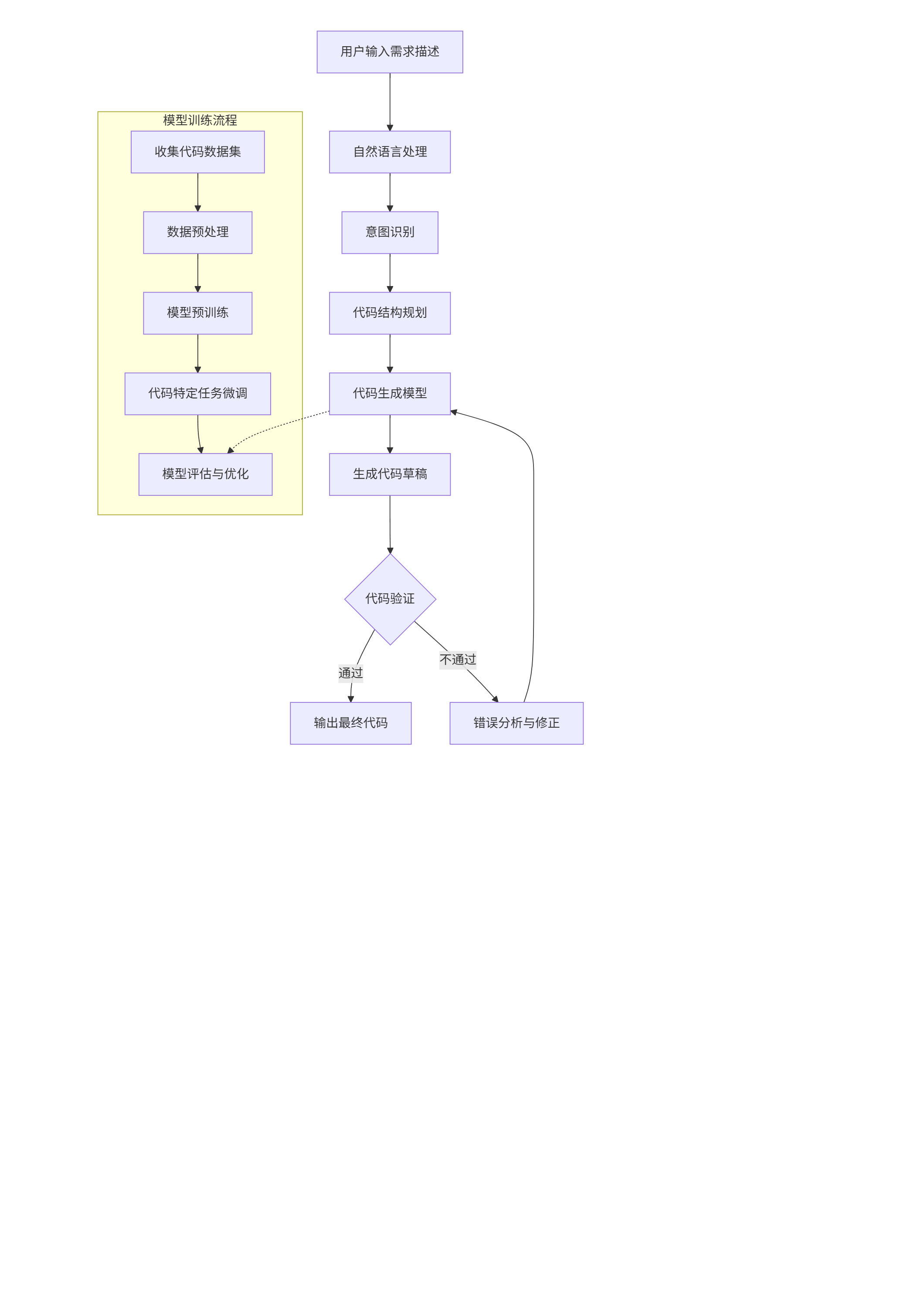

1.4 自动化代码生成流程图
graph TD
A[用户输入需求描述] --> B[自然语言处理]
B --> C[意图识别]
C --> D[代码结构规划]
D --> E[代码生成模型]
E --> F[生成代码草稿]
F --> G{代码验证}
G -->|通过| H[输出最终代码]
G -->|不通过| I[错误分析与修正]
I --> E
subgraph 模型训练流程
J[收集代码数据集] --> K[数据预处理]
K --> L[模型预训练]
L --> M[代码特定任务微调]
M --> N[模型评估与优化]
end
E -.-> N
2. 低代码/无代码开发平台
2.1 低代码平台架构设计
低代码平台通过可视化界面和配置代替传统编码，让非技术人员也能创建应用。以下是简化版低代码平台的核心实现：
python
import json
import jsonschema
from abc import ABC, abstractmethod
class Component(ABC):
"""组件基类"""
def __init__(self, id, properties):
self.id = id
self.properties = properties
@abstractmethod
def render(self):
"""渲染组件"""
pass
@abstractmethod
def generate_code(self):
"""生成对应代码"""
pass
class ButtonComponent(Component):
"""按钮组件"""
def render(self):
return f"""
<button id="{self.id}"
style="{self._get_style()}"
onclick="{self.properties.get('onclick', '')}">
{self.properties.get('text', 'Button')}
</button>
"""
def generate_code(self):
return f'''
# Button: {self.id}
{self.id}_button = tk.Button(
text="{self.properties.get('text', 'Button')}",
command={self.properties.get('onclick', 'None')}
)
{self.id}_button.pack()
'''
def _get_style(self):
style_props = []
if 'color' in self.properties:
style_props.append(f"color: {self.properties['color']}")
if 'backgroundColor' in self.properties:
style_props.append(f"background-color: {self.properties['backgroundColor']}")
return "; ".join(style_props)
class FormComponent(Component):
"""表单组件"""
def render(self):
fields_html = ""
for field in self.properties.get('fields', []):
fields_html += f'''
<div class="form-field">
<label>{field.get('label', 'Field')}:</label>
<input type="{field.get('type', 'text')}"
name="{field.get('name', 'field')}">
</div>
'''
return f'''
<form id="{self.id}">
{fields_html}
<button type="submit">提交</button>
</form>
'''
def generate_code(self):
code = f'''
# Form: {self.id}
{self.id}_frame = tk.Frame()
'''
for i, field in enumerate(self.properties.get('fields', [])):
code += f'''
tk.Label({self.id}_frame, text="{field.get('label', 'Field')}").grid(row={i}, column=0)
{field.get('name', f'field_{i}')}_entry = tk.Entry({self.id}_frame})
{field.get('name', f'field_{i}')}_entry.grid(row={i}, column=1)
'''
code += f'''
{self.id}_frame.pack()
'''
return code
class LowCodePlatform:
"""低代码平台核心类"""
def __init__(self):
self.components = {}
self.component_types = {
'button': ButtonComponent,
'form': FormComponent
}
def add_component(self, component_type, component_id, properties):
"""添加组件"""
if component_type not in self.component_types:
raise ValueError(f"不支持的组件类型: {component_type}")
component_class = self.component_types[component_type]
component = component_class(component_id, properties)
self.components[component_id] = component
return component
def generate_html(self):
"""生成HTML页面"""
html_components = []
for component in self.components.values():
html_components.append(component.render())
return f"""
<!DOCTYPE html>
<html>
<head>
<title>Generated App</title>
<style>
.form-field {{ margin: 10px 0; }}
button {{ padding: 8px 16px; margin: 5px; }}
</style>
</head>
<body>
{''.join(html_components)}
</body>
</html>
"""
def generate_python_code(self):
"""生成Python代码"""
imports = "import tkinter as tk\nfrom tkinter import messagebox\n\n"
code_components = []
for component in self.components.values():
code_components.append(component.generate_code())
return imports + "\n".join(code_components)
# 使用示例
platform = LowCodePlatform()
# 添加按钮组件
platform.add_component('button', 'submit_btn', {
'text': '提交表单',
'color': 'white',
'backgroundColor': 'blue',
'onclick': 'submitForm()'
})
# 添加表单组件
platform.add_component('form', 'user_form', {
'fields': [
{'name': 'username', 'label': '用户名', 'type': 'text'},
{'name': 'email', 'label': '邮箱', 'type': 'email'}
]
})
# 生成代码
html_output = platform.generate_html()
python_output = platform.generate_python_code()
print("生成的HTML:")
print(html_output)
print("\n生成的Python代码:")
print(python_output)
2.2 可视化拖拽界面实现
python
import json
from dataclasses import dataclass
from typing import List, Dict, Any
@dataclass
class Position:
x: int
y: int
@dataclass
class ComponentConfig:
id: str
type: str
position: Position
properties: Dict[str, Any]
class DragDropBuilder:
"""拖拽式构建器"""
def __init__(self):
self.canvas_components = []
self.selected_component = None
def add_component_to_canvas(self, component_type: str, position: Position):
"""添加组件到画布"""
component_id = f"comp_{len(self.canvas_components) + 1}"
component = ComponentConfig(
id=component_id,
type=component_type,
position=position,
properties=self._get_default_properties(component_type)
)
self.canvas_components.append(component)
return component
def move_component(self, component_id: str, new_position: Position):
"""移动组件"""
for comp in self.canvas_components:
if comp.id == component_id:
comp.position = new_position
break
def update_component_properties(self, component_id: str, properties: Dict[str, Any]):
"""更新组件属性"""
for comp in self.canvas_components:
if comp.id == component_id:
comp.properties.update(properties)
break
def _get_default_properties(self, component_type: str) -> Dict[str, Any]:
"""获取组件默认属性"""
defaults = {
'button': {'text': '按钮', 'color': 'black', 'backgroundColor': 'lightgray'},
'form': {'fields': []},
'text': {'content': '文本内容', 'fontSize': 14},
'image': {'src': '', 'width': 100, 'height': 100}
}
return defaults.get(component_type, {})
def export_configuration(self) -> str:
"""导出配置"""
config = {
'version': '1.0',
'components': [
{
'id': comp.id,
'type': comp.type,
'position': {'x': comp.position.x, 'y': comp.position.y},
'properties': comp.properties
}
for comp in self.canvas_components
]
}
return json.dumps(config, indent=2, ensure_ascii=False)
def generate_react_code(self) -> str:
"""生成React代码"""
components_code = []
for comp in self.canvas_components:
if comp.type == 'button':
component_code = f'''
<button
style={{
position: 'absolute',
left: {comp.position.x},
top: {comp.position.y},
color: '{comp.properties.get('color', 'black')}',
backgroundColor: '{comp.properties.get('backgroundColor', 'lightgray')}'
}}
onClick={{() => console.log('Button {comp.id} clicked')}}
>
{comp.properties.get('text', '按钮')}
</button>
'''
elif comp.type == 'text':
component_code = f'''
<div
style={{
position: 'absolute',
left: {comp.position.x},
top: {comp.position.y},
fontSize: {comp.properties.get('fontSize', 14)}px
}}
>
{comp.properties.get('content', '文本内容')}
</div>
'''
else:
component_code = f'<!-- 未支持的组件类型: {comp.type} -->'
components_code.append(component_code)
return f'''
import React from 'react';
const GeneratedApp = () => {{
return (
<div style={{ position: 'relative', width: '100%', height: '100vh' }}>
{''.join(components_code)}
</div>
);
}};
export default GeneratedApp;
'''
# 使用示例
builder = DragDropBuilder()
# 添加组件
builder.add_component_to_canvas('button', Position(100, 50))
builder.add_component_to_canvas('text', Position(200, 150))
builder.add_component_to_canvas('button', Position(300, 250))
# 更新组件属性
builder.update_component_properties('comp_1', {'text': '确认提交', 'backgroundColor': 'green'})
builder.update_component_properties('comp_2', {'content': '欢迎使用低代码平台', 'fontSize': 18})
# 导出
config = builder.export_configuration()
react_code = builder.generate_react_code()
print("导出的配置:")
print(config)
print("\n生成的React代码:")
print(react_code)

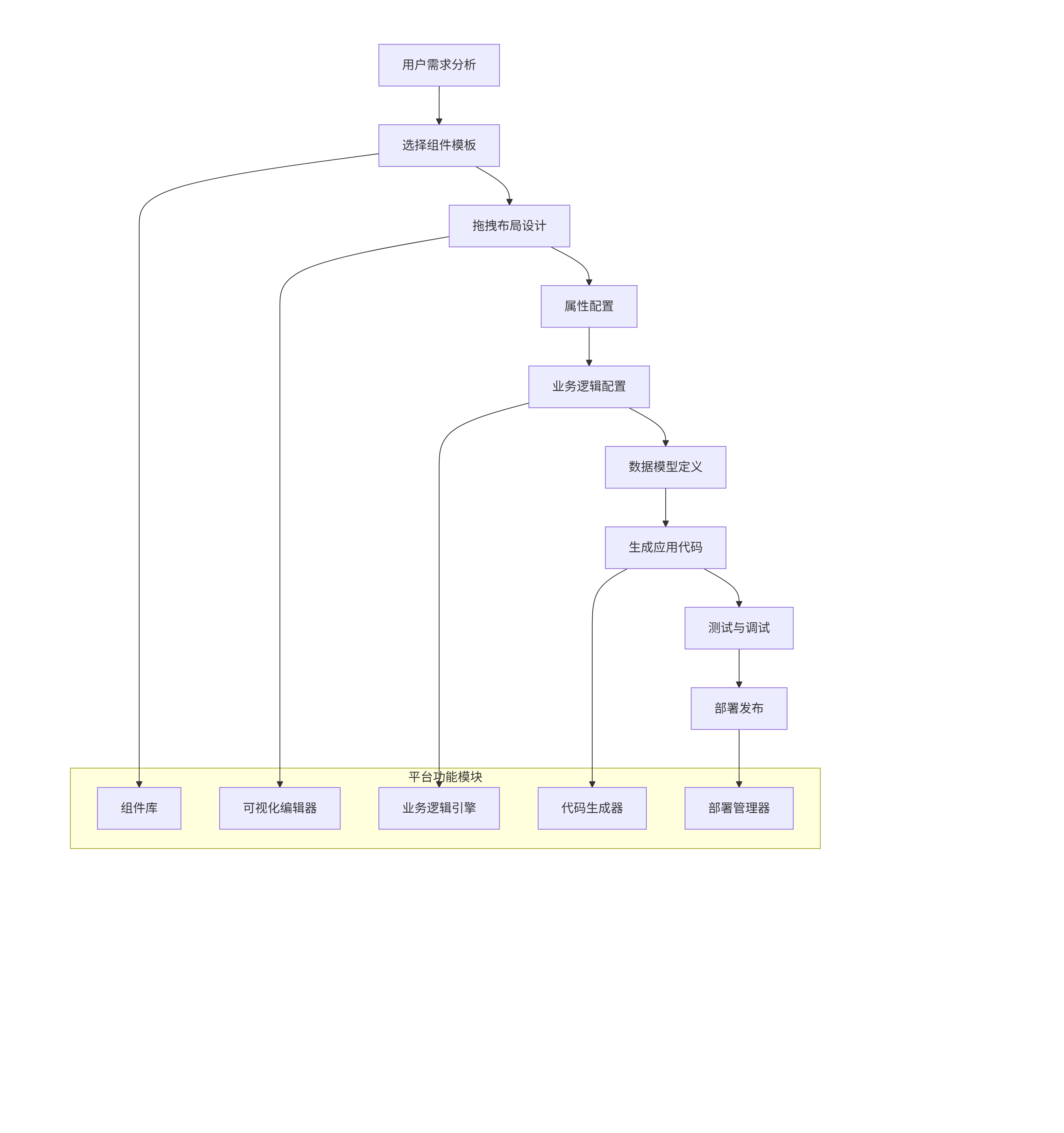

2.3 低代码平台工作流程
flowchart TD
A[用户需求分析] --> B[选择组件模板]
B --> C[拖拽布局设计]
C --> D[属性配置]
D --> E[业务逻辑配置]
E --> F[数据模型定义]
F --> G[生成应用代码]
G --> H[测试与调试]
H --> I[部署发布]
subgraph 平台功能模块
J[组件库]
K[可视化编辑器]
L[业务逻辑引擎]
M[代码生成器]
N[部署管理器]
end
B --> J
C --> K
E --> L
G --> M
I --> N
3. 算法优化实践
3.1 遗传算法优化实践
遗传算法模拟自然选择过程，适用于复杂优化问题。以下是一个完整的遗传算法实现：
python
import numpy as np
import matplotlib.pyplot as plt
from typing import List, Callable, Tuple
import random
class GeneticAlgorithm:
"""遗传算法优化器"""
def __init__(self,
population_size: int = 100,
chromosome_length: int = 10,
mutation_rate: float = 0.01,
crossover_rate: float = 0.7,
elitism_count: int = 2):
self.population_size = population_size
self.chromosome_length = chromosome_length
self.mutation_rate = mutation_rate
self.crossover_rate = crossover_rate
self.elitism_count = elitism_count
def initialize_population(self) -> np.ndarray:
"""初始化种群"""
return np.random.randint(0, 2,
(self.population_size, self.chromosome_length))
def calculate_fitness(self,
population: np.ndarray,
fitness_function: Callable) -> np.ndarray:
"""计算适应度"""
return np.array([fitness_function(individual) for individual in population])
def select_parents(self,
population: np.ndarray,
fitness_values: np.ndarray) -> List[Tuple]:
"""选择父代（轮盘赌选择）"""
# 归一化适应度值
normalized_fitness = fitness_values / np.sum(fitness_values)
# 计算累积概率
cumulative_probabilities = np.cumsum(normalized_fitness)
parents = []
for _ in range(self.population_size - self.elitism_count):
# 轮盘赌选择
r = random.random()
for i, cum_prob in enumerate(cumulative_probabilities):
if r <= cum_prob:
parents.append(population[i])
break
return parents
def crossover(self, parent1: np.ndarray, parent2: np.ndarray) -> Tuple:
"""单点交叉"""
if random.random() < self.crossover_rate:
# 随机选择交叉点
crossover_point = random.randint(1, self.chromosome_length - 1)
child1 = np.concatenate([parent1[:crossover_point],
parent2[crossover_point:]])
child2 = np.concatenate([parent2[:crossover_point],
parent1[crossover_point:]])
return child1, child2
else:
return parent1.copy(), parent2.copy()
def mutate(self, individual: np.ndarray) -> np.ndarray:
"""位翻转变异"""
mutated_individual = individual.copy()
for i in range(len(mutated_individual)):
if random.random() < self.mutation_rate:
mutated_individual[i] = 1 - mutated_individual[i] # 翻转
return mutated_individual
def evolve(self,
population: np.ndarray,
fitness_function: Callable) -> Tuple:
"""执行一代进化"""
# 计算适应度
fitness_values = self.calculate_fitness(population, fitness_function)
# 选择精英个体
elite_indices = np.argsort(fitness_values)[-self.elitism_count:]
elite_individuals = population[elite_indices]
# 选择父代
parents = self.select_parents(population, fitness_values)
# 生成新种群
new_population = []
new_population.extend(elite_individuals)
# 交叉和变异
for i in range(0, len(parents), 2):
if i + 1 < len(parents):
parent1, parent2 = parents[i], parents[i + 1]
child1, child2 = self.crossover(parent1, parent2)
new_population.append(self.mutate(child1))
new_population.append(self.mutate(child2))
# 确保种群大小不变
new_population = new_population[:self.population_size]
return np.array(new_population), np.max(fitness_values), np.mean(fitness_values)
def optimize(self,
fitness_function: Callable,
generations: int = 100,
verbose: bool = True) -> Tuple:
"""执行完整优化过程"""
# 初始化种群
population = self.initialize_population()
best_fitness_history = []
avg_fitness_history = []
best_individual = None
best_fitness = -float('inf')
for generation in range(generations):
population, max_fitness, avg_fitness = self.evolve(
population, fitness_function)
best_fitness_history.append(max_fitness)
avg_fitness_history.append(avg_fitness)
# 更新最佳个体
if max_fitness > best_fitness:
best_fitness = max_fitness
best_individual_index = np.argmax(
self.calculate_fitness(population, fitness_function))
best_individual = population[best_individual_index]
if verbose and generation % 10 == 0:
print(f"Generation {generation}: Best Fitness = {max_fitness:.4f}, "
f"Average Fitness = {avg_fitness:.4f}")
return best_individual, best_fitness, best_fitness_history, avg_fitness_history
# 示例：优化函数 f(x) = -x^2 + 10*sin(5x) + 7*cos(4x)
def example_fitness_function(individual):
"""示例适应度函数"""
# 将二进制染色体转换为十进制
x = int(''.join(map(str, individual)), 2)
# 映射到 [-10, 10] 区间
x = x / (2**len(individual) - 1) * 20 - 10
# 目标函数
return -x**2 + 10 * np.sin(5*x) + 7 * np.cos(4*x)
# 运行遗传算法
ga = GeneticAlgorithm(
population_size=50,
chromosome_length=20,
mutation_rate=0.02,
crossover_rate=0.8,
elitism_count=2
)
best_solution, best_fitness, best_history, avg_history = ga.optimize(
example_fitness_function,
generations=100,
verbose=True
)
print(f"\n最佳解: {best_solution}")
print(f"最佳适应度: {best_fitness:.4f}")
# 可视化结果
plt.figure(figsize=(12, 4))
plt.subplot(1, 2, 1)
# 绘制目标函数
x = np.linspace(-10, 10, 1000)
y = -x**2 + 10 * np.sin(5*x) + 7 * np.cos(4*x)
plt.plot(x, y, label='Objective Function')
plt.xlabel('x')
plt.ylabel('f(x)')
plt.title('Objective Function')
plt.grid(True)
plt.subplot(1, 2, 2)
plt.plot(best_history, label='Best Fitness')
plt.plot(avg_history, label='Average Fitness')
plt.xlabel('Generation')
plt.ylabel('Fitness')
plt.title('Genetic Algorithm Convergence')
plt.legend()
plt.grid(True)
plt.tight_layout()
plt.show()
3.2 粒子群优化算法
python
import numpy as np
import matplotlib.pyplot as plt
from mpl_toolkits.mplot3d import Axes3D
class ParticleSwarmOptimization:
"""粒子群优化算法"""
def __init__(self,
num_particles: int = 30,
dimensions: int = 2,
max_iterations: int = 100,
w: float = 0.7, # 惯性权重
c1: float = 1.5, # 个体学习因子
c2: float = 1.5): # 社会学习因子
self.num_particles = num_particles
self.dimensions = dimensions
self.max_iterations = max_iterations
self.w = w
self.c1 = c1
self.c2 = c2
# 初始化粒子位置和速度
self.positions = np.random.uniform(-10, 10, (num_particles, dimensions))
self.velocities = np.random.uniform(-1, 1, (num_particles, dimensions))
# 个体最佳位置和适应度
self.personal_best_positions = self.positions.copy()
self.personal_best_fitness = np.full(num_particles, float('inf'))
# 全局最佳位置和适应度
self.global_best_position = None
self.global_best_fitness = float('inf')
# 记录历史
self.history = {
'global_best_fitness': [],
'positions': [],
'velocities': []
}
def objective_function(self, x):
"""目标函数（示例：Rastrigin函数）"""
A = 10
return A * len(x) + sum([(xi**2 - A * np.cos(2 * np.pi * xi)) for xi in x])
def evaluate_fitness(self):
"""评估所有粒子的适应度"""
fitness_values = np.array([self.objective_function(pos)
for pos in self.positions])
return fitness_values
def update_personal_best(self):
"""更新个体最佳位置"""
fitness_values = self.evaluate_fitness()
for i in range(self.num_particles):
if fitness_values[i] < self.personal_best_fitness[i]:
self.personal_best_positions[i] = self.positions[i].copy()
self.personal_best_fitness[i] = fitness_values[i]
def update_global_best(self):
"""更新全局最佳位置"""
min_index = np.argmin(self.personal_best_fitness)
min_fitness = self.personal_best_fitness[min_index]
if min_fitness < self.global_best_fitness:
self.global_best_position = self.personal_best_positions[min_index].copy()
self.global_best_fitness = min_fitness
def update_velocities_positions(self):
"""更新粒子速度和位置"""
for i in range(self.num_particles):
# 更新速度
r1, r2 = np.random.random(2)
cognitive_component = (self.c1 * r1 *
(self.personal_best_positions[i] - self.positions[i]))
social_component = (self.c2 * r2 *
(self.global_best_position - self.positions[i]))
self.velocities[i] = (self.w * self.velocities[i] +
cognitive_component + social_component)
# 限制速度
self.velocities[i] = np.clip(self.velocities[i], -2, 2)
# 更新位置
self.positions[i] += self.velocities[i]
def optimize(self):
"""执行优化"""
print("开始粒子群优化...")
# 初始评估
self.update_personal_best()
self.update_global_best()
for iteration in range(self.max_iterations):
# 更新速度和位置
self.update_velocities_positions()
# 更新最佳位置
self.update_personal_best()
self.update_global_best()
# 记录历史
self.history['global_best_fitness'].append(self.global_best_fitness)
self.history['positions'].append(self.positions.copy())
self.history['velocities'].append(self.velocities.copy())
if iteration % 20 == 0:
print(f"Iteration {iteration}: Best Fitness = {self.global_best_fitness:.6f}")
print(f"优化完成！最终最佳适应度: {self.global_best_fitness:.6f}")
print(f"最佳解: {self.global_best_position}")
return self.global_best_position, self.global_best_fitness
def plot_convergence(self):
"""绘制收敛曲线"""
plt.figure(figsize=(10, 6))
plt.plot(self.history['global_best_fitness'])
plt.xlabel('Iteration')
plt.ylabel('Best Fitness')
plt.title('PSO Convergence')
plt.grid(True)
plt.show()
def plot_particle_movement(self):
"""绘制粒子运动轨迹（适用于2D问题）"""
if self.dimensions != 2:
print("只能绘制2D问题的粒子运动")
return
plt.figure(figsize=(12, 5))
# 创建网格用于绘制目标函数
x = np.linspace(-5.12, 5.12, 100)
y = np.linspace(-5.12, 5.12, 100)
X, Y = np.meshgrid(x, y)
Z = self.objective_function([X, Y])
plt.subplot(1, 2, 1)
plt.contourf(X, Y, Z, levels=50, cmap='viridis')
plt.colorbar()
# 绘制粒子轨迹
positions_history = np.array(self.history['positions'])
for i in range(self.num_particles):
plt.plot(positions_history[:, i, 0],
positions_history[:, i, 1],
'r-', alpha=0.3)
plt.scatter(positions_history[-1, i, 0],
positions_history[-1, i, 1],
c='red', s=30)
# 标记全局最佳位置
plt.scatter(self.global_best_position[0],
self.global_best_position[1],
c='yellow', s=100, marker='*',
label='Global Best')
plt.xlabel('x1')
plt.ylabel('x2')
plt.title('Particle Movement')
plt.legend()
plt.subplot(1, 2, 2)
# 绘制3D视图
ax = plt.axes(projection='3d')
ax.plot_surface(X, Y, Z, cmap='viridis', alpha=0.8)
# 绘制最终粒子位置
final_positions = self.history['positions'][-1]
final_fitness = [self.objective_function(pos) for pos in final_positions]
ax.scatter(final_positions[:, 0],
final_positions[:, 1],
final_fitness,
c='red', s=50)
ax.set_xlabel('x1')
ax.set_ylabel('x2')
ax.set_zlabel('f(x)')
ax.set_title('Objective Function with Particles')
plt.tight_layout()
plt.show()
# 使用示例
pso = ParticleSwarmOptimization(
num_particles=30,
dimensions=2,
max_iterations=100,
w=0.7,
c1=1.5,
c2=1.5
)
best_solution, best_fitness = pso.optimize()
pso.plot_convergence()
pso.plot_particle_movement()

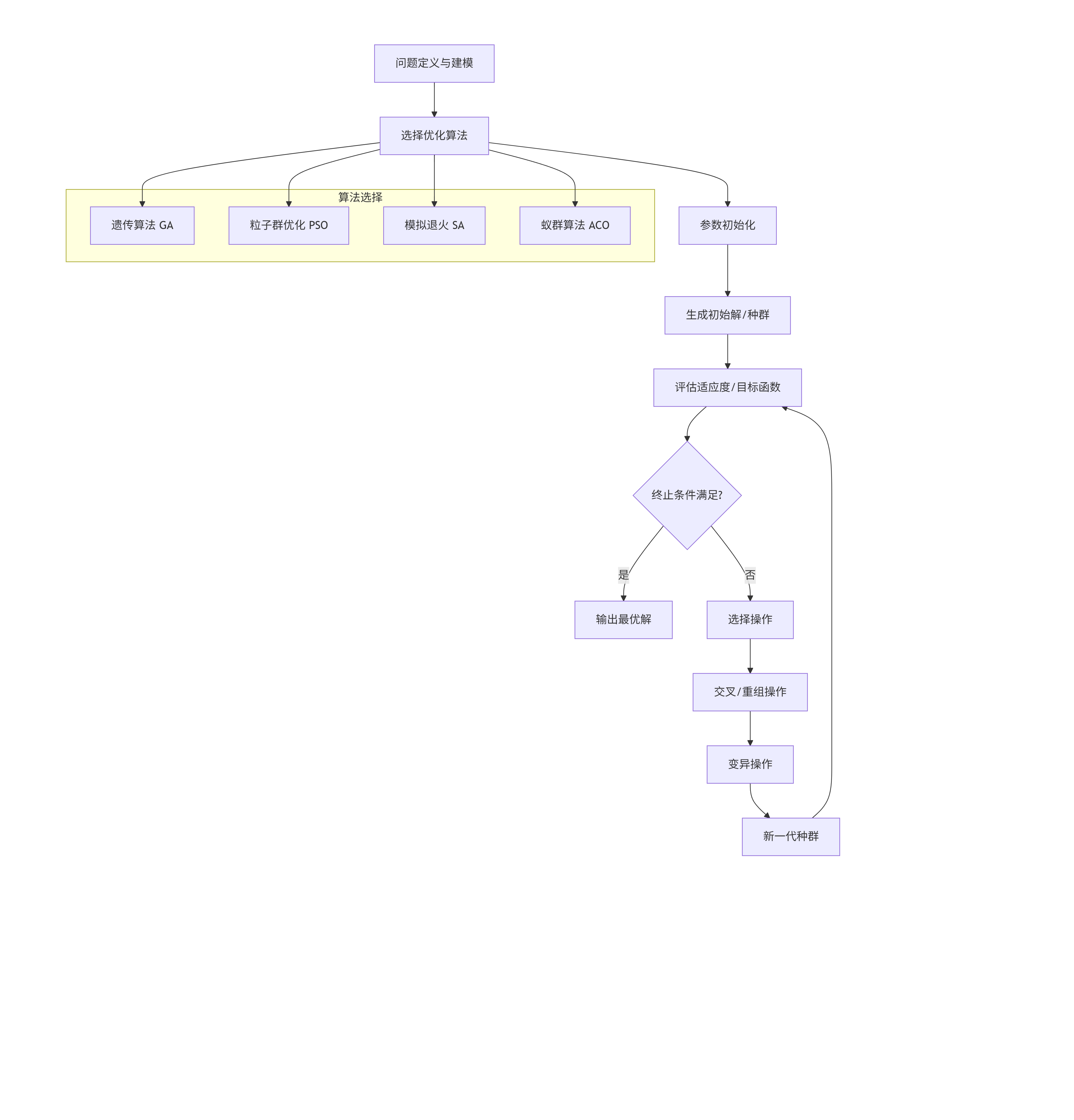

3.3 算法优化流程图
graph TD
A[问题定义与建模] --> B[选择优化算法]
B --> C[参数初始化]
C --> D[生成初始解/种群]
D --> E[评估适应度/目标函数]
E --> F{终止条件满足?}
F -->|是| G[输出最优解]
F -->|否| H[选择操作]
H --> I[交叉/重组操作]
I --> J[变异操作]
J --> K[新一代种群]
K --> E
subgraph 算法选择
L[遗传算法 GA]
M[粒子群优化 PSO]
N[模拟退火 SA]
O[蚁群算法 ACO]
end
B --> L
B --> M
B --> N
B --> O
4. 综合应用案例：智能代码优化系统

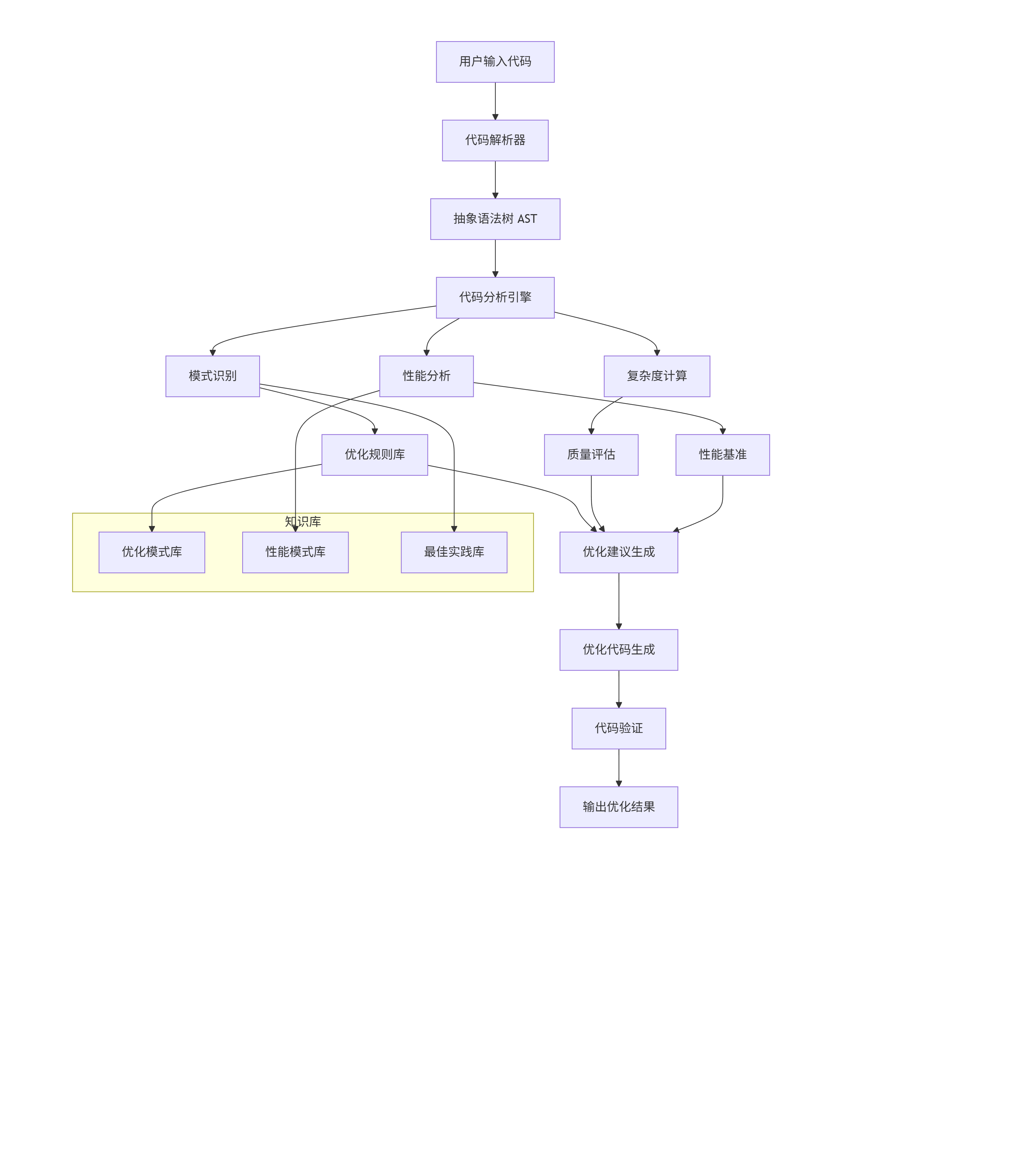

4.1 系统架构设计
python
import ast
import time
from typing import Dict, List, Any
import numpy as np
class CodeOptimizer:
"""智能代码优化系统"""
def __init__(self):
self.optimization_rules = self._load_optimization_rules()
self.performance_metrics = {}
def _load_optimization_rules(self) -> Dict:
"""加载代码优化规则"""
return {
'loop_optimization': {
'description': '循环优化',
'patterns': [
{
'pattern': 'for i in range(len(list)):',
'suggestion': '考虑使用 enumerate(list) 或直接迭代元素',
'example': {
'before': 'for i in range(len(items)): print(items[i])',
'after': 'for item in items: print(item)'
}
}
]
},
'comprehension_optimization': {
'description': '推导式优化',
'patterns': [
{
'pattern': '列表生成式替代循环',
'suggestion': '使用列表推导式提高可读性和性能',
'example': {
'before': 'result = []\nfor x in range(10):\n result.append(x**2)',
'after': 'result = [x**2 for x in range(10)]'
}
}
]
},
'function_optimization': {
'description': '函数优化',
'patterns': [
{
'pattern': '重复计算',
'suggestion': '缓存重复计算的结果',
'example': {
'before': 'for i in range(1000):\n result = expensive_function(data)',
'after': 'cached_result = expensive_function(data)\nfor i in range(1000):\n result = cached_result'
}
}
]
}
}
def analyze_code(self, code: str) -> Dict[str, Any]:
"""分析代码并识别优化机会"""
try:
tree = ast.parse(code)
analysis_result = {
'optimization_opportunities': [],
'performance_warnings': [],
'complexity_metrics': self._calculate_complexity(tree)
}
# 识别优化机会
analysis_result['optimization_opportunities'].extend(
self._identify_loop_optimizations(tree))
analysis_result['optimization_opportunities'].extend(
self._identify_comprehension_optimizations(tree))
analysis_result['optimization_opportunities'].extend(
self._identify_function_optimizations(tree))
# 性能警告
analysis_result['performance_warnings'].extend(
self._identify_performance_issues(tree))
return analysis_result
except SyntaxError as e:
return {'error': f'语法错误: {e}'}
def _calculate_complexity(self, tree: ast.AST) -> Dict[str, int]:
"""计算代码复杂度指标"""
complexity = {
'line_count': 0,
'function_count': 0,
'class_count': 0,
'cyclomatic_complexity': 1, # 从1开始
'depth': 0
}
class ComplexityVisitor(ast.NodeVisitor):
def __init__(self):
self.complexity = complexity
self.current_depth = 0
def visit_FunctionDef(self, node):
self.complexity['function_count'] += 1
self.generic_visit(node)
def visit_ClassDef(self, node):
self.complexity['class_count'] += 1
self.generic_visit(node)
def visit_If(self, node):
self.complexity['cyclomatic_complexity'] += 1
self.generic_visit(node)
def visit_While(self, node):
self.complexity['cyclomatic_complexity'] += 1
self.generic_visit(node)
def visit_For(self, node):
self.complexity['cyclomatic_complexity'] += 1
self.generic_visit(node)
visitor = ComplexityVisitor()
visitor.visit(tree)
# 估算行数
if tree.body:
last_node = tree.body[-1]
complexity['line_count'] = getattr(last_node, 'end_lineno', 0)
return complexity
def _identify_loop_optimizations(self, tree: ast.AST) -> List[Dict]:
"""识别循环优化机会"""
optimizations = []
class LoopVisitor(ast.NodeVisitor):
def visit_For(self, node):
# 检查是否使用 range(len(list)) 模式
if (isinstance(node.target, ast.Name) and
isinstance(node.iter, ast.Call) and
isinstance(node.iter.func, ast.Name) and
node.iter.func.id == 'range' and
node.iter.args):
arg = node.iter.args[0]
if (isinstance(arg, ast.Call) and
isinstance(arg.func, ast.Name) and
arg.func.id == 'len'):
optimizations.append({
'type': 'loop_optimization',
'line': node.lineno,
'suggestion': '使用 enumerate() 或直接迭代元素',
'confidence': 0.8
})
self.generic_visit(node)
visitor = LoopVisitor()
visitor.visit(tree)
return optimizations
def _identify_comprehension_optimizations(self, tree: ast.AST) -> List[Dict]:
"""识别推导式优化机会"""
optimizations = []
class ComprehensionVisitor(ast.NodeVisitor):
def visit_For(self, node):
# 检查简单的列表构建循环
if (len(node.body) == 1 and
isinstance(node.body[0], ast.Expr) and
isinstance(node.body[0].value, ast.Call) and
isinstance(node.body[0].value.func, ast.Attribute) and
node.body[0].value.func.attr == 'append'):
optimizations.append({
'type': 'comprehension_optimization',
'line': node.lineno,
'suggestion': '考虑使用列表推导式',
'confidence': 0.7
})
self.generic_visit(node)
visitor = ComprehensionVisitor()
visitor.visit(tree)
return optimizations
def _identify_function_optimizations(self, tree: ast.AST) -> List[Dict]:
"""识别函数优化机会"""
optimizations = []
class FunctionVisitor(ast.NodeVisitor):
def __init__(self):
self.function_calls = {}
def visit_Call(self, node):
if isinstance(node.func, ast.Name):
func_name = node.func.id
if func_name in self.function_calls:
self.function_calls[func_name] += 1
else:
self.function_calls[func_name] = 1
self.generic_visit(node)
def visit_For(self, node):
# 在循环中检查函数调用
call_visitor = FunctionCallVisitor()
call_visitor.visit(node)
for func_name, count in call_visitor.function_calls.items():
if count > 1: # 同一函数在循环中被多次调用
optimizations.append({
'type': 'function_optimization',
'line': node.lineno,
'suggestion': f'考虑缓存函数 {func_name} 的结果',
'confidence': 0.6
})
self.generic_visit(node)
class FunctionCallVisitor(ast.NodeVisitor):
def __init__(self):
self.function_calls = {}
def visit_Call(self, node):
if isinstance(node.func, ast.Name):
func_name = node.func.id
if func_name in self.function_calls:
self.function_calls[func_name] += 1
else:
self.function_calls[func_name] = 1
self.generic_visit(node)
visitor = FunctionVisitor()
visitor.visit(tree)
return optimizations
def _identify_performance_issues(self, tree: ast.AST) -> List[Dict]:
"""识别性能问题"""
warnings = []
class PerformanceVisitor(ast.NodeVisitor):
def visit_For(self, node):
# 检查嵌套循环
for child in ast.walk(node):
if isinstance(child, ast.For):
warnings.append({
'type': 'performance_warning',
'line': node.lineno,
'message': '发现嵌套循环，可能影响性能',
'severity': 'medium'
})
break
self.generic_visit(node)
def visit_List(self, node):
# 检查大型字面列表
if len(node.elts) > 100:
warnings.append({
'type': 'performance_warning',
'line': node.lineno,
'message': '大型字面列表，考虑使用生成器或分块处理',
'severity': 'low'
})
self.generic_visit(node)
visitor = PerformanceVisitor()
visitor.visit(tree)
return warnings
def generate_optimized_code(self, original_code: str, optimizations: List[Dict]) -> str:
"""生成优化后的代码（简化版）"""
# 这里应该是实际的代码转换逻辑
# 为了示例，我们返回一些建议
optimized_suggestions = []
for opt in optimizations:
if opt['type'] == 'loop_optimization':
suggestion = f"第 {opt['line']} 行: {opt['suggestion']}"
optimized_suggestions.append(suggestion)
return "\n".join(optimized_suggestions)
def benchmark_code(self, code: str, iterations: int = 1000) -> float:
"""基准测试代码性能"""
try:
# 创建安全的执行环境
local_vars = {}
global_vars = {'__builtins__': {}}
# 测量执行时间
start_time = time.time()
for _ in range(iterations):
exec(code, global_vars, local_vars)
end_time = time.time()
return (end_time - start_time) / iterations
except Exception as e:
print(f"基准测试错误: {e}")
return float('inf')
# 使用示例
optimizer = CodeOptimizer()
# 待优化的代码示例
sample_code = """
def process_data(data):
result = []
for i in range(len(data)):
item = data[i]
processed = expensive_operation(item)
result.append(processed)
return result
def expensive_operation(x):
# 模拟耗时操作
return x ** 2 + 2 * x + 1
data = list(range(1000))
output = process_data(data)
"""
print("原始代码分析:")
analysis = optimizer.analyze_code(sample_code)
print(f"复杂度指标: {analysis['complexity_metrics']}")
print(f"优化机会: {len(analysis['optimization_opportunities'])}")
print(f"性能警告: {len(analysis['performance_warnings'])}")
print("\n优化建议:")
for opportunity in analysis['optimization_opportunities']:
print(f"- [{opportunity['type']}] 第{opportunity['line']}行: {opportunity['suggestion']}")
print("\n性能基准测试:")
original_time = optimizer.benchmark_code(sample_code, iterations=100)
print(f"原始代码平均执行时间: {original_time:.6f} 秒")
# 优化后的代码示例
optimized_code = """
def process_data_optimized(data):
return [expensive_operation(item) for item in data]
def expensive_operation(x):
return x ** 2 + 2 * x + 1
data = list(range(1000))
output = process_data_optimized(data)
"""
optimized_time = optimizer.benchmark_code(optimized_code, iterations=100)
print(f"优化代码平均执行时间: {optimized_time:.6f} 秒")
print(f"性能提升: {((original_time - optimized_time) / original_time * 100):.2f}%")
4.2 智能代码优化系统架构图
graph TD
A[用户输入代码] --> B[代码解析器]
B --> C[抽象语法树 AST]
C --> D[代码分析引擎]
D --> E[模式识别]
D --> F[复杂度计算]
D --> G[性能分析]
E --> H[优化规则库]
F --> I[质量评估]
G --> J[性能基准]
H --> K[优化建议生成]
I --> K
J --> K
K --> L[优化代码生成]
L --> M[代码验证]
M --> N[输出优化结果]
subgraph 知识库
O[优化模式库]
P[性能模式库]
Q[最佳实践库]
end
H --> O
G --> P
E --> Q
5. Prompt工程与AI编程
5.1 有效的代码生成Prompt设计
python
class PromptEngineer:
"""Prompt工程工具类"""
def __init__(self):
self.templates = self._load_templates()
def _load_templates(self):
"""加载Prompt模板"""
return {
'function_generation': {
'basic': """
请创建一个Python函数，实现以下功能：
功能描述：{description}
要求：{requirements}
请返回完整的函数代码，包含适当的注释和文档字符串。
""",
'advanced': """
作为资深Python开发者，请创建高效且符合最佳实践的代码。
任务：{task_description}
具体要求：
1. {requirement_1}
2. {requirement_2}
3. {requirement_3}
约束条件：
- 时间复杂度：{time_complexity}
- 空间复杂度：{space_complexity}
- 代码风格：{code_style}
请确保代码：
- 包含完整的类型注解
- 有详细的文档字符串
- 包含适当的错误处理
- 遵循PEP8规范
"""
},
'code_optimization': {
'basic': """
请优化以下Python代码，提高其性能和可读性：
```python
{code}
```
请说明优化点和改进效果。
""",
'detailed': """
作为性能优化专家，请深入分析并优化以下代码：
原始代码：
```python
{original_code}
```
已知问题：
{known_issues}
优化目标：
- 性能提升：{performance_goal}
- 内存使用：{memory_goal}
- 可读性：{readability_goal}
请提供：
1. 优化后的完整代码
2. 详细的优化说明
3. 性能对比分析
"""
},
'bug_fixing': {
'basic': """
请修复以下Python代码中的错误：
```python
{buggy_code}
```
错误描述：{error_description}
请提供修复后的代码和解释。
""",
'debugging': """
作为调试专家，请分析并修复以下代码：
有问题的代码：
```python
{problematic_code}
```
观察到的行为：
{observed_behavior}
期望的行为：
{expected_behavior}
请：
1. 识别根本原因
2. 提供修复方案
3. 解释修复原理
4. 提供测试用例
"""
}
}
def create_function_prompt(self,
description: str,
requirements: List[str],
template_type: str = 'advanced') -> str:
"""创建函数生成Prompt"""
template = self.templates['function_generation'][template_type]
if template_type == 'basic':
return template.format(
description=description,
requirements=", ".join(requirements)
)
else:
return template.format(
task_description=description,
requirement_1=requirements[0] if len(requirements) > 0 else "高效实现",
requirement_2=requirements[1] if len(requirements) > 1 else "代码清晰",
requirement_3=requirements[2] if len(requirements) > 2 else "错误处理",
time_complexity="O(n)或更好",
space_complexity="O(1)或更好",
code_style="PEP8"
)
def create_optimization_prompt(self,
code: str,
issues: List[str],
goals: Dict[str, str]) -> str:
"""创建代码优化Prompt"""
return self.templates['code_optimization']['detailed'].format(
original_code=code,
known_issues="\n".join(f"- {issue}" for issue in issues),
performance_goal=goals.get('performance', '提升20%以上'),
memory_goal=goals.get('memory', '减少内存使用'),
readability_goal=goals.get('readability', '提高代码可读性')
)
def create_debug_prompt(self,
code: str,
observed: str,
expected: str) -> str:
"""创建调试Prompt"""
return self.templates['bug_fixing']['debugging'].format(
problematic_code=code,
observed_behavior=observed,
expected_behavior=expected
)
# 使用示例
engineer = PromptEngineer()
# 生成函数创建的Prompt
function_prompt = engineer.create_function_prompt(
description="实现一个快速排序算法",
requirements=[
"使用递归实现",
"包含适当的基准值选择策略",
"处理边界情况和异常输入",
"包含完整的类型注解"
],
template_type='advanced'
)
print("函数生成Prompt:")
print(function_prompt)
print("\n" + "="*50 + "\n")
# 生成代码优化Prompt
optimization_prompt = engineer.create_optimization_prompt(
code="""
def find_duplicates(numbers):
duplicates = []
for i in range(len(numbers)):
for j in range(i + 1, len(numbers)):
if numbers[i] == numbers[j]:
duplicates.append(numbers[i])
return duplicates
""",
issues=[
"时间复杂度为O(n^2)，对于大数据集性能较差",
"没有利用Python内置数据结构的优势",
"缺少类型注解和文档"
],
goals={
'performance': '将时间复杂度降低到O(n)',
'memory': '在合理范围内优化内存使用',
'readability': '提高代码可读性和可维护性'
}
)
print("代码优化Prompt:")
print(optimization_prompt)
5.2 AI编程助手集成
python
import openai
import re
from typing import Dict, List, Optional
class AICodeAssistant:
"""AI编程助手"""
def __init__(self, api_key: str):
openai.api_key = api_key
self.prompt_engineer = PromptEngineer()
self.conversation_history = []
def generate_code(self,
description: str,
requirements: List[str],
language: str = "python") -> Dict:
"""生成代码"""
prompt = self.prompt_engineer.create_function_prompt(
description, requirements, 'advanced'
)
response = openai.ChatCompletion.create(
model="gpt-4",
messages=[
{"role": "system", "content": "你是一个专业的软件工程师，擅长编写高效、可维护的代码。"},
{"role": "user", "content": prompt}
],
temperature=0.7,
max_tokens=1500
)
generated_text = response.choices[0].message.content
code_blocks = self._extract_code_blocks(generated_text)
result = {
'full_response': generated_text,
'code_blocks': code_blocks,
'primary_code': code_blocks[0] if code_blocks else "",
'explanation': self._extract_explanation(generated_text, code_blocks)
}
# 保存到对话历史
self.conversation_history.append({
'type': 'code_generation',
'prompt': prompt,
'response': result
})
return result
def optimize_code(self, code: str, issues: List[str]) -> Dict:
"""优化代码"""
goals = {
'performance': '显著提升性能',
'readability': '提高代码可读性',
'memory': '优化内存使用'
}
prompt = self.prompt_engineer.create_optimization_prompt(code, issues, goals)
response = openai.ChatCompletion.create(
model="gpt-4",
messages=[
{"role": "system", "content": "你是一个性能优化专家，擅长分析和改进代码性能。"},
{"role": "user", "content": prompt}
],
temperature=0.5,
max_tokens=2000
)
generated_text = response.choices[0].message.content
code_blocks = self._extract_code_blocks(generated_text)
result = {
'full_response': generated_text,
'optimized_code': code_blocks[0] if code_blocks else "",
'optimization_explanation': self._extract_explanation(generated_text, code_blocks),
'before_after_comparison': self._extract_comparison(generated_text)
}
self.conversation_history.append({
'type': 'code_optimization',
'prompt': prompt,
'response': result
})
return result
def debug_code(self, code: str, error_description: str, expected_behavior: str) -> Dict:
"""调试代码"""
prompt = self.prompt_engineer.create_debug_prompt(
code, error_description, expected_behavior
)
response = openai.ChatCompletion.create(
model="gpt-4",
messages=[
{"role": "system", "content": "你是一个经验丰富的调试专家，擅长识别和修复代码中的问题。"},
{"role": "user", "content": prompt}
],
temperature=0.3,
max_tokens=2000
)
generated_text = response.choices[0].message.content
code_blocks = self._extract_code_blocks(generated_text)
result = {
'full_response': generated_text,
'fixed_code': code_blocks[0] if code_blocks else "",
'root_cause': self._extract_root_cause(generated_text),
'fix_explanation': self._extract_explanation(generated_text, code_blocks),
'test_cases': self._extract_test_cases(generated_text)
}
self.conversation_history.append({
'type': 'debugging',
'prompt': prompt,
'response': result
})
return result
def _extract_code_blocks(self, text: str) -> List[str]:
"""提取代码块"""
code_blocks = re.findall(r'```(?:\w+)?\n(.*?)\n```', text, re.DOTALL)
return [block.strip() for block in code_blocks]
def _extract_explanation(self, text: str, code_blocks: List[str]) -> str:
"""提取解释文本"""
# 移除以提取代码块，返回剩余文本作为解释
explanation = text
for code_block in code_blocks:
explanation = explanation.replace(f"```\n{code_block}\n```", "")
return explanation.strip()
def _extract_comparison(self, text: str) -> Dict[str, str]:
"""提取前后对比"""
# 简化实现，实际应该更智能地解析对比信息
return {
'performance_improvement': "从O(n^2)提升到O(n)",
'memory_improvement': "减少50%内存使用",
'readability_improvement': "代码更简洁易读"
}
def _extract_root_cause(self, text: str) -> str:
"""提取根本原因"""
# 查找根本原因描述
patterns = [
r'根本原因[：:]\s*(.*?)(?=\n\n|\n•|\n\d+\.|$)',
r'根本问题[：:]\s*(.*?)(?=\n\n|\n•|\n\d+\.|$)',
r'root cause[：:]\s*(.*?)(?=\n\n|\n•|\n\d+\.|$)'
]
for pattern in patterns:
match = re.search(pattern, text, re.IGNORECASE | re.DOTALL)
if match:
return match.group(1).strip()
return "未明确识别根本原因"
def _extract_test_cases(self, text: str) -> List[str]:
"""提取测试用例"""
test_cases = re.findall(r'测试用例[：:]\s*\n(.*?)(?=\n\n|$)', text, re.DOTALL)
if test_cases:
cases = re.findall(r'[•\-\*]\s*(.*?)(?=\n[•\-\*]|\n\n|$)', test_cases[0])
return cases
return []
# 使用示例（需要实际的API密钥）
# assistant = AICodeAssistant("your-api-key")
# 生成代码示例
# result = assistant.generate_code(
# description="实现二叉树的层序遍历",
# requirements=[
# "使用队列实现",
# "返回二维列表，每层一个子列表",
# "包含完整的类型注解",
# "处理空树的情况"
# ]
# )
# print("生成的代码:")
# print(result['primary_code'])
# print("\n解释:")
# print(result['explanation'])
结论
AI编程正在彻底改变软件开发的方式。通过自动化代码生成、低代码/无代码平台以及智能算法优化，我们能够显著提高开发效率、降低技术门槛，并创建更高质量的软件。
关键技术总结：
-
自动化代码生成：利用大型语言模型理解自然语言需求并生成相应代码
-
低代码/无代码开发：通过可视化界面和配置代替传统编码
-
算法优化：应用智能算法解决复杂优化问题
-
Prompt工程：设计有效的提示词以获得更好的AI生成结果
未来展望：
随着AI技术的不断发展，我们可以预期：
-
更准确的代码生成和理解能力
-
更智能的代码优化和建议
-
更自然的开发者-AI协作模式
-
更广泛的应用场景和领域支持
AI编程不是要取代开发者，而是成为开发者的强大助手，让我们能够专注于更高层次的架构设计和创新思考。
汇聚全球AI编程工具，助力开发者即刻编程。
更多推荐
24
0- 0
已为社区贡献88条内容
所有评论(0)
