Prometheus（普罗米修斯）+grafana 监控Tongweb7049M10（by sy+lqw）
·
参考内容

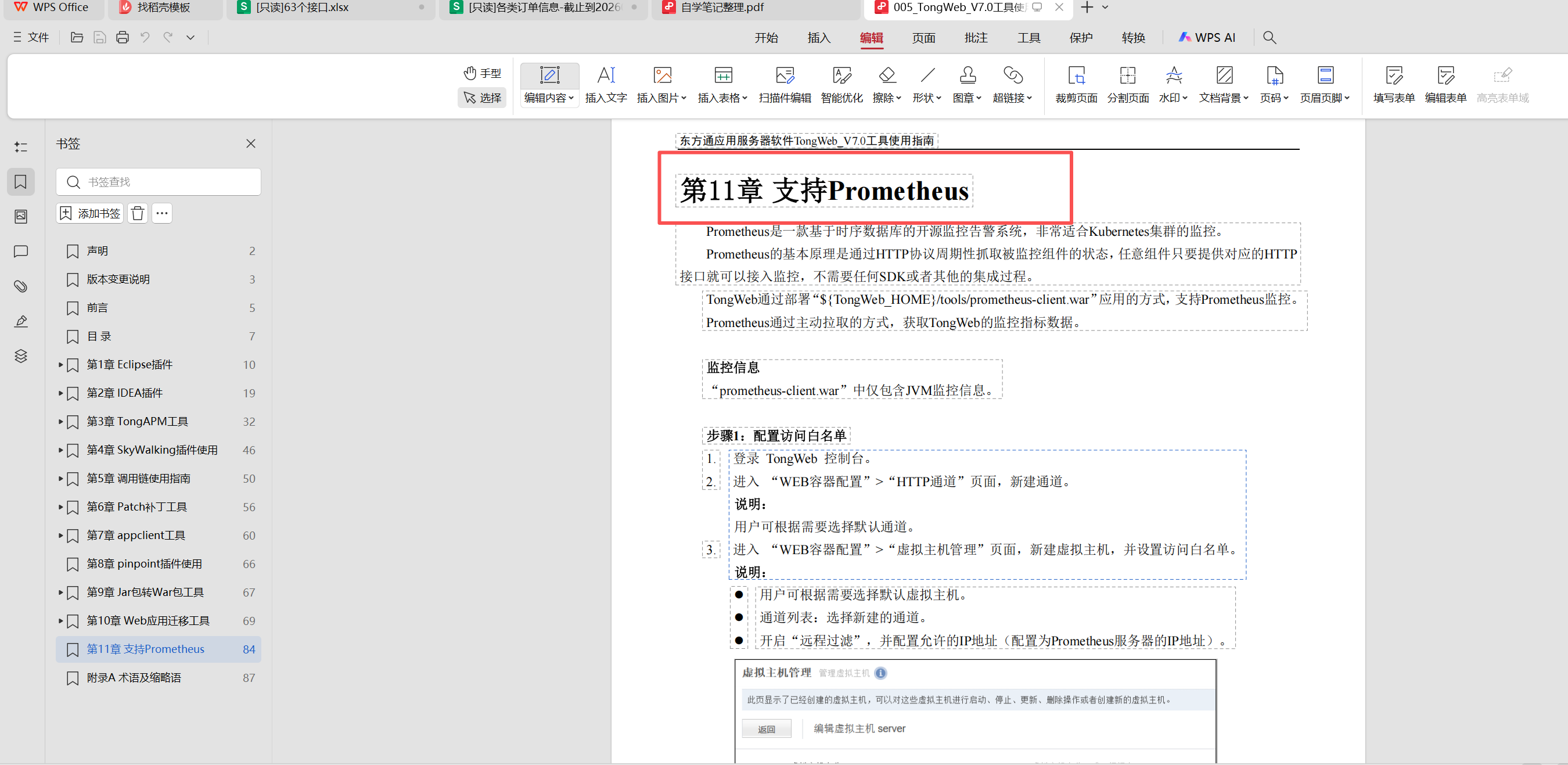

东方通应用服务器软件TongWeb_V7.0工具使用指南：
准备工作
1.已安装好tongweb7049m10.
2.找到文档上提及的prometheus-client.war。
3.已安装好prometheus。
4.已安装好grafana。
备注：
本帖提供的方式，仅包含JVM监控信息。
操作说明
创建账号

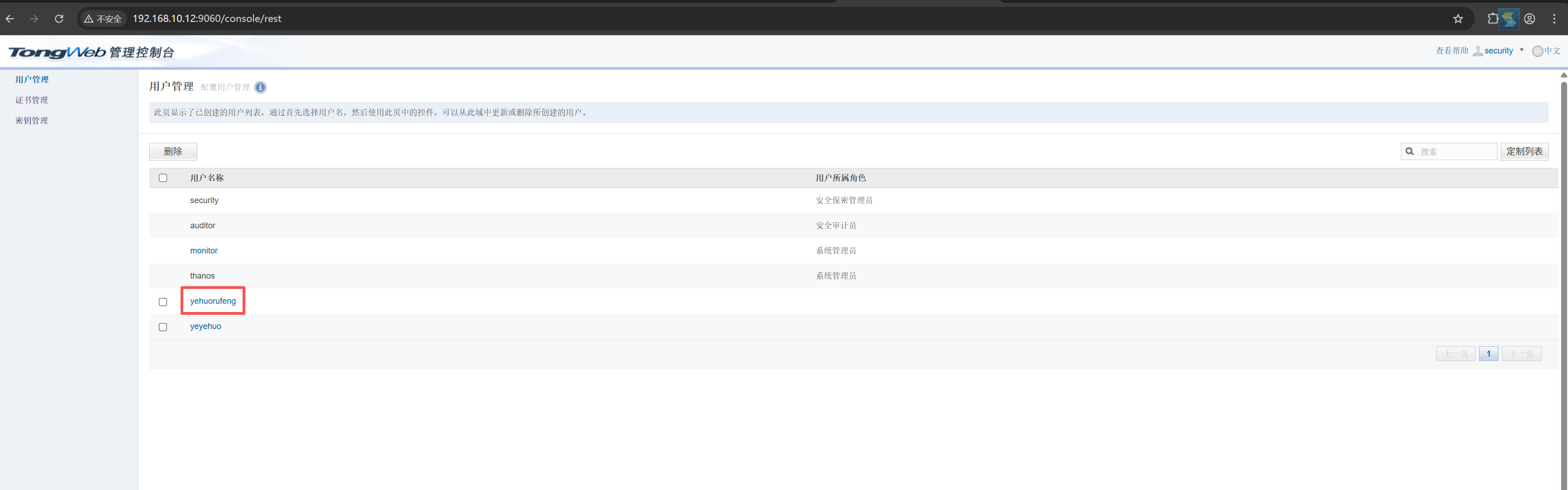

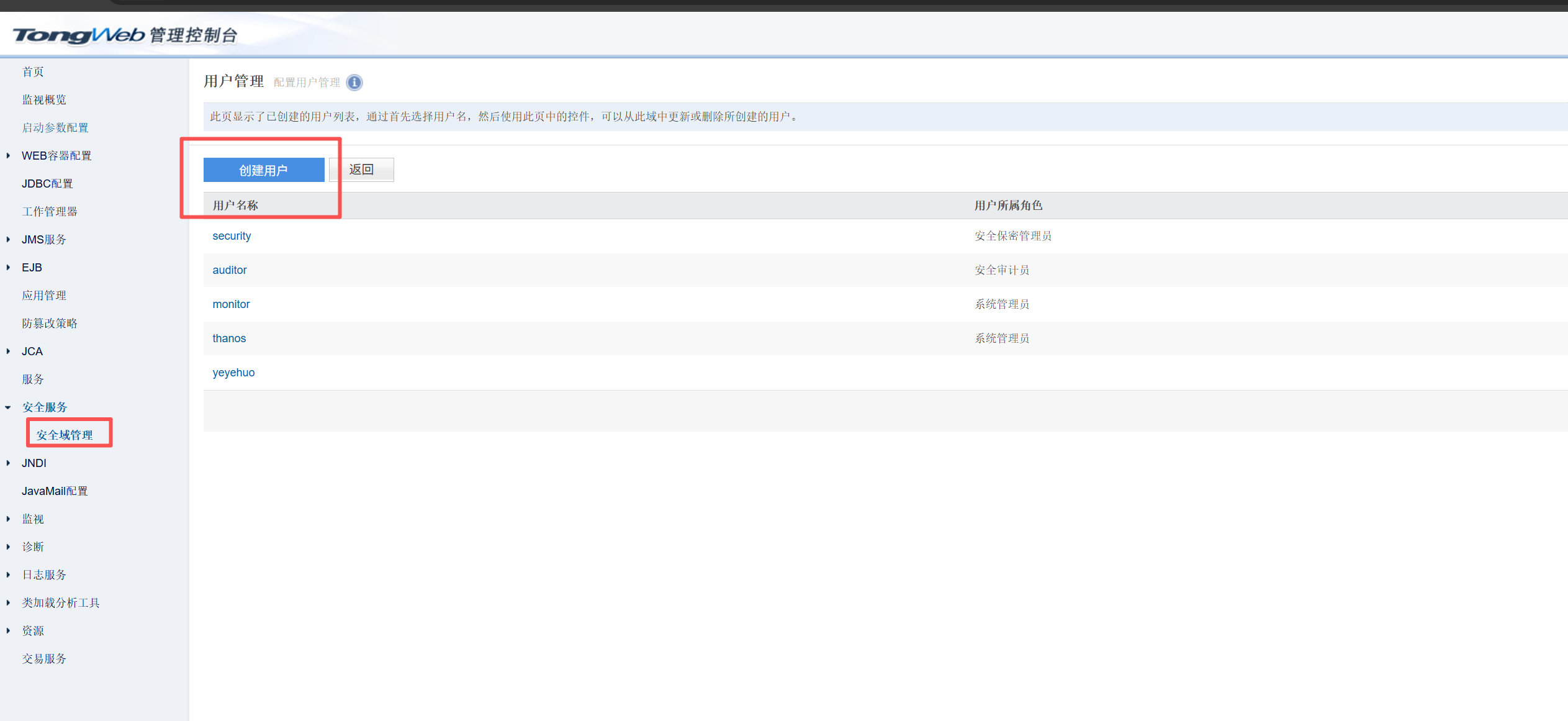

先通过thanos这个账号登录控制台（初始密码thanos123.com），通过安全域新建一个用户，避免在使用prometheus的时候，多次顶号thanos：

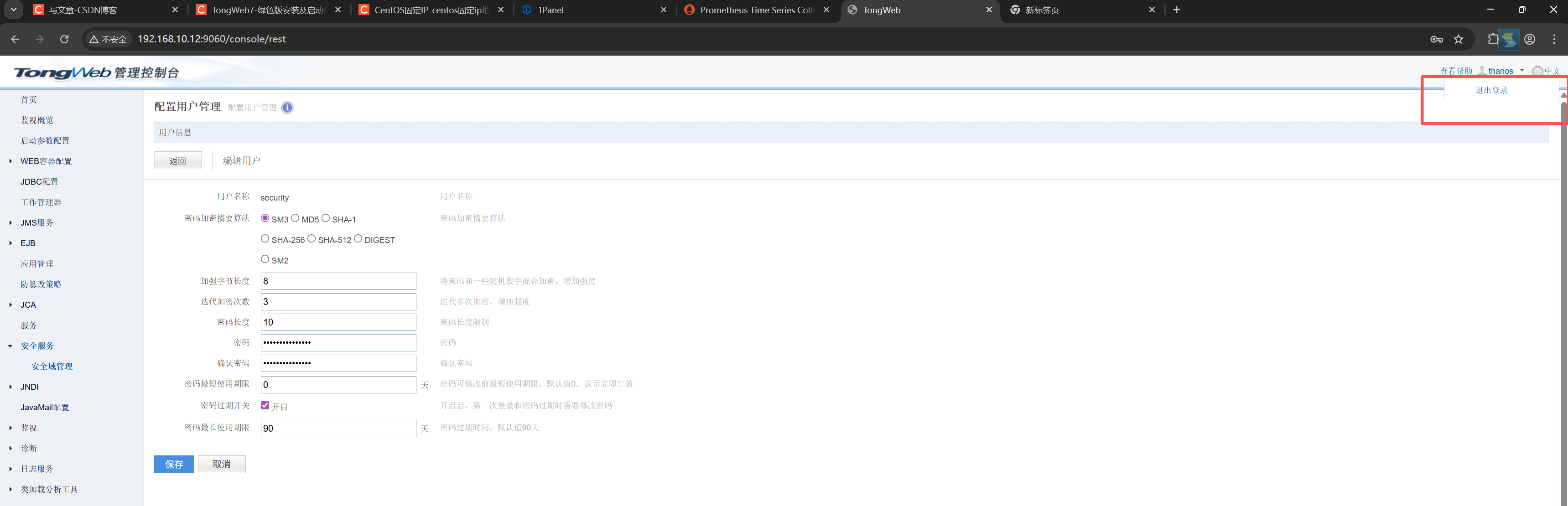

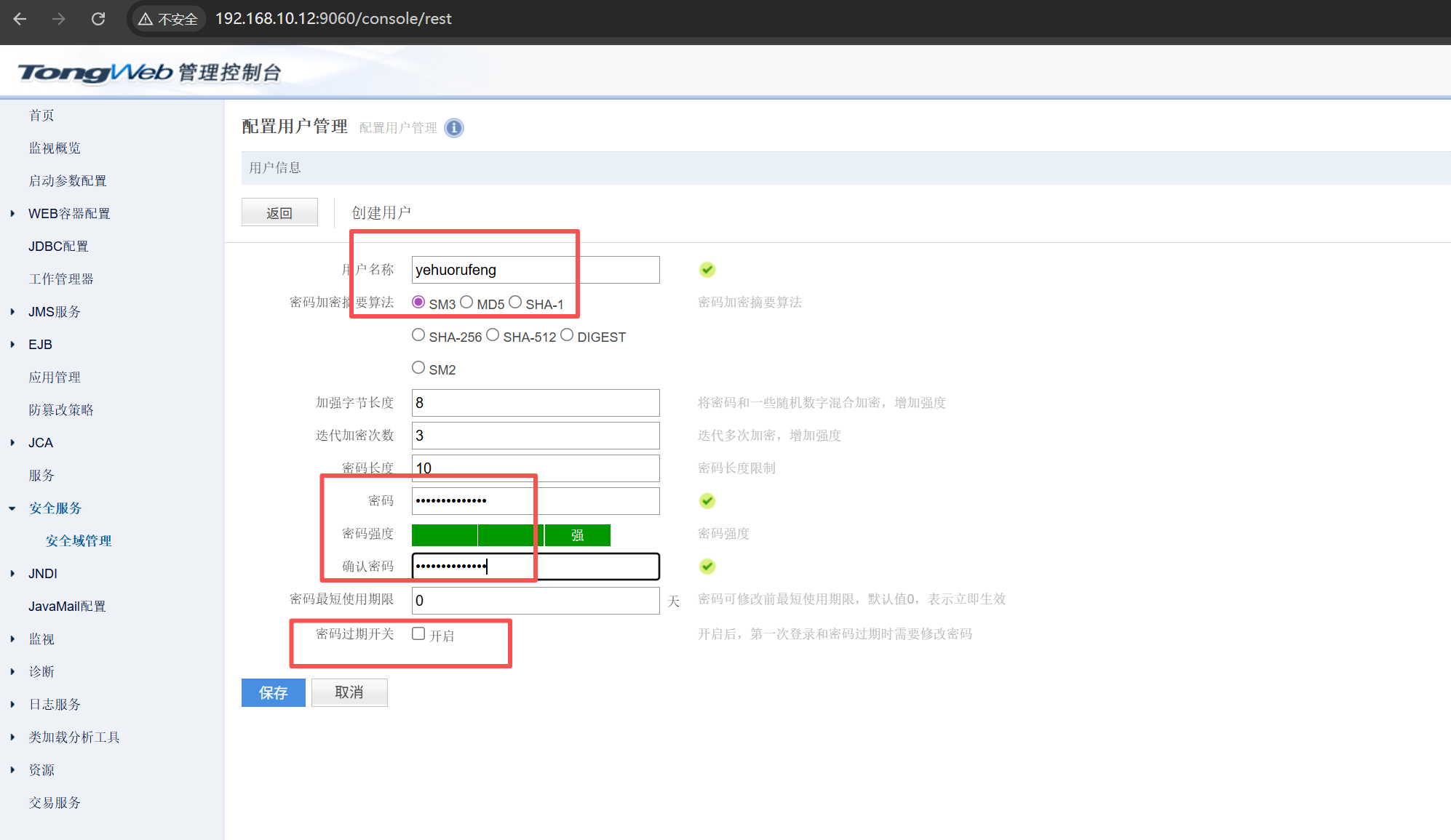

创建账号的时候，注意是否设置密码过期（如果勾选密码过期开关，默认是90天，记得自己过期后修改下密码）：

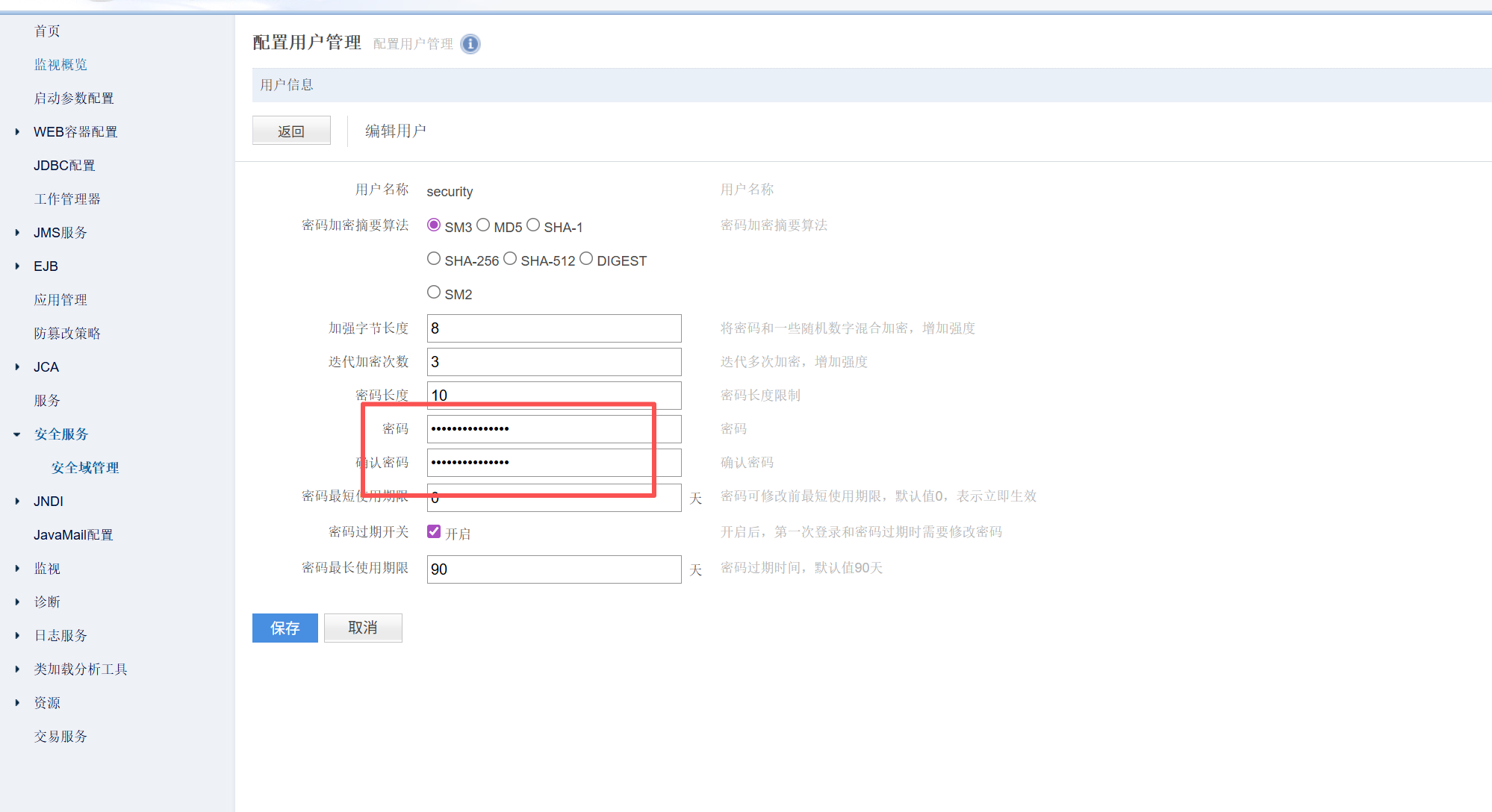

创建后同一个地方，配置security的密码：
配置后退出thanos账号，使用security登录：

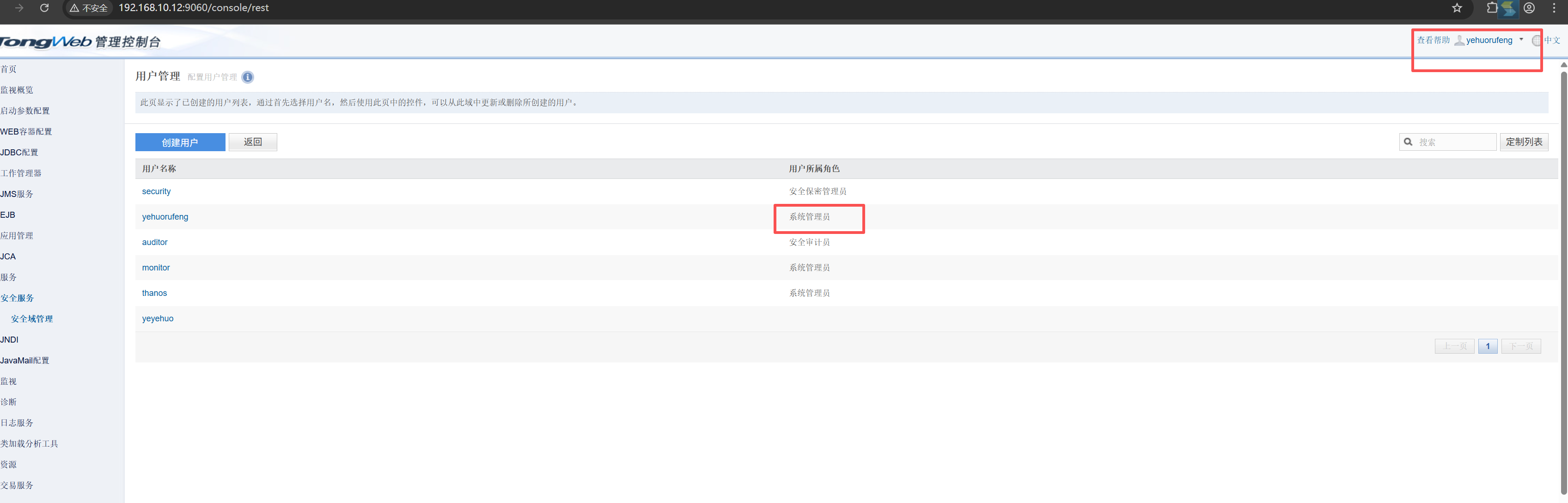

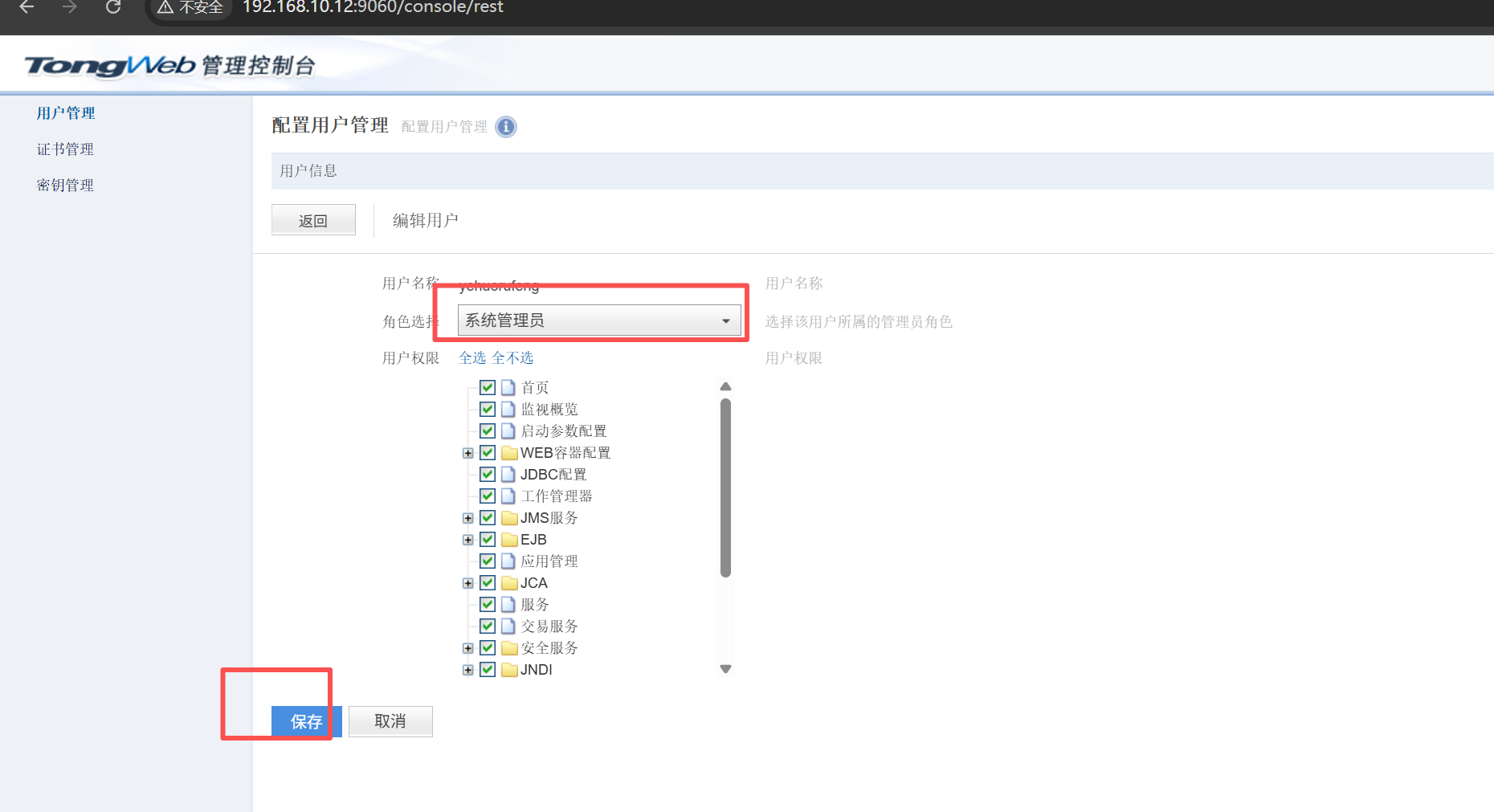

登录后点创建好的用户名，分配角色为系统管理员：
退出security，用新账号登录测试看看能不能登录:
部署相关war包

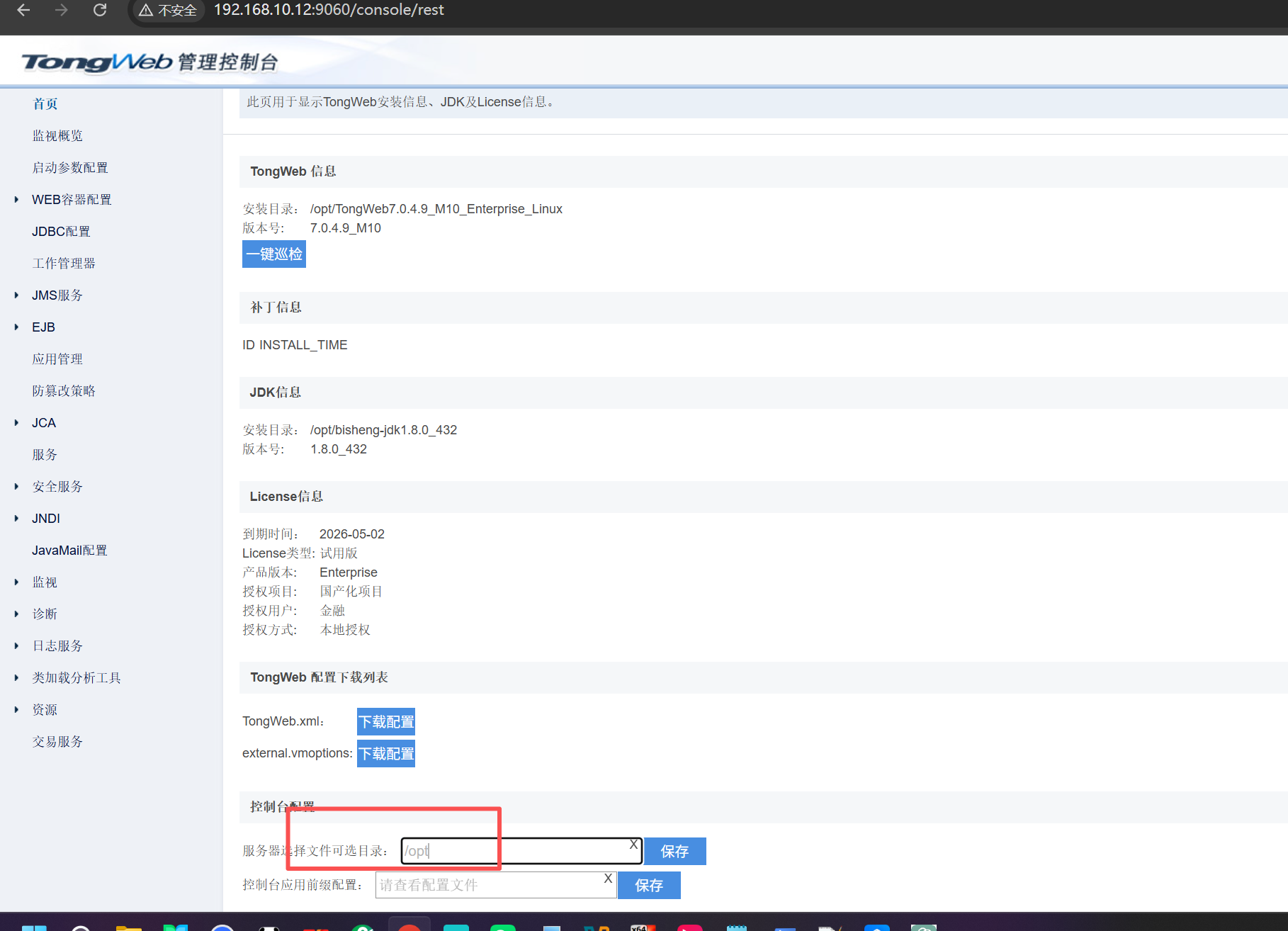

用thanos登录，首页配置一下服务器可选文件路径：

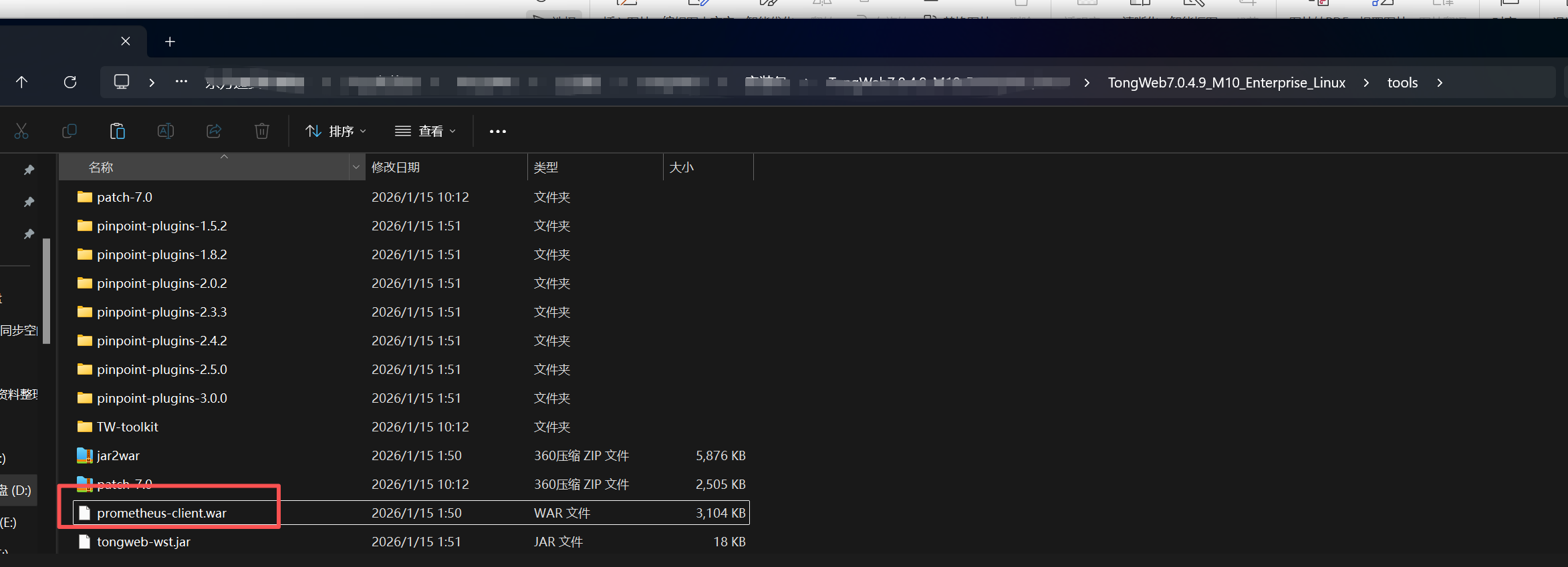

window本地解压tongweb的安装包，找到这个war包，用zip工具打开：

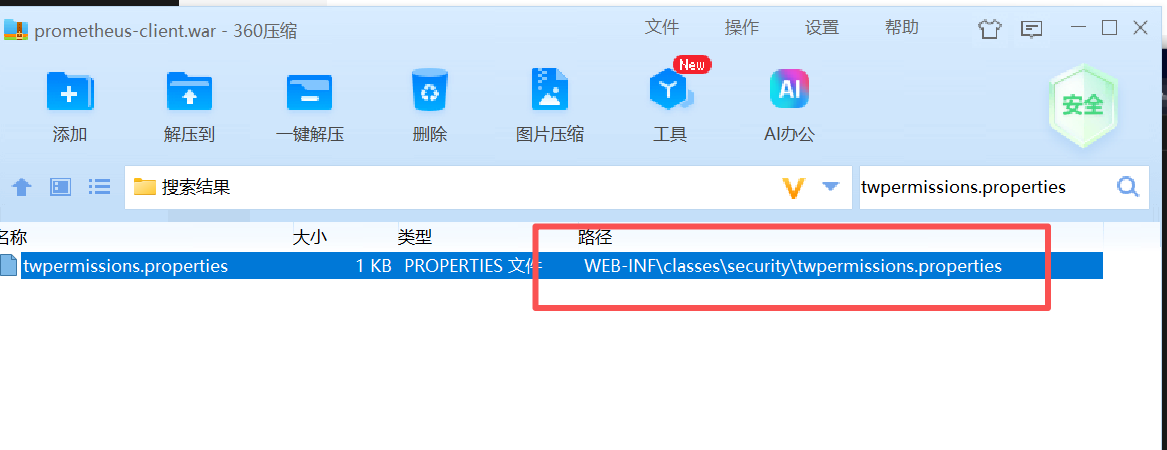

找到twpermissions.properties:

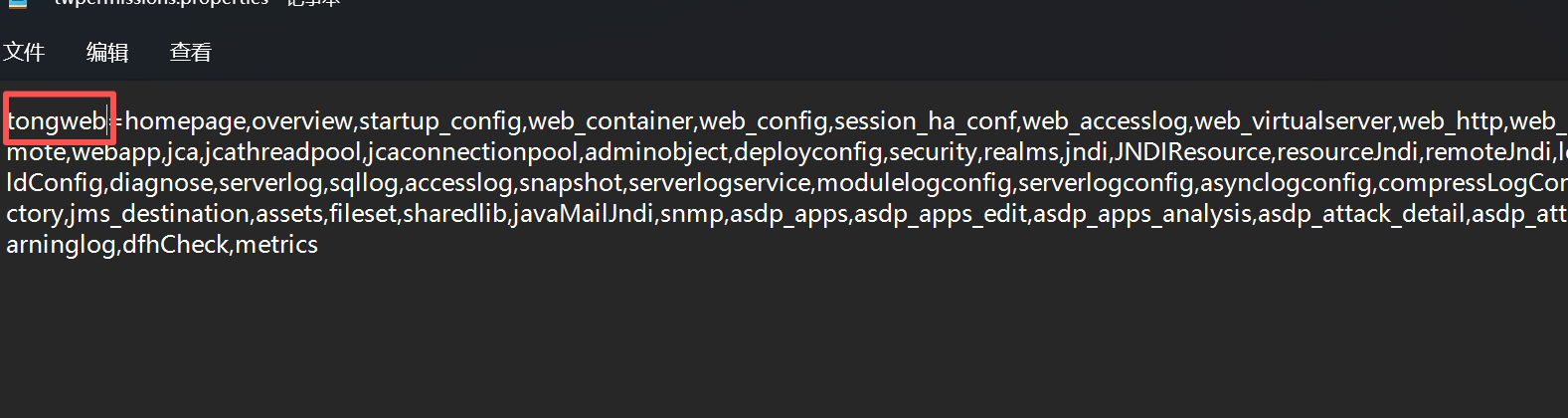

把开头的tongweb改成新建的用户名，然后保存。

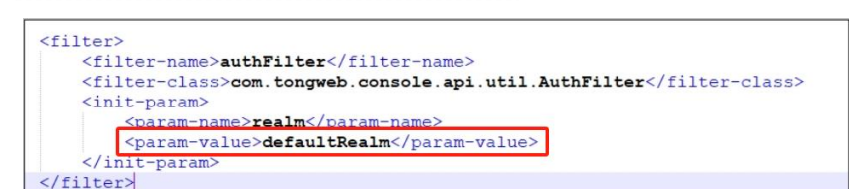

WEB-INF/web.xml检查一下param-value标签里的值是不是defaultRealm。

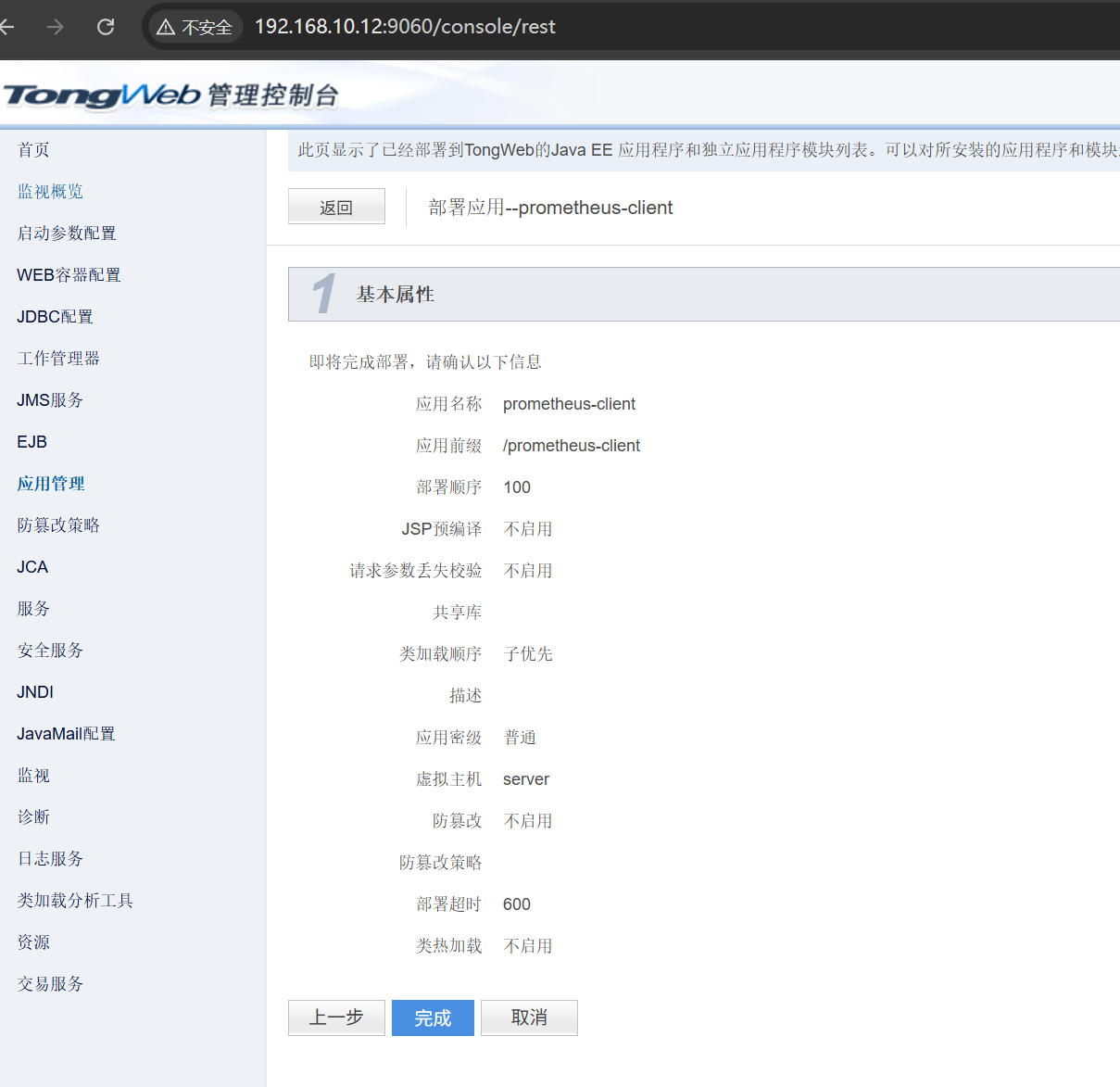

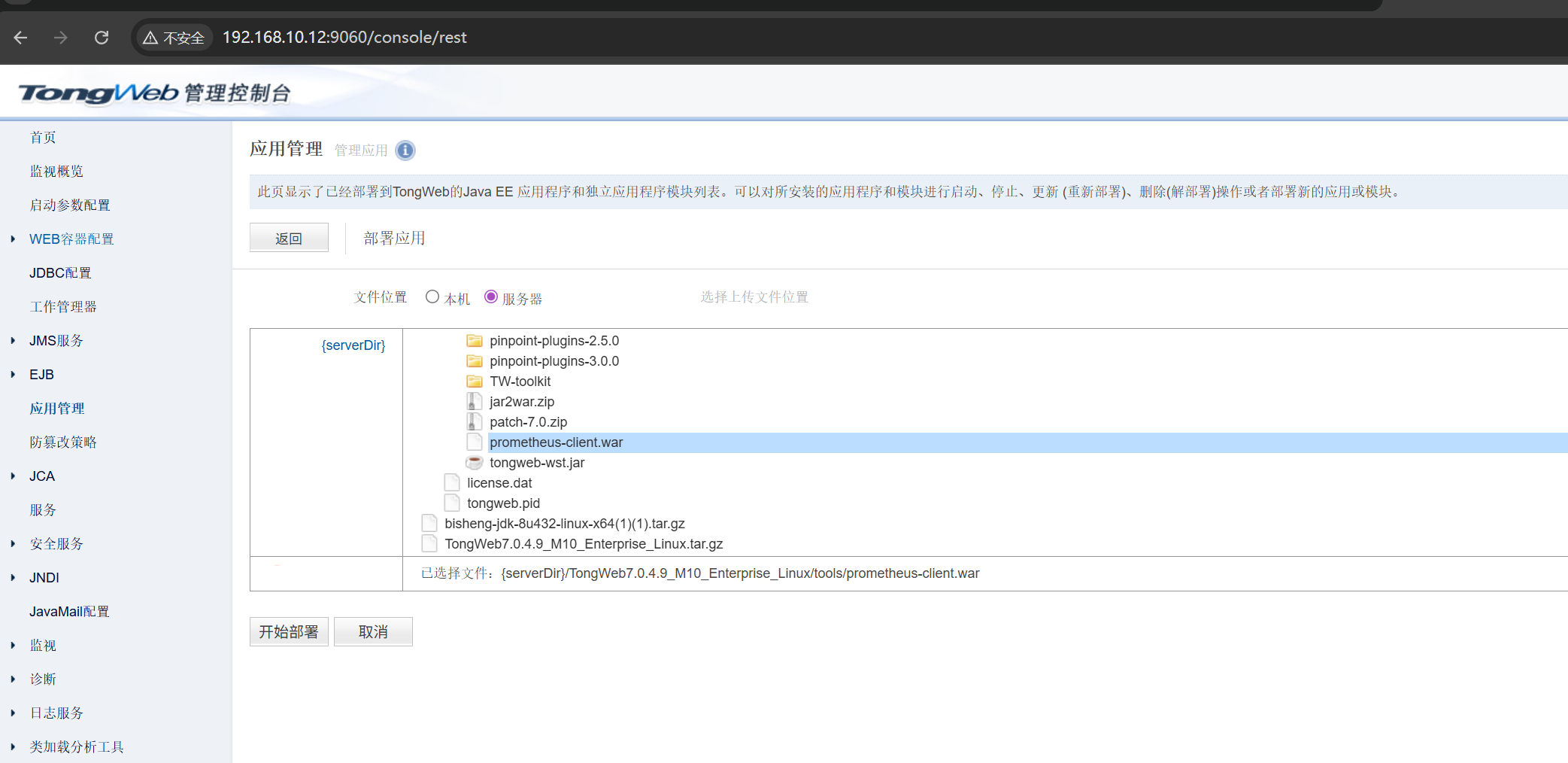

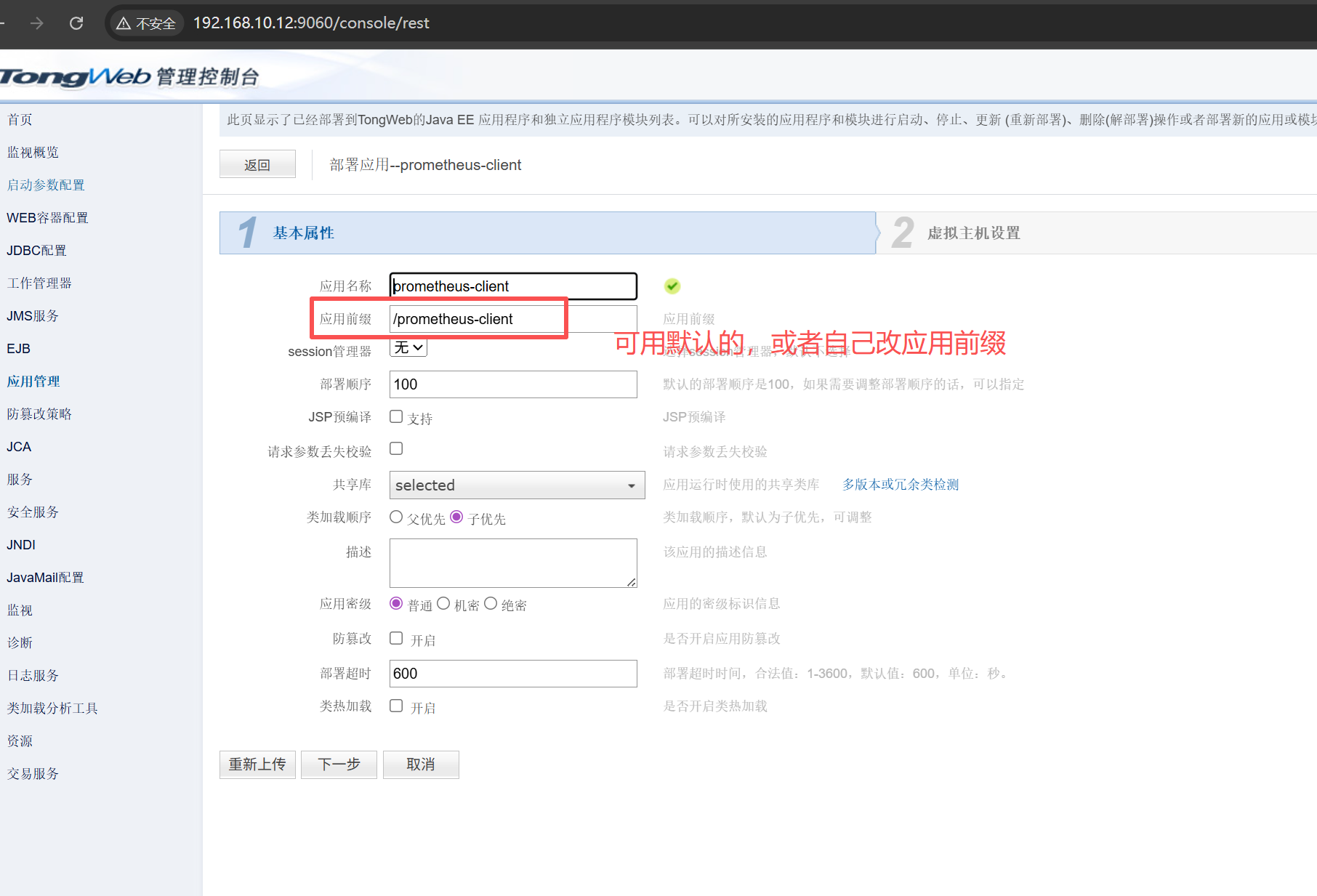

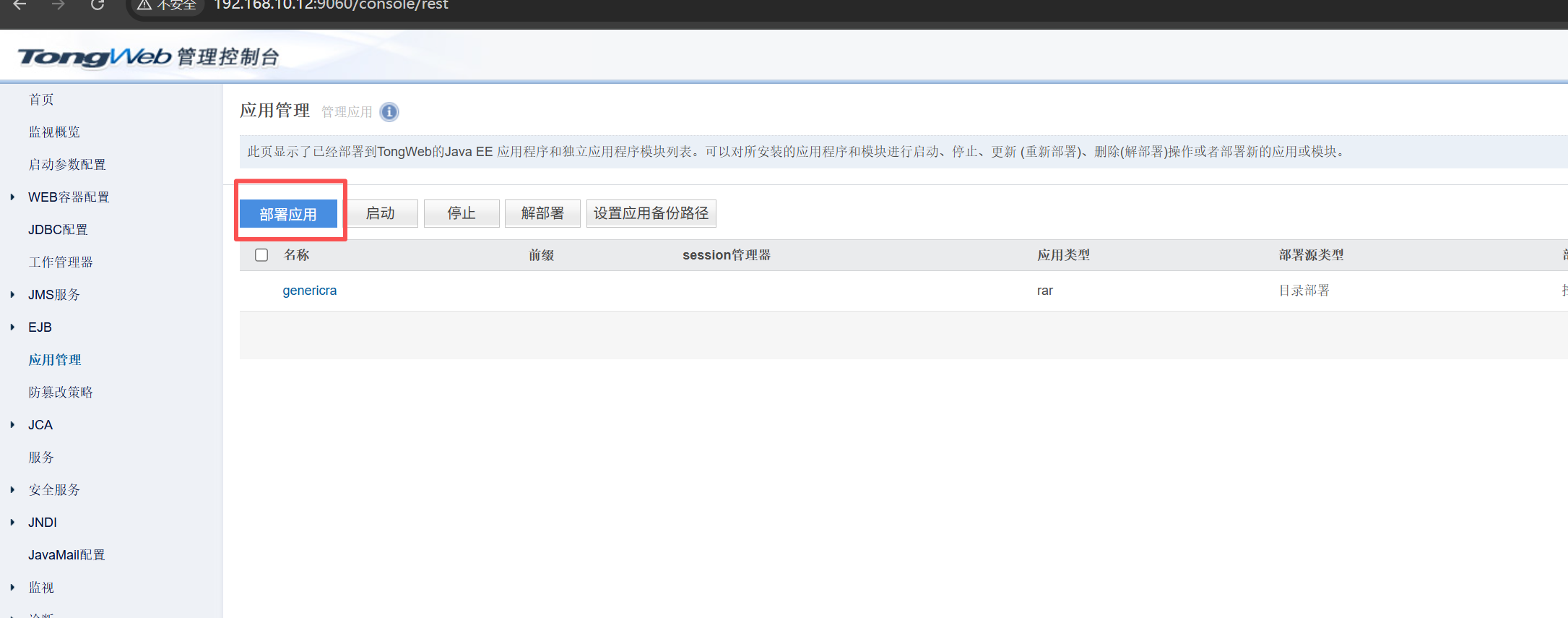

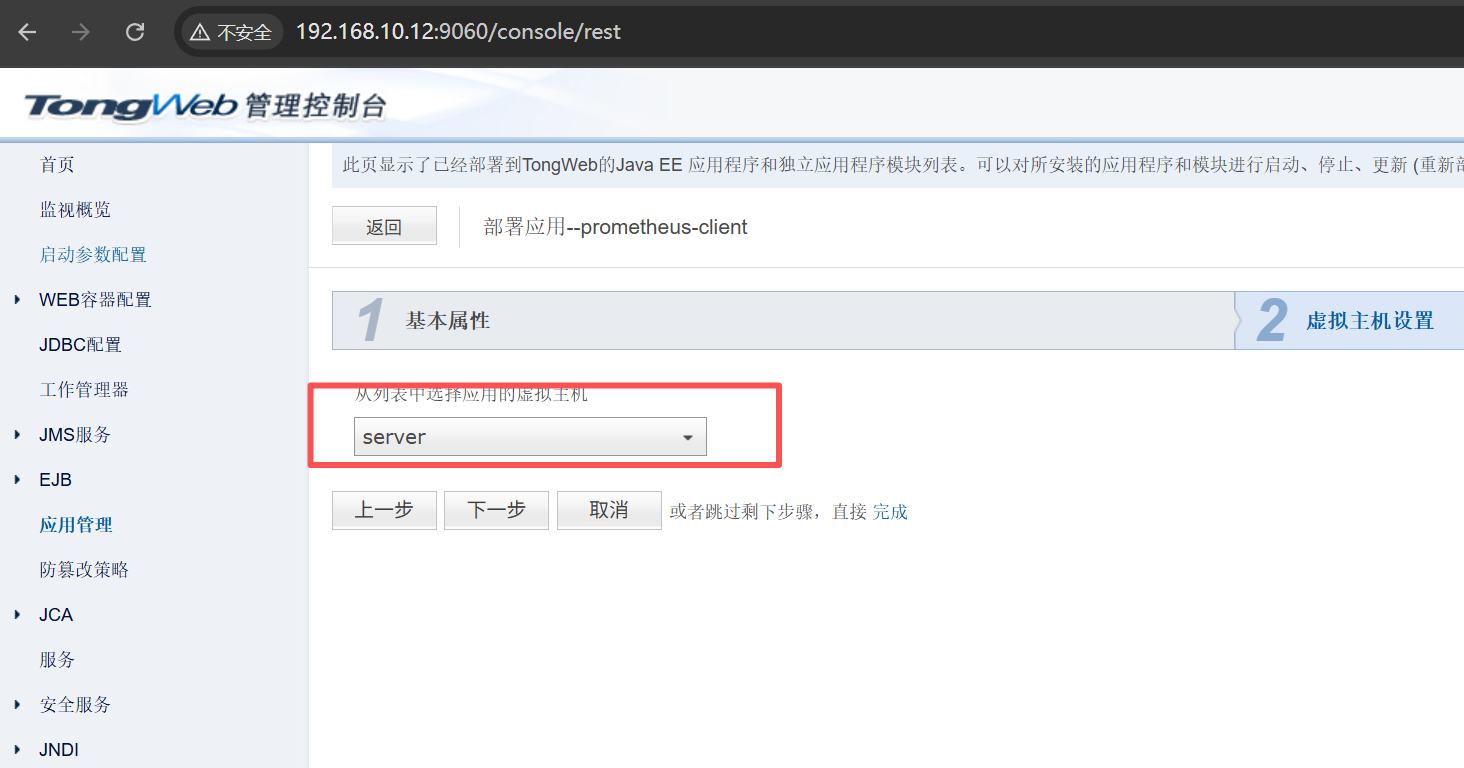

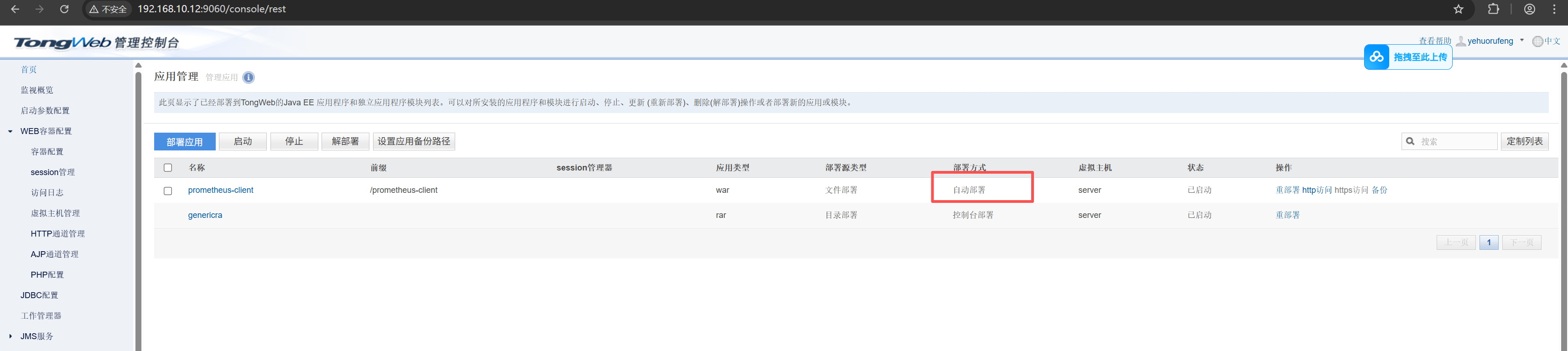

上传修改好的war包到配置好的服务器可选文件的路径，然后通过控制台部署该war包：
或者也可以使用自动部署功能，将war包丢到tongweb的autodeploy目录下，然后看控制台看看是否触发到自动部署：

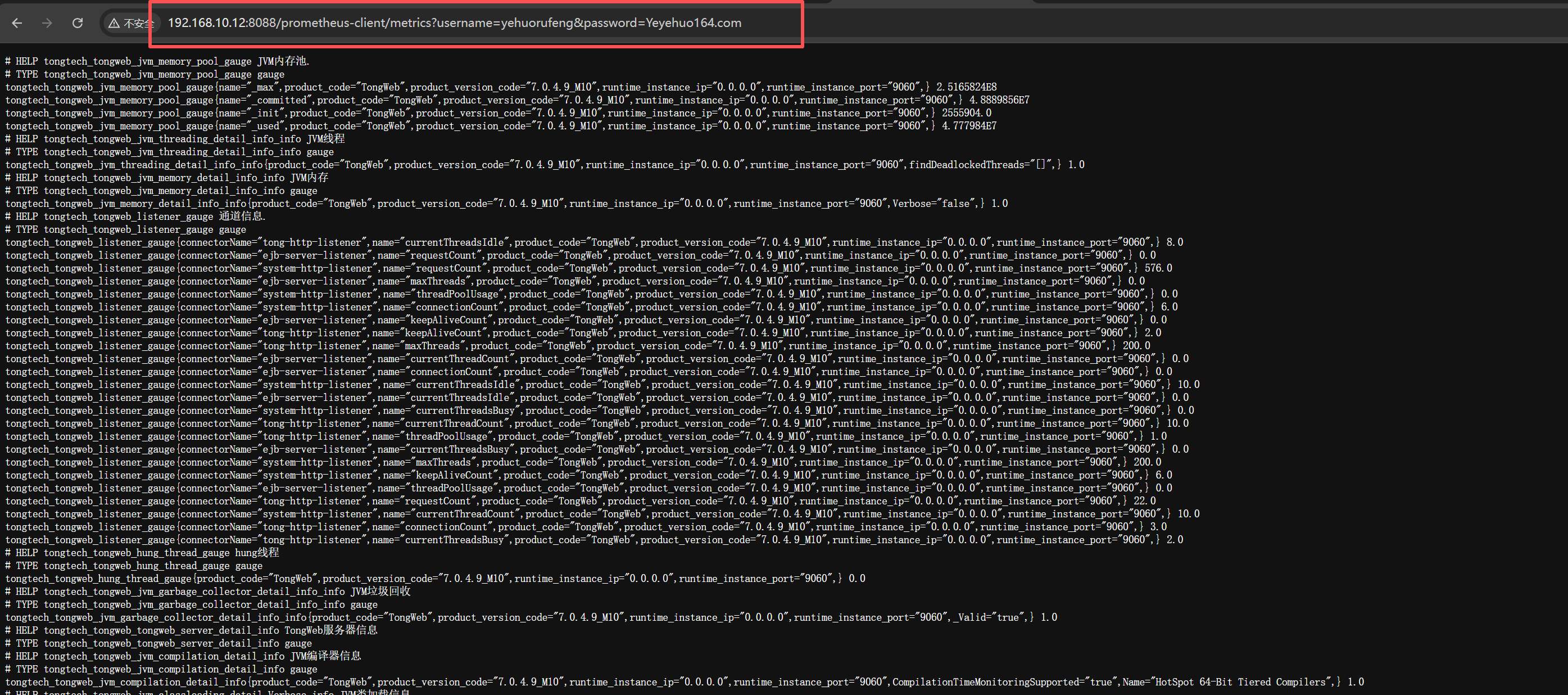

部署成功后，访问：
http://服务器ip:8088/prometheus-client/metrics?username=创建的用户名&password=用户密码
备注：
如果嫌通过控制台部署比较麻烦，也可以把已改好的war包，丢到tongweb的autodeploy目录下，成功部署后，会在deployment目录生成目录，并可以直接访问。
配置到prometheus

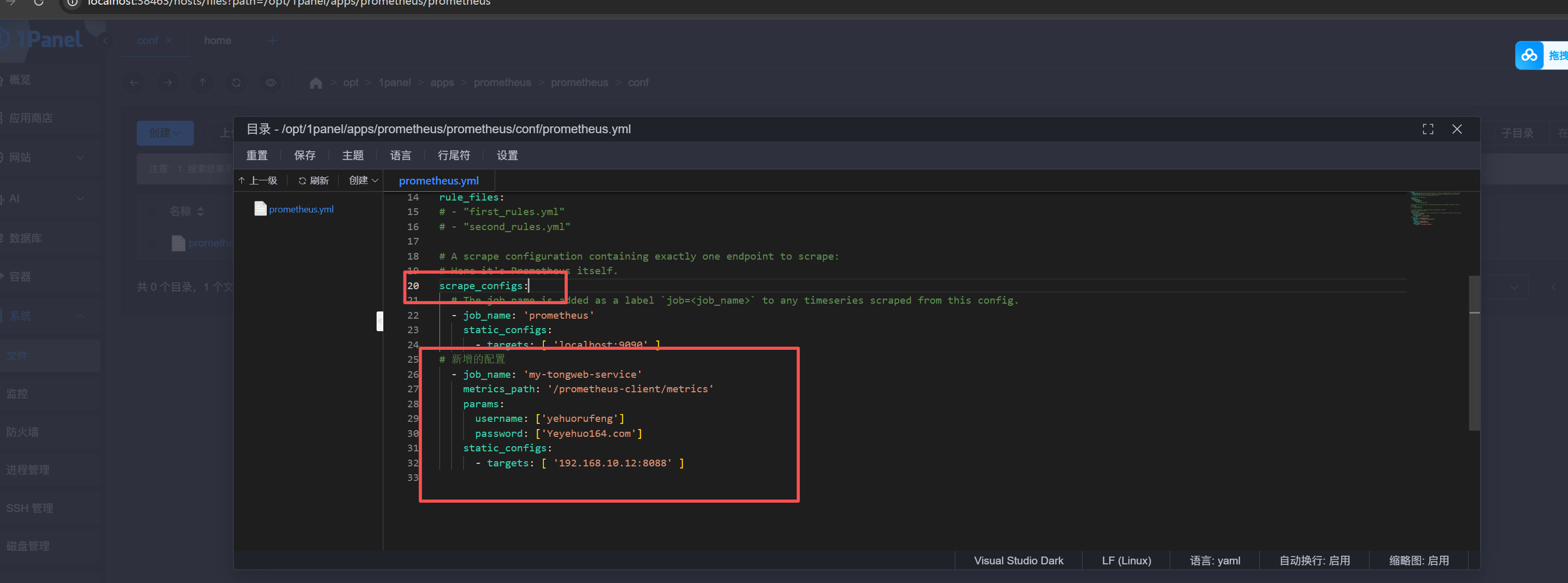

本次示范为配置到prometheus.yml,仅供参考，更多方式可以上网搜：
以http://192.168.10.12:8088/prometheus-client/metrics?username=yehuorufeng&password=Yeyehuo164.com为例：
# 新增的配置
- job_name: 'my-tongweb-service'
metrics_path: '/prometheus-client/metrics'
params:
username: ['yehuorufeng']
password: ['Yeyehuo164.com']
static_configs:
- targets: [ '192.168.10.12:8088' ]

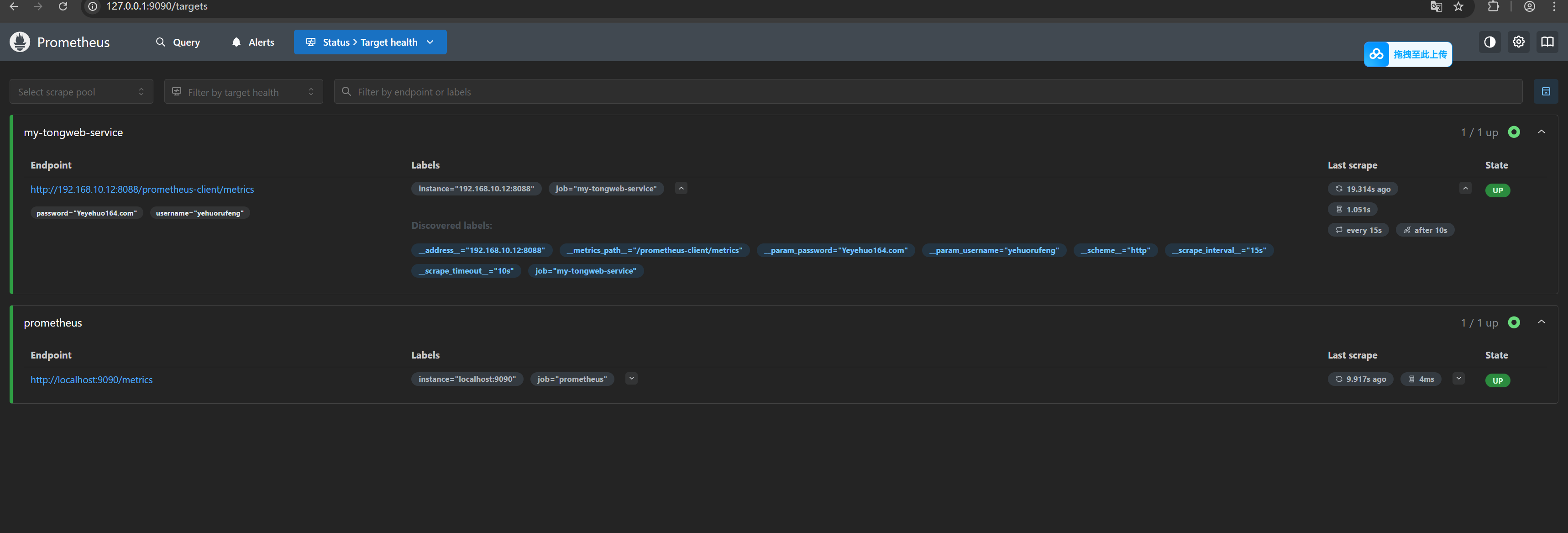

配置后重启prometheus，再去访问prometheus的targethealth看看：
grafana 配置（仅供参考）
进入到grafana，选择这里：
进去后输入prometheus的url（这里因为prometheus和grafana均为同一个docker安装，所以用的http://prometheus:9090）
下面有个save and test，试试看能不能测通
然后回到首页，点这里：

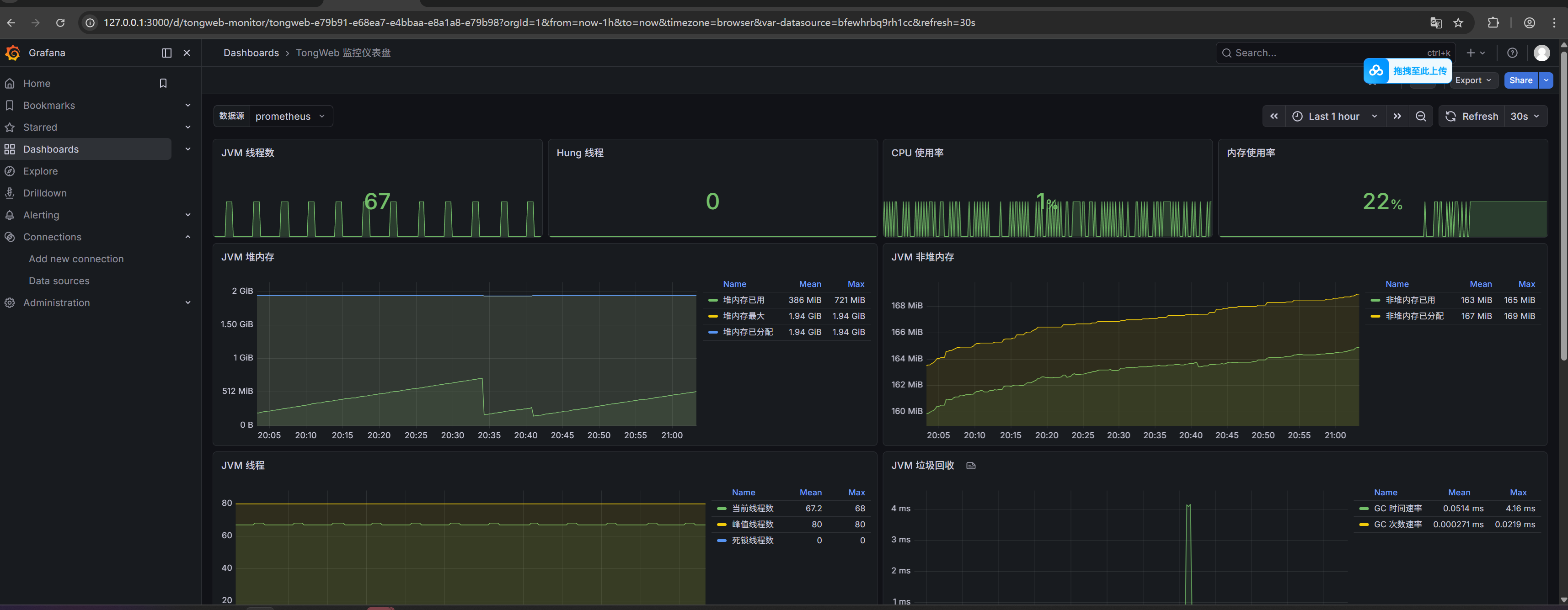

上传一下仪表盘的json文件（下面提供一个，仅供参考，是用ai写的，请根据自身需求调整）：
备注：

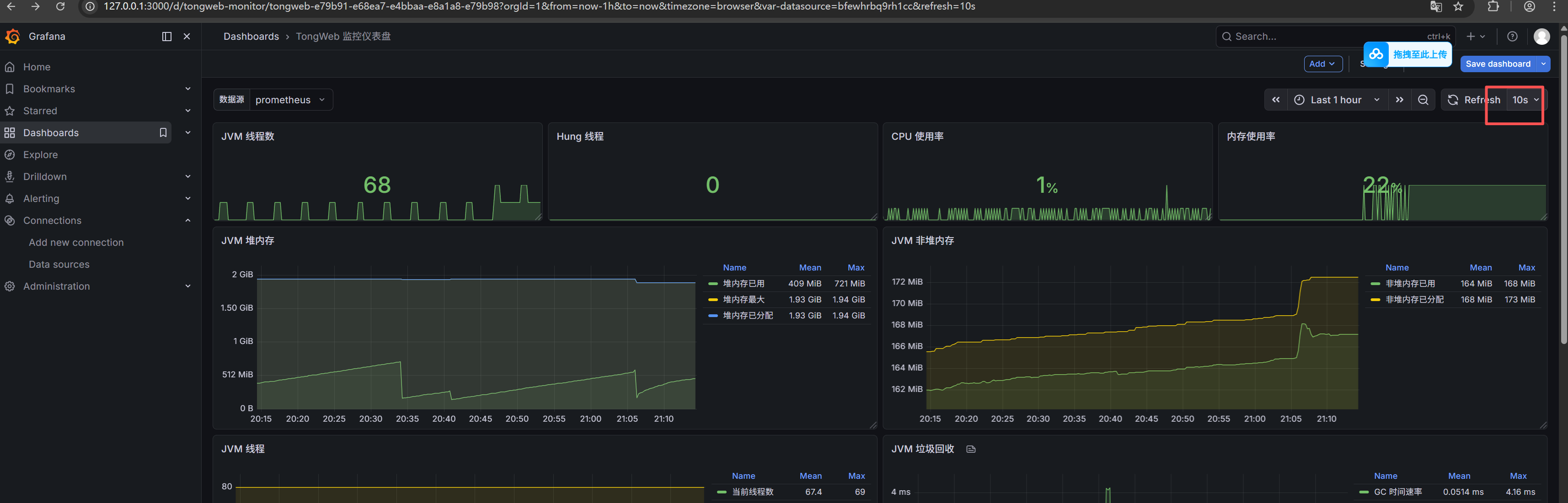

默认设置的是刷新时间为30s，如果需要调整，可以到页面调整：

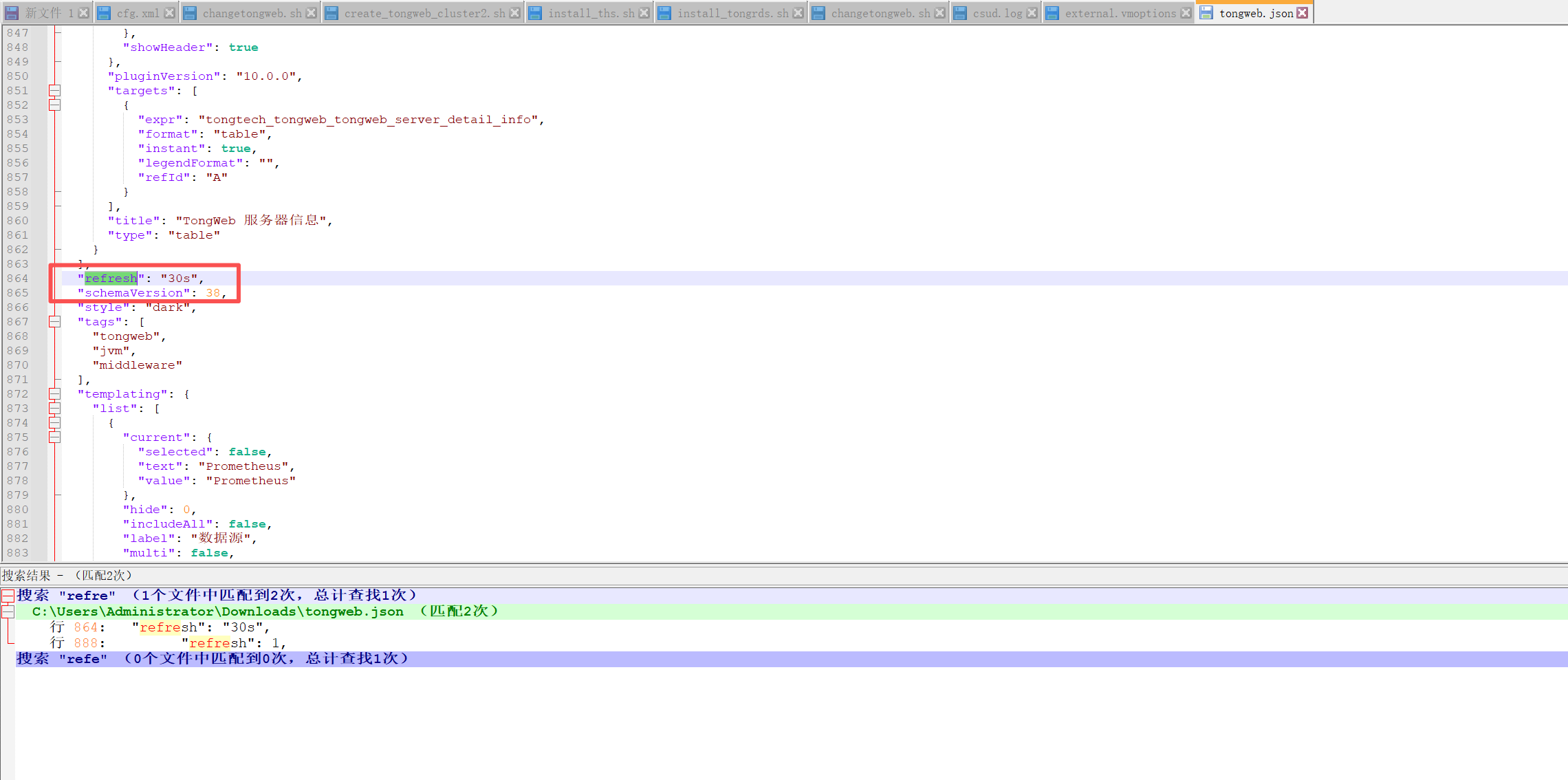

或者在导入前，搜索“refresh”关键字，进行修改：
下面是脚本内容：
{
