第T10周：数据增强

• 🍨 本文为🔗365天深度学习训练营 中的学习记录博客
• 🍖 原作者：K同学啊

一、前期准备工作

1. 设置GPU

import matplotlib.pyplot as plt
import numpy as np
#隐藏警告
import warnings
warnings.filterwarnings('ignore')

from tensorflow.keras import layers
import tensorflow as tf
gpus = tf.config.list_physical_devices("GPU")

if gpus:
    tf.config.experimental.set_memory_growth(gpus[0], True)  #设置GPU显存用量按需使用
    tf.config.set_visible_devices([gpus[0]],"GPU")

# 打印显卡信息，确认GPU可用
print(gpus)

WARNING:tensorflow:TensorFlow GPU support is not available on native Windows for TensorFlow >= 2.11. Even if CUDA/cuDNN are installed, GPU will not be used. Please use WSL2 or the TensorFlow-DirectML plugin.
[]

2. 加载数据

data_dir   = r"D:\Adashujuxuexi\T10\34-data"
img_height = 224
img_width  = 224
batch_size = 32

train_ds = tf.keras.preprocessing.image_dataset_from_directory(
    data_dir,
    validation_split=0.3,
    subset="training",
    seed=12,
    image_size=(img_height, img_width),
    batch_size=batch_size)

Found 600 files belonging to 1 classes.
Using 420 files for training.

val_ds = tf.keras.preprocessing.image_dataset_from_directory(
    data_dir,
    validation_split=0.3,
    subset="validation",
    seed=12,
    image_size=(img_height, img_width),
    batch_size=batch_size)

Found 600 files belonging to 1 classes.
Using 180 files for validation.

#由于原始数据集不包含测试集，因此需要创建一个。使用 tf.data.experimental.cardinality 确定验证集中有多少批次的数据，然后将其中的 20% 移至测试集。

val_batches = tf.data.experimental.cardinality(val_ds)
test_ds     = val_ds.take(val_batches // 5)
val_ds      = val_ds.skip(val_batches // 5)

print('Number of validation batches: %d' % tf.data.experimental.cardinality(val_ds))
print('Number of test batches: %d' % tf.data.experimental.cardinality(test_ds))

Number of validation batches: 5
Number of test batches: 1

class_names = train_ds.class_names
print(class_names)

['34-data']

AUTOTUNE = tf.data.AUTOTUNE

def preprocess_image(image,label):
    return (image/255.0,label)

# 归一化处理
train_ds = train_ds.map(preprocess_image, num_parallel_calls=AUTOTUNE)
val_ds   = val_ds.map(preprocess_image, num_parallel_calls=AUTOTUNE)
test_ds  = test_ds.map(preprocess_image, num_parallel_calls=AUTOTUNE)

train_ds = train_ds.cache().prefetch(buffer_size=AUTOTUNE)
val_ds   = val_ds.cache().prefetch(buffer_size=AUTOTUNE)

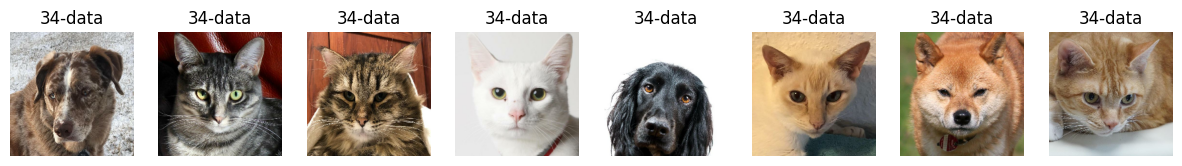

plt.figure(figsize=(15, 10))  # 图形的宽为15高为10

for images, labels in train_ds.take(1):
    for i in range(8):

        ax = plt.subplot(5, 8, i + 1)
        plt.imshow(images[i])
        plt.title(class_names[labels[i]])

        plt.axis("off")

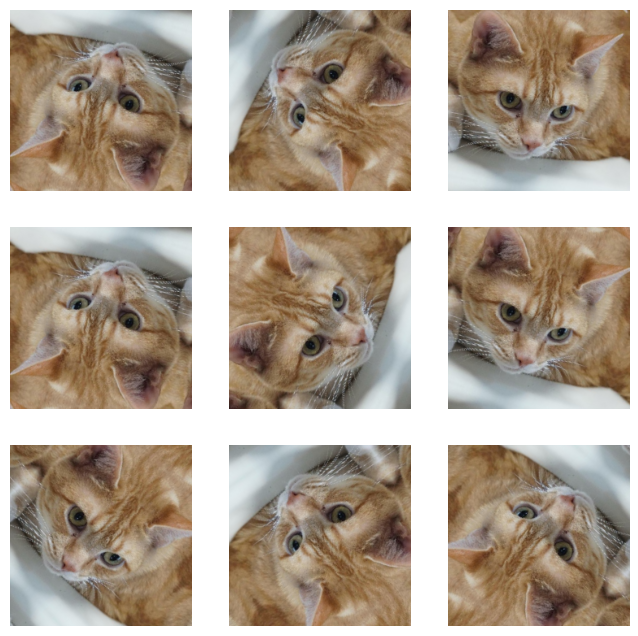

二、数据增强

data_augmentation = tf.keras.Sequential([
  tf.keras.layers.RandomFlip("horizontal_and_vertical"),  # 去掉了 experimental
  tf.keras.layers.RandomRotation(0.2),                   # 去掉了 experimental
])

# Add the image to a batch.
image = tf.expand_dims(images[i], 0)

plt.figure(figsize=(8, 8))
for i in range(9):
    augmented_image = data_augmentation(image)
    ax = plt.subplot(3, 3, i + 1)
    plt.imshow(augmented_image[0])
    plt.axis("off")

三、增强方式

#方法一：将其嵌入model中
#model = tf.keras.Sequential([
 # data_augmentation,
  #layers.Conv2D(16, 3, padding='same', activation='relu'),
  #layers.MaxPooling2D(),
#])
#方法二：在Dataset数据集中进行数据增强
batch_size = 32
AUTOTUNE = tf.data.AUTOTUNE

def prepare(ds):
    ds = ds.map(lambda x, y: (data_augmentation(x, training=True), y), num_parallel_calls=AUTOTUNE)
    return ds

四、训练模型

model = tf.keras.Sequential([
  layers.Conv2D(16, 3, padding='same', activation='relu'),
  layers.MaxPooling2D(),
  layers.Conv2D(32, 3, padding='same', activation='relu'),
  layers.MaxPooling2D(),
  layers.Conv2D(64, 3, padding='same', activation='relu'),
  layers.MaxPooling2D(),
  layers.Flatten(),
  layers.Dense(128, activation='relu'),
  layers.Dense(len(class_names))
])

model.compile(
    optimizer='adam',
    loss=tf.keras.losses.SparseCategoricalCrossentropy(from_logits=True),
    metrics=['accuracy']
)

epochs=20
history = model.fit(
    train_ds,
    validation_data=val_ds,
    epochs=epochs
)

Epoch 1/20
[1m14/14[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m4s[0m 163ms/step - accuracy: 1.0000 - loss: 0.0000e+00 - val_accuracy: 1.0000 - val_loss: 0.0000e+00
Epoch 2/20
[1m14/14[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m2s[0m 141ms/step - accuracy: 1.0000 - loss: 0.0000e+00 - val_accuracy: 1.0000 - val_loss: 0.0000e+00
Epoch 3/20
[1m14/14[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m2s[0m 138ms/step - accuracy: 1.0000 - loss: 0.0000e+00 - val_accuracy: 1.0000 - val_loss: 0.0000e+00
Epoch 4/20
[1m14/14[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m2s[0m 140ms/step - accuracy: 1.0000 - loss: 0.0000e+00 - val_accuracy: 1.0000 - val_loss: 0.0000e+00
Epoch 5/20
[1m14/14[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m2s[0m 138ms/step - accuracy: 1.0000 - loss: 0.0000e+00 - val_accuracy: 1.0000 - val_loss: 0.0000e+00
Epoch 6/20
[1m14/14[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m2s[0m 137ms/step - accuracy: 1.0000 - loss: 0.0000e+00 - val_accuracy: 1.0000 - val_loss: 0.0000e+00
Epoch 7/20
[1m14/14[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m2s[0m 137ms/step - accuracy: 1.0000 - loss: 0.0000e+00 - val_accuracy: 1.0000 - val_loss: 0.0000e+00
Epoch 8/20
[1m14/14[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m2s[0m 139ms/step - accuracy: 1.0000 - loss: 0.0000e+00 - val_accuracy: 1.0000 - val_loss: 0.0000e+00
Epoch 9/20
[1m14/14[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m2s[0m 137ms/step - accuracy: 1.0000 - loss: 0.0000e+00 - val_accuracy: 1.0000 - val_loss: 0.0000e+00
Epoch 10/20
[1m14/14[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m2s[0m 138ms/step - accuracy: 1.0000 - loss: 0.0000e+00 - val_accuracy: 1.0000 - val_loss: 0.0000e+00
Epoch 11/20
[1m14/14[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m2s[0m 138ms/step - accuracy: 1.0000 - loss: 0.0000e+00 - val_accuracy: 1.0000 - val_loss: 0.0000e+00
Epoch 12/20
[1m14/14[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m2s[0m 138ms/step - accuracy: 1.0000 - loss: 0.0000e+00 - val_accuracy: 1.0000 - val_loss: 0.0000e+00
Epoch 13/20
[1m14/14[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m2s[0m 140ms/step - accuracy: 1.0000 - loss: 0.0000e+00 - val_accuracy: 1.0000 - val_loss: 0.0000e+00
Epoch 14/20
[1m14/14[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m2s[0m 139ms/step - accuracy: 1.0000 - loss: 0.0000e+00 - val_accuracy: 1.0000 - val_loss: 0.0000e+00
Epoch 15/20
[1m14/14[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m2s[0m 138ms/step - accuracy: 1.0000 - loss: 0.0000e+00 - val_accuracy: 1.0000 - val_loss: 0.0000e+00
Epoch 16/20
[1m14/14[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m2s[0m 138ms/step - accuracy: 1.0000 - loss: 0.0000e+00 - val_accuracy: 1.0000 - val_loss: 0.0000e+00
Epoch 17/20
[1m14/14[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m2s[0m 139ms/step - accuracy: 1.0000 - loss: 0.0000e+00 - val_accuracy: 1.0000 - val_loss: 0.0000e+00
Epoch 18/20
[1m14/14[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m2s[0m 138ms/step - accuracy: 1.0000 - loss: 0.0000e+00 - val_accuracy: 1.0000 - val_loss: 0.0000e+00
Epoch 19/20
[1m14/14[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m2s[0m 145ms/step - accuracy: 1.0000 - loss: 0.0000e+00 - val_accuracy: 1.0000 - val_loss: 0.0000e+00
Epoch 20/20
[1m14/14[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m2s[0m 144ms/step - accuracy: 1.0000 - loss: 0.0000e+00 - val_accuracy: 1.0000 - val_loss: 0.0000e+00

loss,acc = model.evaluate(test_ds)
print("Accuracy", acc)

[1m1/1[0m [32m━━━━━━━━━━━━━━━━━━━━[0m[37m[0m [1m0s[0m 76ms/step - accuracy: 1.0000 - loss: 0.0000e+00
Accuracy 1.0

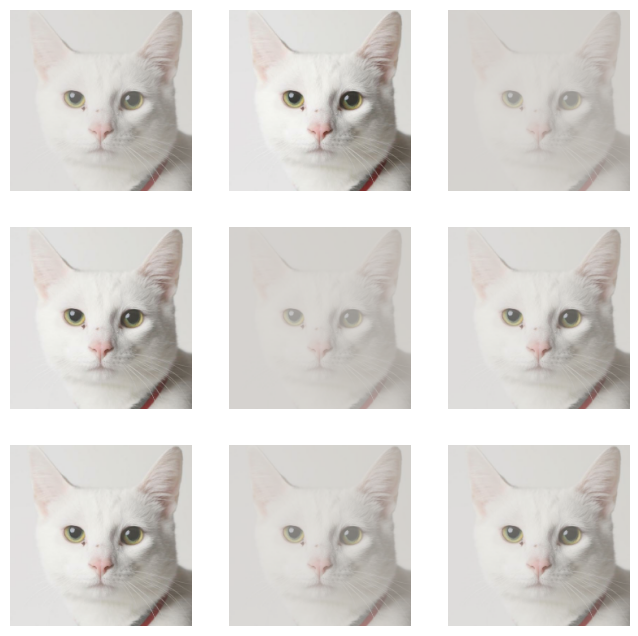

五、自定义增强函数

import random
def aug_img(image):
    seed = (random.randint(0,9), 0)
    stateless_random_brightness = tf.image.stateless_random_contrast(image, lower=0.1, upper=1.0, seed=seed)
    return stateless_random_brightness

image = tf.expand_dims(images[3]*255, 0)
print("Min and max pixel values:", image.numpy().min(), image.numpy().max())

Min and max pixel values: 14.000048 253.28577

plt.figure(figsize=(8, 8))
for i in range(9):
    augmented_image = aug_img(image)
    ax = plt.subplot(3, 3, i + 1)
    plt.imshow(augmented_image[0].numpy().astype("uint8"))

    plt.axis("off")

六、个人心得

这次的数据增强实验实操下来，收获挺多的。我学会了用 TensorFlow 读取本地图片数据集，也上手练习了图像翻转、旋转这些常用的数据增强操作。过程里踩了不少小坑，比如新旧版本接口不一样、单词拼写出错，一步步排查修正后，也摸清了常见报错的原因。
我真切感受到，数据增强能有效扩充样本、减少模型过拟合。把增强模块嵌入模型还能利用 GPU 加速，实用性很强。就算数据集数量不多，搭配数据增强也能得到不错的分类效果。接下来我也打算试试更多增强方法，多动手练习，积累实操经验。
